#00-04 Round Capsule Checkweigher For Pharmaceutical Production Solution

Checkweigher as known as check weigher, inline check weighing machine, weight checker, weight detection machine, weight sorting machine, sorting machine, weight check machine and etc,.

The high precision round capsule tablet checkweigher is used to accurately measure the weight of capsules and tablets in the pharmaceutical production process. It can weigh 100% of the capsules reliably and at high speed. The capsule checkweigher for pharmaceutical production uses an industrial computer color touch screen to reasonably set the upper and lower limits of capsule rejection. The flexibility and convenience of PLC system control are more humane and closer to production needs. If you are interested in our products and services,please keep free to contact us.

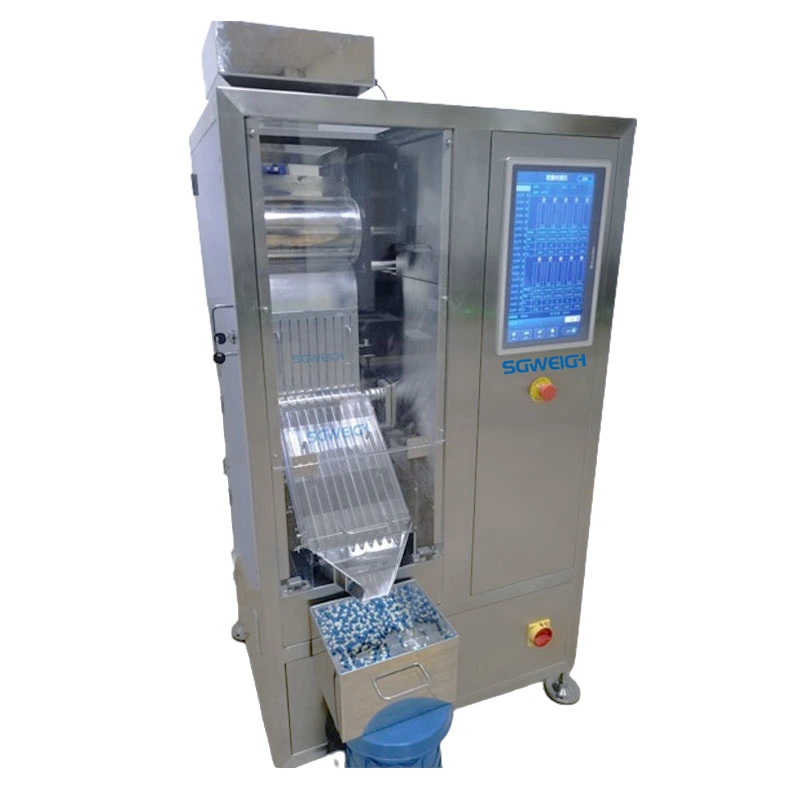

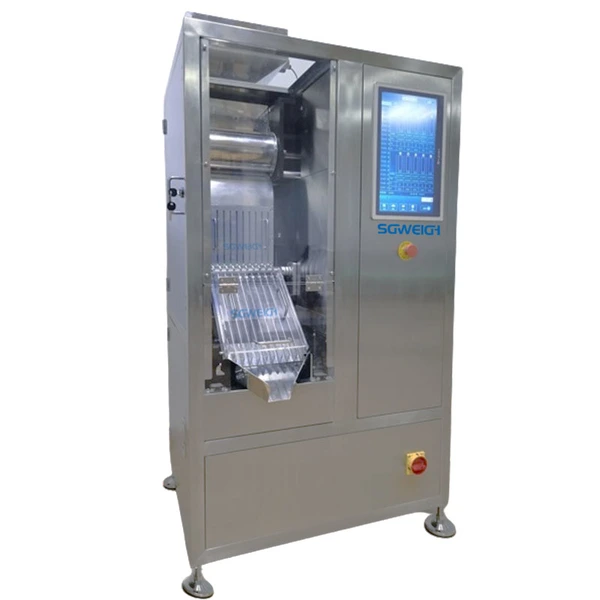

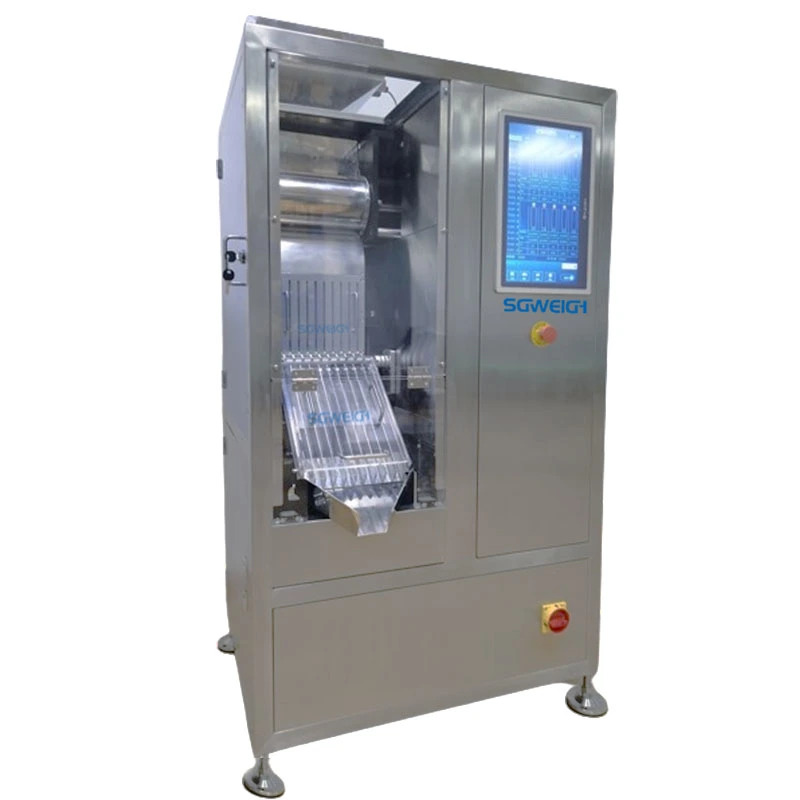

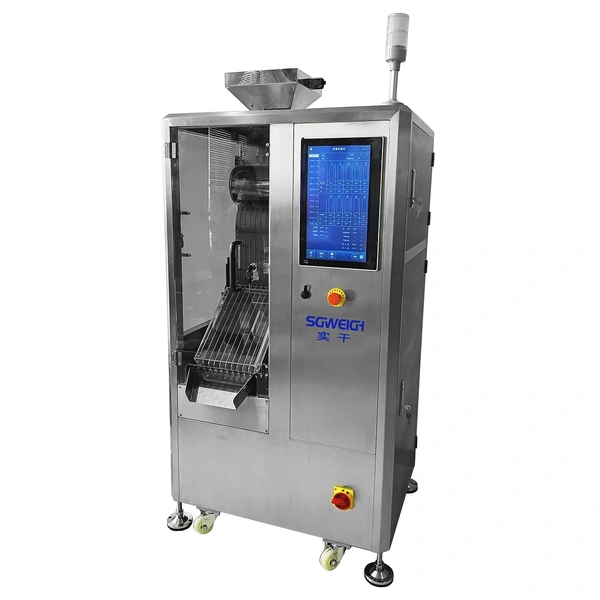

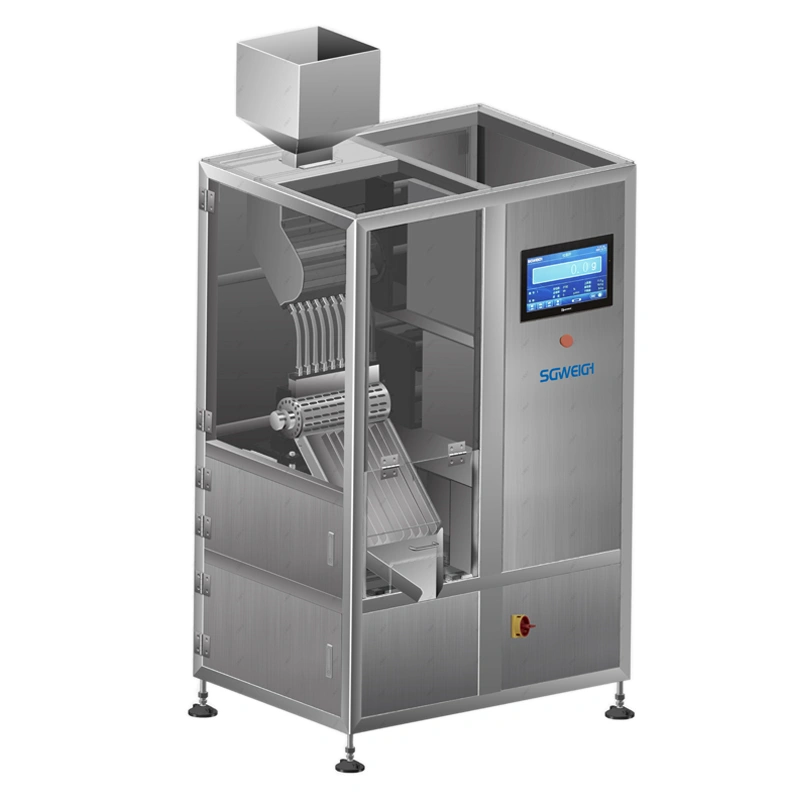

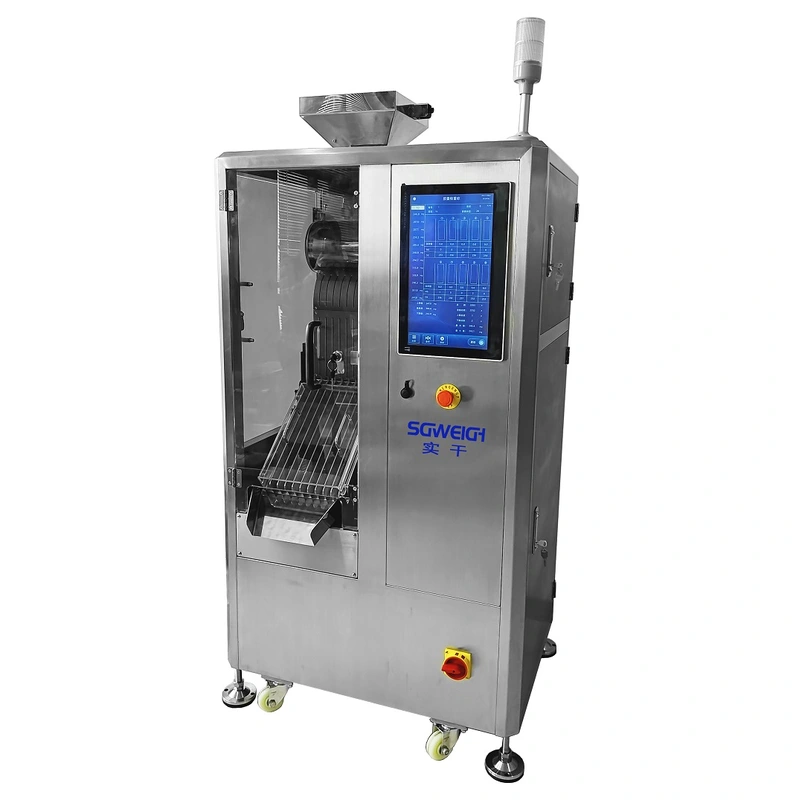

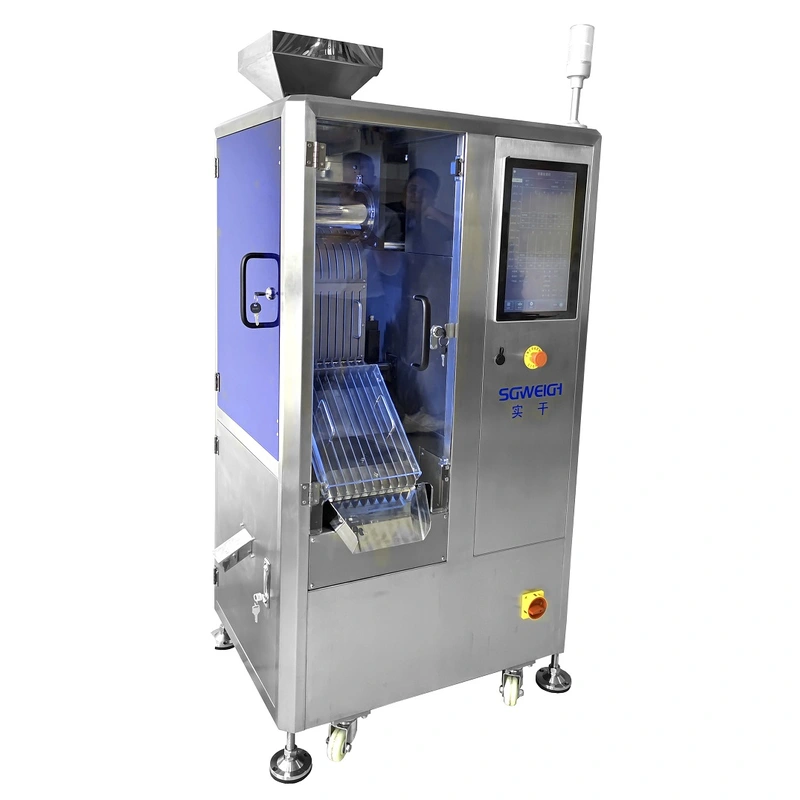

High precision round capsule tablet checkweigher photos

Type：SG-JN10/SG-JN20/SG-JN30

Weighing scope :5-2000mg

Display scale：0.1mg

Highest sorting accuracy:±0.5mg

Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)

Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR

Number of columns:10 Columns/20 Columns/30 Columns

Power supply:AC-220V±10%, 50HZ

Compressed air:0.3-0.9Mpa

Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)

Weight of Machine :350kg/500kg/700kg

Shell material:SUS304

You can select the best suitable model depending on the production volume.

1. The core part of the high precision round capsule tablet checkweigher adopts high-precision electromagnetic balance weighing sensor, DSP high-speed signal processing system and military aviation-level software algorithm, which measures data quickly, runs stably and has strong anti-environmental interference ability;

2. High precision round capsule tablet checkweigher can detect all types of capsules such as 000 00 0 1 2 3 4 5 SA, SB, and conventional tablets;

3. The whole machine's "unit expansion structure" and "infinite parallel" working mode enable one host to control up to 1024 single machines at the same time, and the work efficiency can be infinitely improved. At the same time, it becomes extremely easy to choose the model according to the work efficiency;

4. The mold adopts a building block-type overlap and positioning structure. When changing the capsule model, the mold can be quickly disassembled and assembled by hand, and the positioning is correct;

5. The molds of adjacent capsule models are universal, such as 00# and 0#, 1# and 2#, 3# and 4#, which reduces the number of molds and reduces the cost of equipment use;

6. Small size, does not take up space, and is easy to move;

7. Reasonable design, few equipment failure points, easy to use, simple operation and maintenance, low later maintenance cost;

8. Flexible work, can be used online with production equipment, or offline as a stand-alone machine;

9. Production formula management call, rich data statistics, data storage, query and printing functions;

10. Preset qualified range, fast and automatic sorting of good and bad products;

11. Ergonomic design, large-size color touch screen, humanized operation interface, intuitive chart display;

12. The human-machine interface synchronously displays the weight value of each channel, and intuitively displays the qualification of the current channel product in the form of green and red histograms, and the capsule checkweigher for pharmaceutical lights up the indicator light synchronously, making the detection process more intuitive;

13. The innovative three-channel design of good, bad and uninspected products solves the problem of discharge of uninspected products in place during abnormal shutdown and misjudgment;

14. Automatic alarm for equipment failure and prompt alarm information;

15. Comply with 21CFR part11, three-level password, electronic record electronic signature, ensure data integrity, and facilitate audit tracking;

16. Rich peripheral interfaces, including Ethernet, USB, COM port, and wireless Wifi, facilitate remote monitoring and network data exchange.

#00-04 Round Capsule Checkweigher For Pharmaceutical Production Solution

High precision round capsule tablet checkweighers measure the weight of each capsule, tablet or pill as it moves along the production line.

Customization Options

Multi-lane configuration: For high-volume production, a multi-lane checkweigher can be customized to handle multiple product lines simultaneously.

Integration with other systems: The capsule checkweigher for pharmaceutical can be integrated with other equipment, such as packaging machines, metal detectors or labelers, to create a fully automated production line.

Product-specific adjustments: Customizable parameters allow the checkweigher to accommodate capsules, tablets and pills of varying sizes, shapes and weights.

#00-04 Round Capsule Checkweigher For Pharmaceutical Production Solution

1. Waterproof PO film + wooden box

1) Dust removal and cleaning

2) Lubricate transmission parts

3) Divide the machine into modules

4) Wrap the modules with plastic film

5) Pack the modules into plywood boxes

6) Mark the box with shipping marks

2. According to the customer's packaging requirements.

1. Security:We are suppliers,Direct sales,More guarantee product quality, after-sales service and so on

2. The professional services:Years of good faith service,Solve technical problems in various ways,After-sale no Worries

3. The perfect process :Strict bill of lading, the specification of docking,Strict quality control process,Strict debugging before out of the factory

4. Powerful:Strong design team, accept orders and deliver quickly
