Accuracy Capsule Tablet Check Weigher Machine With Automatic Rejection

Accuracy Capsule Tablet Check Weigher Machine With Automatic Rejection

Accuracy capsule tablet check weigher machines are precision weighing solutions tailored for pharmaceutical capsules. They accurately measure the weight of individual capsules during the pharmaceutical manufacturing process and separate qualified capsules from unqualified capsules. The capsule tablet checkweigher with automatic rejection weight plate uses an industrial computer color touch screen to reasonably set the upper and lower limits for capsule rejection.

tag:

Description

Accuracy Capsule Tablet Check Weigher Machine With Automatic Rejection

Accuracy capsule tablet check weigher machines are precision weighing solutions tailored for pharmaceutical capsules. They accurately measure the weight of individual capsules during the pharmaceutical manufacturing process and separate qualified capsules from unqualified capsules. The capsule tablet checkweigher with automatic rejection weight plate uses an industrial computer color touch screen to reasonably set the upper and lower limits for capsule rejection. It uses a high-speed weighing module and checkweighing algorithm software to quickly make qualified judgments and accurately reject unqualified capsules at high speed. To know more, please you do not hesitate to contact us.

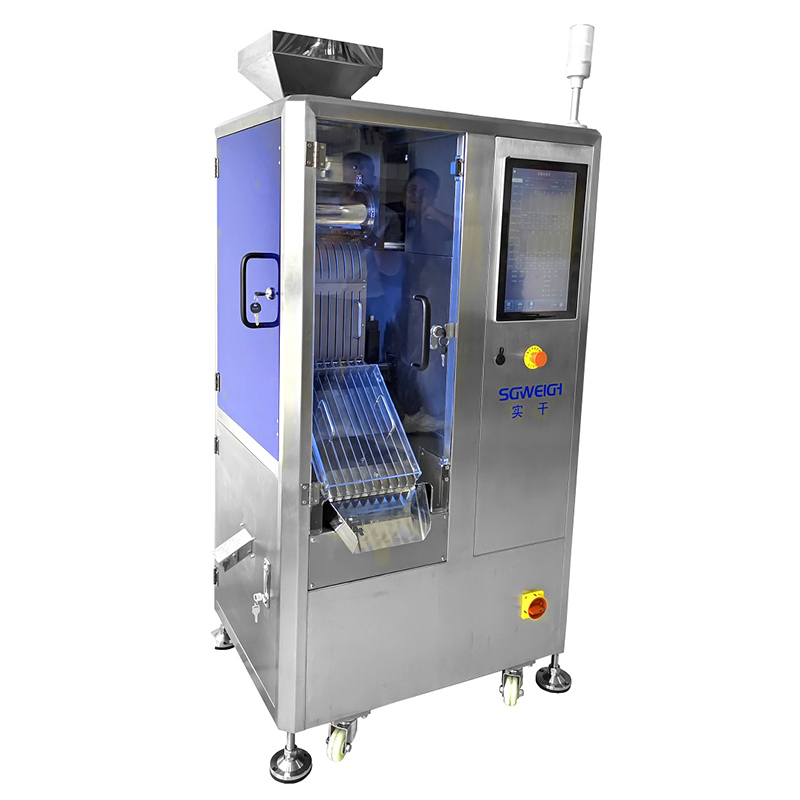

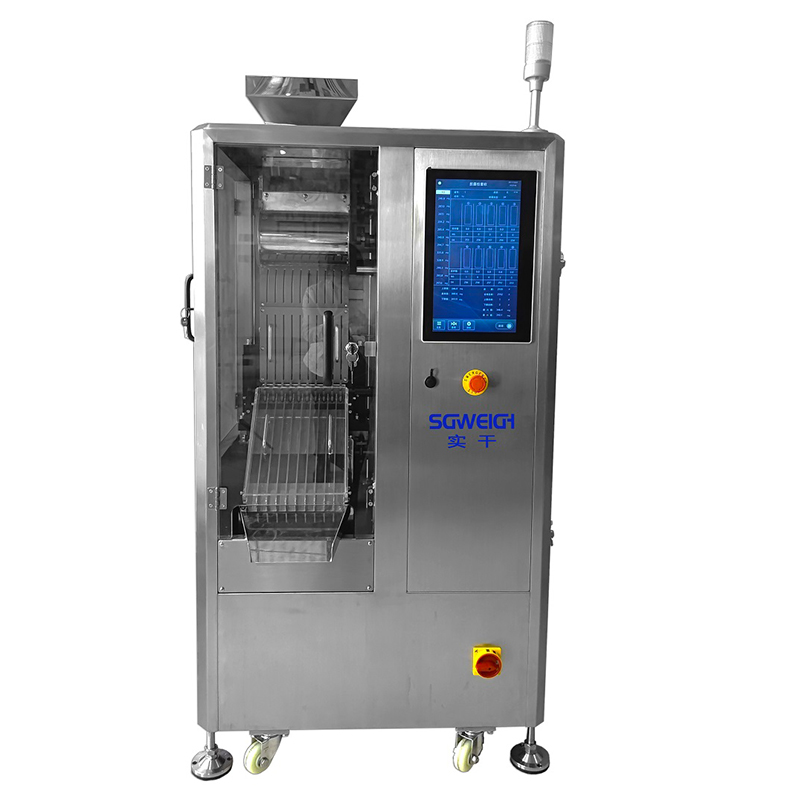

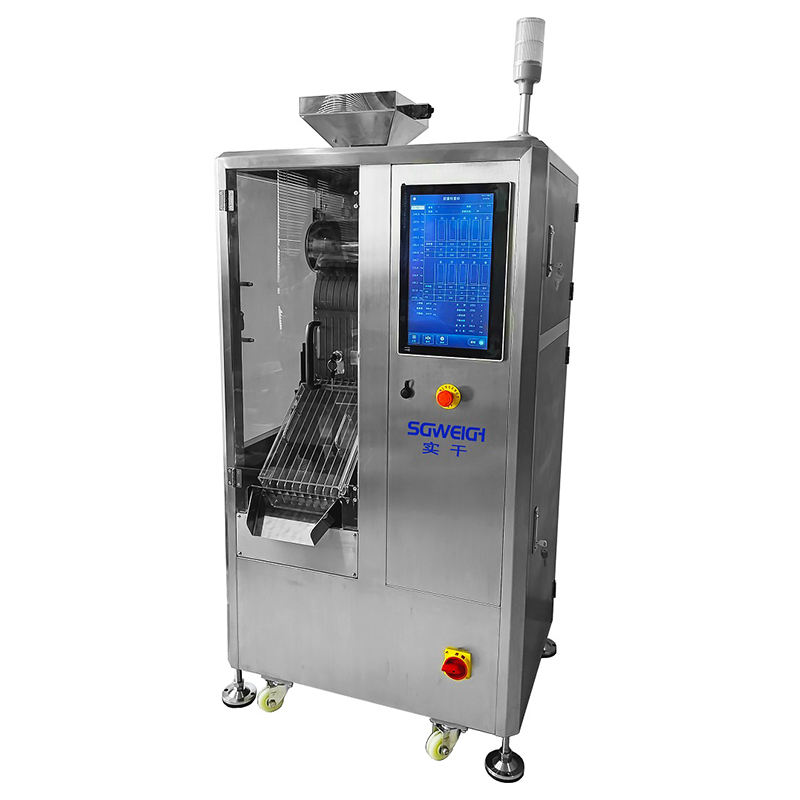

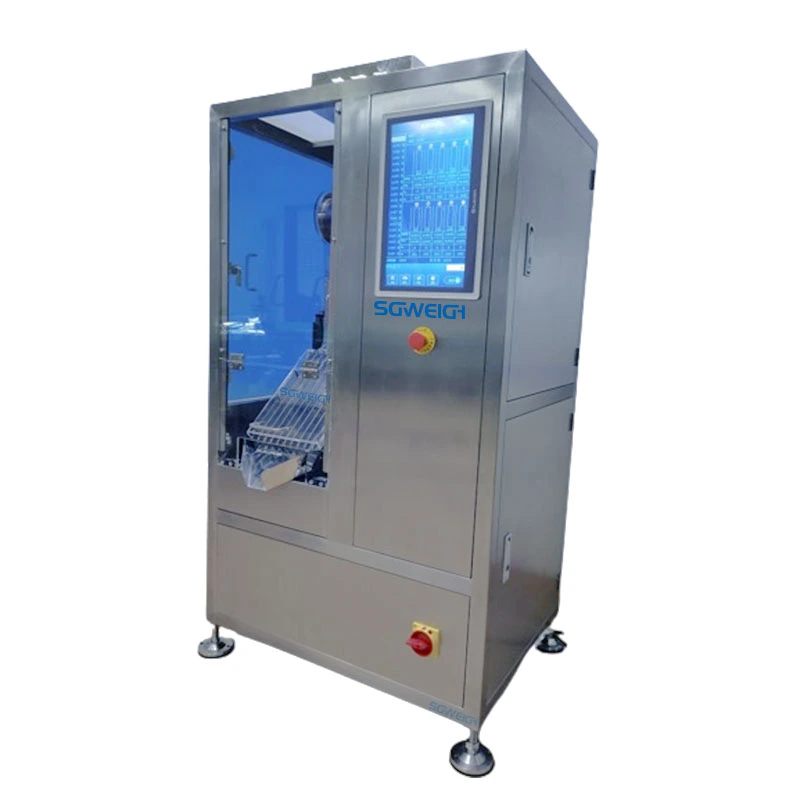

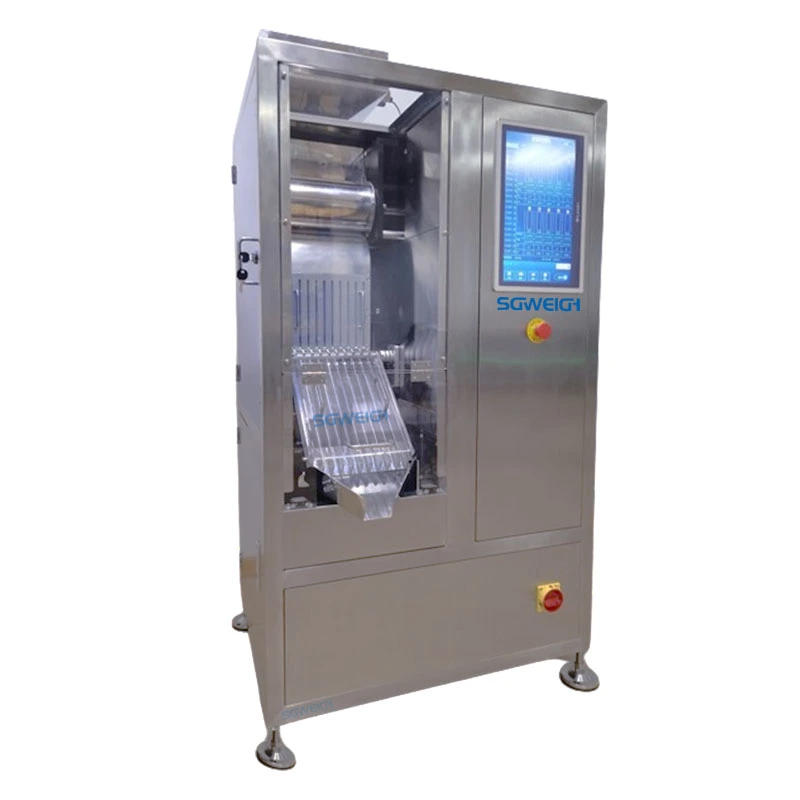

Accuracy capsule tablet check weigher machine pictures

Accuracy Capsule Tablet Check Weigher

Capsule Tablet Check Weigher With Automatic Rejection

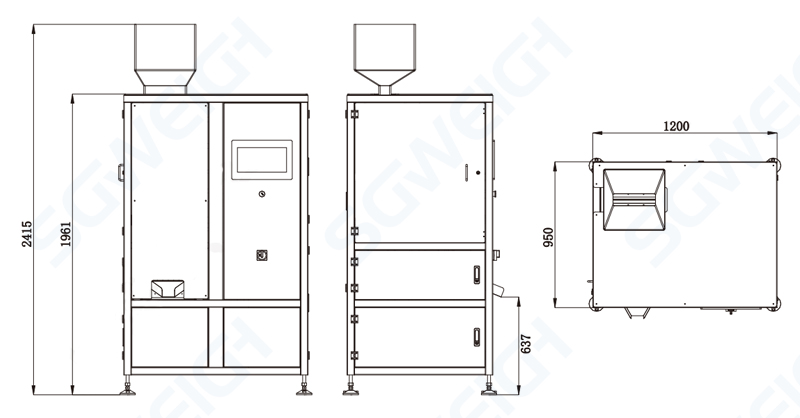

Accuracy Capsule Tablet Check Weigher

Type SG-JN10

Weighing Range 5-2000mg

Display Scale: 0.1mg

Highest sorting accuracy: ±0.5mg

Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)

Highest sorting ability: 7.5W pcs/HR

Number of columns: 10

Powder Supply: AC -220V ±10% 50HZ

Compressed Air: 0.3-0.9Mpa

Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)

Machine Weight:350kg

Shell Material:SUS304 Stainless Steel


Accuracy Capsule Tablet Check Weigher Machine With Automatic Rejection


1. Can actually display the relevant data of each channel

2. Three-level operation authority management, support self-set password

3. 100 product formulas are preset and stored

4. All channels can be cleaned without disassembly

5. Multi-channel product delivery improves production efficiency (the number of channels can be customized)

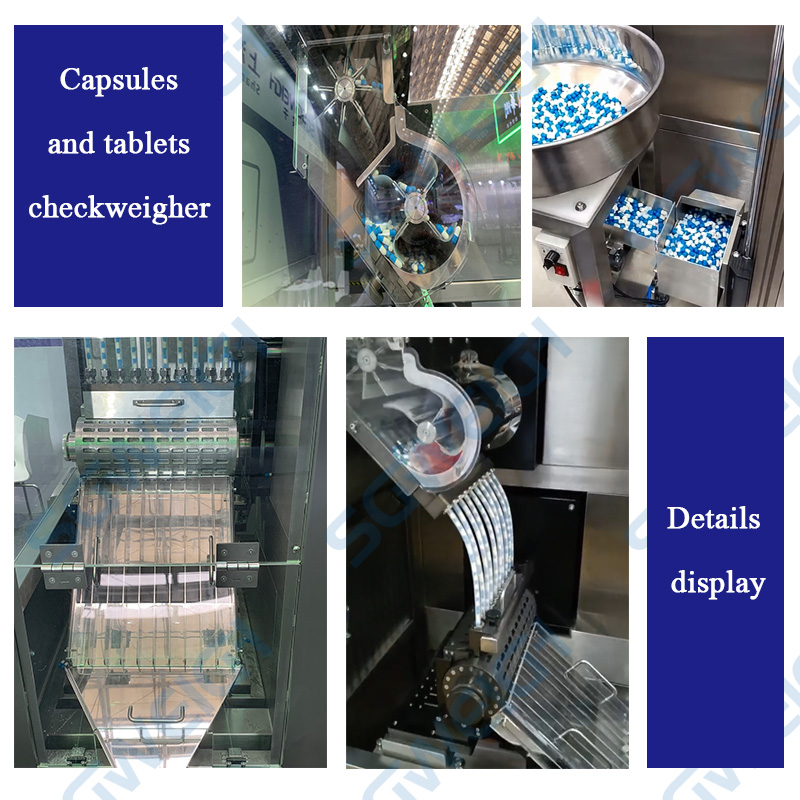

6. The capsules put into the feed hopper are divided into multiple lanes by the silo for high-speed transportation, weighing and sorting.

7. Improve the reliability and environmental flexibility of capsule handling.

8. Can handle a variety of capsules.

9. Ensure accurate detection and reliably reject products with inappropriate weight.

1. Pharmaceutical Manufacturing: Widely used in the pharmaceutical industry to ensure that each capsule, tablet or pill contains the correct weight.

2. Nutraceuticals: Used in the production of dietary supplements, vitamins and other health products to verify the correct weight and dosage.

3. Quality Control: As the final quality control step before packaging, it prevents underfilled or overfilled products from reaching consumers.

capsule tablets.jpg

Our company has rich experience in capsule tablet checkweigher manufacturing. We can provide you with the most cost-effective accuracy capsule tablet check weigher machine solution according to your actual needs. If you need, please feel free to contact us.
