Automatic Capsule and Tablet Checkweigher System Precision Medicine Weighing Solution
This automatic capsule and tablet checkweigher is designed to provide superior weighing accuracy for solid dosage forms. It handles capsules and tablets of various sizes and weights, ensuring each product meets precise specifications. A smooth surface and reliable conveying system reduce the risk of contamination, while intelligent weight control minimizes false rejections. Capsule tablet checkweigher for pharmaceutical integrates seamlessly into automated packaging and blister packing production lines. If you are interested in our products and services,please keep free to contact us for a quote.

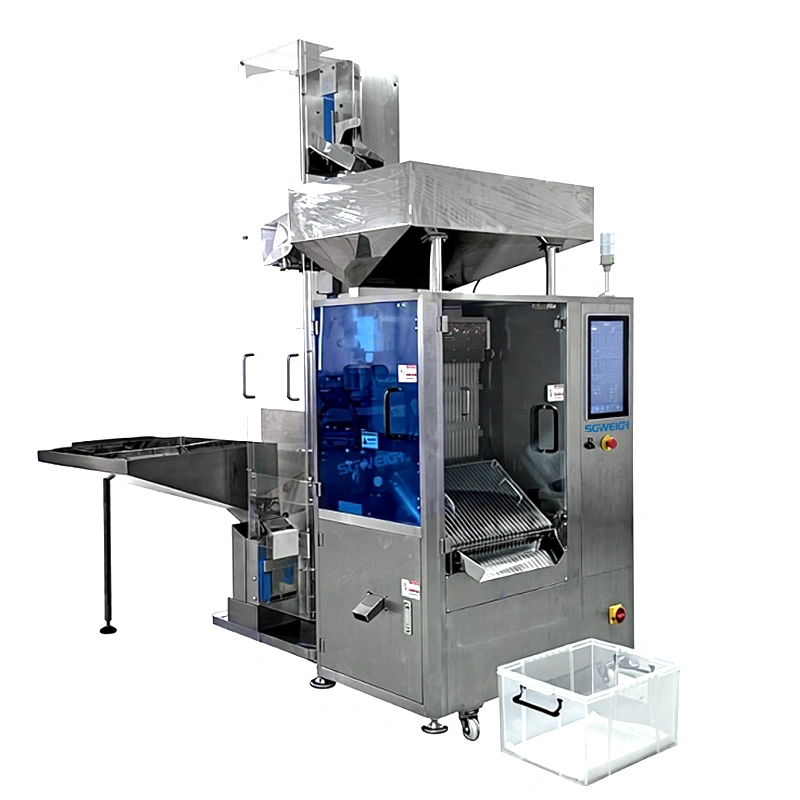

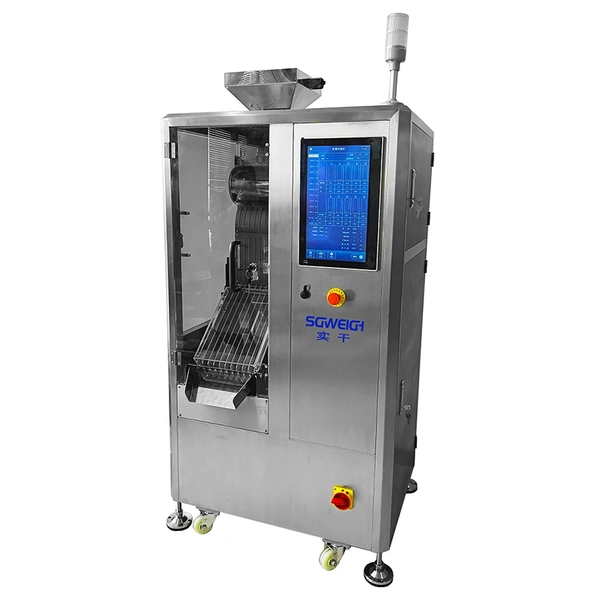

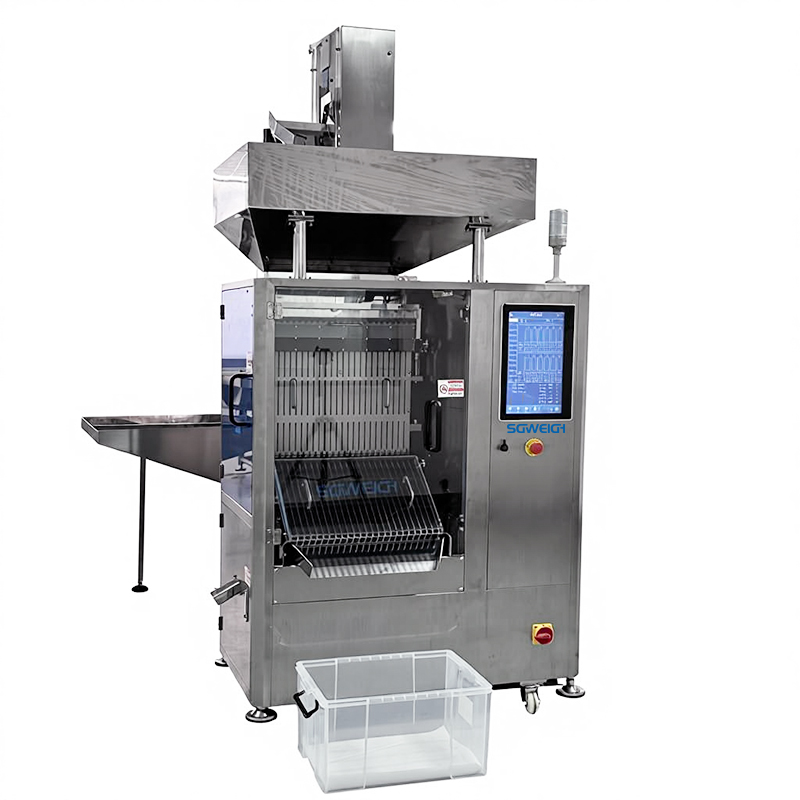

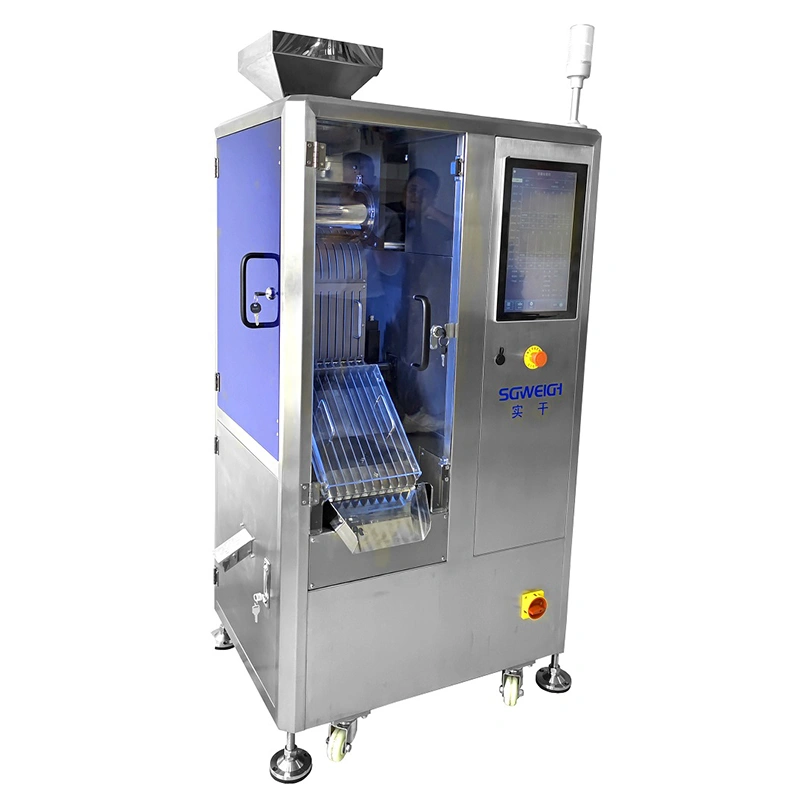

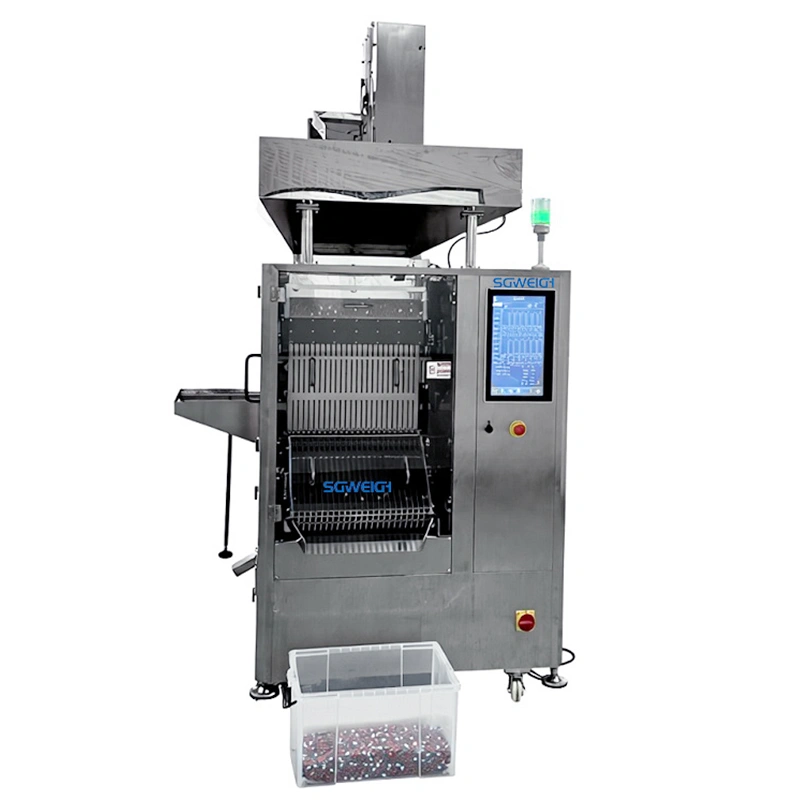

Automatic capsule and tablet checkweigher photos
1. Loading and Arranging: The loader delivers capsules to the feed inlet, and a vibratory feeder arranges the disordered capsules into a neat row, then feeds them one by one into the inspection track.
2. Dynamic Weighing: The capsules pass over high-precision weighing sensors on a high-speed conveyor belt. The sensors collect the weight signal of the capsules in real time.
3. Signal Processing: The weight signal is transmitted to the core processing unit, which compares the real-time weight with preset upper and lower weight limits.
4. Judgment and Sorting:
Qualified Capsules: Capsules with a weight within the acceptable range continue along the track and enter the next process.
Unqualified Capsules: The automatic capsule and tablet checkweigher records capsules that are overweight or underweight.
5. Automatic Rejection: When an unqualified product reaches the rejection device, the processing unit issues a command to accurately reject it and place it in the waste bin.
Type：SG-JN10/SG-JN20/SG-JN30
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
Automatic Capsule and Tablet Checkweigher System Precision Medicine Weighing Solution
1. Supports multiple capsule sizes, including 000#, 00#, 0#, 1#, 2#, 3#, 4#, and 5#, as well as soft capsules, clear capsules, and other types.
2. Supports multiple tablets and pills.

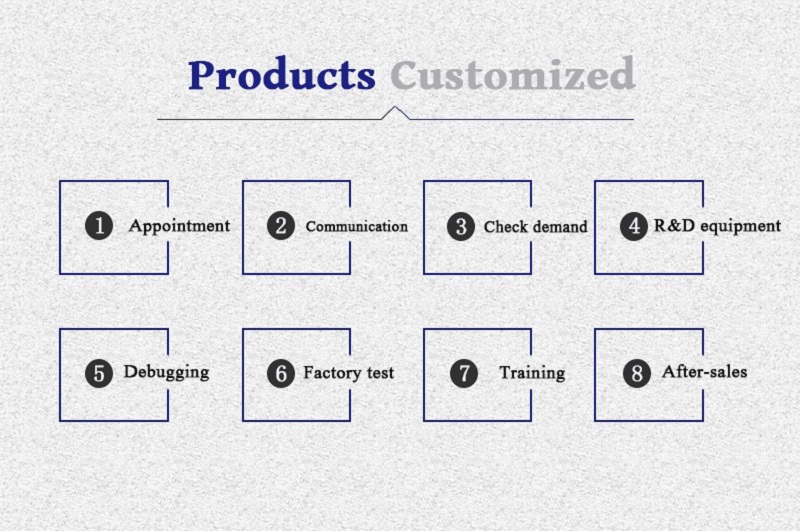

Our goal is to provide you with the perfect capsule and tablet checkweigher solution. Customization is supported. Please tell us about your requirements, so we can provide you with suitable models. We will do our best to address any other technical requirements.
Automatic Capsule and Tablet Checkweigher System Precision Medicine Weighing Solution

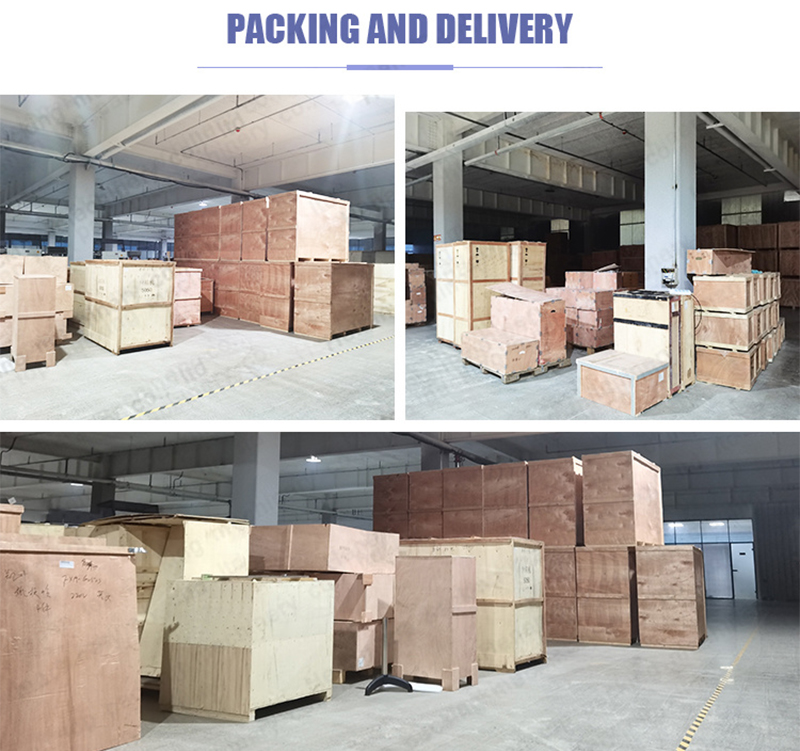

Equipment packaged in export standard wooden boxes (fumigation-free) meets international transportation requirements and can ensure the safety and reliability of the equipment during transportation.
Our professional logistics team has extensive experience in handling sea, air and rail transport for you. No matter which mode of transport you choose, we will ensure that your goods arrive at their destination safely and on time.
1. Are you a manufacturer or a trading company?

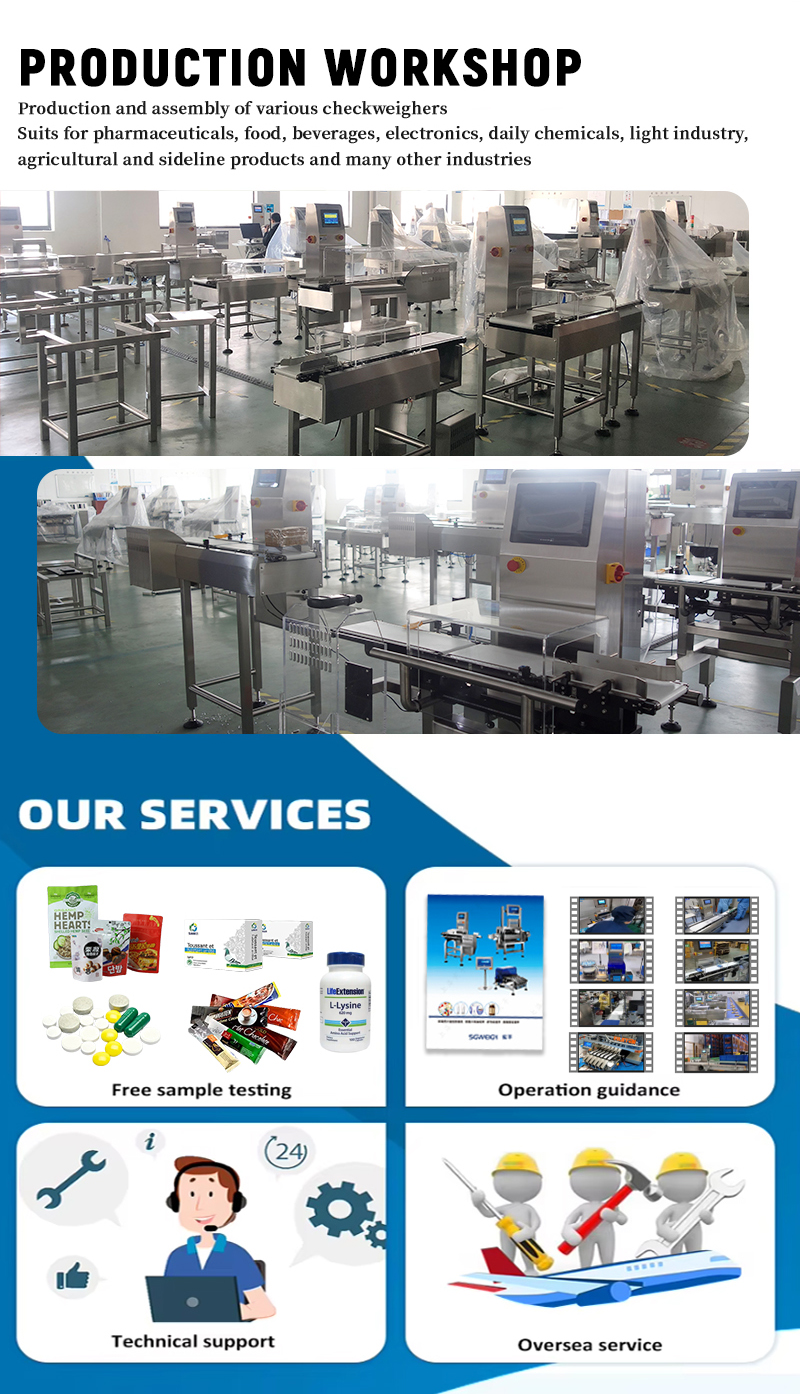

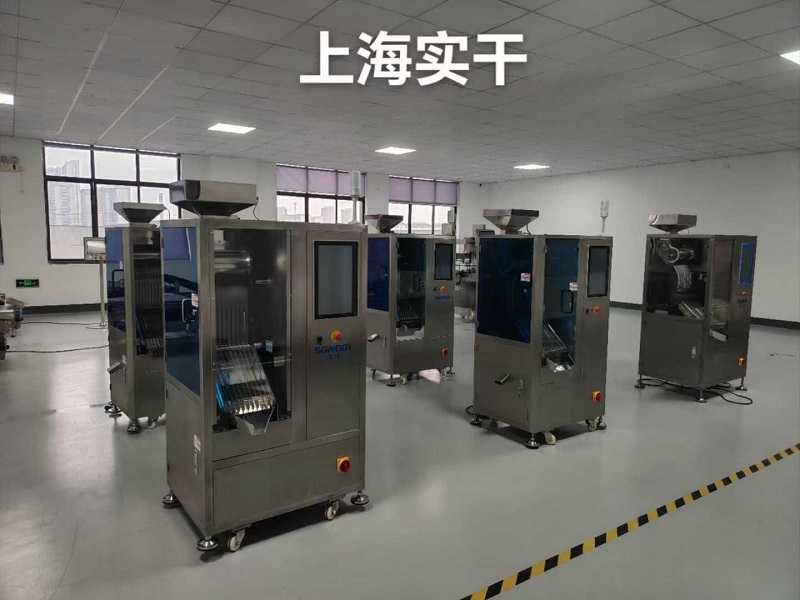

We are a manufacturer with our own factory in Jiaxing, Zhejiang Province, and our business office is in Shanghai, China. We have independent departments for purchasing, production, processing, testing, packaging, storage, and transportation. We believe our team is one of the best in China.
2. What are your main products?
We specialize in checkweighers, metal detectors, and other related electronic products and machines.
3. Where are your main sales markets?

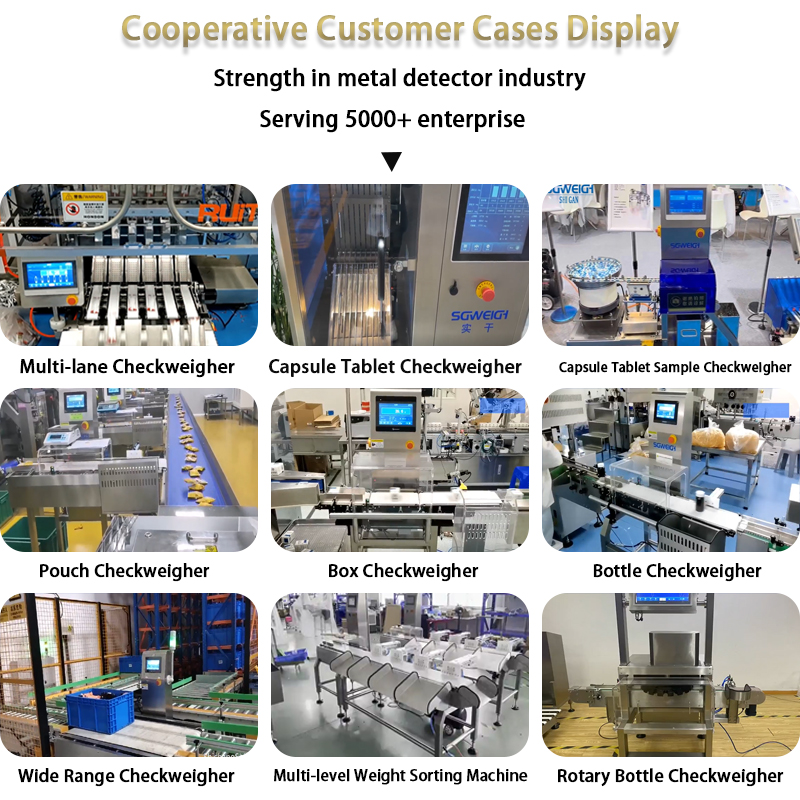

Our checkweighers and metal detectors are sold in dozens of countries and regions worldwide, including Europe, Asia, Africa, South America, and the Middle East, and have received strong support from customers everywhere.
4. What is your after-sales policy?
Customer first is our consistent principle. The normal warranty period for all our products is 12 months. We will provide necessary feedback or video guidance for daily issues. 7/24 online technical support.
5. Do you accept customer logos and customizations?
We accept all kinds of customizations and logos for all customer products.
