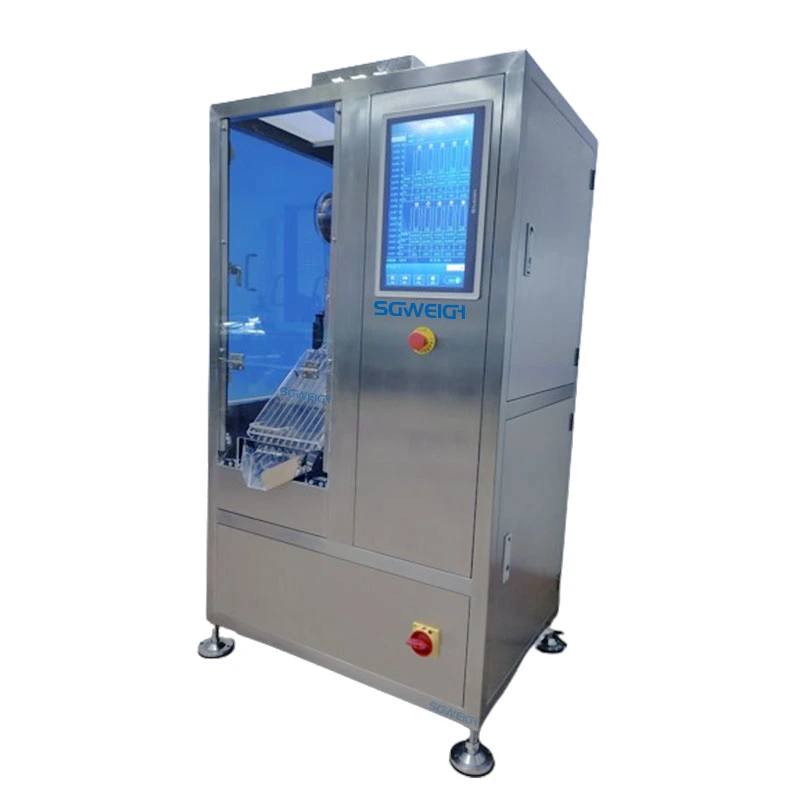

Automatic Capsule Checkweigher Pharmaceuticals Weight Checking Machine

Automatic Capsule Checkweigher Pharmaceuticals Weight Checking Machine

An automatic capsule checkweigher measures the weight of each capsule, tablet or pill on the production line. It compares the measured weight to a predefined weight range to determine if the product is within acceptable limits. Pharmaceuticals weight checking machines are designed for high-speed operation, weighing hundreds or even thousands of units per minute with high accuracy, typically down to the milligram, to ensure compliance with stringent industry standards.

tag:

Description

Automatic Capsule Checkweigher Pharmaceuticals Weight Checking Machine

An automatic capsule checkweigher measures the weight of each capsule, tablet or pill on the production line. It compares the measured weight to a predefined weight range to determine if the product is within acceptable limits. Pharmaceuticals weight checking machines are designed for high-speed operation, weighing hundreds or even thousands of units per minute with high accuracy, typically down to the milligram, to ensure compliance with stringent industry standards. You are welcome to contact us at any time for quotation.

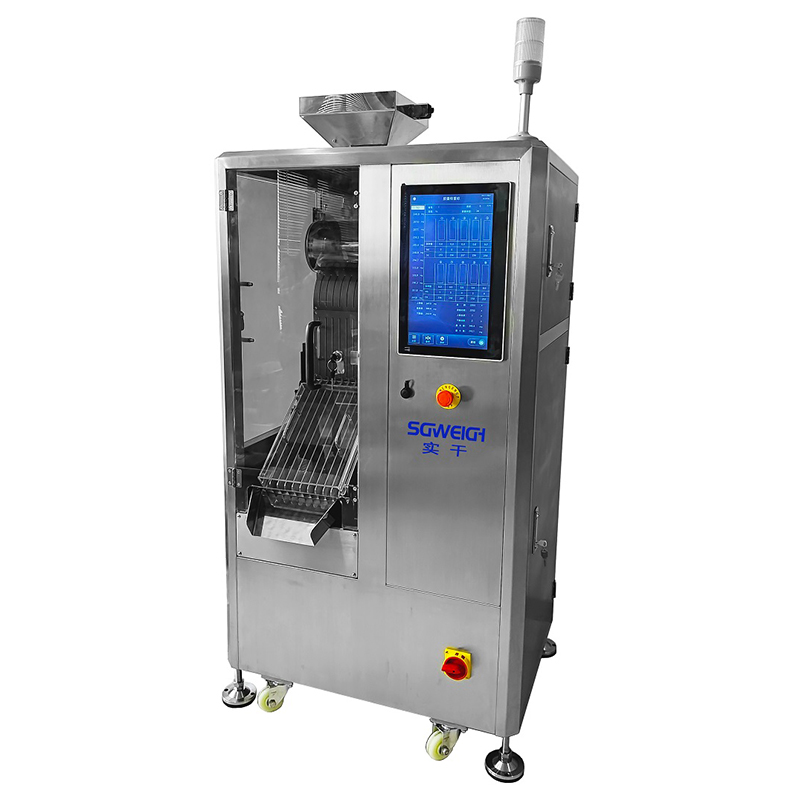

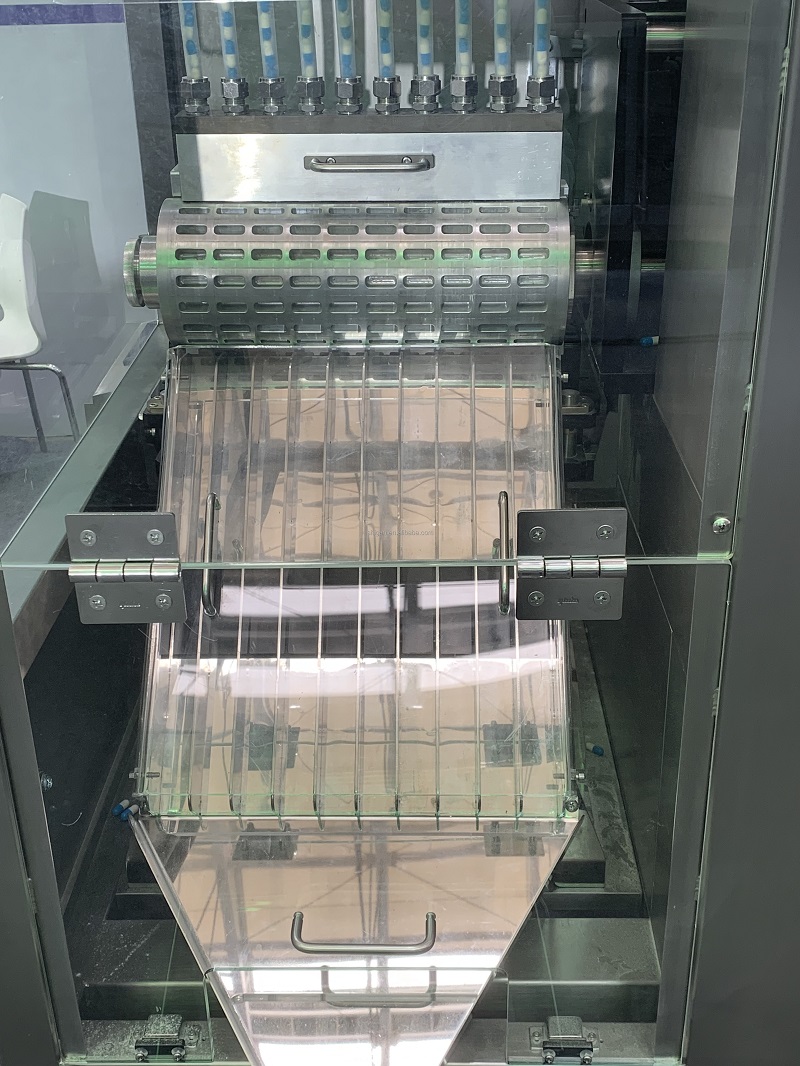

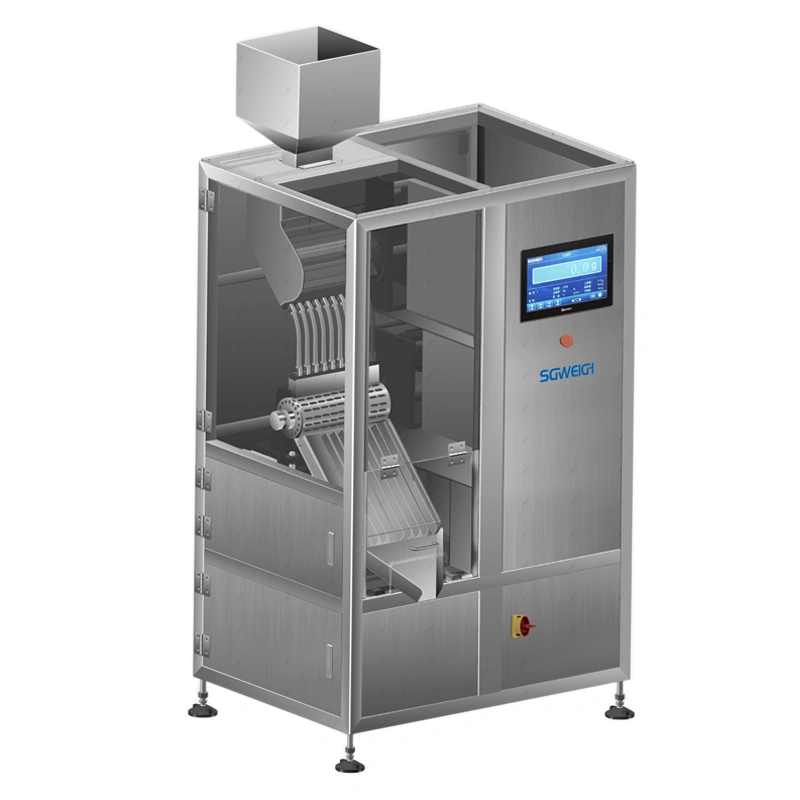

Automatic capsule checkweigher pictures

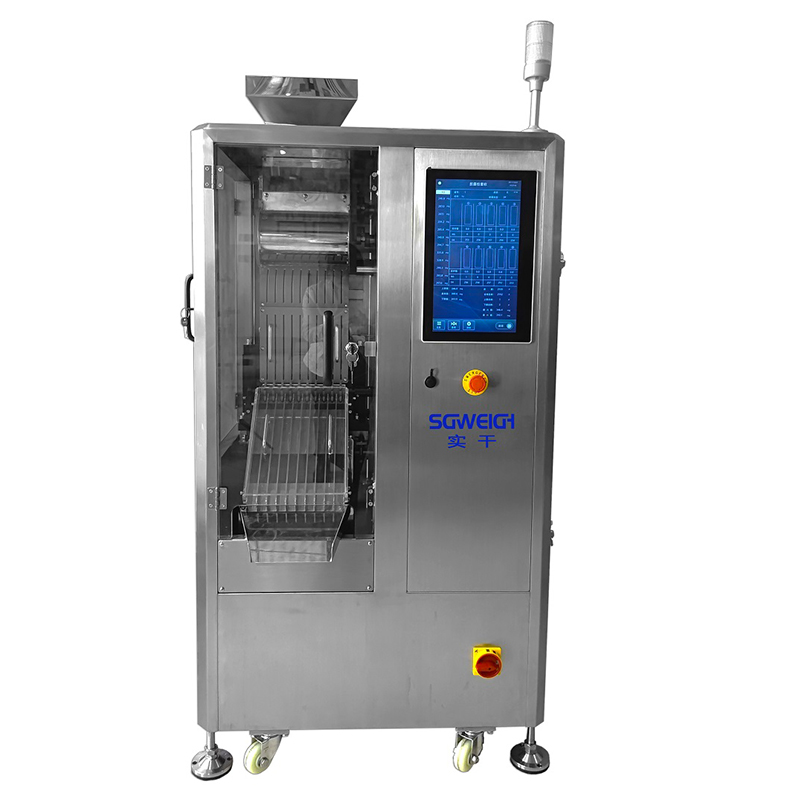

Automatic Capsule Checkweigher

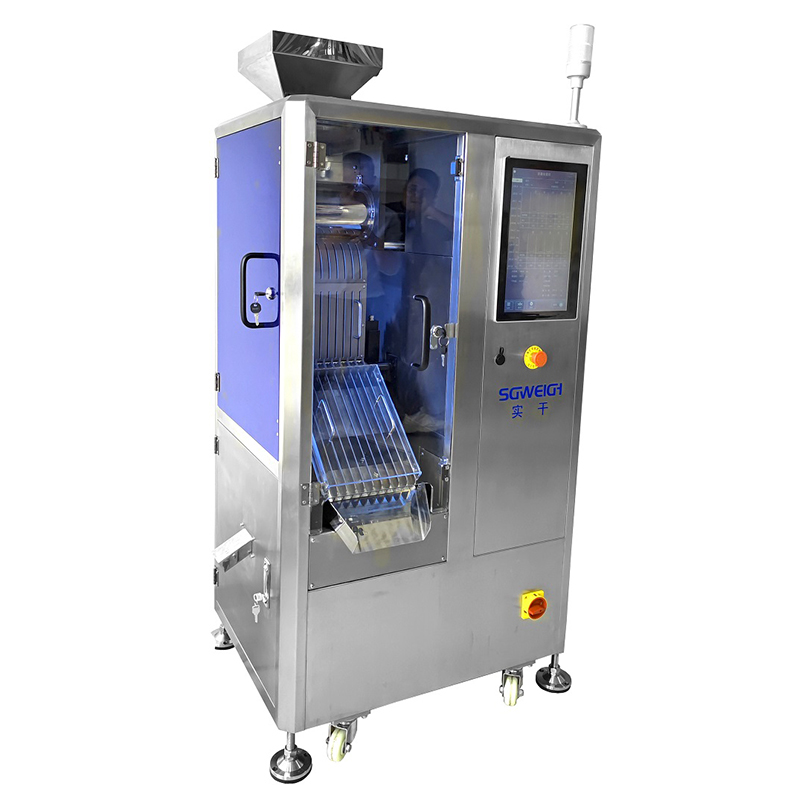

Automatic Capsule Weight Checking Machine

Automatic Capsule Checkweigher for Pharmaceuticals

Type：SG-JN10/SG-JN20/SG-JN30

Weighing scope :5-2000mg

Display scale：0.1mg

Highest sorting accuracy:±0.5mg

Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)

Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR

Number of columns:10 Columns/20 Columns/30 Columns

Power supply:AC-220V±10%, 50HZ

Compressed air:0.3-0.9Mpa

Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)

Weight of Machine :350kg/500kg/700kg

Shell material:SUS304

You can select the best suitable model depending on the production volume.


Automatic Capsule Checkweigher Pharmaceuticals Weight Checking Machine

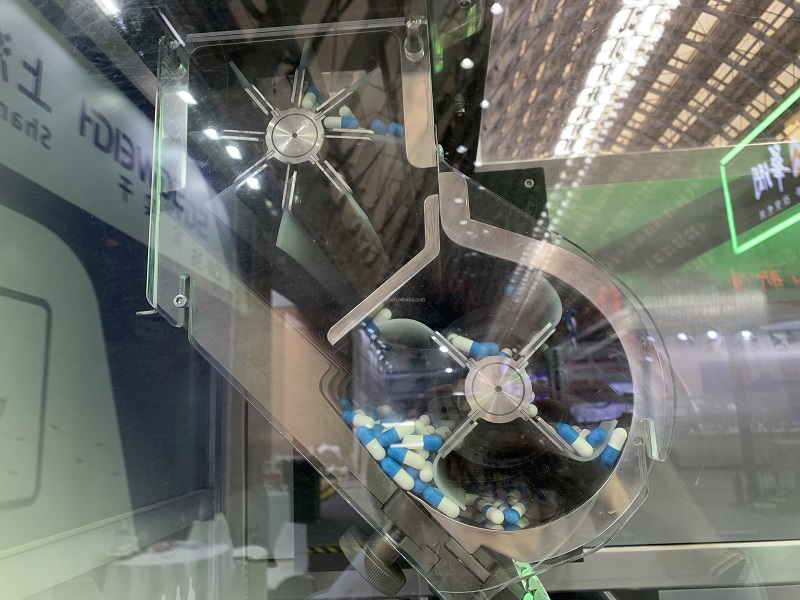

1. Our unique capsule handling technology eliminates empty capsule bounce and provides a steady feed throughout the inspection process.

2. Every capsule in the system is monitored and tracked.

3. Designed with simplicity and safety in mind.

4. Large intuitive touch screen allows for quick assessment of production trends.

5. Displays histogram and trend information as well as under and overweight counts for each line.

6. Tool-free replacement parts for capsules sizes 000 to 5.

7. Load cell protection

1.lt is mainly used for sampling of capsules/tablets, regular or irregular small batch weight detection.

2.lt can be directly connected to the capsule filler/tablet press,or it can also be used in a single machine.

3.There is no need to change the mould, and it is suitable for capsules or tablets of various sizes.

4.Automatic recycling of qualified products.

capsule tablet pill.jpg

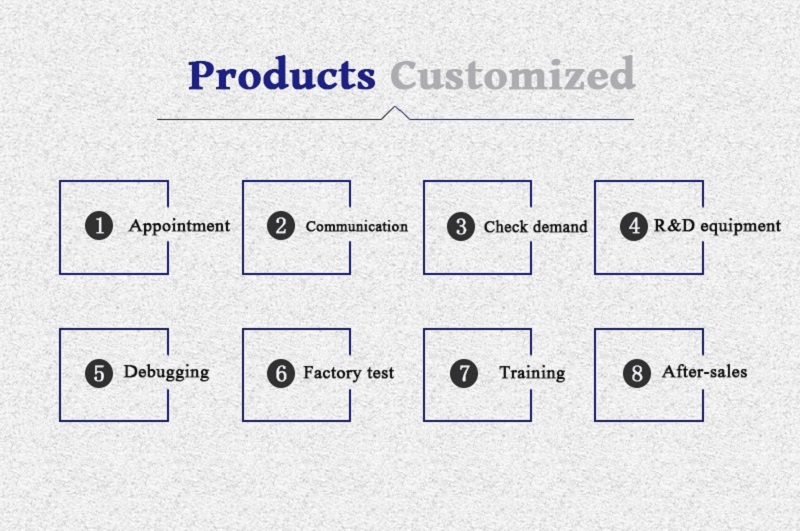

The automatic capsule checkweigher demonstrating may not perfectly meet your requirements,

our philosophy is to customize your real need.

To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:

1. Products to be packed

2. Container to be filled, type and specification.

3. Capacity requirement

4. Automation requirement

5. Protection requirement

6. Other specific requirement

Automatic Capsule Checkweigher Pharmaceuticals Weight Checking Machine

production process.jpg

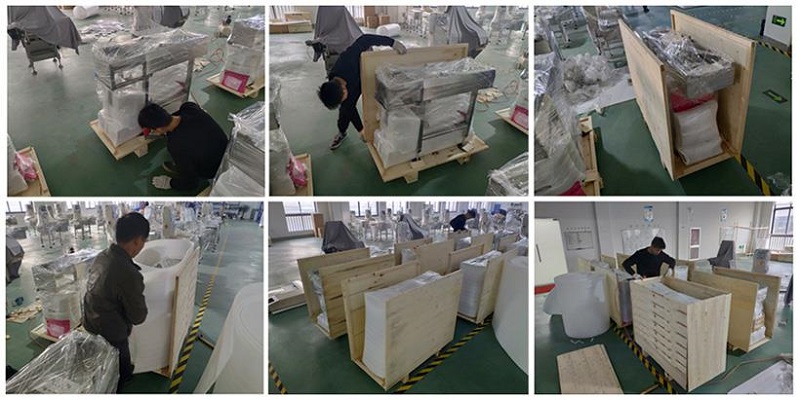

1. Waterproof PO film + wooden box

1) Dust removal and cleaning

2) Lubricate transmission parts

3) Divide the machine into modules

4) Wrap the modules with plastic film

5) Pack the modules into plywood boxes

6) Mark the box with shipping marks

2. According to the customer's packaging requirements.

1. Warranty: Our packaging machine has a 12-month warranty.

2. After-sales service: One-year warranty, lifetime maintenance

3. Technical support: We will provide technical consultation to customers before they place an order, provide drawing specifications, design customized solutions, and analyze and solve technical problems.

4. Operation training: We welcome customers' technicians to come to our factory to learn the operation process, take photos and videos.
