High-Precision Capsule Checkweigher Efficient Real-Time Weighing Machine
Checkweigher as known as check weigher, inline check weighing machine, weight checker, weight detection machine, weight sorting machine, sorting machine, weight check machine and etc,.
This high-precision capsule checkweigher weighs individual capsules at high speeds with ultra-high accuracy, detecting even the slightest deviation in capsule weight, helping to prevent under- or over-dosing and ensuring only product that meets specifications enters the package. Efficient real-time capsule weighing machine can easily handle high-volume production, and its stainless steel construction and hygienic design support cleanroom installation and meet stringent pharmaceutical production requirements. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

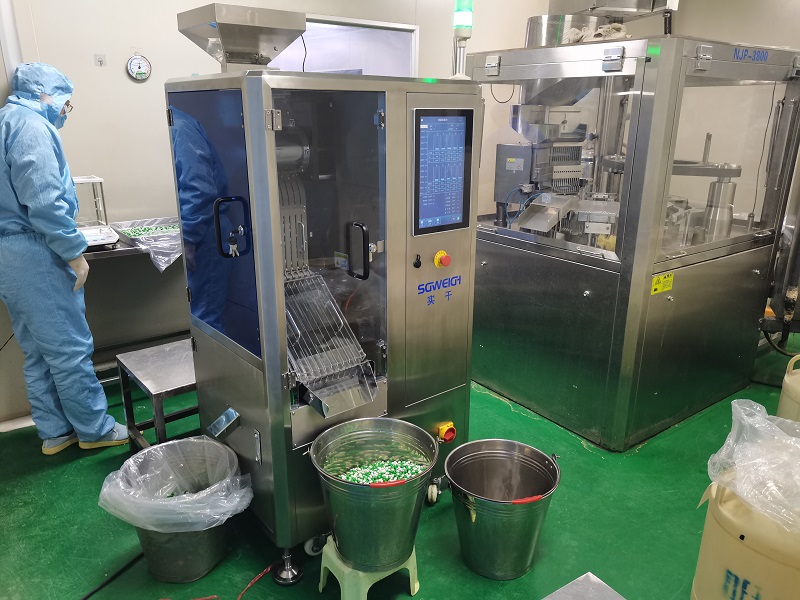

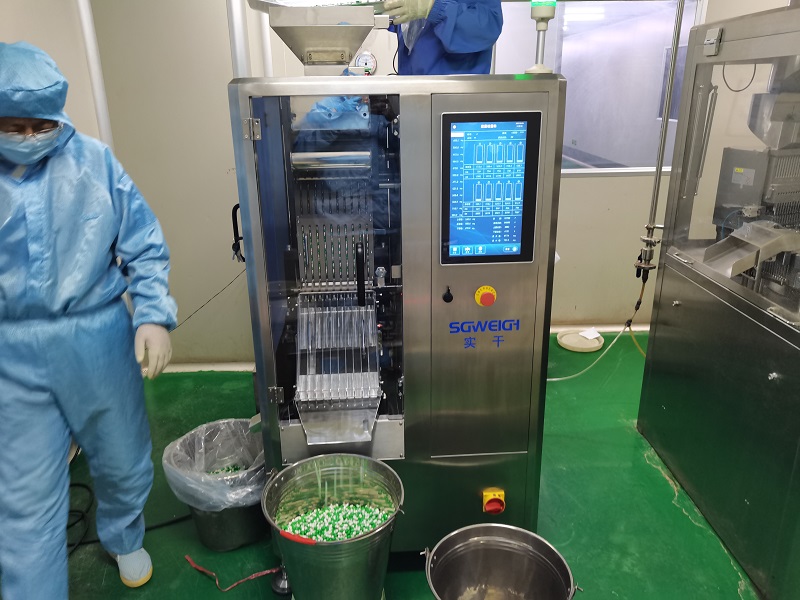

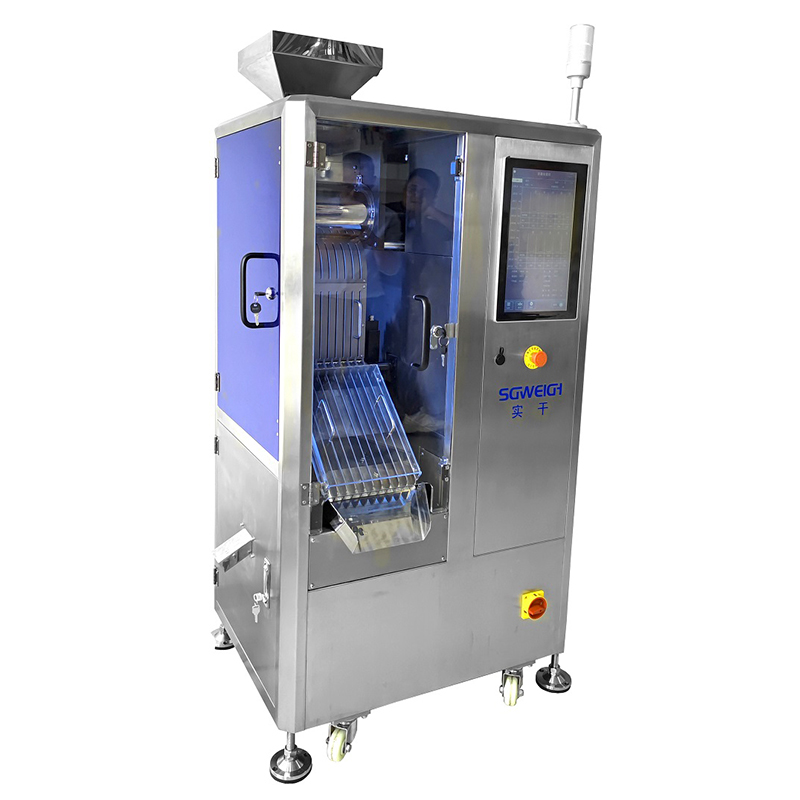

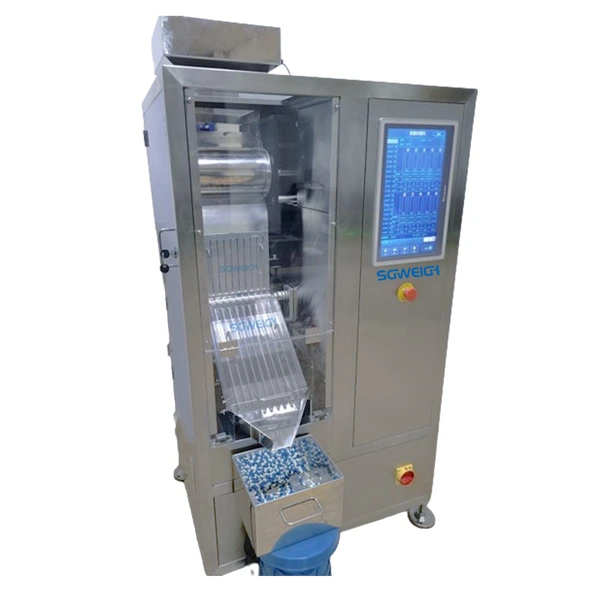

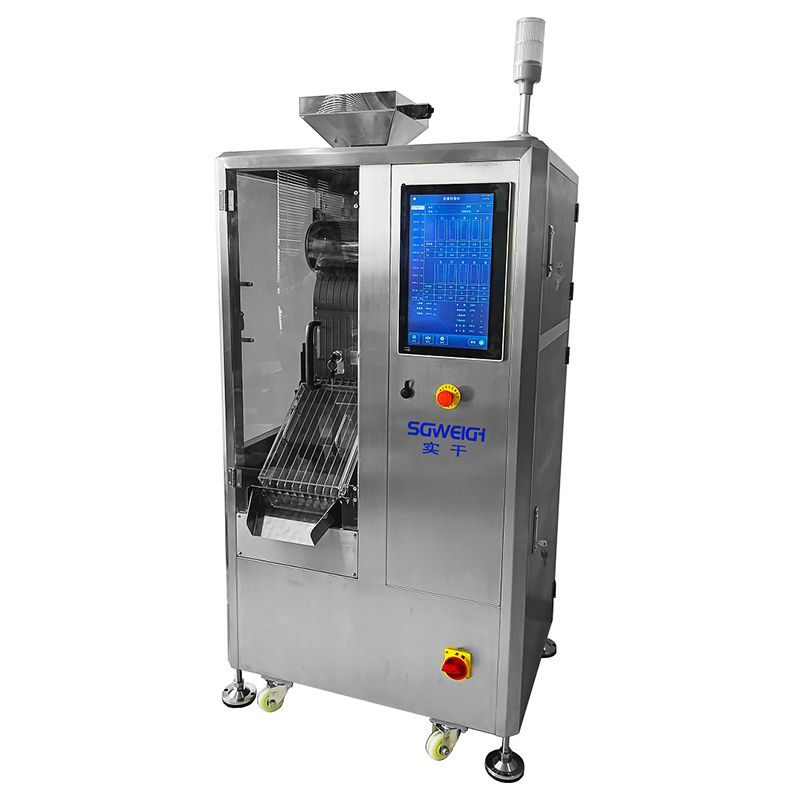

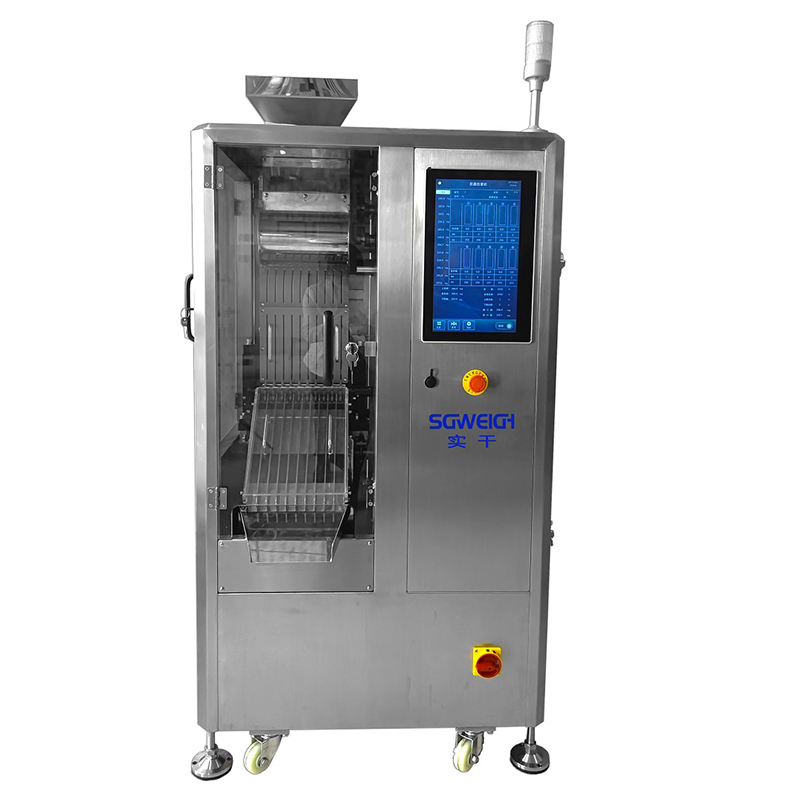

High-precision capsule checkweigher photos
Type SG-JN10
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 7.5W pcs/HR
Number of columns: 10
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:350kg
Shell Material:SUS304 Stainless Steel
1. Simple: large-size LCD touch screen display, Chinese and English interface, language customization.
2. Precision: high-precision sensor, high detection accuracy, fast detection speed.
3. Real-time: The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.
4. Memory: 100 product sorting parameters can be preset, and different products can be quickly switched.
5. Automatic learning: high-speed and high-precision digital filtering algorithm, data filtering parameters, automatic learning.
6. Intelligence: dynamic zero-point tracking, including zero-point tracking when the equipment is running continuously, can automatically correct the weight value.
7. Reliability: variable frequency motor drive, effectively improve the stability of equipment operation.
8. Data: preset data transmission interface, product sorting parameters can be set or exported via USB.
9. Precision: photoelectric verification weighing trigger method is adopted to effectively improve the accuracy of the equipment.
10. Removal: a variety of removal methods are optional, which can remove overweight or underweight products.
This high-precision capsule checkweigher is designed with flexibility to accommodate a wide range of capsule sizes, from small capsules to large supplement capsules.

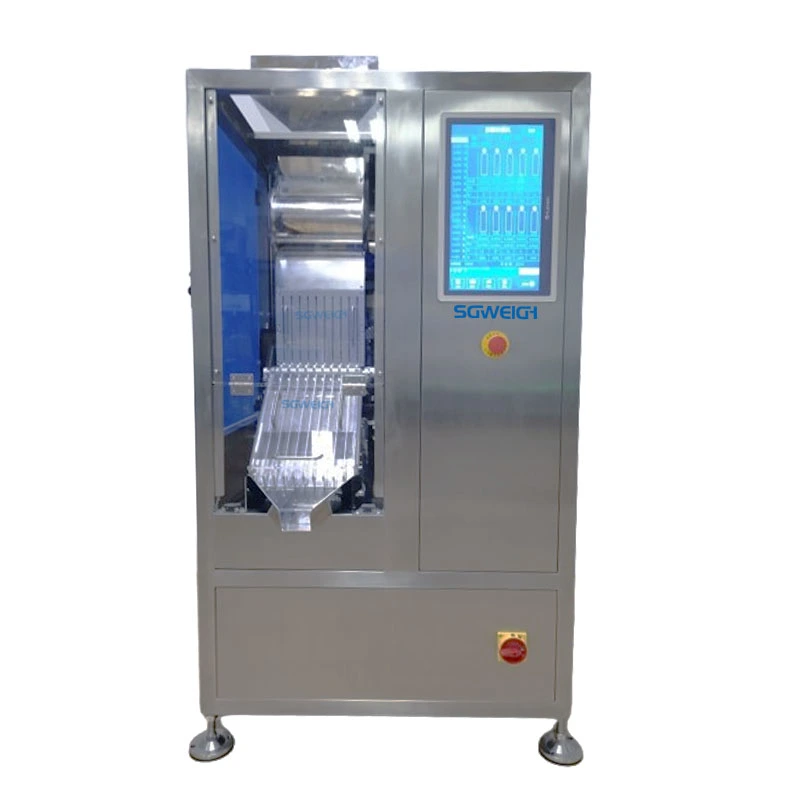

High-Precision Capsule Checkweigher Efficient Real-Time Weighing Machine

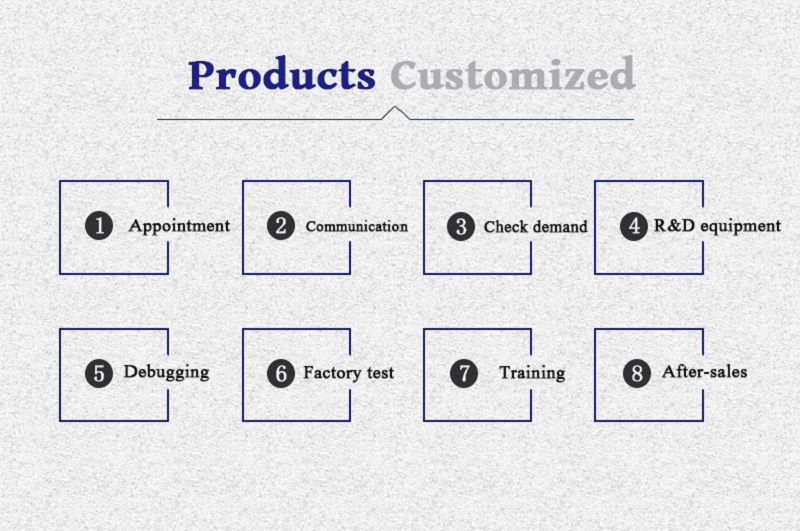

Most of our high-precision capsule checkweighers are customized according to specific project requirements. Our professional technicians will recommend the most suitable capsule and tablet checkweigher for you according to your specific needs. Please feel free to contact us through your preferred method to obtain customized solutions and quotes.
High-Precision Capsule Checkweigher Efficient Real-Time Weighing Machine

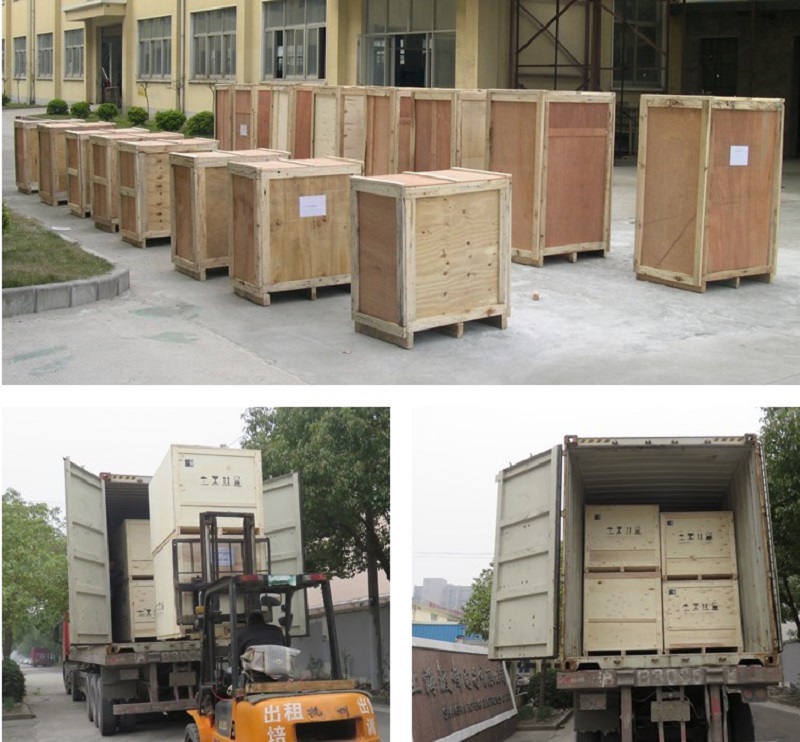

The high-precision capsule checkweigher is a device that uses export standard wooden cases (fumigation-free). We can accept FOB, CFR, CIF terms, and our professional logistics team can handle sea, air, and rail transportation.
In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
