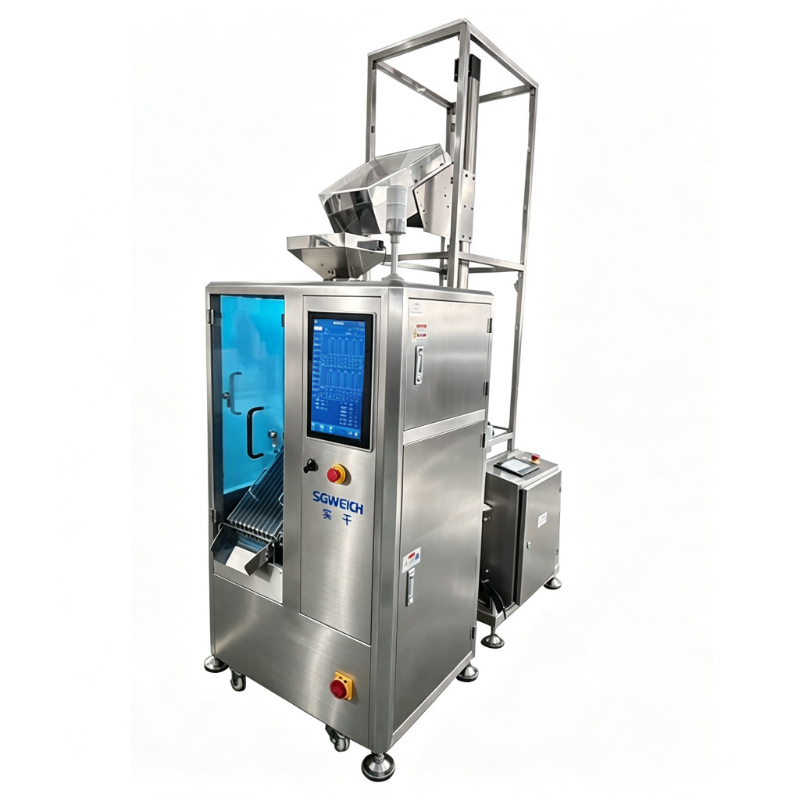

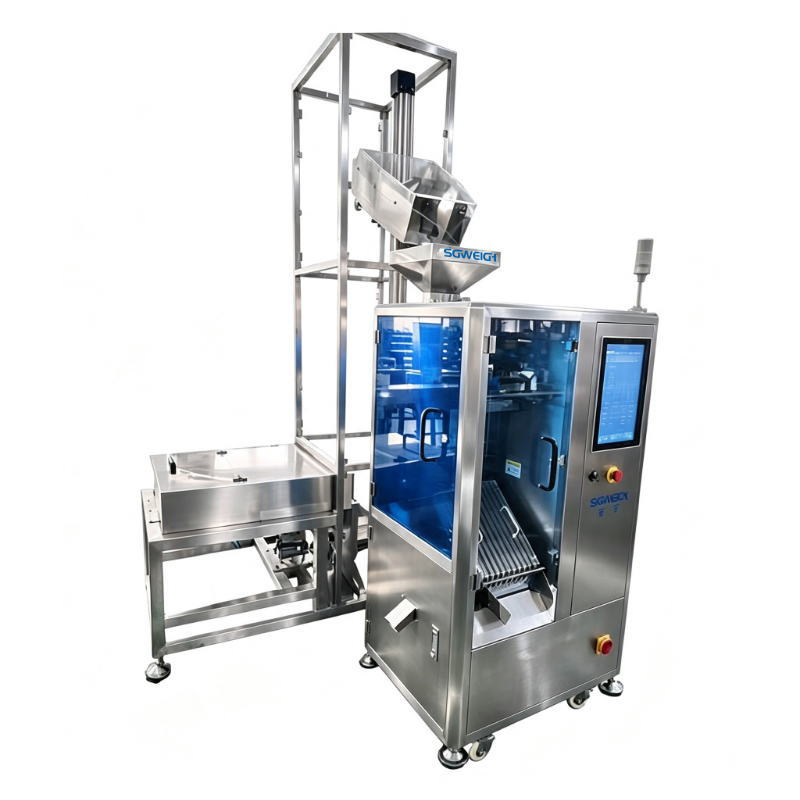

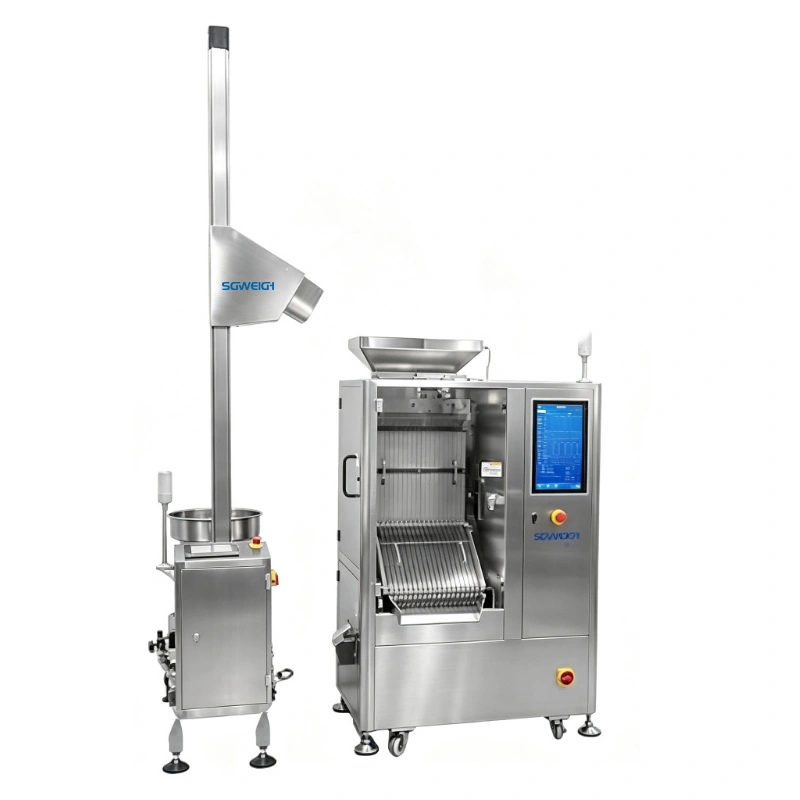

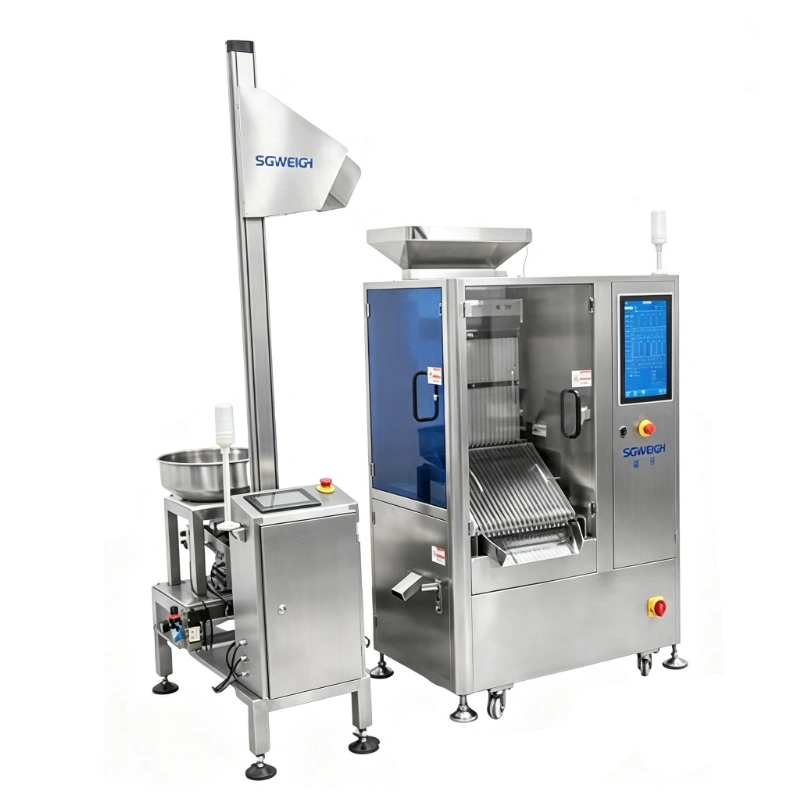

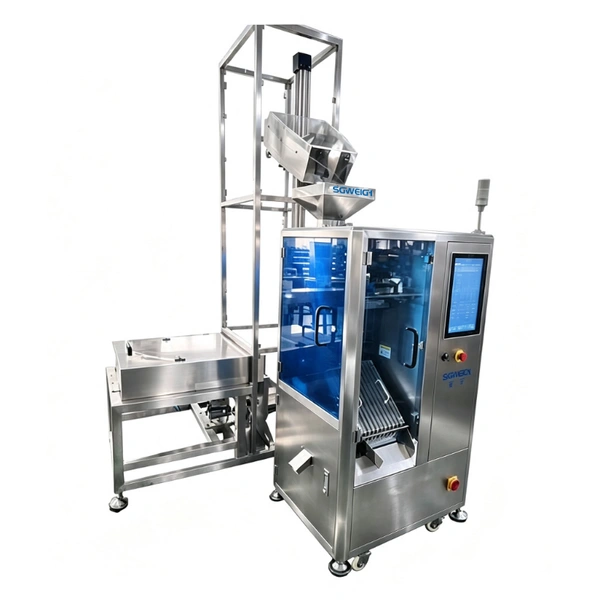

High-Precision Tablet Inspection Checkweigher Inline Pharma Weight Checker

High-Precision Tablet Inspection Checkweigher Inline Pharma Weight Checker

The high-precision tablet inspection checkweigher continuously measures individual tablets and compares their actual weight against preset target limits, automatically identifying and rejecting any products that fall outside the permissible tolerance range. The intuitive control interface of inline pharma tablet checkweigher allows operators to flexibly configure settings based on product specifications, production speeds, target weights, and inspection requirements, thereby significantly enhancing your production capabilities.

tag:

Description

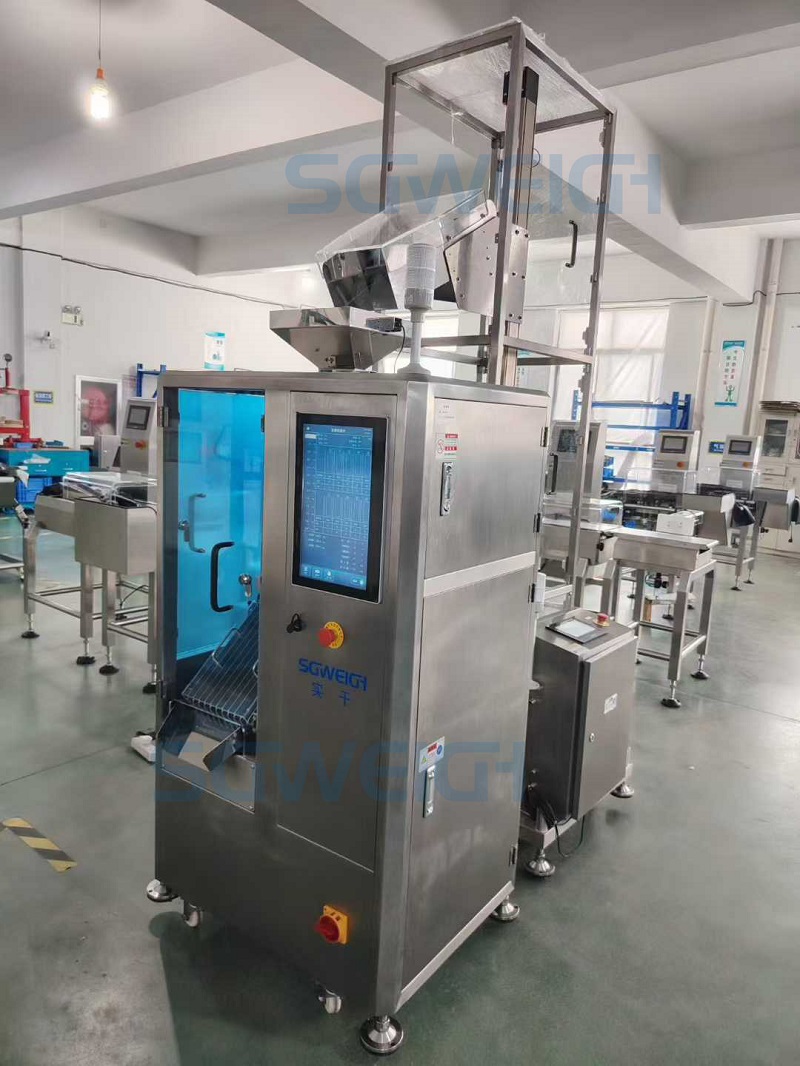

High-Precision Tablet Inspection Checkweigher Inline Pharma Weight Checker

The high-precision tablet inspection checkweigher continuously measures individual tablets and compares their actual weight against preset target limits, automatically identifying and rejecting any products that fall outside the permissible tolerance range. The intuitive control interface of inline pharma tablet checkweigher allows operators to flexibly configure settings based on product specifications, production speeds, target weights, and inspection requirements, thereby significantly enhancing your production capabilities. You are welcome to contact us at any time for quotation.

Capsule tablet checkweigher for dosage accurac photos

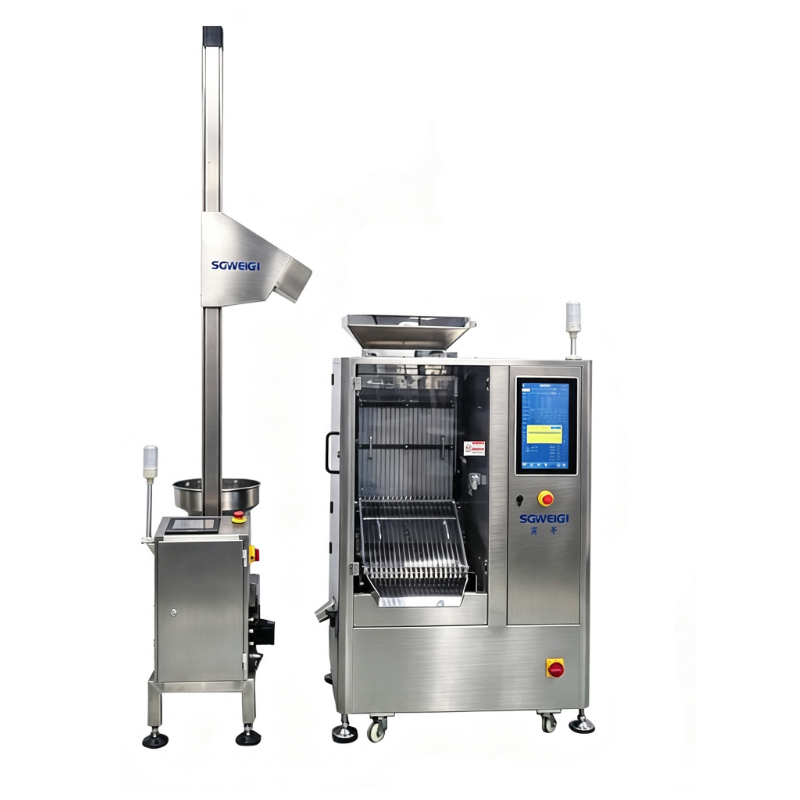

High-Precision Tablet Inspection Checkweigher High-Precision Tablet Checkweigher For Pharma

1. Rapid and accurate tablet weight measurement

2. High-sensitivity sensors for precise detection

3. Seamless integration with laboratory or production line workflows

4. Automated data recording to ensure regulatory compliance

5. Reduced sampling errors and manual handling time

6. User-friendly interface for quick setup and calibration

7. Automated sample analysis with digital readout

8. High repeatability and low measurement deviation

9. Compact design suitable for laboratories or production floors

10. Compliant with GMP, FDA, and ISO standards

Design capacity 2000 tablets/minute (120,000 tablets/hour)

Actual capacity >120,000 tablets/hour

Weighing scale 10~2000mg

Resolution 0.1mg

Dynamic accuracy ±1.0mg (actual operation accuracy ±1.0mg, minimum ±1.5mg)

Applicable materials Capsules 000#~5#, conventional tablets

Working voltage AC220V/50Hz

Control voltage DC24V

Rated power 0.6KW (main machine 0.3kw, each single machine 0.15kw)

Working pressure 0.6~0.8 Mpa

Gas consumption 0.1m³/min

Equipment weight 200kg (main machine 60kg, single machine 70kg)

Overall dimensions 740*350*1480mm (main unit width 350mm, stand-alone unit width 190mm)

Our expert engineers will design a high-precision tablet inspection checkweigher solution tailored to your production line, meeting the diverse requirements of even the most complex operations. We also continuously optimize and refine our solutions based on real-world performance and client feedback to ensure peak operational efficiency.

定制服务-检重秤.jpg checkweigher categories.jpg

High-Precision Tablet Inspection Checkweigher Inline Pharma Weight Checker

Designed specifically for demanding pharmaceutical environments, this pharmaceutical-grade tablet checkweigher provides a reliable inspection solution for uncoated tablets, coated tablets, compressed tablets, and other solid dosage forms.

capsule tablets.jpg

High-Precision Tablet Inspection Checkweigher Inline Pharma Weight Checker

Checkweigher company.jpg 证书1 (3).jpg

Customers (4).jpg 检重秤应用1.jpg

Machine packing :

Non-fumigation wooden case for export standard and comply with customs clearance requirement

Lead time :

10-15 days after payment received

Price term :

FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)

Negotiable payment term: T/T , LC, D/P ,D/A .,etc

1. Equipment Installation and Commissioning: We provide detailed operating manuals and free operator training to help customers master the operation of the equipment.

2. Technical Support: The company provides 24/7 technical support. Customers can contact engineers at any time to resolve any issues encountered during use.

3. Accessories: The company provides genuine accessories, guaranteeing their quality and stability.

4. Quality Assurance: The company stands behind the products it sells, ensuring that the quality and performance of its equipment meet industry standards.

5. One-year warranty and lifetime maintenance
