High-Precision Tablet Sampling Checkweigher Machine Inline Check Weigher Solution

High-Precision Tablet Sampling Checkweigher Machine Inline Check Weigher Solution

The high-precision tablet sampling checkweigher is built with advanced weighing sensors and intelligent rejection technology, ensuring consistent accuracy across high-speed production lines. Ideal for tablets, capsules, and similar small products, it seamlessly integrates into your existing processes while providing real-time data for regulatory compliance. With hygienic stainless-steel construction and an intuitive interface, this inline tablet sampling checkweigher system combines durability, user-friendliness, and precision in one efficient unit.

tag:

Description

High-Precision Tablet Sampling Checkweigher Machine Inline Check Weigher Solution

The high-precision tablet sampling checkweigher is built with advanced weighing sensors and intelligent rejection technology, ensuring consistent accuracy across high-speed production lines. Ideal for tablets, capsules, and similar small products, it seamlessly integrates into your existing processes while providing real-time data for regulatory compliance. With hygienic stainless-steel construction and an intuitive interface, this inline tablet sampling checkweigher system combines durability, user-friendliness, and precision in one efficient unit. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

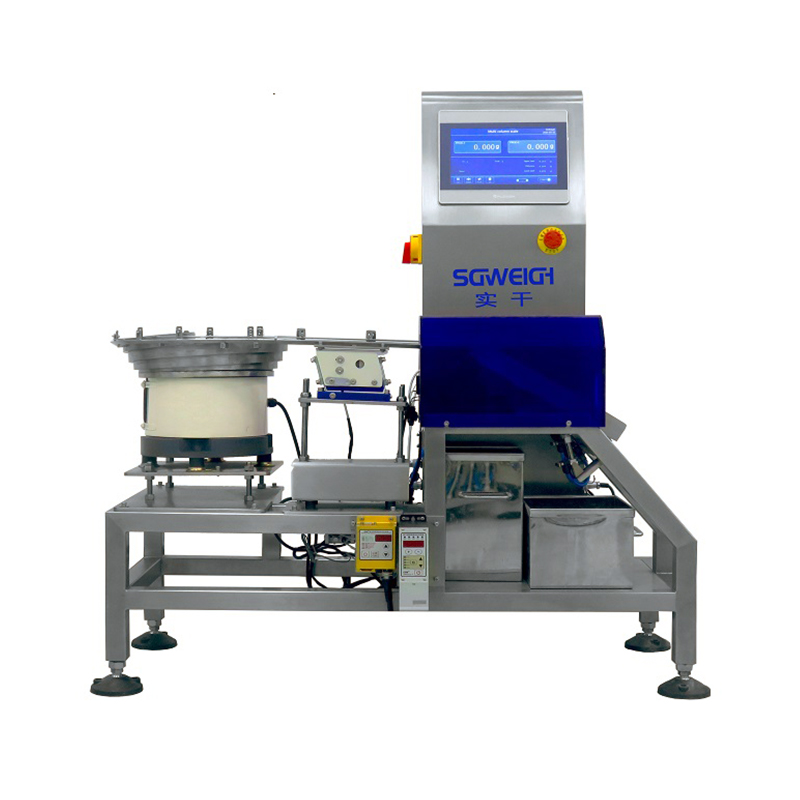

High-precision tablet sampling checkweigher pictures

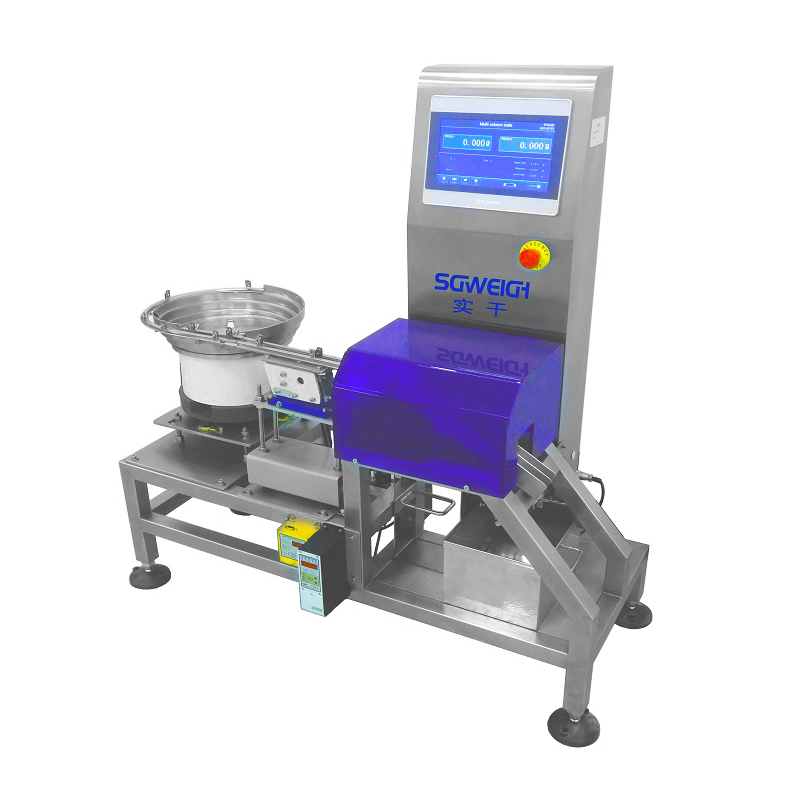

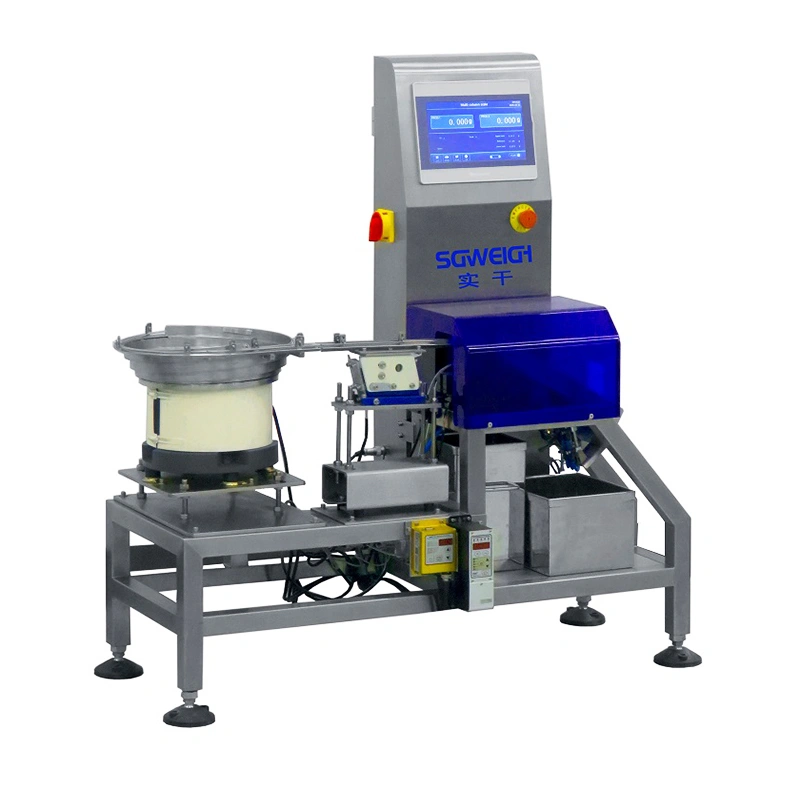

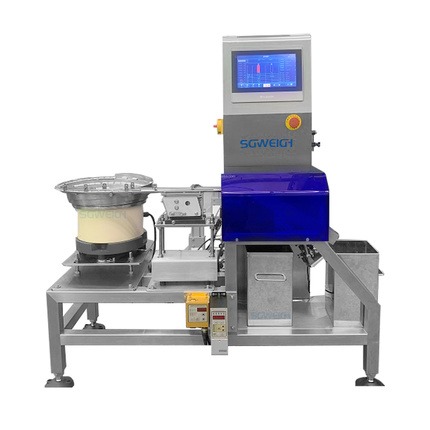

High-Precision Tablet Sampling Checkweigher Machine

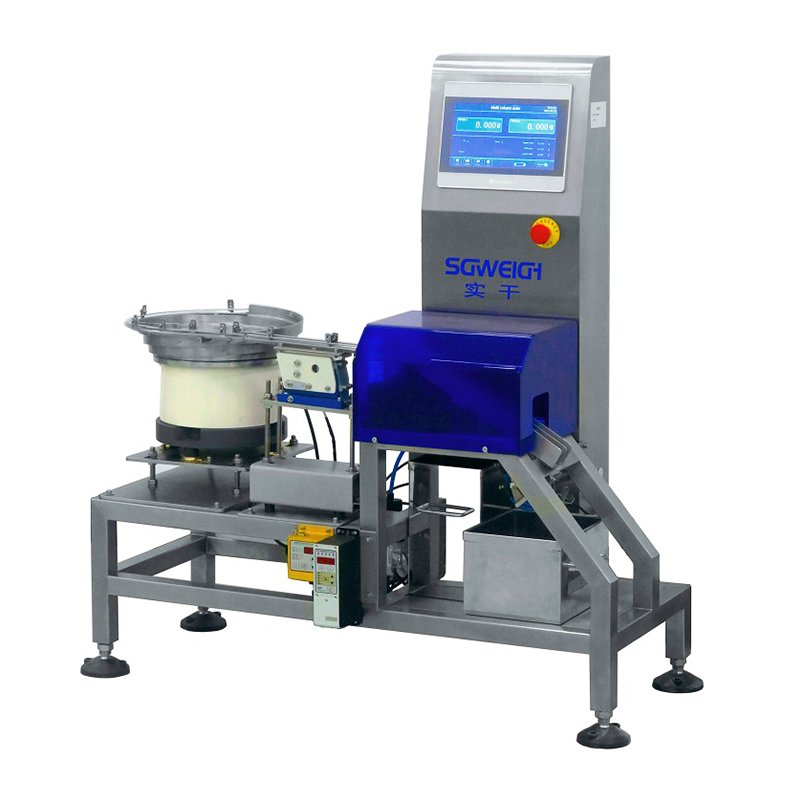

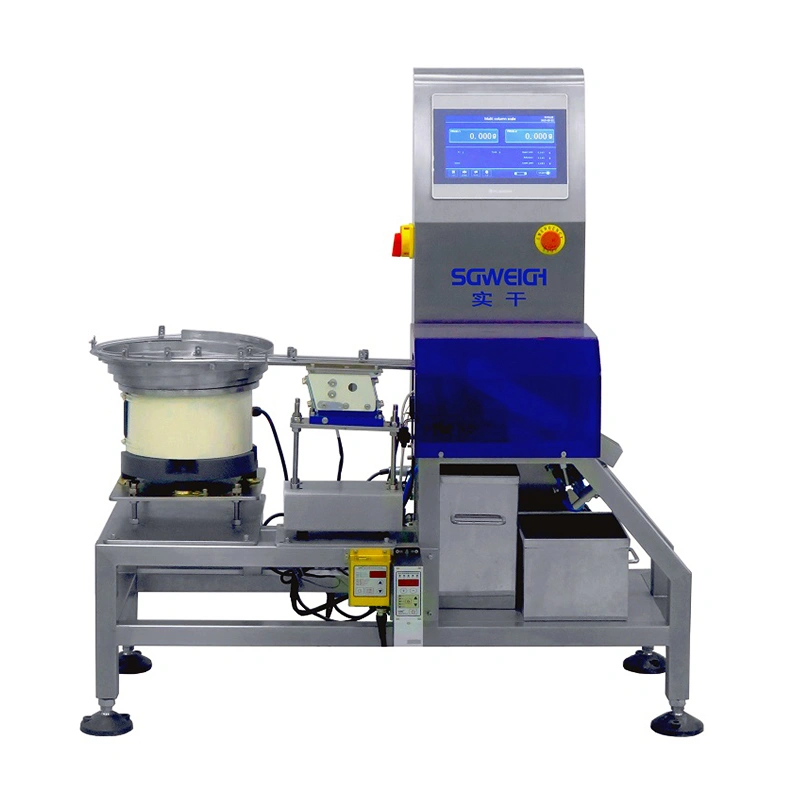

High-Precision Tablet Sampling Check Weigher Solution

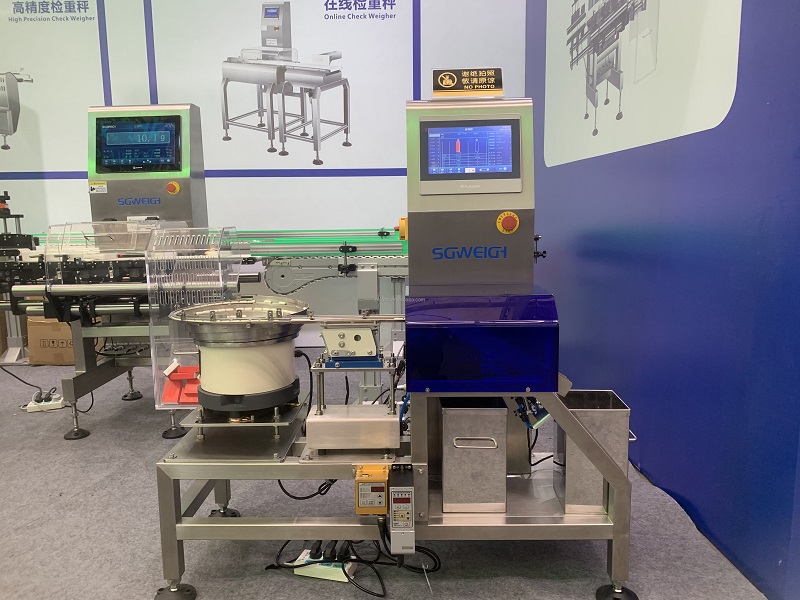

Inline Tablet Sampling Checkweigher Machine

1. High-precision tablet sampling checkweigher is mainly used for sampling of capsules/tablets, regular or irregular small batch weight detection.

2. High-precision tablet sampling checkweigher can be directly connected to the capsule filler/tablet press,or it can also be used in a single machine.

3. There is no need to change the mould, and it is suitable for capsules or tablets of various sizes.

4. Automatic recycling of qualified products.

capsule tablet pills.jpg

Type SG-DJ10

Weighing Range 20-2000mg

Limited of product L: 100 W: 100 H: 2-150mm

Accuracy ±1mg Depends on product

Division Scale 1mg

Each Channel Speed 100 pcs/min

Machine Weight 80kg

Power Supply AC -220V ±10% 50HZ

Power 100W

Main Material SU304 stainless steel

1. High-precision tablet sampling checkweigher can individually check the weight of polished capsules with sizes 000, 00, 0, 1, 2, 3, 4, 5, and their extensions without changing molds. It can also be used to individually check the weight of tablets of various shapes and sizes.

2. It utilizes a patented slide-type weighing structure consisting of two weighing channels.

3. The weighing channels can be cleaned without disassembly.

4. The single-channel weighing chute can be disassembled in less than 10 seconds.

5. If a weighing channel malfunctions, it can be shut down at any time.

6. It features a 10-inch touch screen with a Chinese interface.

7. During the unloading, feeding, queuing, and weighing processes, no capsule shells are damaged or severely worn, and no capsules are deformed.

8. Tablet sampling checkweigher system is equipped with a micro-pin matrix printer, and the operator signs and maintains paper records for permanent, unalterable, and traceable quality. 9. Automatic feeding: If the user needs automatic material feeding, a sampling channel can be set at the discharge port of the filling machine or tablet press. The feeding port of this sampling scale can be docked on the sampling channel and equipped with a reflux device to realize automatic sampling and over-sampling alarm.

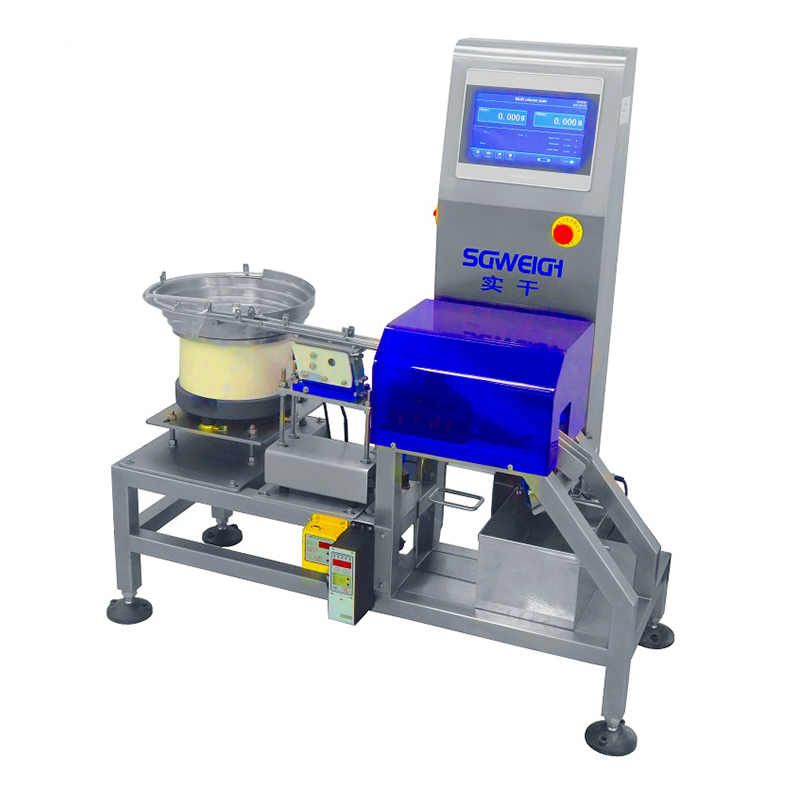

High-Precision Tablet Sampling Checkweigher Machine Inline Check Weigher Solution

20mg Capsule Tablet Sample Checkweigher 胶囊片剂抽检机1.jpg

The tablet sampling checkweigher systems shown here may not meet your requirements. Our professional technicians can provide customized solutions based on your product characteristics and application scenarios.

Please feel free to contact us via your preferred method, and we will be happy to help you find the optimal high-precision tablet sampling checkweigher.

High-Precision Tablet Sampling Checkweigher Machine Inline Check Weigher Solution


Machine packing:

Non-fumigation wooden case for export standard and comply with customs clearance requirement

Lead time:

10-15 days after payment received

Price term:

FOB term, CIF/CFR term(sea/air), DDU/DDP term(sea/air)

Negotiable payment term: T/T, LC, D/P,D/A .,etc

1. Training Service:

We provide manuals. We will train your engineers to install and use our machine.

2. Troubleshooting Service:

If a problem occurs, we will provide a solution within 24 hours.

3 Warranty Period:

For machines within the warranty period, if a spare part breaks, we will ship it to you free of charge and cover the courier fee. After the warranty period, we will provide it at cost.
