High Sensitivity Capsule Metal Detector For Pharmaceutical Producttion Line
The high sensitivity capsule metal detector has excellent sensitivity, construction quality and reliability, and is the most suitable and effective solution for the automatic elimination of metal contaminants in pharmaceutical products. The metal detector for pharmaceutical producttion line is docked with the tablet press, with strong adaptability on site, intuitive maintenance, easy operation, compact overall structure, closed conveying channel, non-toxic and harmless production process, ensuring the safety and hygiene of medicines. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

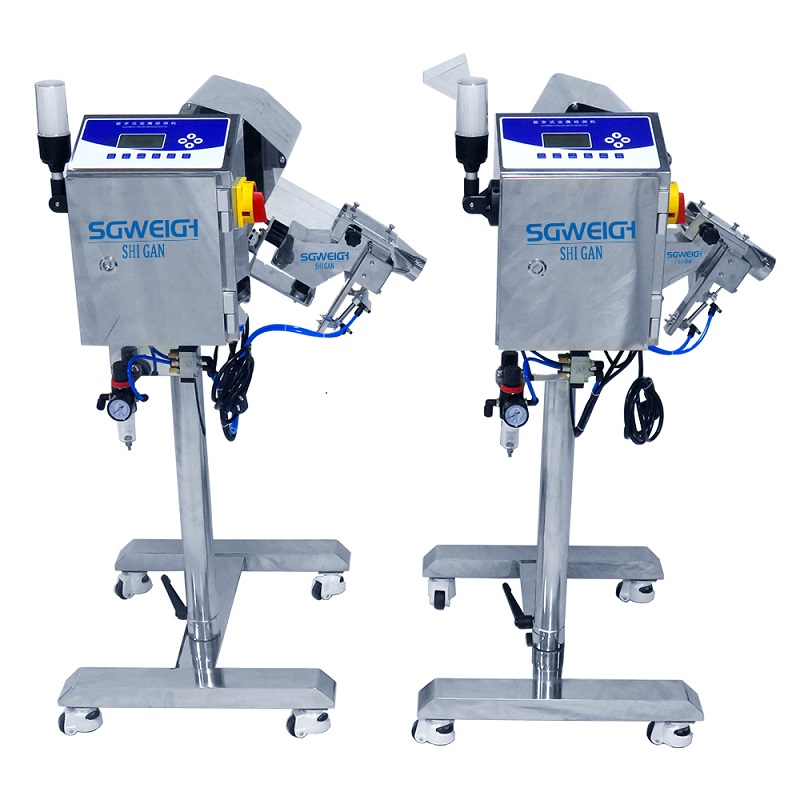

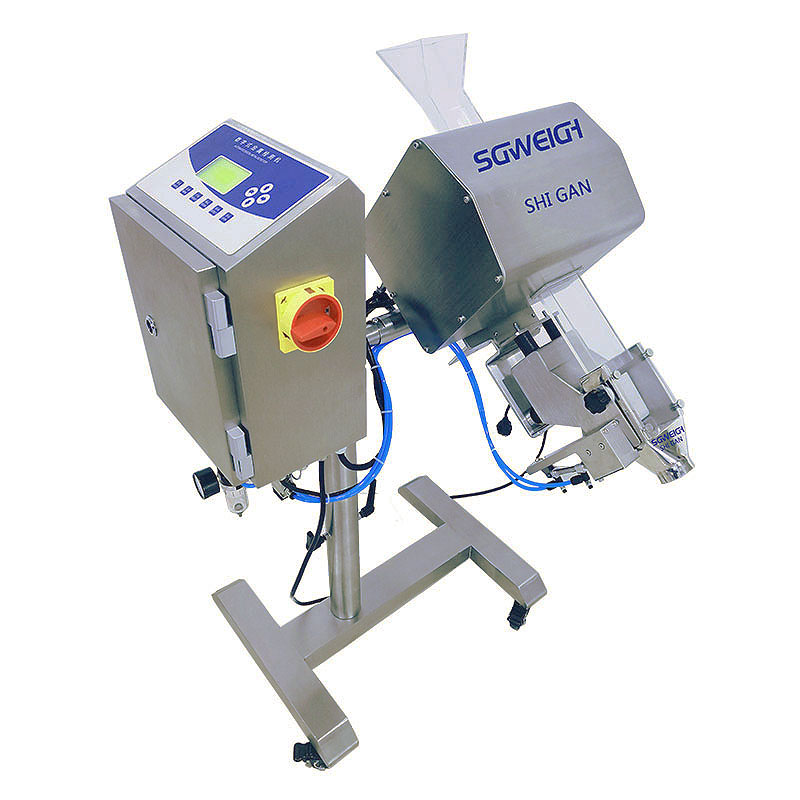

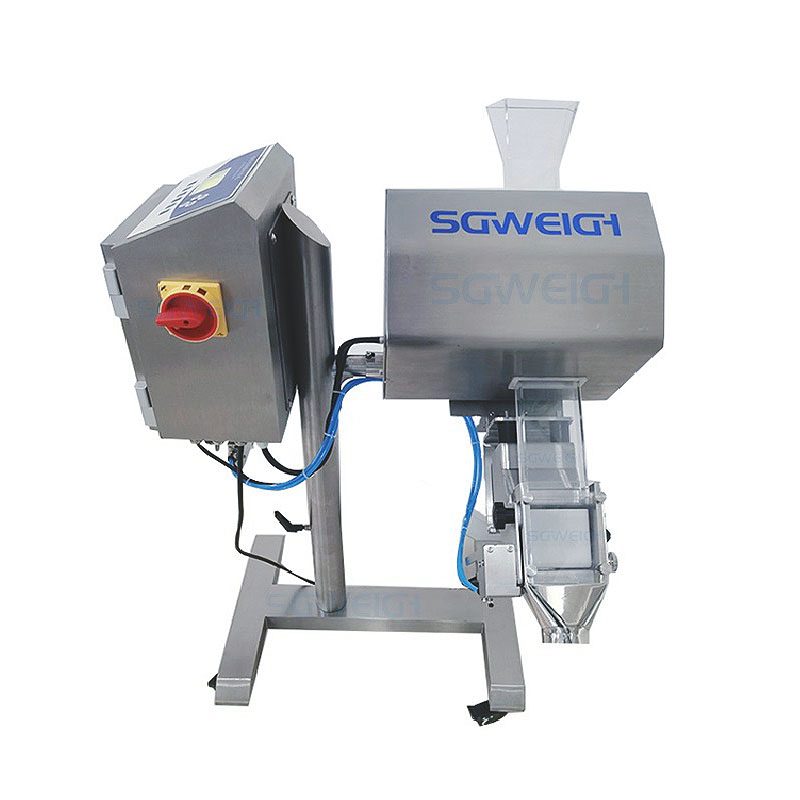

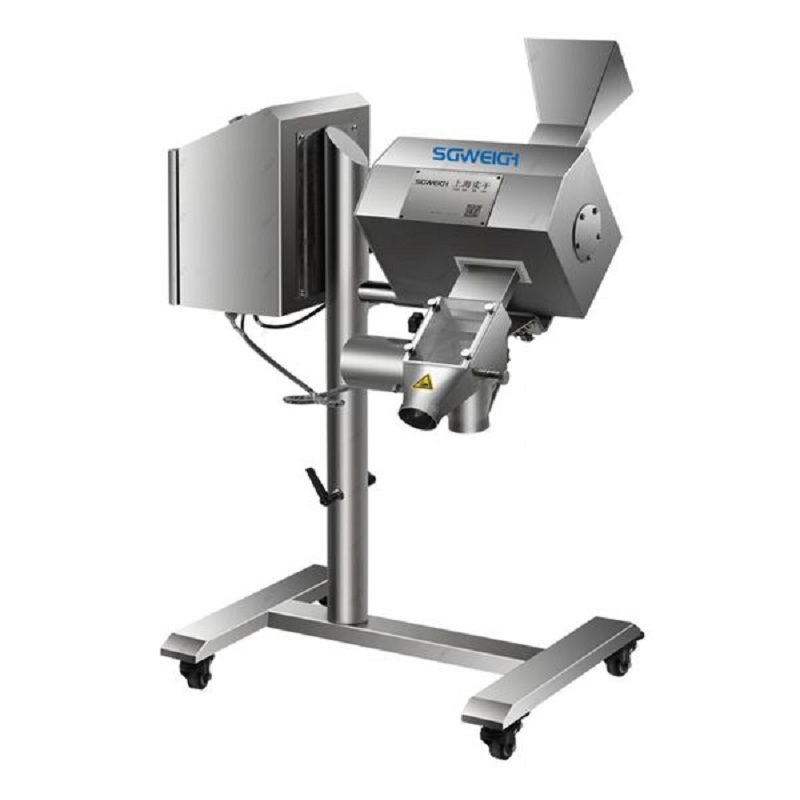

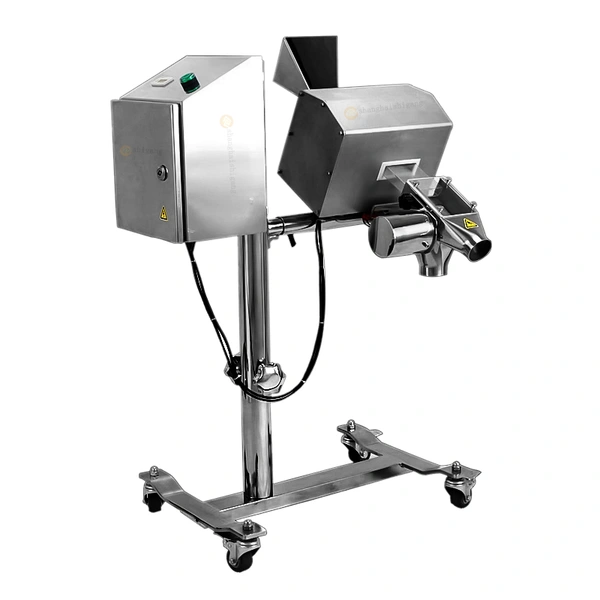

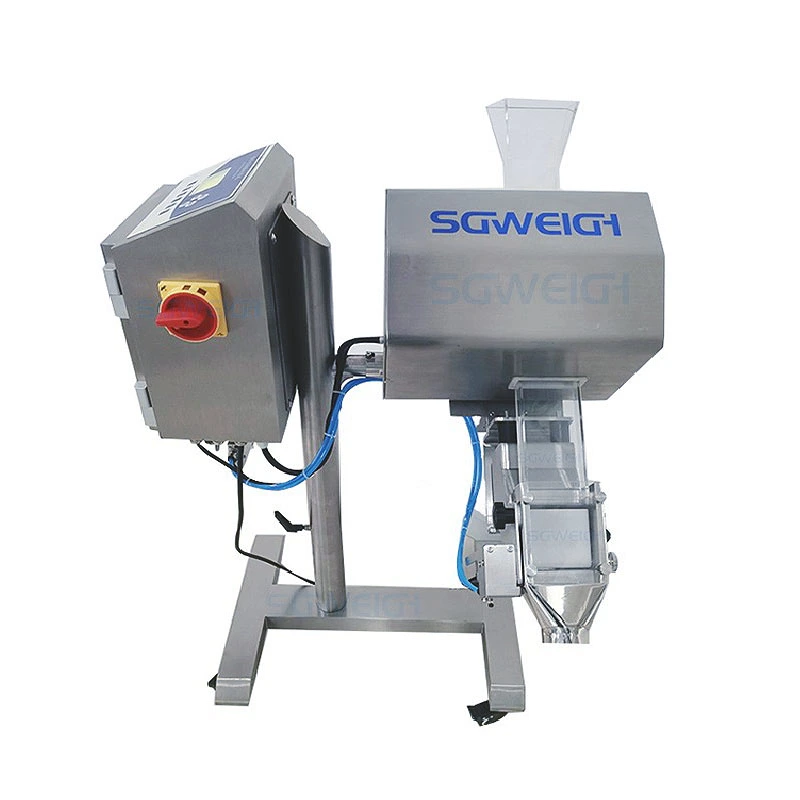

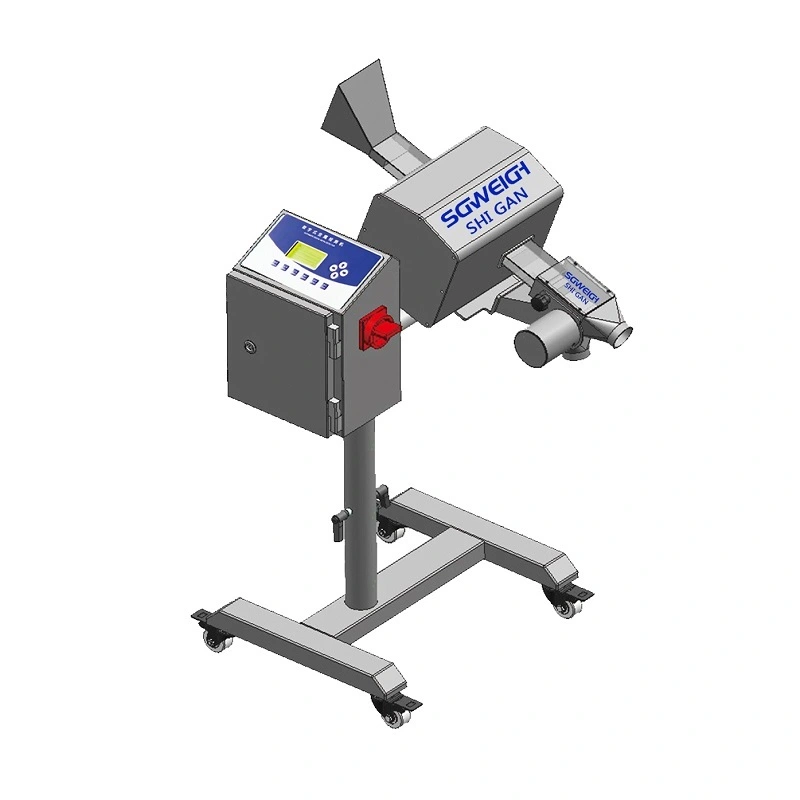

High sensitivity capsule metal detector pictures
Type: SG-YJ60
Inter Height: H 770-930mm; Port size: φ76mm
Outer Height: H 770-860mm; Port size: φ51mm
Effective passing size: W70*H20mm
Output Capacity: 50w pcs/h
Detection sensitivity: φ Fe 0.4mm;φ SUS 0.6mm
Deadweight of machine: 75kg
Rejection Way: Flip Culling
Working powder supply: 220v/110v, 50/60Hz
Dimension: 1115*550*(1280-1440)mm
The high sensitivity capsule metal detector is used to detect all metal foreign objects mixed in capsule and tablet products, including metals such as iron, copper, aluminum, lead, stainless steel, etc,
1. This high sensitivity capsule metal detector is used to detect metal impurities in tablets and capsules after tableting and dust removal processes
2. Can detect all metal impurities, including ferrous metals (Fe), non-ferrous metals (copper, aluminum, etc.) and stainless steel
3. LCD touch screen control, friendly user interface, support multiple languages
4. Multiple detection frequencies are available, and different frequencies can be used according to different product effects
5. With self-learning function, the metal detector will automatically collect product information and recommend suitable detection parameters for each product
6. Advanced DSP technology greatly improves detection performance. Leading genetic algorithm will effectively suppress product signals to achieve reliable sensitivity
7. Can store about 100 product data, suitable for detecting production lines of multiple products
8. Equipped with automatic slapping rejection system (controlled by pneumatic solenoid valve), unqualified products will be automatically rejected
High Sensitivity Capsule Metal Detector For Pharmaceutical Producttion Line
Our company has rich experience in high sensitivity capsule metal detector manufacturing and can provide you with the most cost-effective online metal detector solution according to your actual needs. If you need it, please feel free to contact us
1> Attach safety labels, tighten screws, clean, lubricate, and prevent rust;
2> Disassemble into packages;
3> Wrap tightly with plastic film;
4> Secure in plywood box
5> Forklift into container
Suitable for long-distance land and sea transportation. In order to safely load and unload to the destination, we recommend that you choose full container transportation.
High Sensitivity Capsule Metal Detector For Pharmaceutical Producttion Line
Over the years, Shanghai Shigan Industrial Co., Ltd. has been serving customers in the checkweigher industry, after research, exploration, summed up a complete set of product and service support system to provide users with high quality and timely pre-sale, sale, after-sales service:
1. Quality assurance
My business department to ensure that the equipment provided to customers is the original production, and factory information accessories complete. In order to maintain the normal operation and maintenance of the contracted equipment, the technical products provided by our department are complete, clear and correct.
2. Quality assurance measures
Warranty period: one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replaced free of charge; outside the warranty period, accessories will be provided at cost price.
