High Speed Pharmaceutical Capsule Tablet Checkweigher for Small IMPs Products
This pharmaceutical capsule tablet checkweigher is specifically designed for small, lightweight products, enabling continuous weight verification for individual capsules, tablets, and similar pharmaceutical items to ensure they meet predefined weight standards. The high speed capsule tablet checkweigher can be configured based on factors such as product weight, dimensions, throughput, weighing accuracy, and the specific requirements of the production line. Furthermore, it can be integrated with equipment for feeding, counting, packaging, metal detection, and other pharmaceutical inspection processes, facilitating a more comprehensive automated quality control solution. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us for a quote.

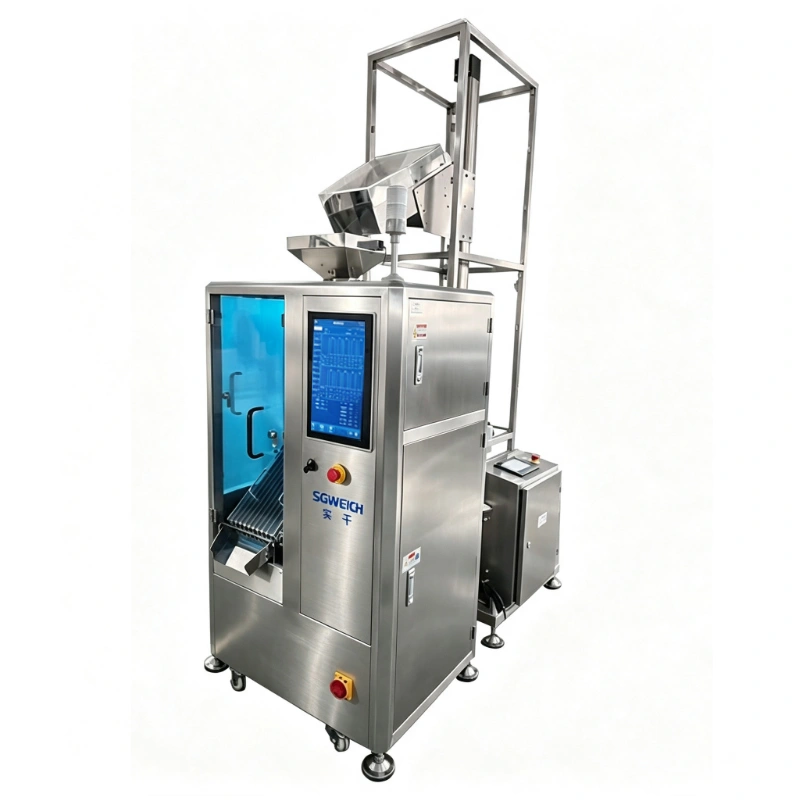

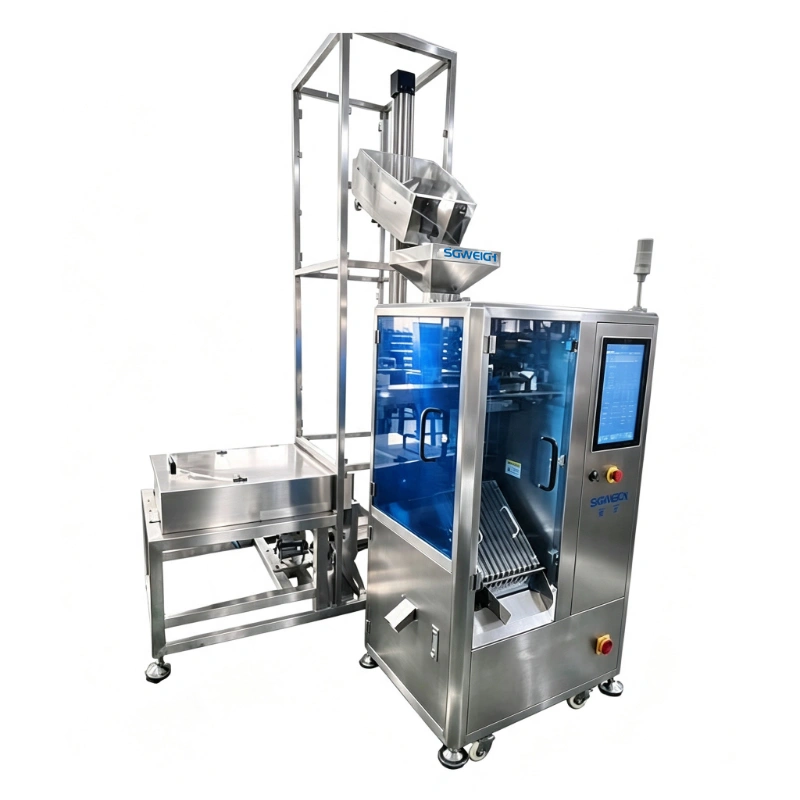

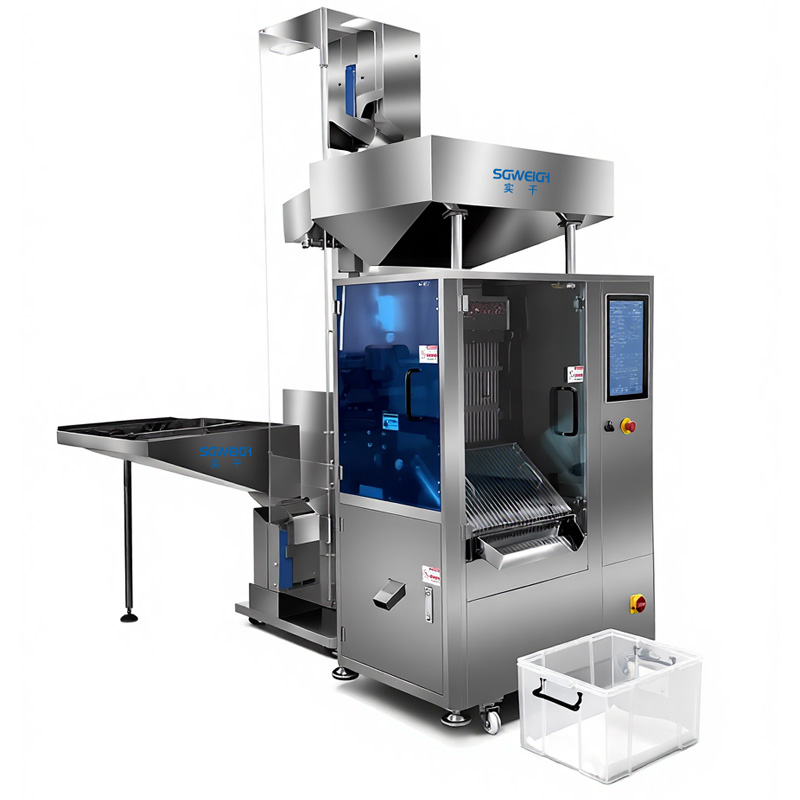

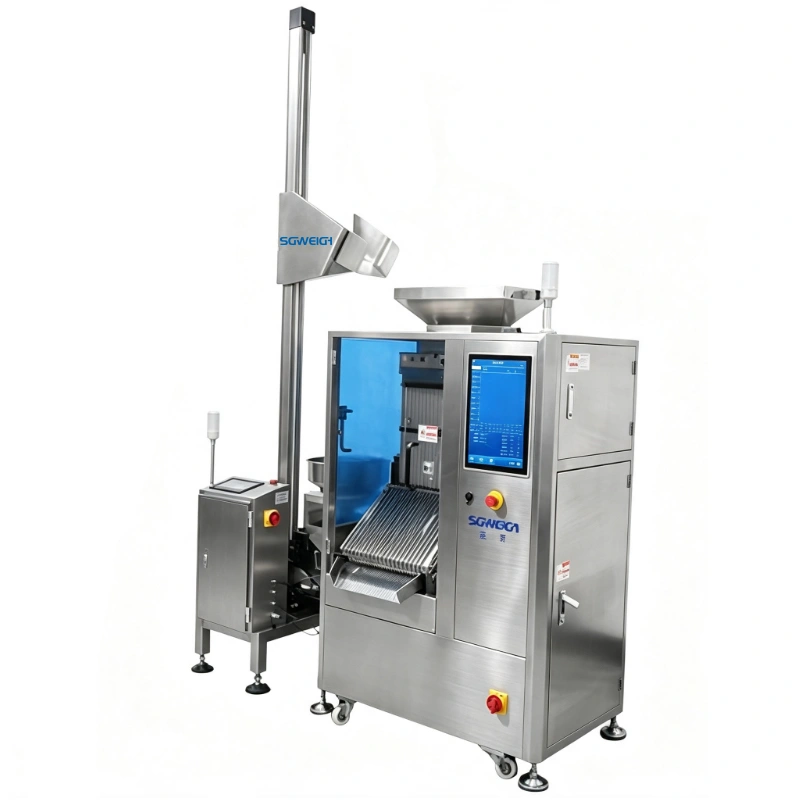

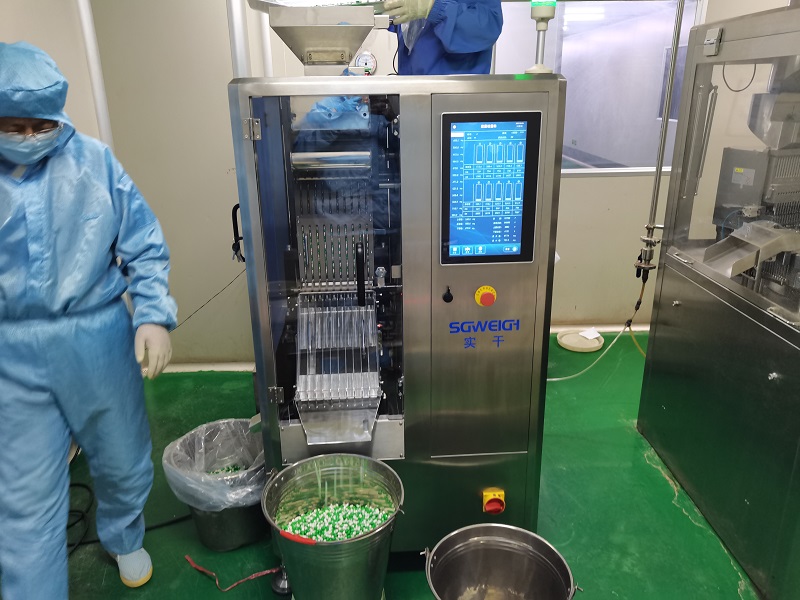

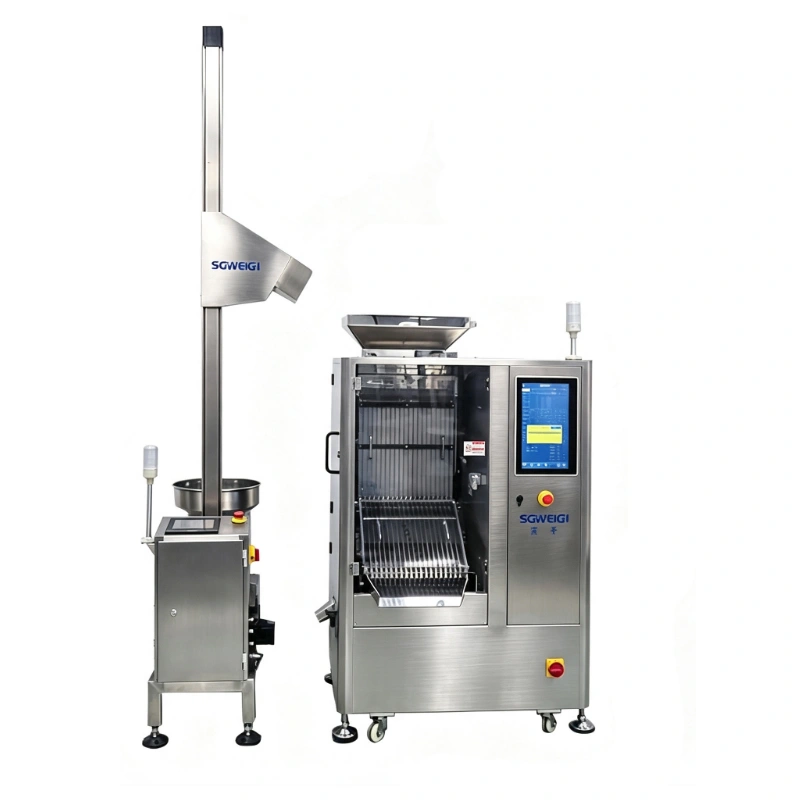

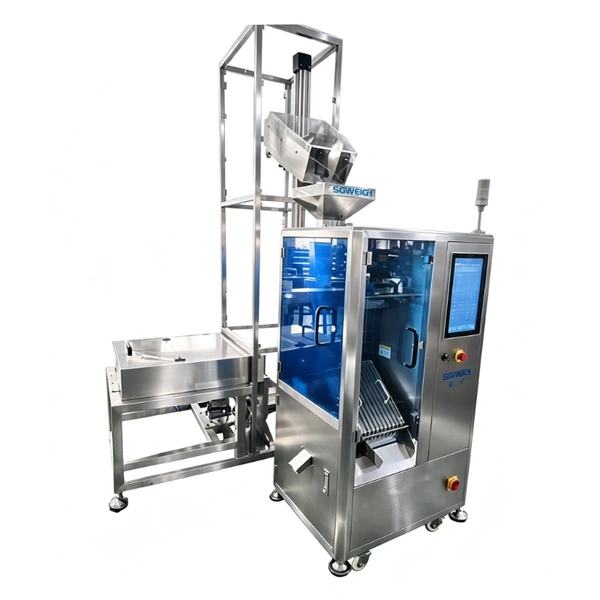

Pharmaceutical capsule tablet checkweigher photos

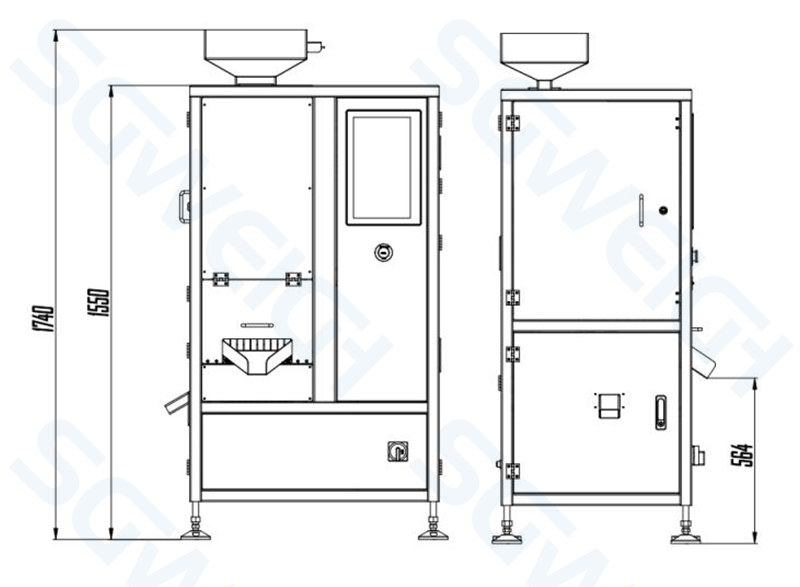

Type：SG-JN10/SG-JN20/SG-JN30
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304

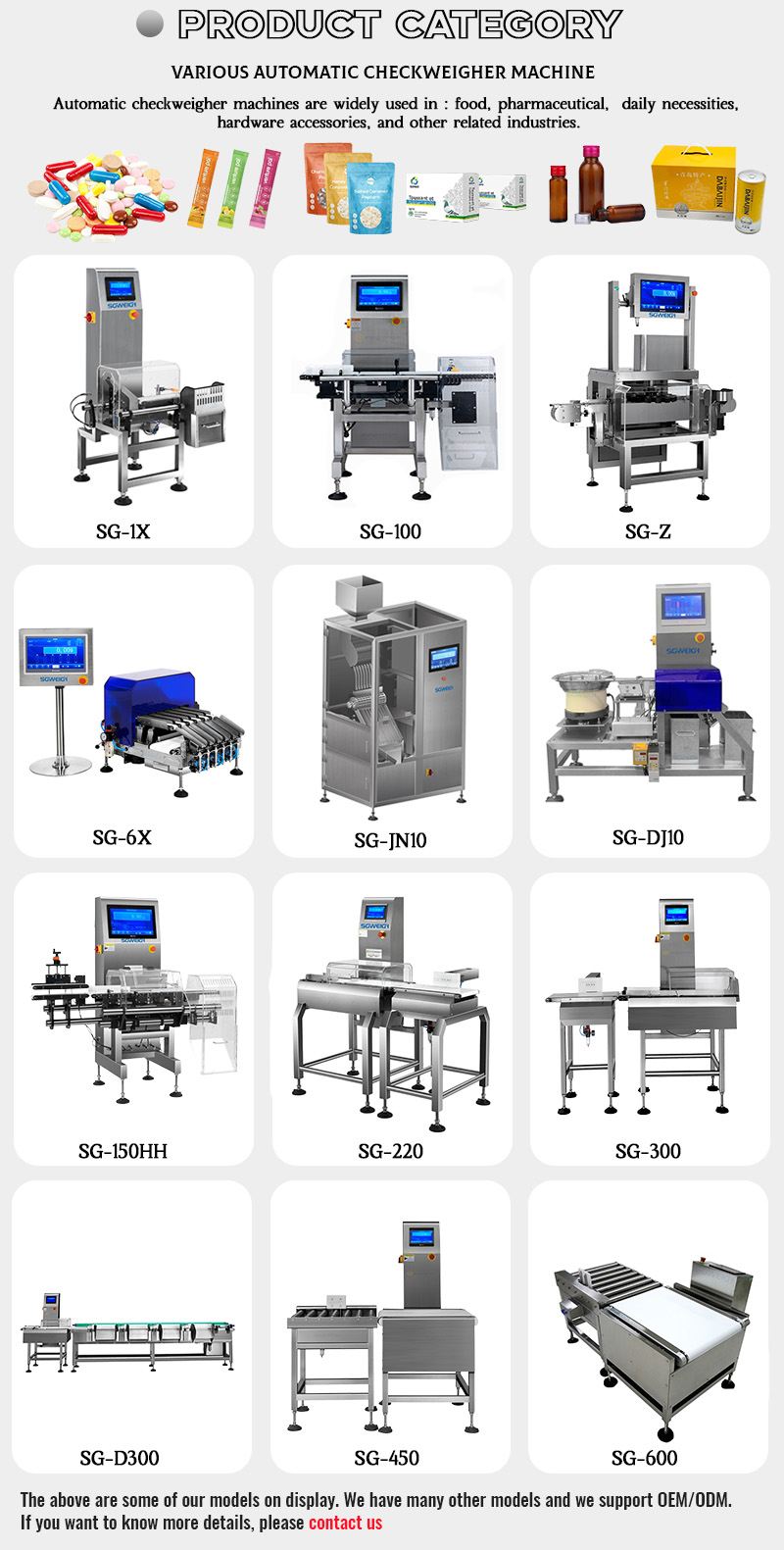

You can select the best suitable model depending on the production volume.
1. High-precision dynamic weighing technology
2. Individual capsule and tablet weight inspection
3. Automatic rejection system for non-conforming capsules and tablets
4. High-speed in-line operation, supporting continuous production
5. User-friendly touchscreen interface
6. Rapid product changeover and recipe management
7. Compact design for easy integration into production lines
8. Stable weighing performance with minimal maintenance requirements
9. Comprehensive production statistics and quality data collection
10. Reliable capsule weight inspection to ensure product quality
High Speed Pharmaceutical Capsule Tablet Checkweigher for Small IMPs Products
Typical applications include:
1. Hard and soft capsules
2. Pharmaceutical tablets
3. Small IMPs products
4. Nutraceutical capsules and tablets
5. Healthcare tablets
6. Small-dose pharmaceutical products
7. Individually conveyed capsules or tablets
8. Other lightweight pharmaceutical products
Shanghai Shigan(SGWEIGH) can tailor-make machines to meet the specific needs and operational scenarios of its clients, ensuring that the pharmaceutical capsule tablet checkweigher aligns with their individual requirements regarding functionality, performance, and appearance.
High Speed Pharmaceutical Capsule Tablet Checkweigher for Small IMPs Products

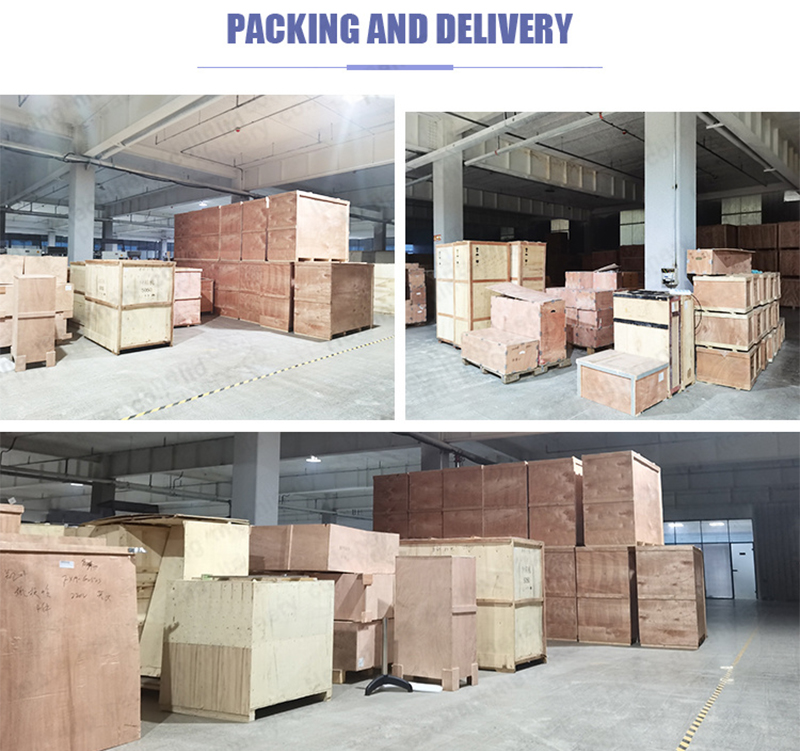

The entire machine is double-layered.
Pre-packaging uses plastic bags for transporting the entire machine, with key components protected by foam plastic.
Engineering packaging uses sturdy polyethylene wooden crates that meet the import standards of various countries.
1. Equipment Installation and Commissioning: We provide detailed operation manuals and complimentary training to ensure that clients can operate the equipment proficiently.
2. Technical Support: We offer 24/7 technical support to assist clients in resolving any issues encountered during use.
3. Spare Parts Supply: We supply original manufacturer parts, ensuring both quality and stability.
4. Quality Assurance: We stand behind our products, guaranteeing that the quality and performance of the equipment meet industry standards.
5. Warranty Policy: A one-year warranty is provided, along with lifetime maintenance, ensuring peace of mind for our clients.
