Inline Capsule Tablet Metal Detector Digital Pharma Lab Metal Detection Machine
This inline capsule tablet metal detector is designed specifically for solid oral dosage forms and can be seamlessly integrated into capsule and tablet production lines. Its compact and hygienic design allows for efficient installation after tableting or capsule filling machines without impacting production efficiency. Digital capsule tablet metal detector maintains high sensitivity for products of various sizes, shapes, and coatings, ensuring reliable detection results and avoiding false positives. You are welcome to contact us at any time for quotation.

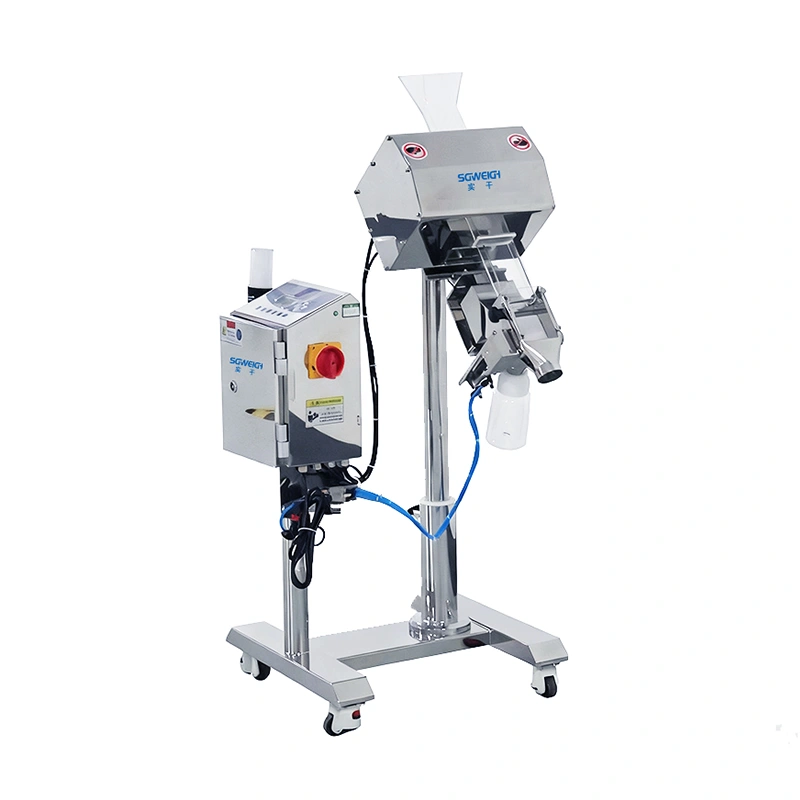

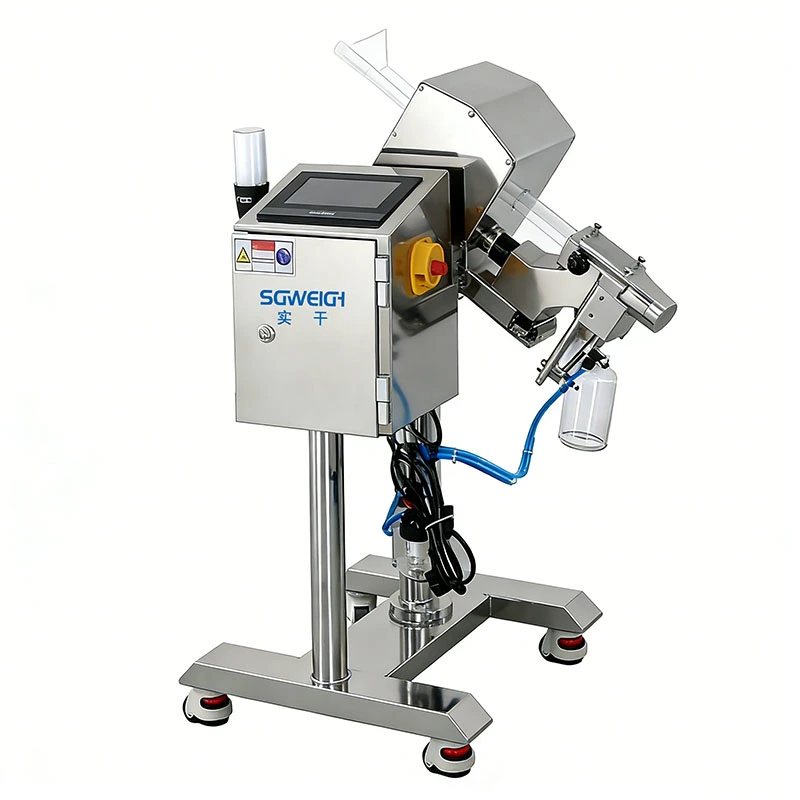

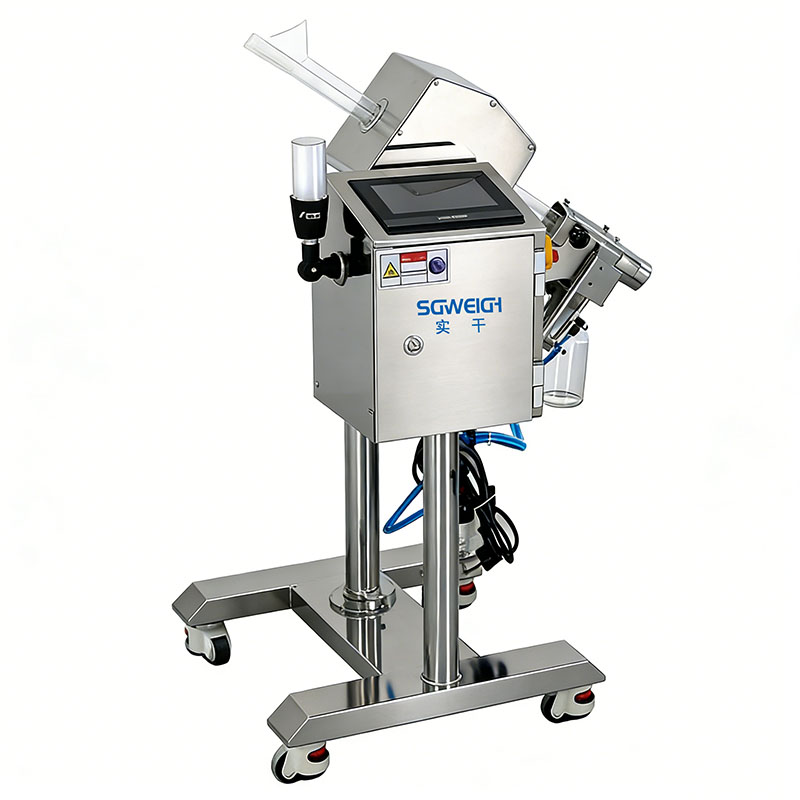

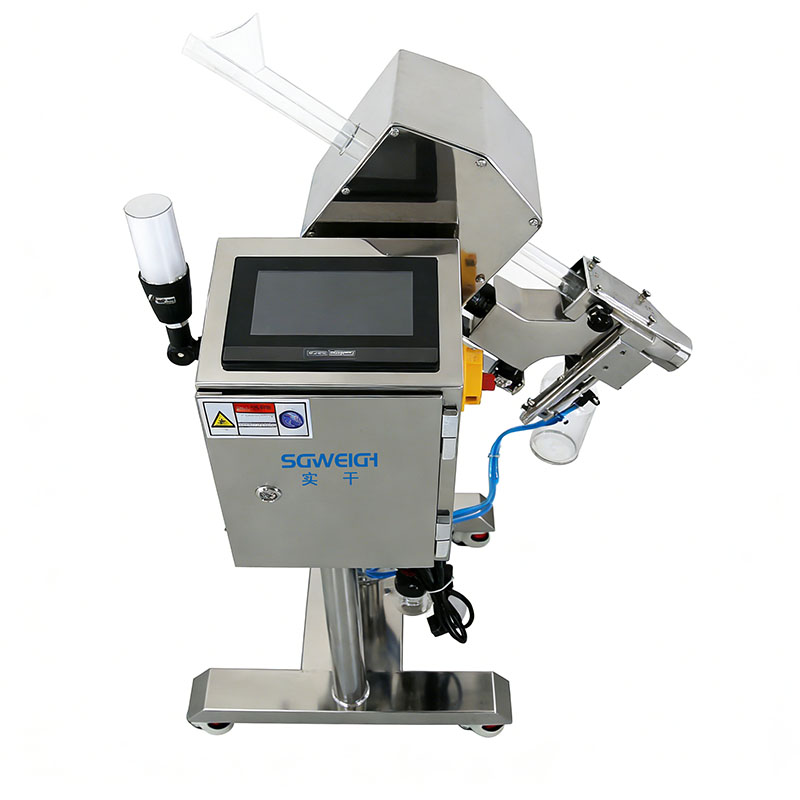

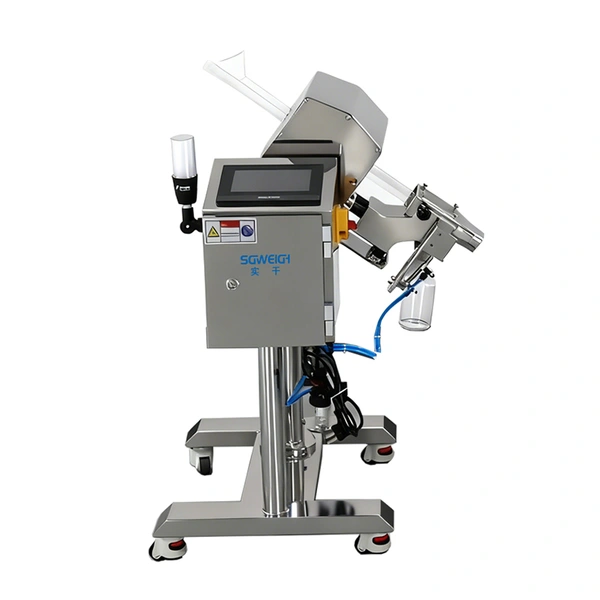

Inline capsule tablet metal detector pictures
Model: SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg

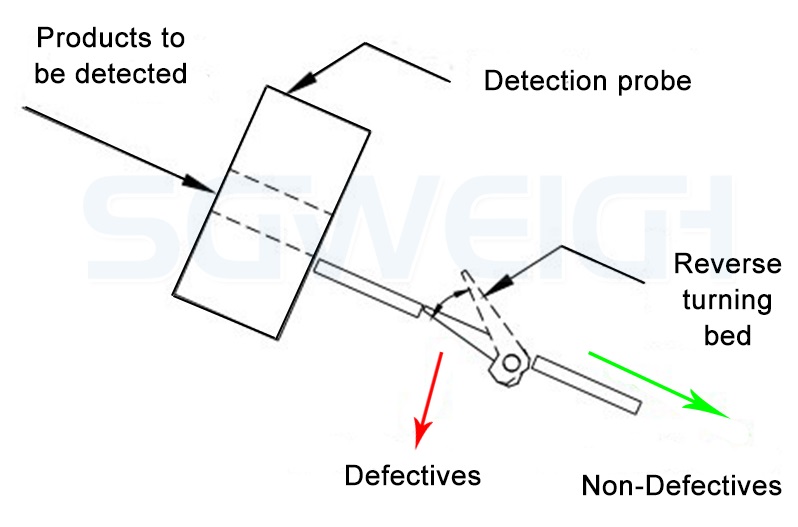

Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
Most of our inline capsule tablet metal detectors are custom-made to meet specific project requirements.
If possible, please provide us with more details about your project, such as materials, weight range, speed, bag size, etc.
It's best to contact us in advance before ordering.
1. Processing speed up to approximately 15,000 particles per minute
2. Capable of handling various types of pharmaceuticals; features a more compact frame design for space saving
3. Automatic sorting device made of food-grade PVC material

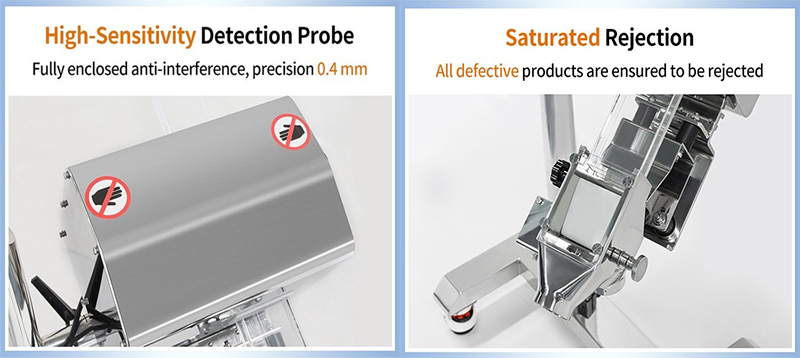

4. Detection sensitivity exceeds industry standards; can detect metal balls with a diameter greater than 0.3mm

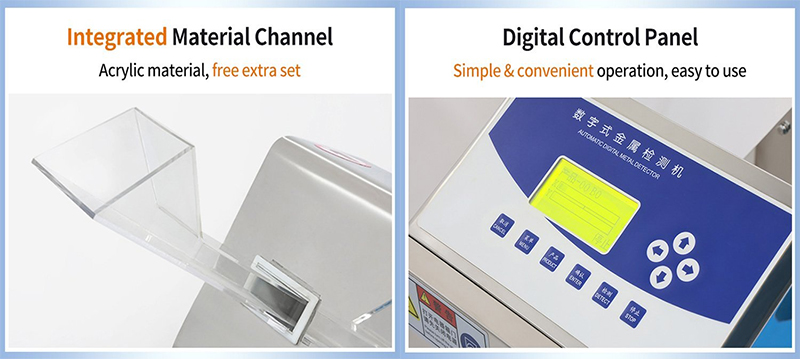

5. Sensitivity can be adjusted according to product characteristics; real-time recording of detected and rejected quantities; clear manual recording
6. All-stainless steel structure, waterproof, shockproof, highly adaptable to environmental and temperature changes, and easy to clean
7. Modular component replacement for convenient maintenance
8. Multi-language function selection (Chinese, English, Korean, Japanese, etc.; other languages can be customized upon request).
Inline Capsule Tablet Metal Detector Digital Pharma Lab Metal Detection Machine
The inline capsule tablet metal detector is suitable for the pharmaceutical industry, such as tablets, capsules, powders, pills, etc.
Inline Capsule Tablet Metal Detector Digital Pharma Lab Metal Detection Machine
Packaging:
1. Outer Packaging: Standard export wooden crate
2. Inner Packaging: Carefully wrapped product with stretch film, hardboards + strong straps to secure corners.
3. Inspection Team: Professional staff inspect and classify your goods.
1. We will deliver the machine and provide a load list on time to ensure you receive it quickly.
2. We frequently seek feedback and assist customers who have used our machines in their factories for some time.
3. We offer a one-year warranty.
4. Well-trained and experienced staff will answer all your inquiries in English and Chinese.
5. 12-month warranty and lifetime technical support.
6. Your business relationship with us will be kept confidential from any third party.
7. We provide excellent after-sales service; please contact us if you have any questions.
