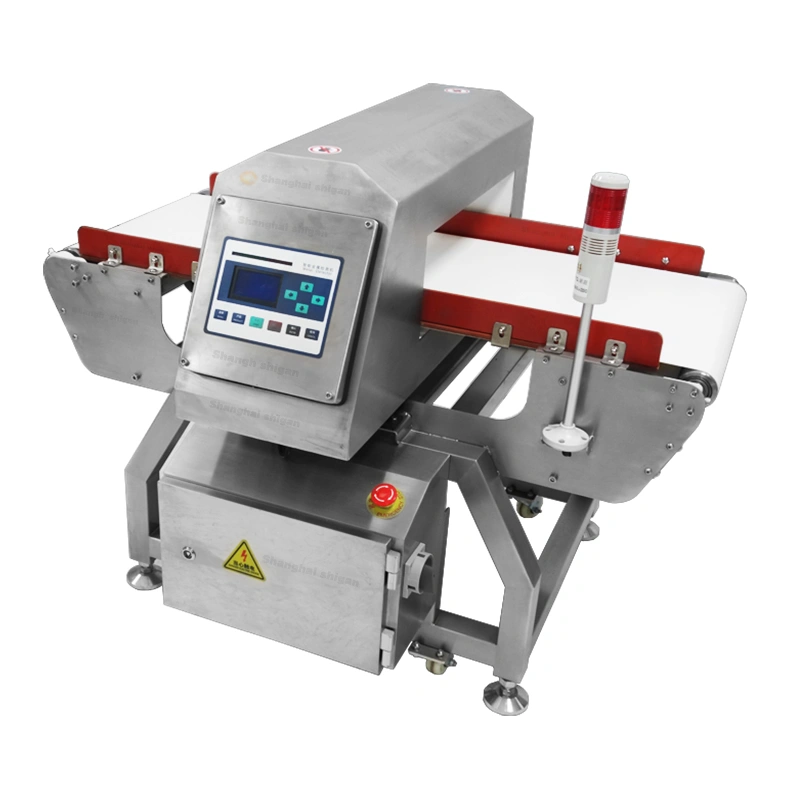

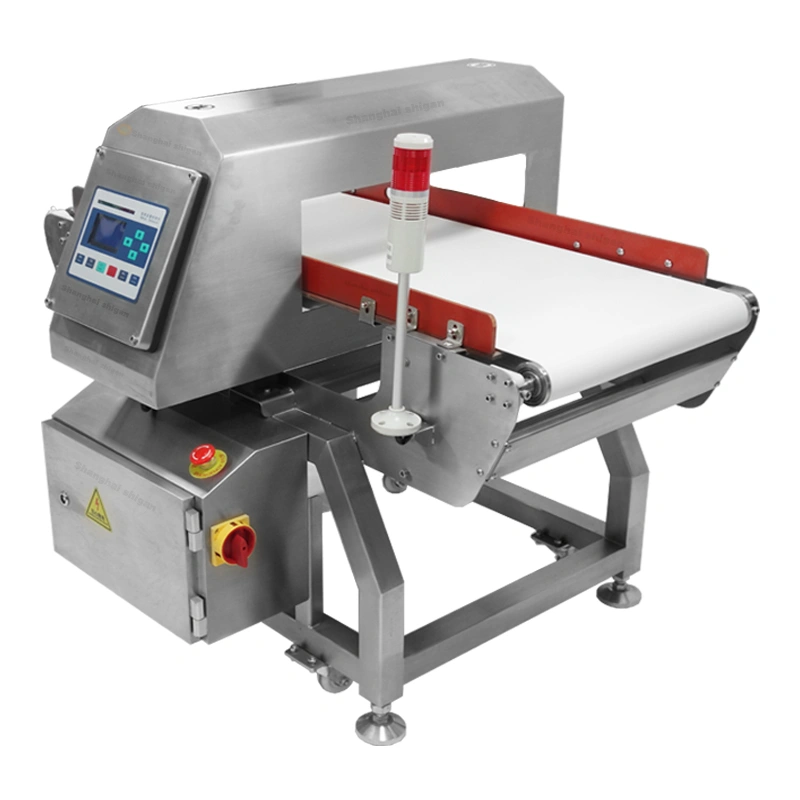

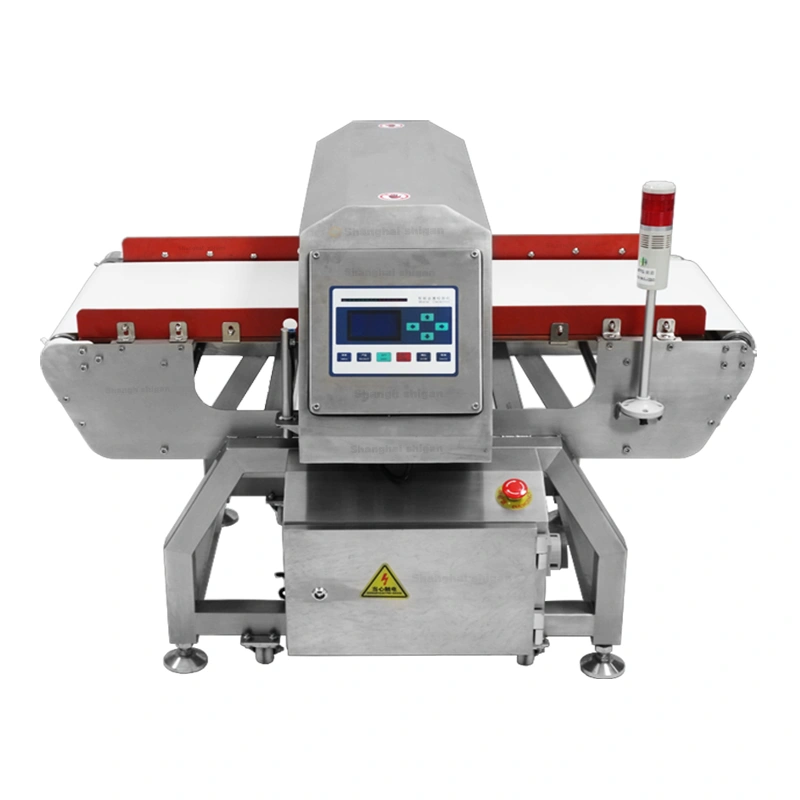

Intelligent Daily Necessities Metal Detector Machine with Touch Screen
The daily necessities metal detector machine adopts advanced digital technology and carefully developed imported chips, with high detection accuracy and stable performance. The intelligent digital metal detection machine adopts a dialogue type LCD display screen, with a simple and friendly operating interface. One setting can ensure extremely high detection accuracy. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.
Daily necessities metal detector machine pictures
Detection Sensitivity(Empty statue):H 100mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ1.5mm; H 120mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 150mm: Fe≥ φ1.0mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 200mm: Fe≥ φ1.28mm, Non-Fe ≥φ2.0mm , SUS≥φ2.5mm
Effective hole width detection: 150-1000mm (Accept custom)
Effective hole detection level: 80-500mm(Accept custom)
Conveyor belt,max speed: 25m/min
Material for conveyor belt: Food grade PU belt
Protection grade: IP65
Display and operation mode: LED flat key input
Deadweight of machine: About 120kg
Powder supply: AC220V 50Hz
Powder: 200w
Alarm way: Alarm and belt stop, or automatically reject
Overall dimensions: About L1500xW850xH950 mm(Design drawing prevail)
Parameters are for reference only.
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
1. Advanced processing technology and standardized inspection process, high product detection sensitivity, and stable performance.
2. The overall structural design of the machine is simple, firm, and stable. It adopts a full stainless steel frame, with strong shock resistance and anti-interference ability. The protection effect of the electrical control part is good, reaching the protection level of IP66.
3. The conveyor system has added automatic correction function, and the conveyor belt adopts thermoplastic polyurethane elastomer TPU, which meets the food grade requirements of FDA and EU.
4. Adopting an intelligent LCD display system, it is convenient and fast to set detection parameters.
5. It has efficient self-learning function, which can effectively suppress the signal of the original product and achieve better results in metal detection.
Daily necessities metal detector machines are mainly used to detect metal debris inside industries such as nuts, rice, tea, and wood processing. In addition, it can also be used to detect metal impurities (black, colored, sus) in chemicals, rubber, plastics, textiles, leather, synthetic fibers, toys, as well as drugs, health products, biological products, cosmetics, gifts, packaging, paper, etc.
Shanghai Shigan Industrial Co., Ltd. is a checkweigher, digital metal detector machinery automation equipment manufacturer that integrates research and development, design, production, and sales. Located in Shanghai, China, a developed region in the mechanical industry, we adhere to the principles of "excellent service and good quality". The company has complete equipment and independently produces various types of mechanical transmissions and hardware accessories. Brave in researching and innovating technologies, constantly improving, and receiving unanimous praise from a large number of enterprises.
