Online Industrial Box Carton Checkweigher Wide Range Big Bag Checkweigher
Checkweigher as known as weight inspection machine, check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, and etc,.
Box carton wide range checkweigher can check packed products' weight online whether their weights are overweight or less-weight to ensure the weight of products to meet standards. Online industrial checkweigher is automatic device that used to check the products' weight in automatic packing production lines, and it can check products in a continuous working process which weight accords with the standard weight we set or not. Also, the check weigher can automatically reject unqualified products. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

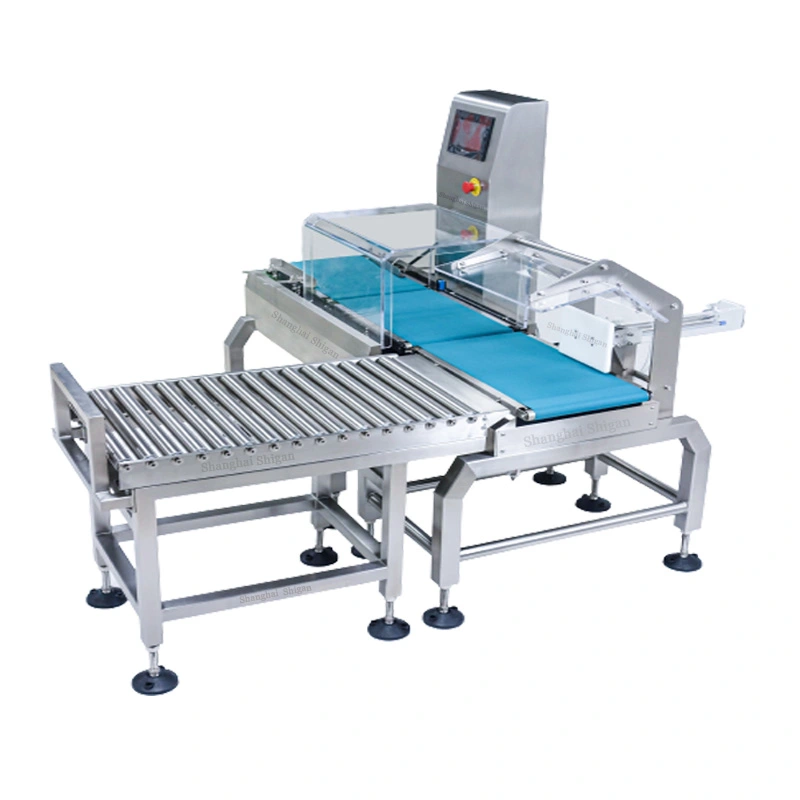

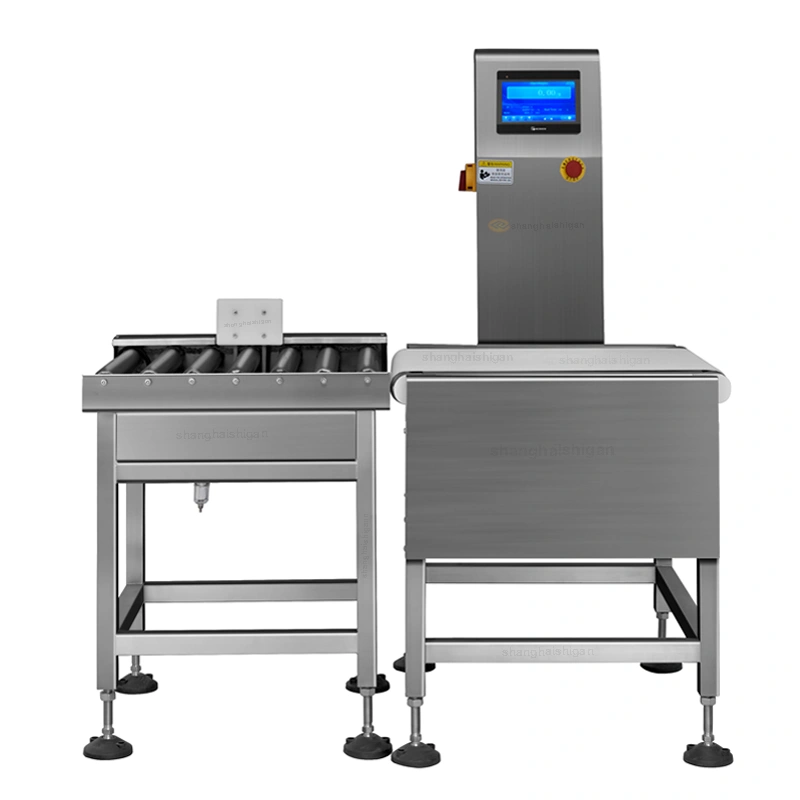

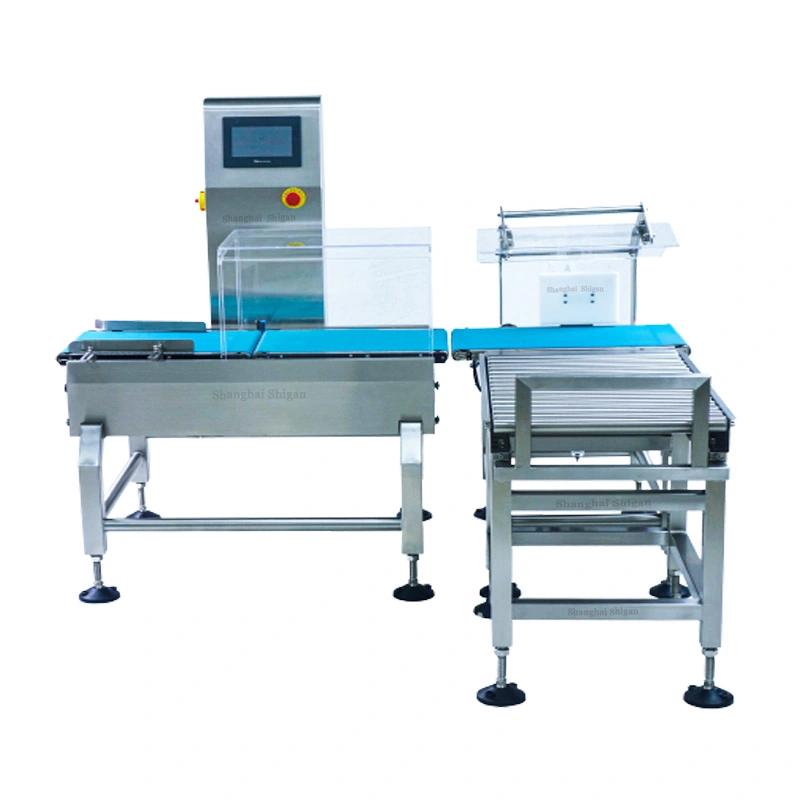

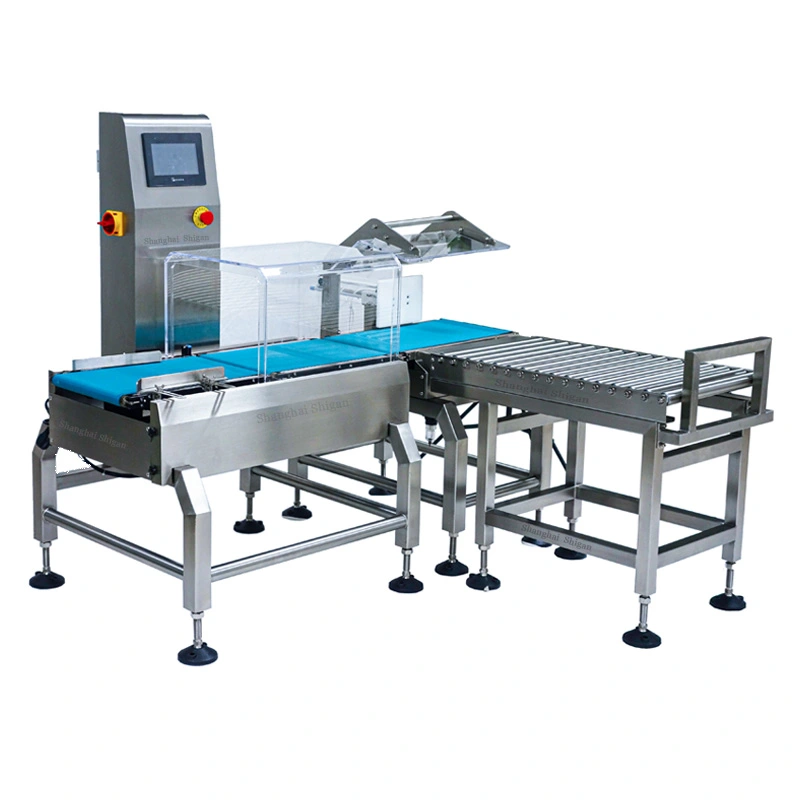

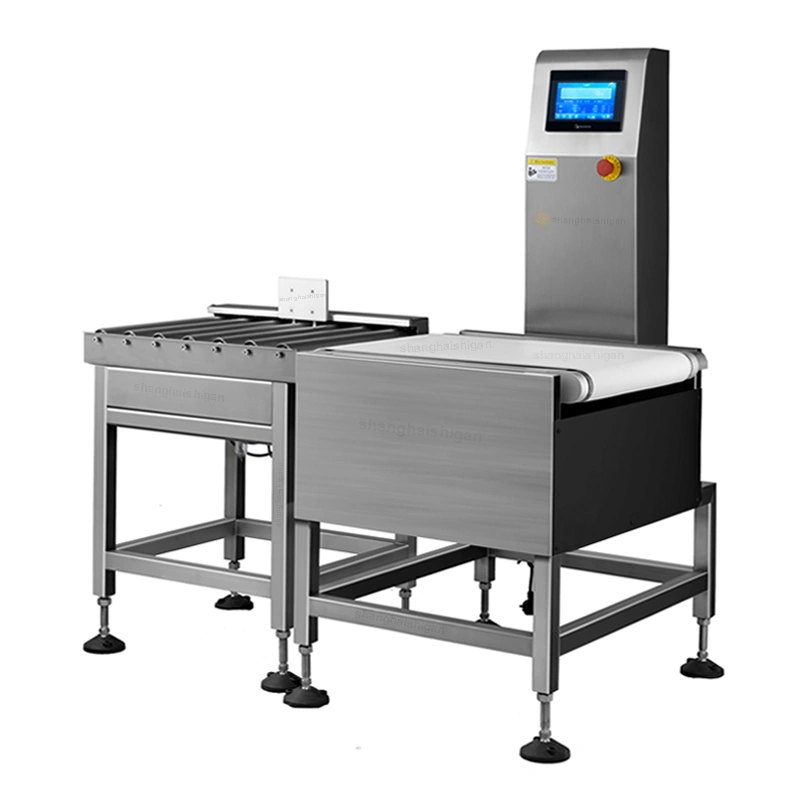

Box carton wide range checkweigher pictures
•Easy Integration: adjustable height, modular design
•Sturdy and robust construction: Stainless Steel 304
•Easy to use: touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy
•Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
•Connectivity: standard ports for data exportation and connect to PC
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
•Different Detection Modes: Default Mode, Static Mode, Power saving mode
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
Type SG-450
Weighing Range 0.05-20/30kg
Limited of product L: 500 W:450 H: 3-400mm
Accuracy ±1g
Division Scale 0.1g
Belt Speed 0- 40 m/min
Max Speed 40 pcs/min
Belt Width 450mm
Machine Weight 100kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
The above parameters are for reference only, and this configuration can also be customized for production according to customer requirements.
The customized project is as follows:
1. Tailored countertop.
2. Highly customized.
3. The material can be customized.
4. The instrument and drum can be wirelessly connected
5. The instrument panel can come with a built-in USB storage function.
6. The instrument can send weight data via Bluetooth.
7. The instrument can choose automatic quantitative control output function.
8. External printer function.
9. Equipped with upper and lower limit alarm lights.
10. External scanning gun function.
Online industrial checkweighers are suitable for various products, from small bags to small bags, boxes, and then to heavy-duty carton; They have been widely used in various industries, such as meat and poultry processing, seafood, baking, nuts, vegetables, pharmaceuticals, cosmetics, etc.
Shanghai Shigan Industry Co., Ltd. was established in 2010, specializing in the research and development of automatic recognition technology and detection technology products. We are committed to the production, sales, and service integration of metal detectors and checkweighers; To provide customers with high-quality products, establish production and manufacturing bases in Shanghai and Jiaxing, and enjoy the convenience of technological products and complete equipment and supporting services. To provide advanced products with reliable quality and first-class technology for domestic and foreign customers. The company has advanced production processes and a comprehensive global after-sales service system, and overseas institutions located in North America, Indonesia, Thailand, Vietnam, and Brazil effectively and quickly serve global customers.
Main Products
Metal Detector for Pharmaceutical
Metal Detector for Daily Necessities
Metal Detector for Other Industries
Checkweigher and Metal Detector Combo
Multi-stage Sorting Checkweigher
Free export fumigation plywood box with quick connection design, easy to open and reuse;
The internal plastic film packaging can protect the goods from salt, wind, or damage;
Our transportation methods include diversification, and we can choose transportation methods according to customer needs, including sea, land, and air transportation, all of which are supported by us.
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
