Precise Capsuele Tablet Inspection Checkweigher System for Pharmaceuticals
Checkweigher as known as check weigher, inline check weighing machine, weight checker, weight detection machine, weight sorting machine, sorting machine, weight check machine and etc,.
Capsule tablet inspection checkweigher systems are precision weighing solutions tailored specifically for pharmaceutical capsules. They accurately measure the weight of individual capsules during the pharmaceutical manufacturing process. They ensure product quality and compliance with regulatory standards by detecting any weight deviations. Using advanced technologies such as high-speed sensors and precision weighing mechanisms, high precision checkweigher system for pharmaceuticals achieve accurate and reliable results in real time, thereby improving operational efficiency and product integrity in pharmaceutical production facilities. Can feel free to contact us for more details, and you will be warmly welcome to visit us.

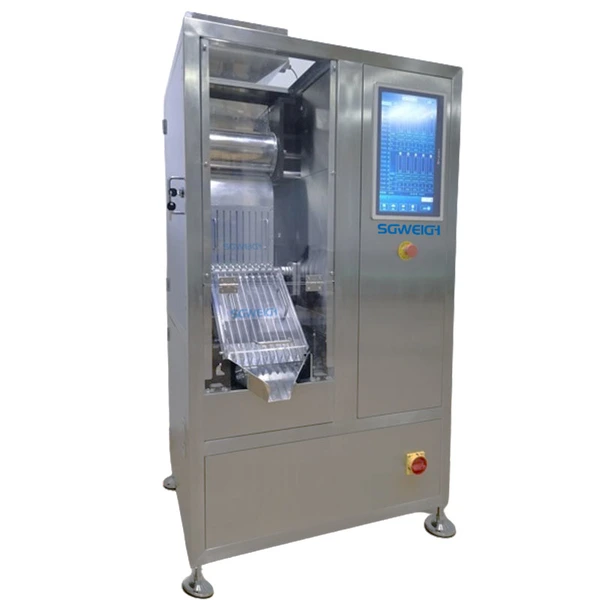

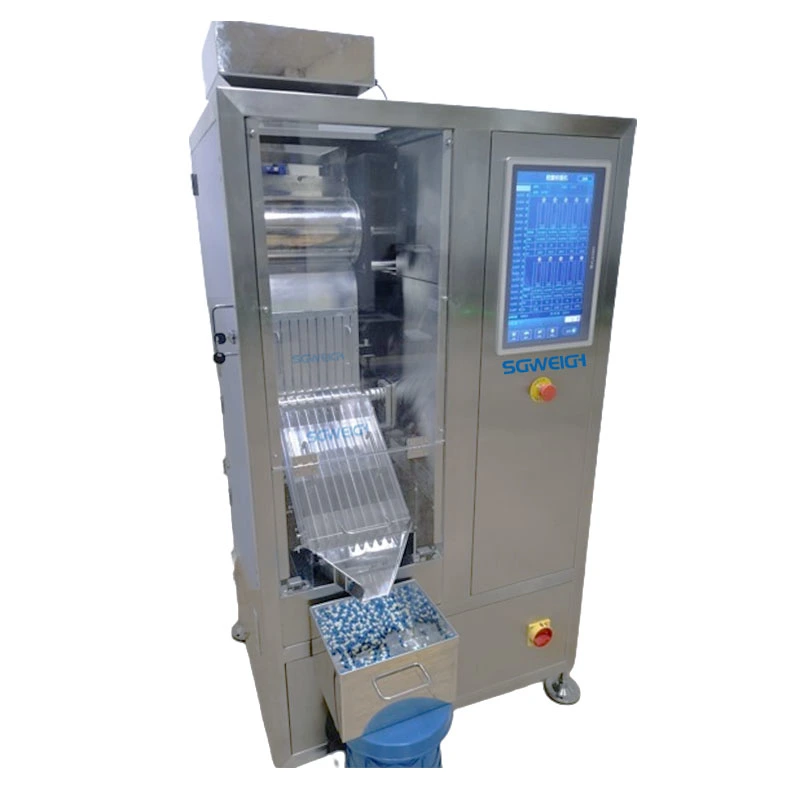

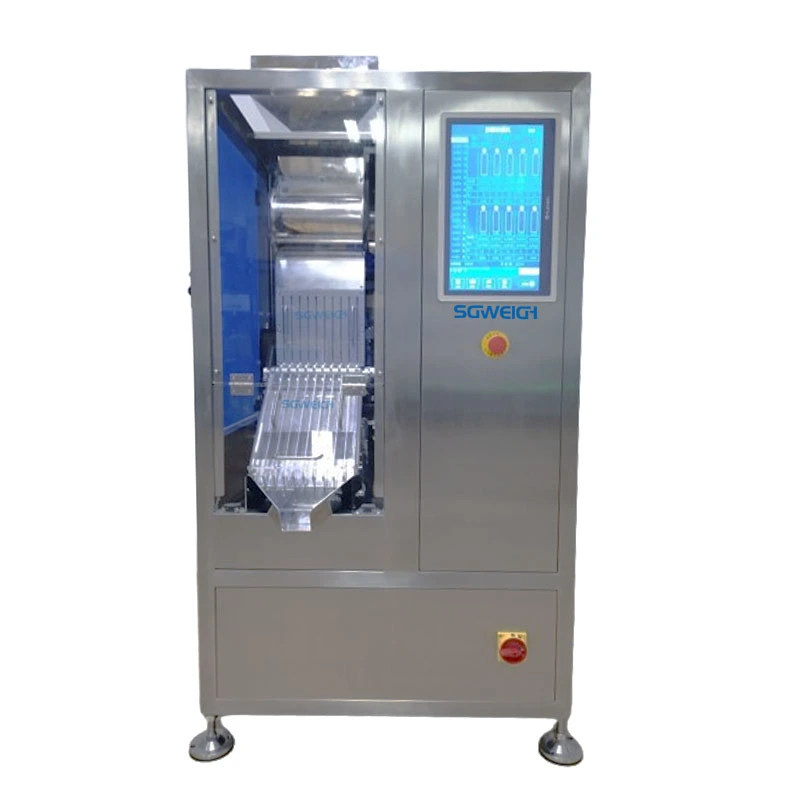

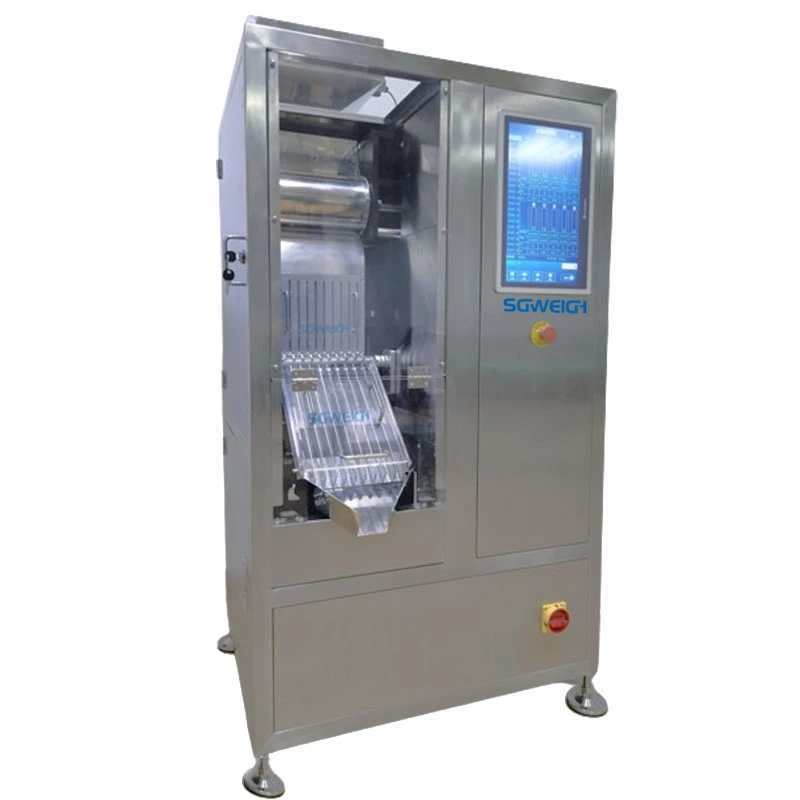

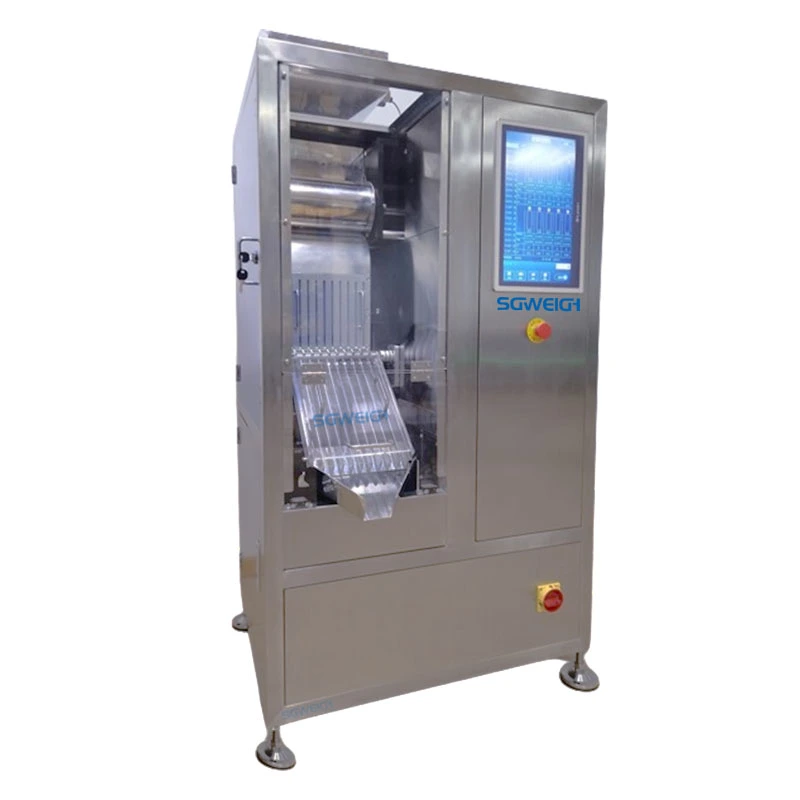

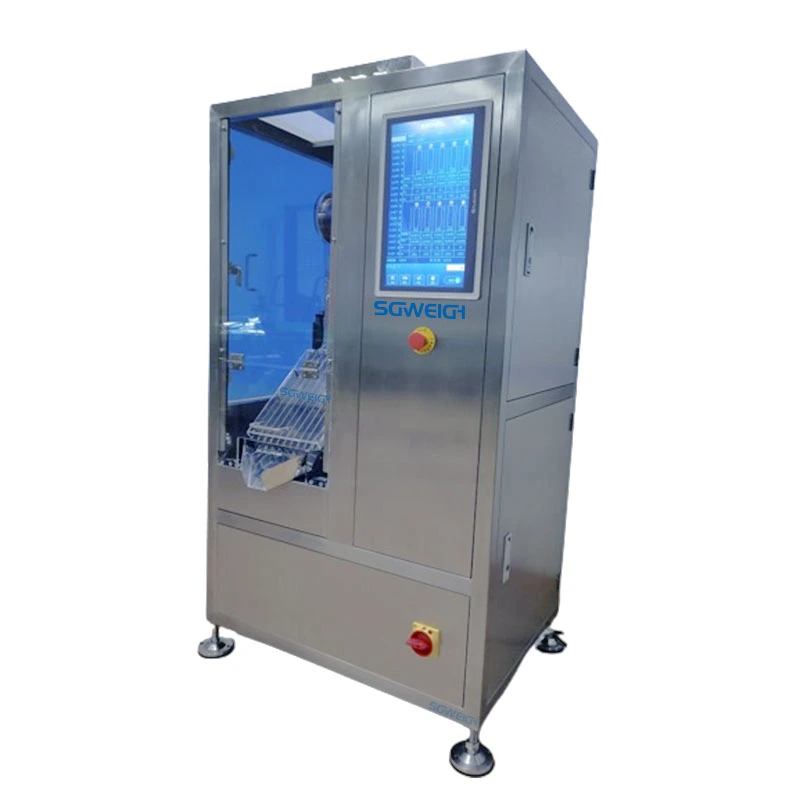

Capsule tablet inspection checkweigher system photos
Type SG-JN20
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 15W pcs/HR
Number of columns: 20
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:500kg
Shell Material:SUS304 Stainless Steel
1. 10-channel calibration can be completed within 1 minute.
2. When the accuracy is 2.0mg, the fastest capsule weight check speed for each channel is 150 capsules per minute.
3. Collection and overflow prompt of unqualified capsules.
4. All channels are displayed in bar graphs and numerical values on the same interface at the same time, and a certain channel can be selected to display with large digital.
5. The curve and standard deviation of the first 20 capsules in any channel can be selected.
6. USB and Ethernet interface, supporting Modbus-TCP protocol.
7. 17″ industrial touch screen computer, rotatable 320°, friendly interface, fast speed, large storage capacity and high reliability.
8. Human-machine interface language: Chinese, English optional.
9. In addition to the data exported by USB flash drive, it is also equipped with a micro-pin printer. The operator signs and confirms on the paper record, which is permanently saved and cannot be changed, and the quality can be traced.
10. Since the feeding, weighing and rejection action amplitude of the equipment is small, it can also be suitable for weighing and sorting or weight grading of hollow capsules whose capsule caps and capsule bodies are not locked.
We support OEM/ODM. When using the capsule tablet inspection checkweigher system, you also need to tailor a machine that meets your needs based on the specific requirements of the capsule and the actual production environment.
Precise Capsuele Tablet Inspection Checkweigher System for Pharmaceuticals
1. Packaging materials: Usually international standard export packaging boxes are used, which have good wear resistance, shock resistance and waterproof performance. The box material can be hard wooden boxes, plastic boxes or export-specific cartons.
2. Protective measures: To ensure that the machine is not damaged during transportation, it is necessary to add sufficient filling materials such as foam, shockproof cotton, etc. in the packaging box.
1. We will deliver the machine and provide the load list on time to ensure you can get the machine quickly
2. We often ask for feedback and provide assistance to customers whose machines have been used in their factories for a period of time.
3.. We provide one year warranty
4. Well-trained and experienced staff will answer all your inquiries in English and Chinese
5. 12 months warranty and lifetime technical support.
6. Your business relationship with us will be kept confidential to any third party.
7. Provide good after-sales service, if you have any questions, please contact us.
