Industrial Metal Detector FAQ（Top 15 Questions）
1. What is an industrial metal detector and how does it work?
An industrial metal detector is a quality control device used to detect metal contaminants in products during production. It works by generating an electromagnetic field; when metal passes through, it disrupts the field, triggering an alarm or rejection system.
2. What types of metals can industrial metal detectors detect?
Industrial metal detectors can detect:
Ferrous metals (iron, steel)
Non-ferrous metals (copper, aluminum)
Stainless steel (more challenging but detectable with high sensitivity systems)
3. How sensitive is a food metal detector?
Sensitivity depends on product type, size, and environment. High sensitivity food metal detectors can detect contaminants as small as:
0.3–0.5 mm (ferrous)
0.5–1.0 mm (non-ferrous)
0.8–2.0 mm (stainless steel)
4. Can metal detectors detect contaminants in aluminum foil packaging?
Standard metal detectors struggle with foil packaging because the foil itself is conductive. In such cases, foil-compatible metal detectors or X-ray inspection systems are recommended for accurate detection.
5. What industries use industrial metal detectors?
Common industries include:
Food and beverage
Pharmaceuticals
Packaging
Textiles
Plastics and rubber
Recycling and mining
6. What is the difference between a metal detector and an X-ray inspection system?
Metal detectors identify only metal contaminants
X-ray systems detect a wider range of foreign objects (metal, glass, stone, bone)
Metal detectors are more cost-effective, while X-ray systems offer broader detection capabilities.
7. How do I choose the right industrial metal detector?
Key factors include:
Product type (dry, wet, frozen)
Packaging material (metalized or non-metalized)
Required sensitivity level
Conveyor speed and size
Industry compliance (HACCP, FDA, IFS)
8. Can wet or conductive products affect detection performance?
Yes. Products with high moisture or salt content (like meat or cheese) create a “product effect,” which can reduce sensitivity. Advanced systems use multi-frequency or DSP technology to minimize this impact.

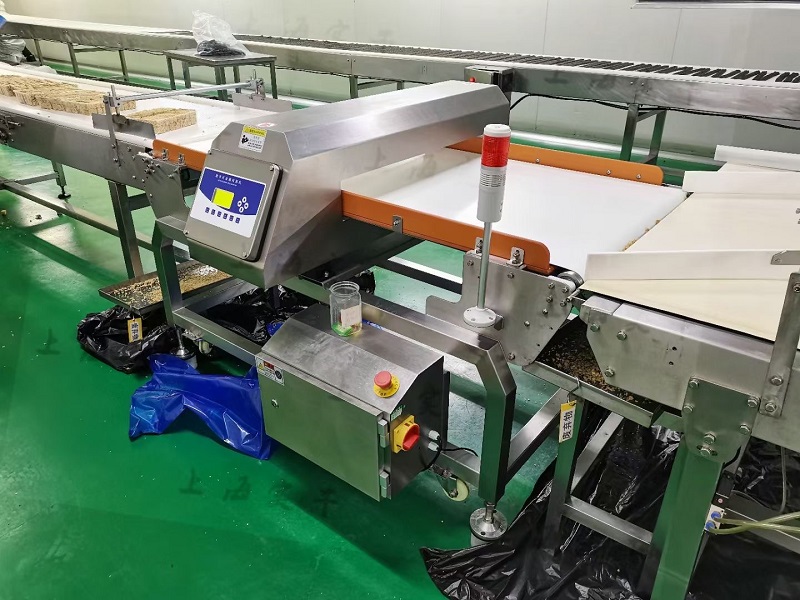

9. What is a conveyor metal detector?
A conveyor metal detector is integrated into a production line, automatically inspecting products as they move along a conveyor belt. It often includes an automatic rejection system for contaminated items.
10. What is an inline metal detector for food production?
An inline metal detector is installed directly in the production process, enabling real-time detection and rejection without stopping the production line, improving efficiency and compliance.
11. Do industrial metal detectors require regular calibration?
Yes. Regular calibration ensures accuracy and compliance with food safety standards. It typically involves test pieces (Fe, Non-Fe, SUS) and should be done daily or per shift.
12. What certifications should a food metal detector meet?
Common certifications include:
HACCP compliance
FDA standards
IFS / BRC certification
CE marking (for European markets)
13. How can I improve metal detection sensitivity?
To improve sensitivity:
Reduce aperture size
Use higher frequency settings
Ensure proper installation (minimal vibration/interference)
Regular maintenance and calibration
14. What is a multi-frequency metal detector?
A multi-frequency metal detector operates at multiple frequencies simultaneously or alternately, improving detection performance across different product types and reducing product effect.
15. What maintenance does an industrial metal detector require?
Routine maintenance includes:
Cleaning the system regularly
Checking belts and reject mechanisms
Verifying calibration with test samples
Inspecting electrical components
