15g Medicine Water Bottle Pharmaceutical Rotary Checkweigher with Turntable
Checkweigher machine as known as check weigher, check weight machine, weight sorting machine, check weighing machine, weight checker and etc,.
The pharmaceutical rotary checkweigher with turntable series is a high-speed and accurate automatic online weight inspection equipment, suitable for detecting whether the weight of a single small object is qualified, and sorting out unqualified products. The unique low center of gravity design of the high precision bottle checkweigher greatly reduces the impact of vibration, thereby improving detection accuracy. It has a very user-friendly operating interface and is easy to understand. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

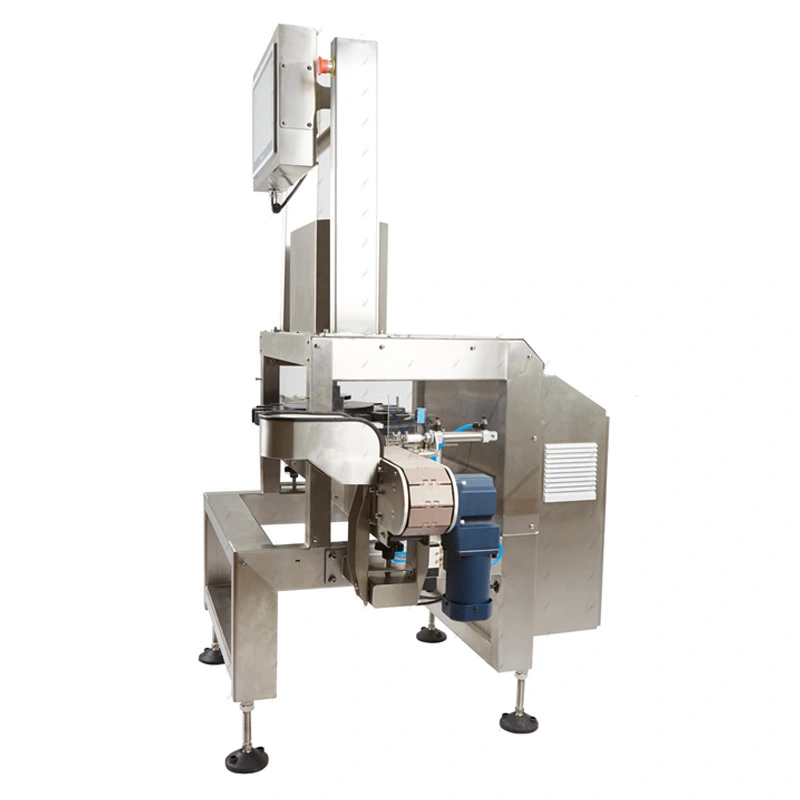

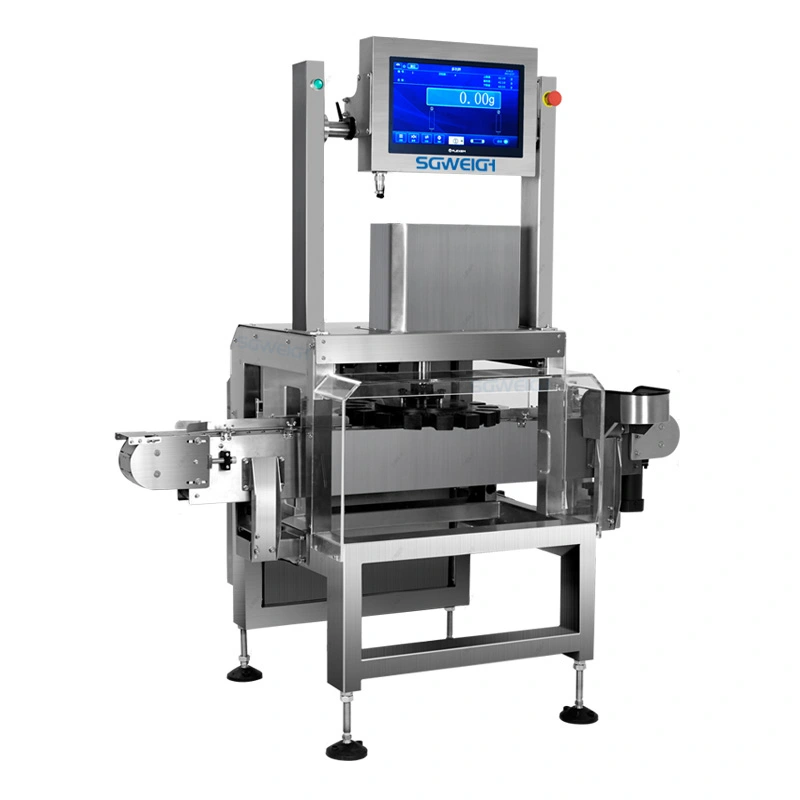

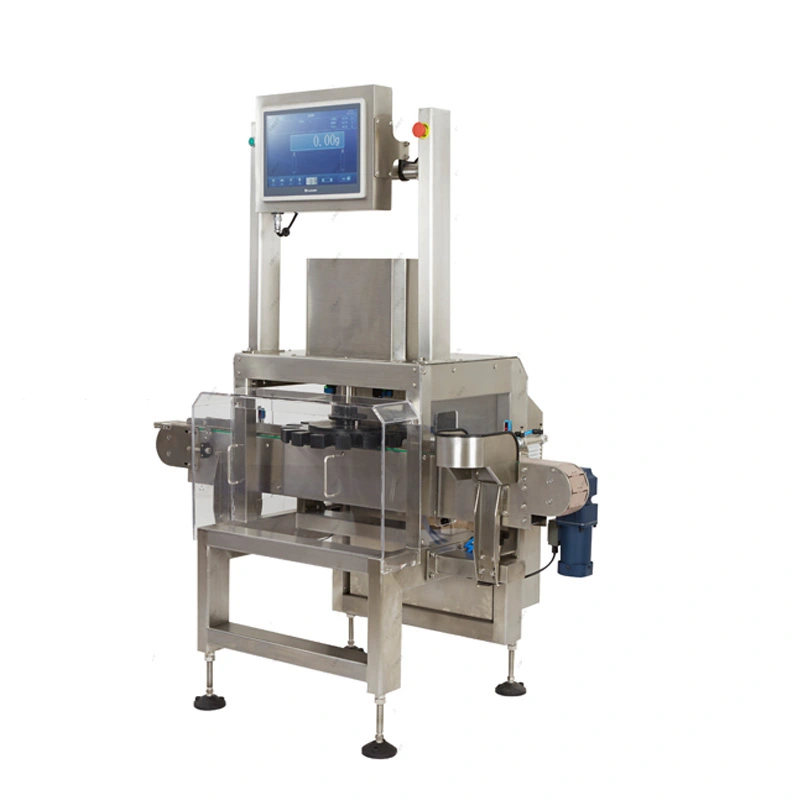

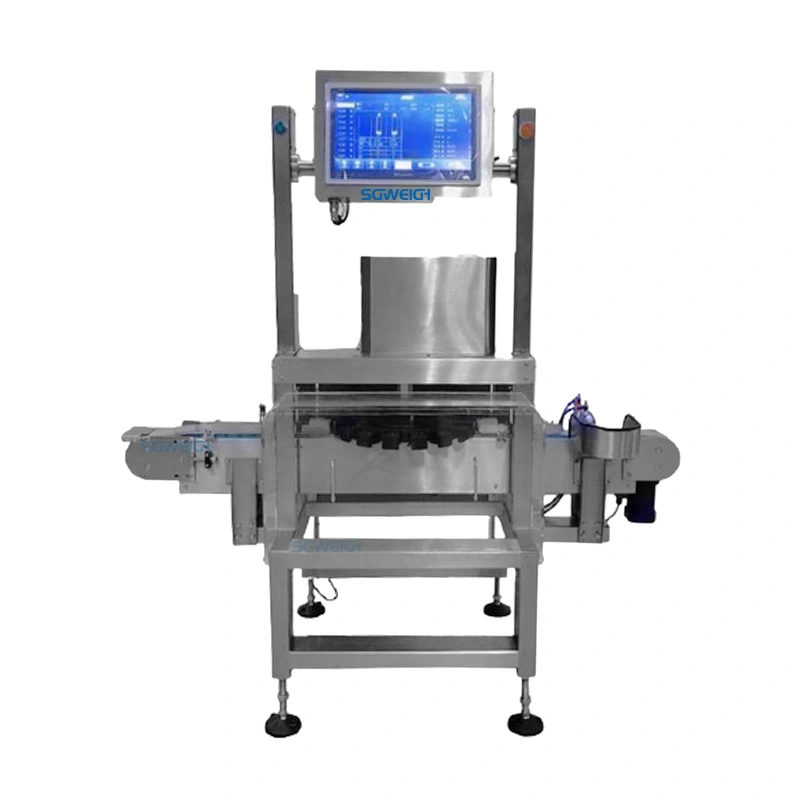

High precision bottle checkweigher pictures
Model SG-Z1
Weighing range 5-300g
Minimum scale 0.01g
Maximum sorting speed of 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode: Touch based operation
Transport direction facing the touch screen from left to right
Removal method: air blowing removal/push plate removal
Belt height above ground 750 ± 50mm (customizable according to customer requirements)
Machine structure stainless steel (SUS304)
Power supply 220V 50-60HZ
Power of approximately 300W
Windshield thick acrylic (to avoid airflow interference)
Working environment temperature: 0 ℃~40 ℃, humidity: 30%~95%
The properties and usage environment of the tested product vary, and the detection speed and accuracy also vary. Actual testing is the standard.
We support OEM/ODM, and in the process of using high precision bottle rotary checkweighers, it is also necessary to tailor a machine that meets the specific requirements of the product and the actual production environment. To ensure stable performance and accurate completion of inspection tasks, different products may require different types of high precision checkweighers.
1. Maximum weight: 300g, maximum speed:50 bottles/minute
2. Scope of application: Used to test whether the weight of a single product meets the set target.
3. Scale frame structure ensures accurate and stable measurement during dynamic operation.
4. The LCD operating system provides a Chinese and English interface for easy learning.
5. Powerful data statistics function, which can be used to record the detection data of each process.
6. The conveyor belt is detachable and easy to maintain.
7. Durable and hygienic stainless steel structure.
8. The protection level of all components is IP 65.
9. Compact design, easy to integrate.
10. Cleaning mode (optional) to achieve maximum hygiene and efficiency.
The high precision bottle rotary checkweigher can be used in conjunction with various packaging production lines and conveying systems. Suitable for online testing in industries such as pharmaceuticals, food, toys, hardware, and chemicals.
Shanghai Shigan Industrial Co., Ltd. is located in the beautiful scenery of Shanghai, China. Since 2010, we have been engaged in the production and research and development of assembly line checkweigher and metal detector, and have obtained CE certification and multiple professional certificates. The company always adheres to the business philosophy of "innovation, quality, and efficiency", providing you with perfect and high-quality products and services. Now our company's products have been sold all over the world and have received the trust and praise of countless customers!
Our main products include:
Metal Detector for Pharmaceutical
Metal Detector for Daily Necessities
Metal Detector for Other Industries
Checkweigher and Metal Detector Combo
Multi-stage Sorting Checkweigher
Free export fumigation plywood box with quick connection design, easy to open and reuse;
Internal plastic film packaging can protect goods from salt, wind, or damage;
1. Equipment installation and debugging: The company provides detailed operation manuals and free operation training to ensure that customers can proficiently use the equipment.
2. Technical support: The company provides 24/7 technical support to solve problems encountered by customers during use.
3. Accessories supply: The company provides original accessories to ensure the quality and stability of the accessories.
4. Quality assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. Warranty policy: One year warranty, lifetime repair, to solve customers' worries.
