3kg Carton Box Conveyor Checkweigher With Rejector Compact Checkweigher Price
Checkweigher as known as check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, weighing scale, and etc,.
The high speed carton box conveyor checkweigher in the food industry detects and identifies products by weight, and detects unqualified products (overpacked or underpacked). Qualified products flow into the next process, and unqualified ones are removed by the checkweigher. Compact automatic checkweigher with rejector are a high-efficiency, high-precision online checkweighing equipment that can be embedded in various types of production lines. They do not need to be installed or disassembled, and can be directly placed in the production line. To know more about us, please you do not hesitate to contact us or visit our factory.

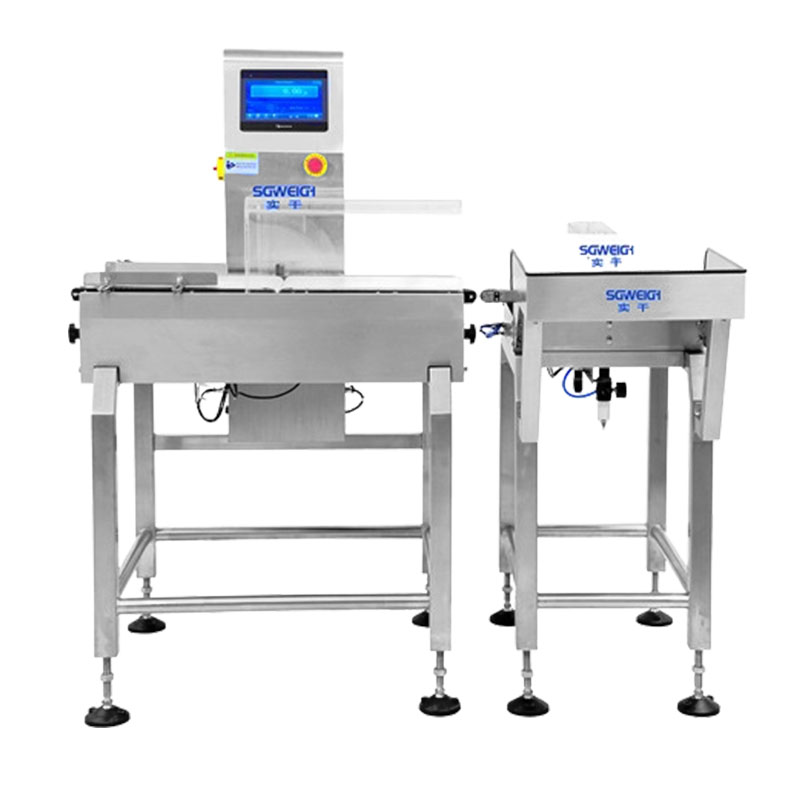

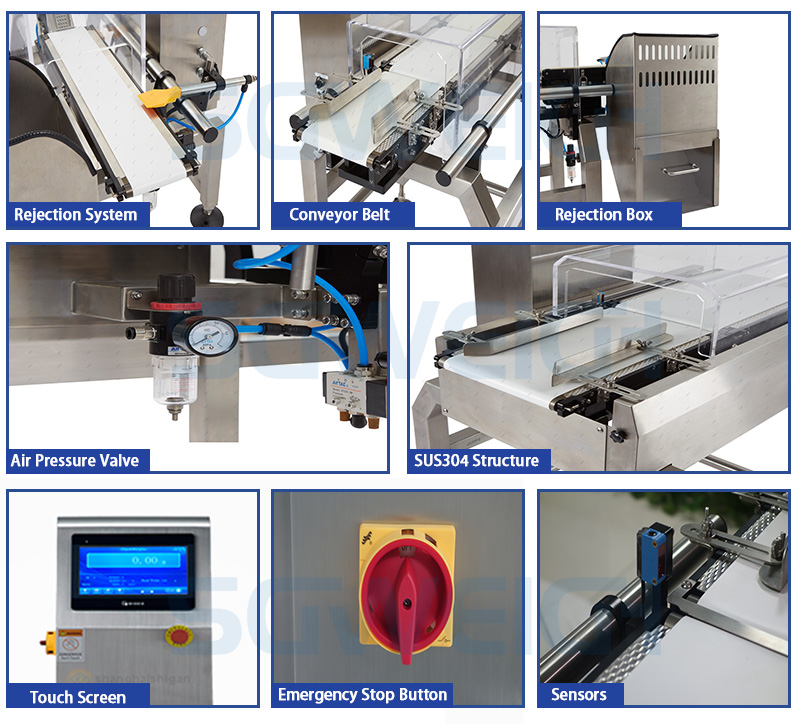

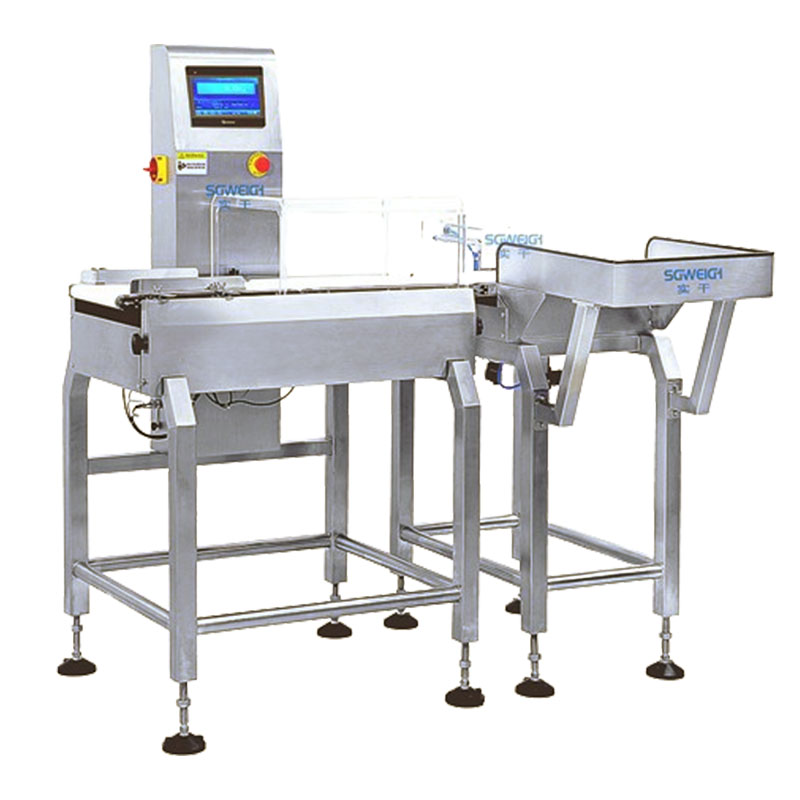

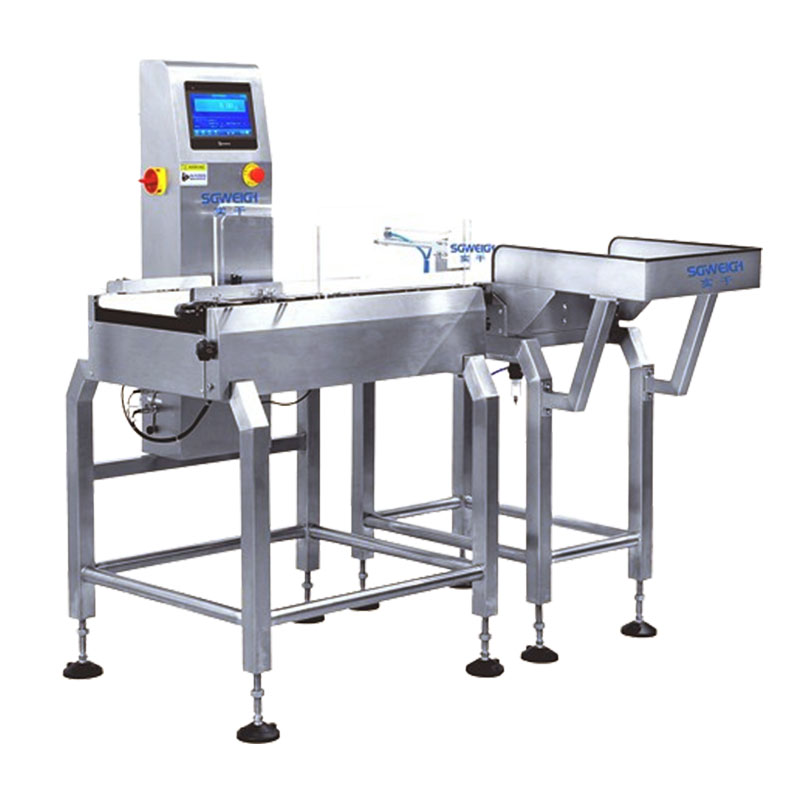

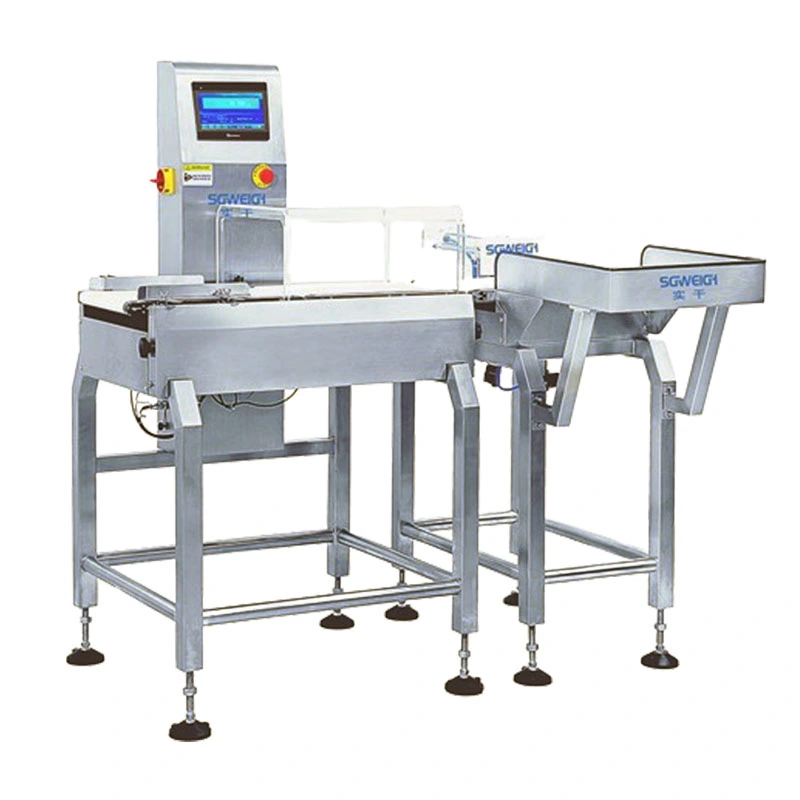

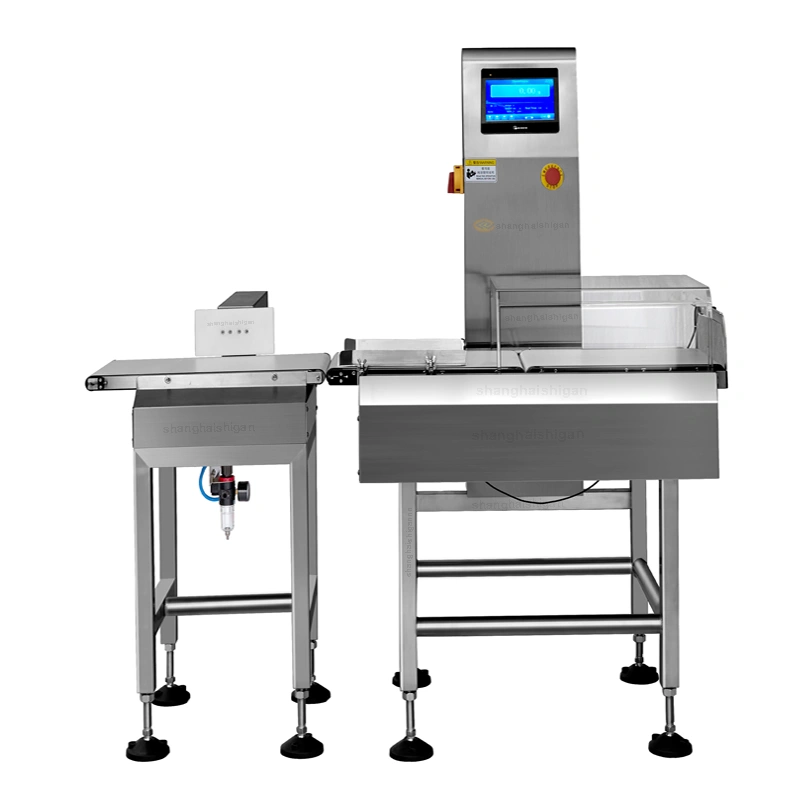

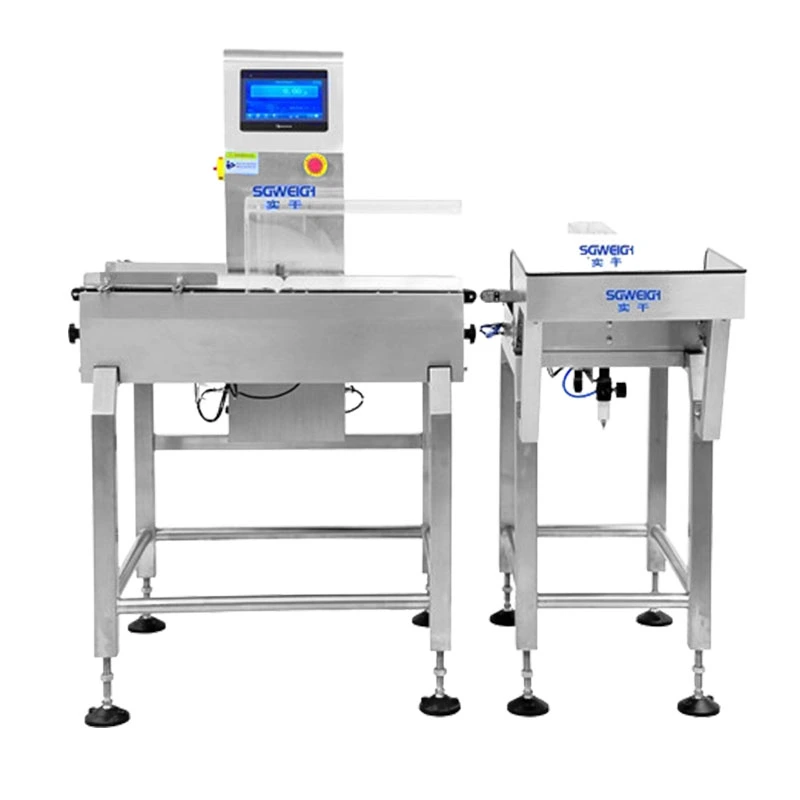

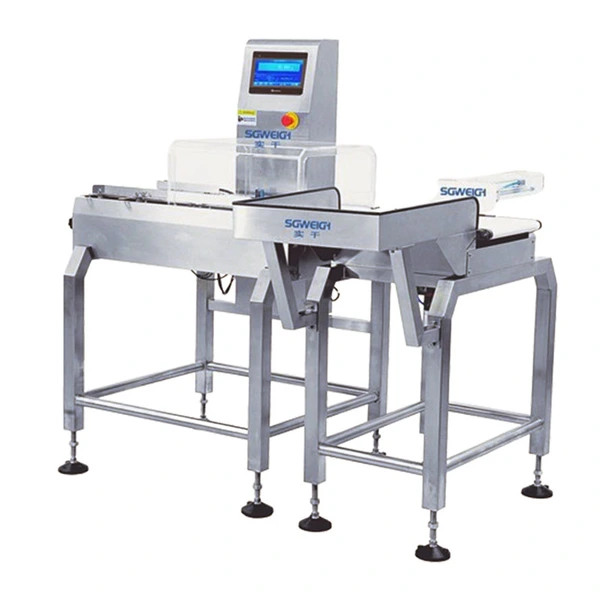

High speed carton box conveyor checkweigher pictures
Type SG-300
Weighing Range 5-3000g
Limited of product L: 350 W:300 H: up3mm
Accuracy ±0.3g-0.5g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 80 pcs/min
Belt Width 300mm
Machine Weight 100kg
Power Supply AC -220V 50HZ
Power 200W
Main Material SU304 stainless steel
1) Independent intellectual property rights, stable and mature technology.
2) First-class craftsmanship, professional mechanical design: 304 stainless steel, easy to clean and maintain, processing technology uses imported equipment for cutting and grinding, smooth and beautiful, easy to install.
3) Good environmental adaptability and stability: IP54/IP66, the product can be customized, the control cabinet, control box, and control button have good sealing to prevent dust and water from entering.

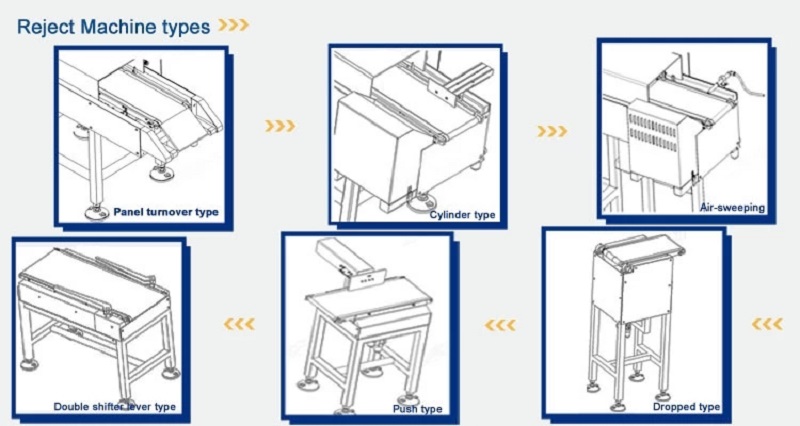

4) Accurate and efficient sorting mechanism: Provide a variety of quick exclusion sorting mechanisms, push rod type, swing arm type, blowing type, lifting baffle type optional.
5) Data storage export and system integration: It has a variety of data storage export functions, real-time storage and sorting of data, supports U disk export, and supports data opening in Excel; it can be connected to EMS, WMS and other systems, and product information can be traced.
6) Power-off memory function: All operating data can be stored and the memory will not be lost.
7) Automatic average sampling function: No need to manually set the upper and lower limits, automatic sampling and average value.
8) Humanized operation interface: Touch screen display operation, parameter setting observation is clear and intuitive.
9) Simple user settings: Up to 1,000 product formulas, the operation interface is encrypted and locked to prevent repeated operations and misoperation.
10) One-key parameter recovery function: Provides factory parameter setting recovery function, one-key recovery of factory settings.
11) Remote assistance function: Simply connect the device to the Internet through the LAN port or door to achieve remote diagnosis, troubleshooting, and parameter settings.
High speed carton box conveyor checkweighers are widely used in the production and packaging processes of food and beverage, pharmaceuticals, daily chemicals, warehousing and logistics, electronic light industry, packaging and printing, auto parts and hardware, plastic toys, chemicals, agricultural and sideline products and other industries.
3kg Carton Box Conveyor Checkweigher With Rejector Compact Checkweigher Price
The above parameters are for reference only, and our high speed carton box conveyor checkweigher supports customization. Provide the following information to our sales personnel, and our team will support you in selecting the correct type of weighing scale:
*Main parameters of the tested product, product size range: length, width, height
*2. Accuracy requirement: ± g.
*3. Speed requirement: pcs/min;
*4. Product weight range:; The maxi and min deviations of the same product.
3kg Carton Box Conveyor Checkweigher With Rejector Compact Checkweigher Price

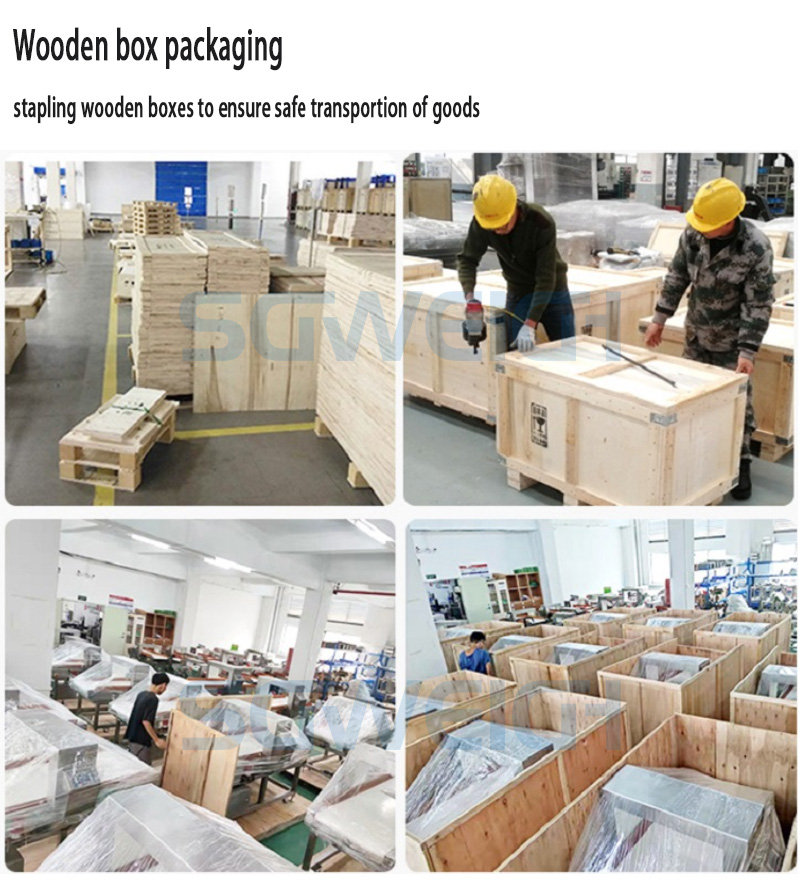

1. Packaging materials: Usually international standard export packaging boxes are used, which have good wear resistance, shock resistance and waterproof performance. The box material can be selected from hard wooden boxes, plastic boxes or special export cartons.
2. Protective measures: To ensure that the machine is not damaged during transportation, it is necessary to add sufficient filling materials such as foam, shockproof cotton, etc. in the packaging box.
Pre sales service
Before providing suggestions to customers, we will clearly confirm their requirements to ensure that the suggestions we provide meet your requirements. Then we will give you a good quote.
On sale services
After placing an order with our production department, we will follow your order well and inform you of the production status. We will provide you with photos
After-sale service
The warranty period for this machine is one year, calculated from the date the customer receives the machine. During the warranty period, we will replace damaged parts (excluding human damage).
