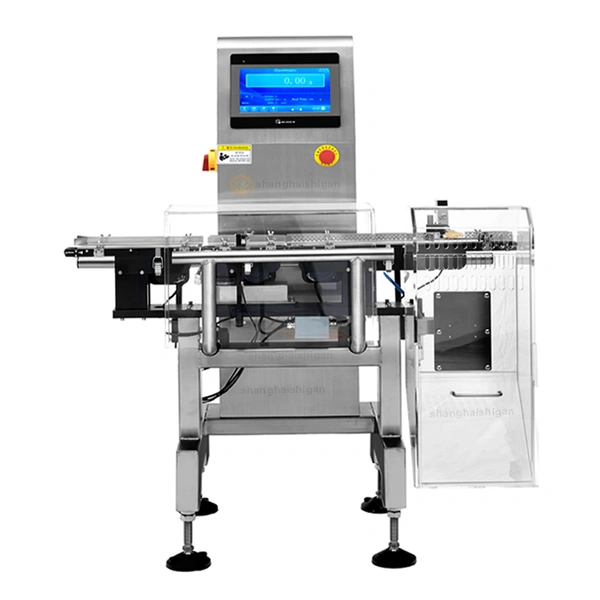

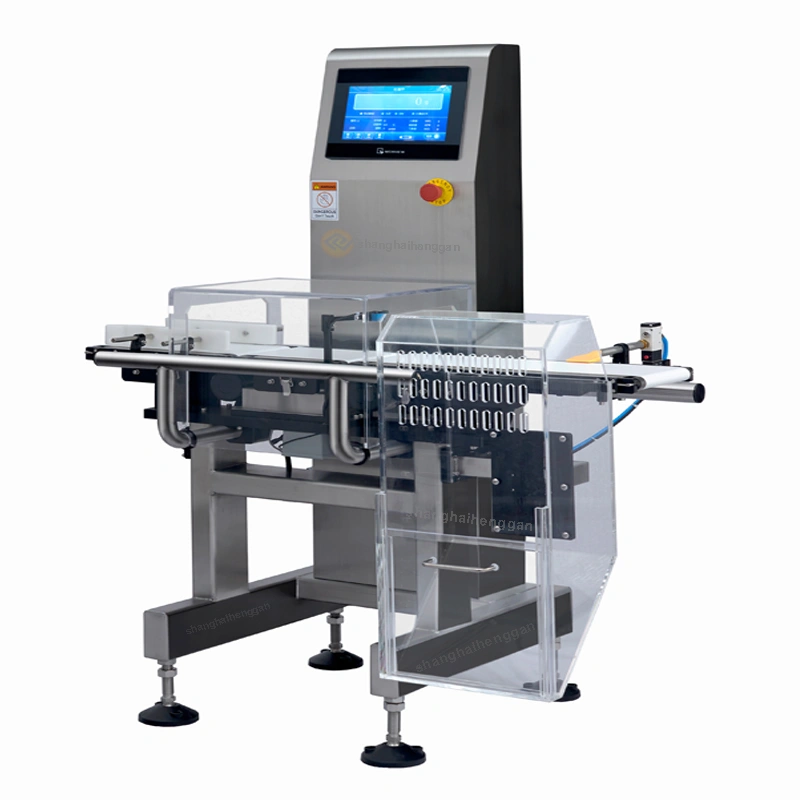

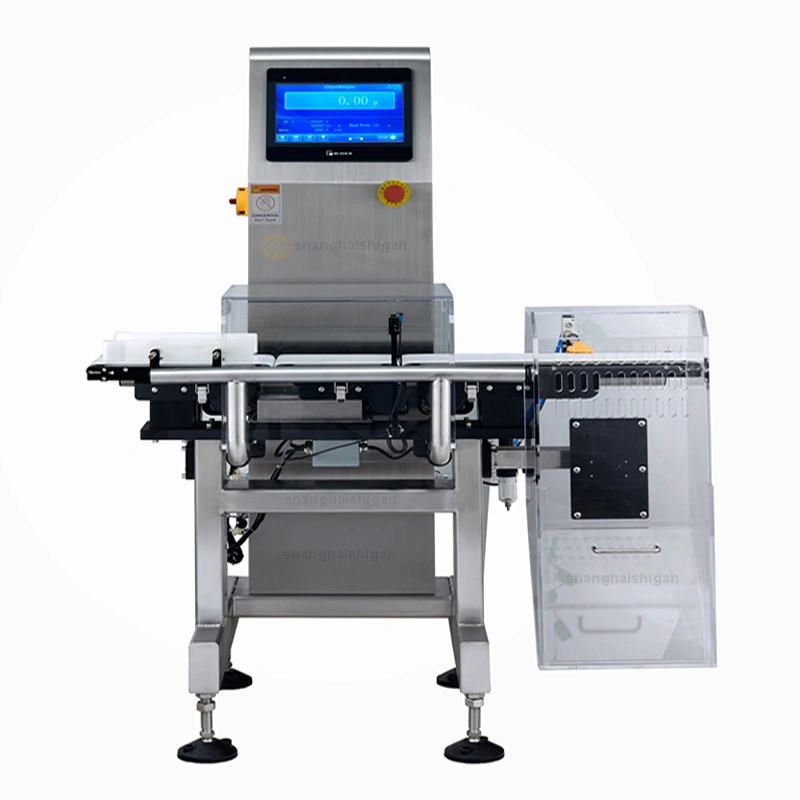

High-speed Online Dynamic Checkweigher For Bottle Caps Check Weight Sorting Machine Factory
Product Information
The high speed checkweigher produced by Shanghai Shigan uses new weighing technology, with compact design, high speed, high precision, stable operation, simple operation, and a variety of reject systems to choose from, integrated with upstream and downstream equipment to form a complete packaging line. Dynamic checkweigher system is widely used, such as bag, bottle, tray, can or box packaging, medicine or seafood sorting, toy inspection, etc.You are welcome to contact us at any time for further information.
Specification Parameter
TypeSG-100
Weighing Range2-300g
Limited of productL: 100 W: 100 H: 2-150mm
Accuracy±0.5g Depends on product
Division Scale 0.01g
Belt Speed0- 80 m/min
Max Speed 300 pcs/min
Belt Width100mm
Machine Weight60kg
Power SupplyAC 110/220V ±10% 50HZ
Power100W
Main MaterialSU304 stainless steel
The highest checkweighing capacity and accuracy of the checkweigher vary according to the actual test product, the selection part and the application environment.
The size is for reference only and can be customized
The customized items are as follows:
1. The countertop is tailor-made.
2. Highly tailored.
3. The material can be customized.
4. The meter and the drum can be connected wirelessly,
5. The meter can have its own USB storage function.
6. The meter can send weight data via Bluetooth.
7. The meter can choose automatic quantitative control output function.
8. External printer function.
9. Built-in upper and lower limit alarm lamp function.
10. External scanner function.
Main Feature
Automatic selection-automatic selection method, convenient and fast;
Adjustable speed-high-precision detection, adjustable conveying speed;
Parameter setting-arbitrary setting of upper and lower limit weight parameters;
Frequency conversion speed regulation-the conveying system adopts frequency conversion speed regulation mode, which is convenient for speed regulation;
Data storage-powerful data statistics function, record daily test data;
Data call-with set data group memory, call function, easy to operate;
Data record-accumulate OK number, underweight number, and overweight number respectively;
Fault diagnosis-self fault diagnosis and prompt function, convenient for maintenance;
Multi-group storage-100 groups of setting parameters can be stored;
Treatment method-alarm/shutdown for unqualified products, optional removal;
Data viewing-historical record query function, can be exported to U disk, directly view with office PC.
Application
The online dynamic checkweigher is widely used in food, beverage, pharmaceutical, sanitary products, detergent, daily chemical, chemical and other industries. The high speed checkweigher is currently an important intelligent testing equipment for reliable assembly line automatic weighing inspection or quality inspection.
About Us
Founded in 2010, Shanghai Shigan Co., Ltd. is a high-tech enterprise specializing in R&D, production and sales of testing equipment. The company has been focusing on the development and sales of digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher and other assembly line equipment for more than ten years. It has become a well-known professional equipment manufacturer and service provider in the industry. Companies attach great importance to independent research and development ability training and technical team construction, and have formed a technical team with independent research and development capabilities. , To ensure that the company can continue to introduce new products that meet customer needs.
Sale Service
1. Service tenet: fast, decisive, accurate, thoughtful and thorough
2. Service goal: service quality wins customer satisfaction
3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, the solution will be provided as soon as possible
4. Service principle: The product warranty period is one year. During the warranty period, our company will repair the parts damaged due to quality reasons free of charge. If the parts are damaged outside the warranty period, the provided accessories will only charge the cost. If due to human factors If the equipment is damaged, the parts repaired or provided by our company will be calculated at the cost price.
