High Efficiency Bag Weighing Check Weigher And Metal Detector Integrated Machine With Removal
Product Description
Check weigher and metal detector integrated machine sa known as checkweigher metal detector combo, weighing metal detection machine, checkweigher metal detector system and so on.
The high efficiency check weigher metal detector combo the dual advantages of a metal detector and a weight sorting machine, and realizes the functions of online material transportation, metal detection, weight sorting and online rejection. The bag weighing check weigher metal detector integrated machine is specially designed for the online inspection equipment of the automatic packaging line, saving space, and is an effective solution for the end of the production line inspection and quality control.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

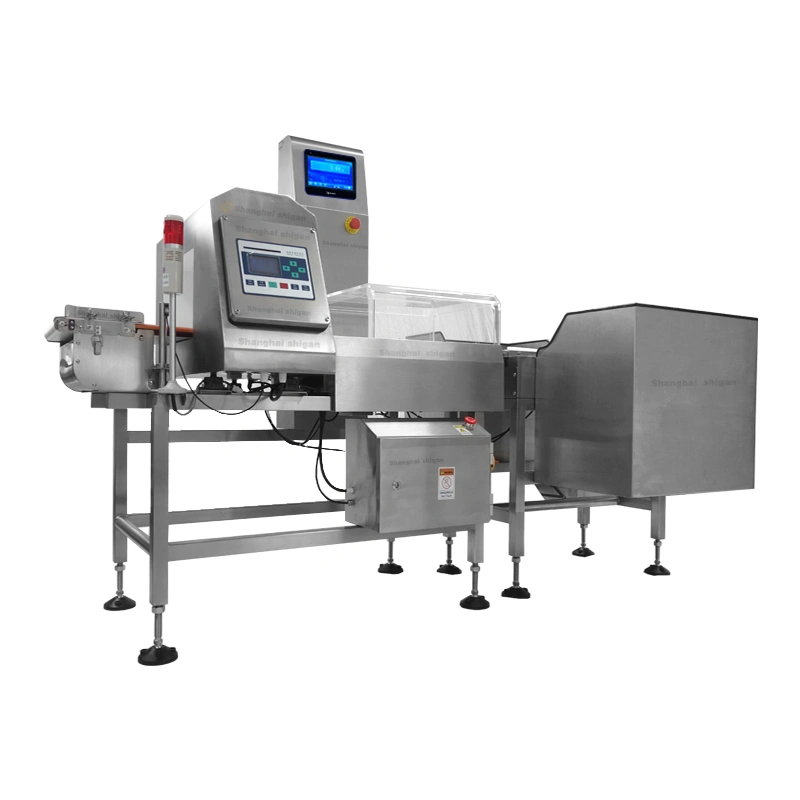

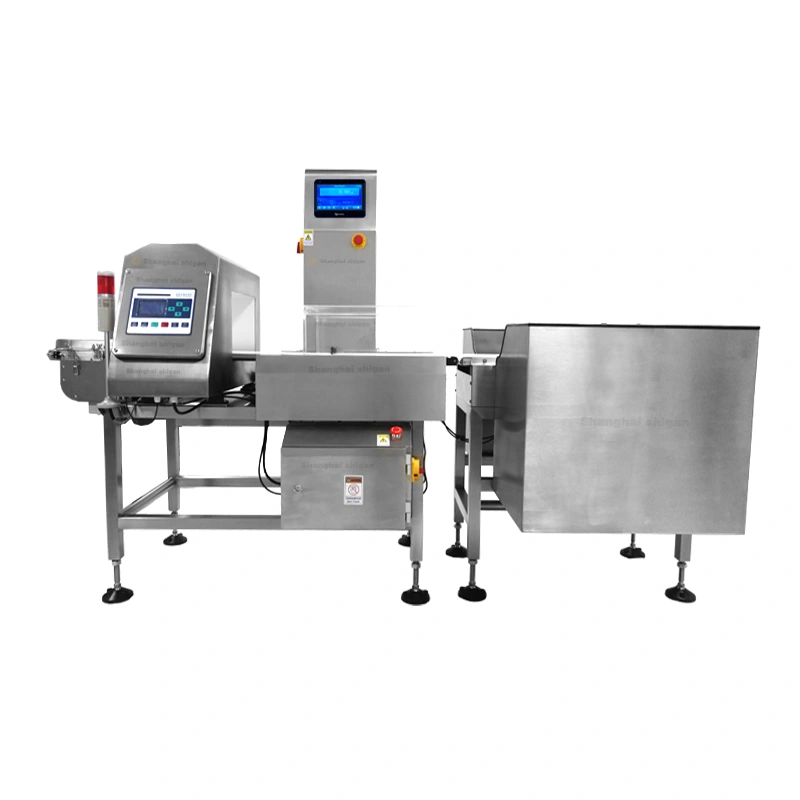

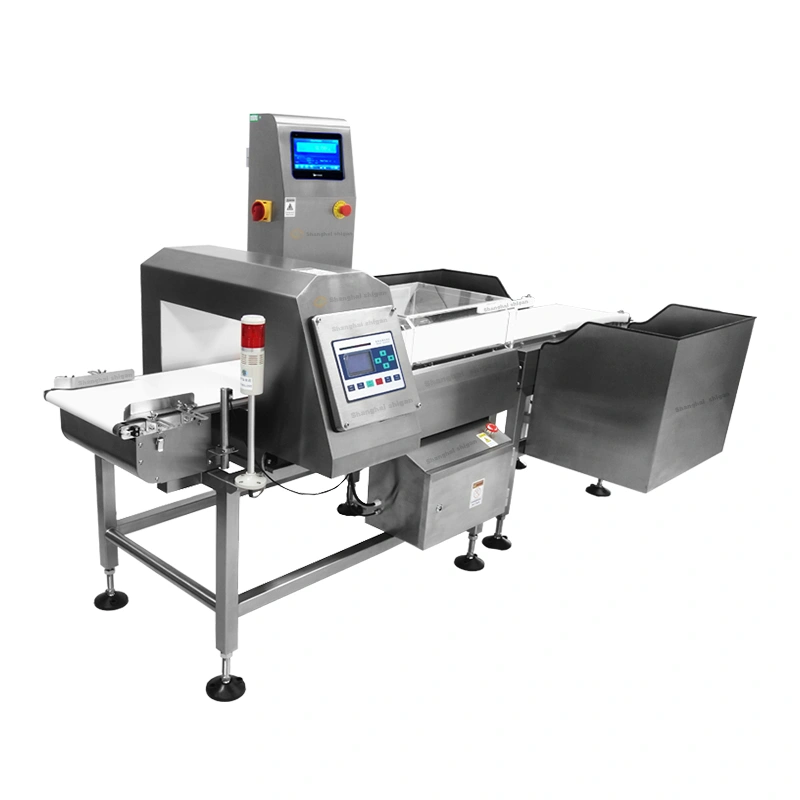

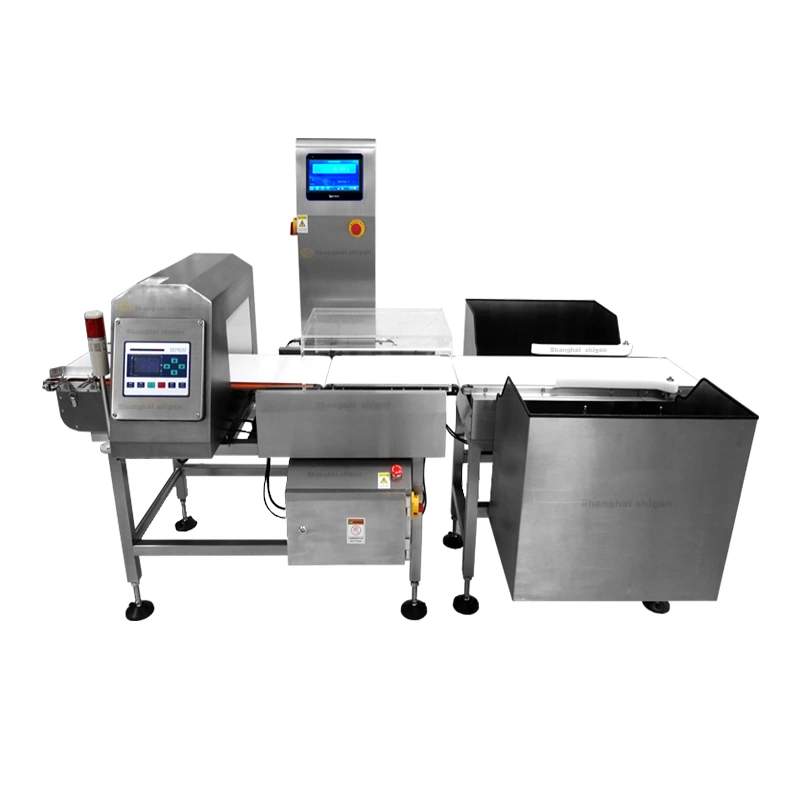

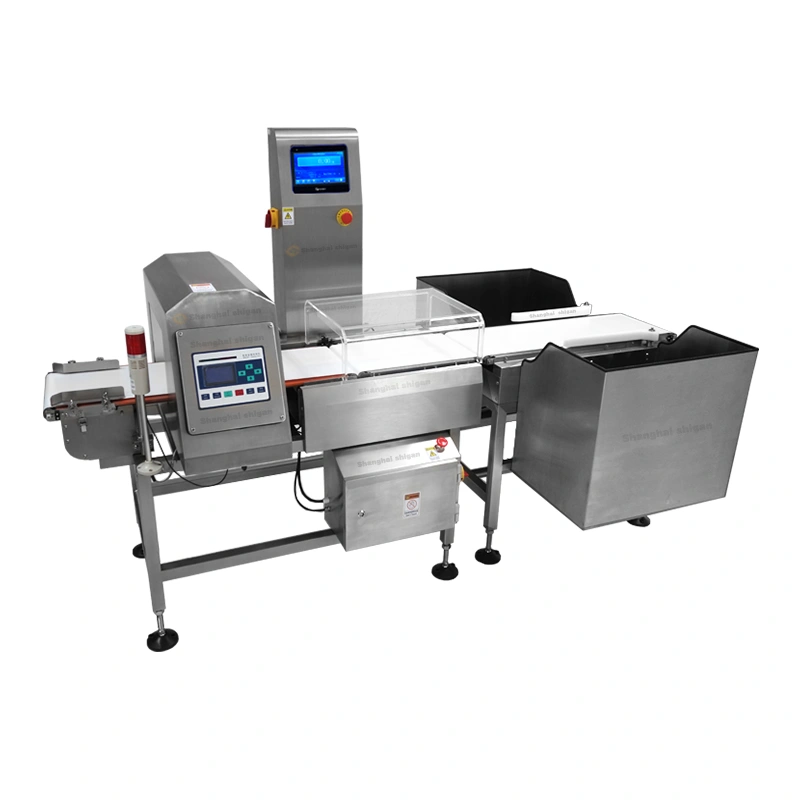

High efficiency check weigher metal detector combo photos
Specification Parameter
TypeSG-JS220
Specifications4010
Main materialSUS304
Inspection Width220mm
Weighing Range5-1500g
Weighing accuracy±0.2g(depends on product)
Detection Width220mm
Inspection height100-200mm
Max Speed25m/min
Capacity10kg/times
Protection GradeIp65
DisplayLED
PowerAC220V
Alarm wayAlarm,Belt stop
SizeH:2267 W:589 H:1500 mm(depend on final design)
1. The best accuracy depends on the product conditions, and the maximum speed depends on the product size and conveyor speed.
2. The above machine specifications are standard specifications, dimensions and other special requirements, and can be customized.
Main Advantages
1. The metal detector part adopts a dual-loop design, which can detect iron and non-ferrous metal impurities separately. The detection sensitivity is high and can be adjusted separately. It breaks through the technical bottleneck that most equipment is only sensitive to magnetic substances. The operation is extremely convenient. It can detect aluminum and platinum. Package food.
2. The solicited conveyor belt and pallet adopt white materials that meet the US "FDA" standard.
3. The detection accuracy exceeds the corresponding detection indicators stipulated by the HACCP system.
4. It can be combined with a weighing machine and a sorting machine to form an automatic detection weighing assembly line.
5. It can be used in conjunction with the assembly line to implement automatic inspection of the assembly line.
6. The metal detector adopts sound and light alarm, and it can automatically eliminate or shut down at the same time. The operation and use are extremely convenient and reliable.
7. The whole machine is made of stainless steel, which is anti-corrosion and easy to clean.
Application
The automatic check weigher and metal detector combo have been widely used in food, medicine, chemicals, machinery industry, agricultural and sideline products and other fields.
About Us
Shanghai Shigan Industrial Co., Ltd. is a professional manufacturer of dynamic checkweighers. Our factory has excellent production equipment, advanced technology, strong technical force, technical measurement, and complete quality institutions. The company's products are sold in many countries and regions around the world, such as Southeast Asia, the United States, Europe, etc. Based on the principle of customer first, the company has an after-sales service department to rush to the needs of users and solve their problems. The products implement three guarantees, one-year warranty, and lifetime maintenance. Free technical training for users
After Sale Service
Based on the spirit of pursuing high-quality products and customer satisfaction, Shanghai Shigan Industrial Co,.Ltd solemnly promises you with the principles of preferential prices, considerate service, and reliable product quality.
1.Product quality commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). For product performance testing, we sincerely invite users to personally check the whole process and performance of the product, and then pack and ship the product after it is confirmed to be qualified.
2. Product price commitment:
(1). Under the same competitive conditions, our company will sincerely provide you with preferential prices on the basis of not reducing product technical performance or changing product components.
3. Delivery time commitment:
(1). Product delivery time: Try to meet user requirements. If there are special requirements, it needs to be completed in advance, and strive to meet user needs.
