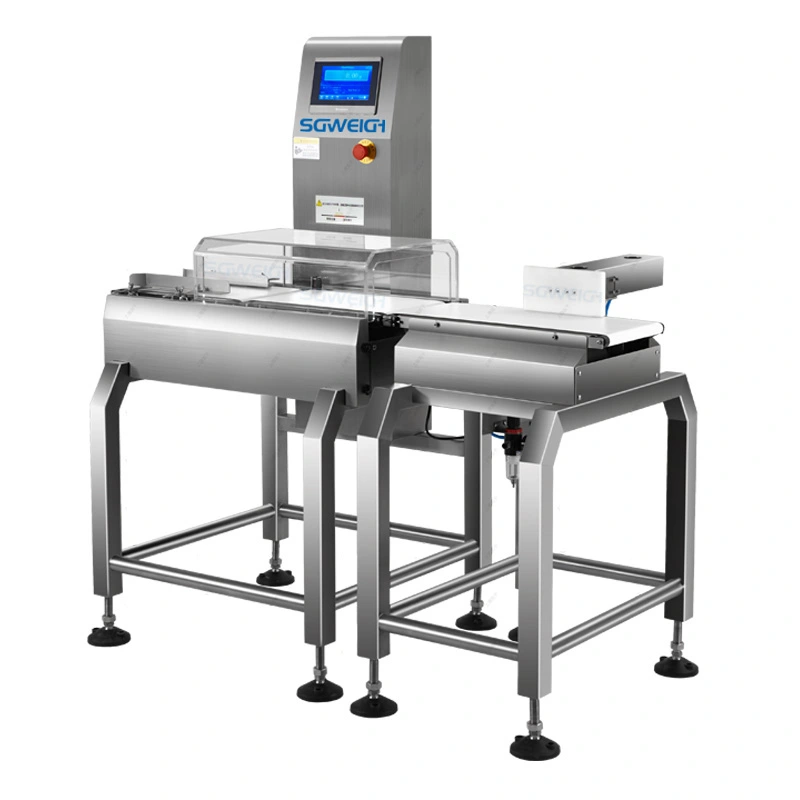

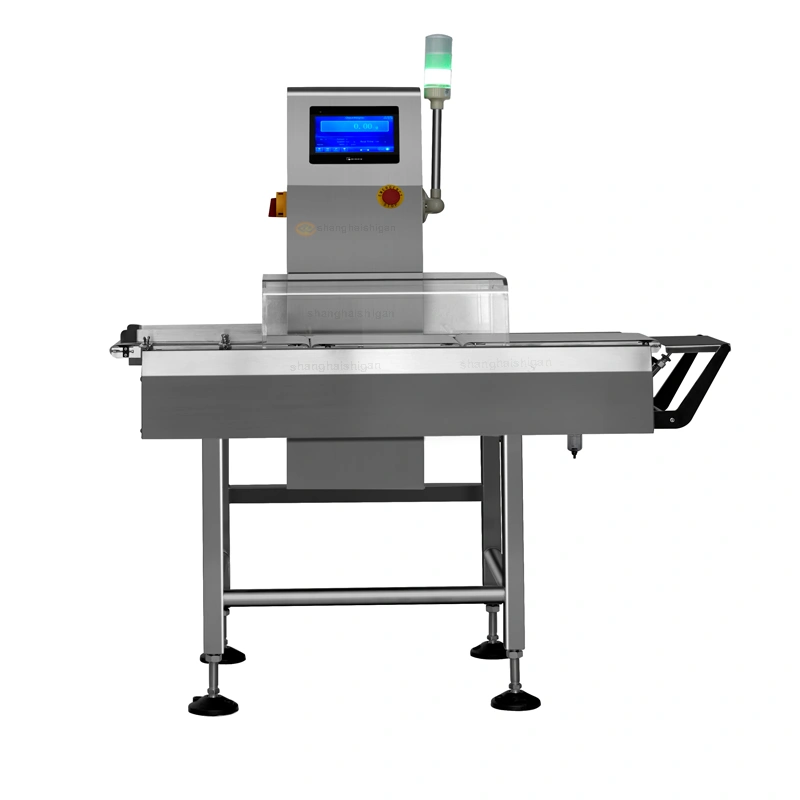

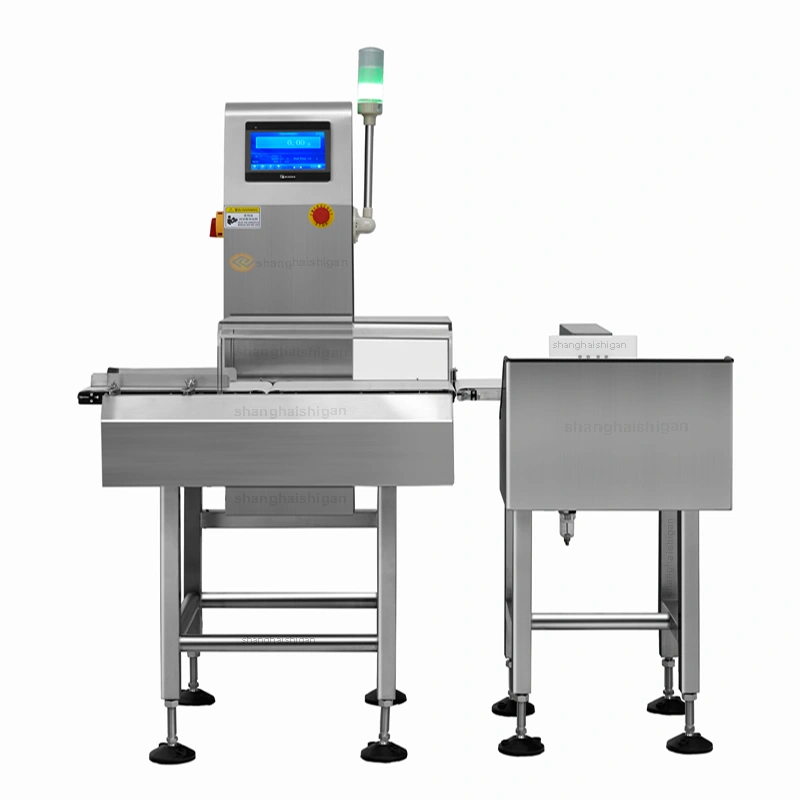

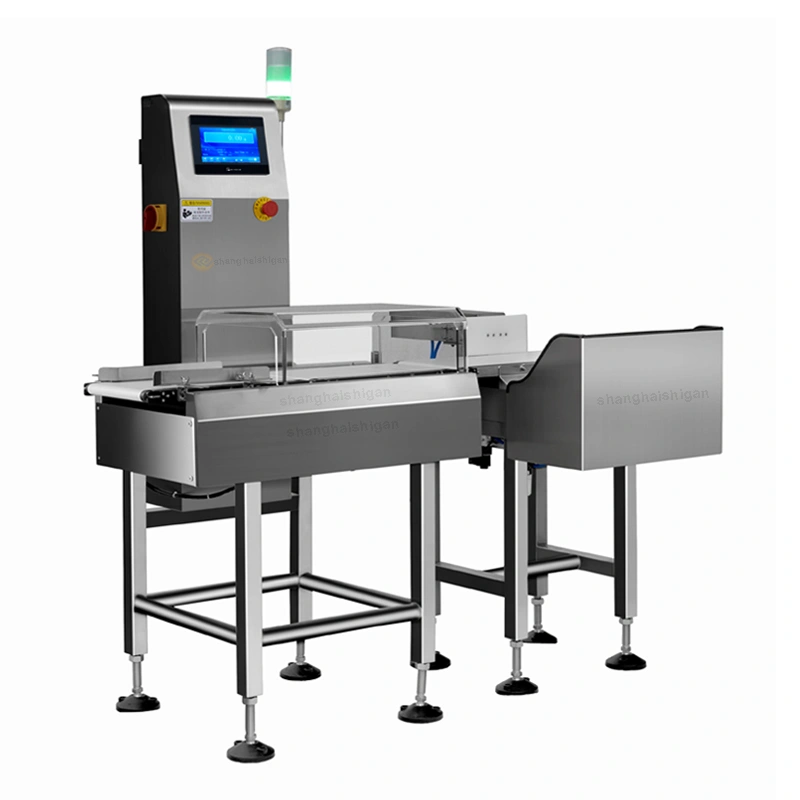

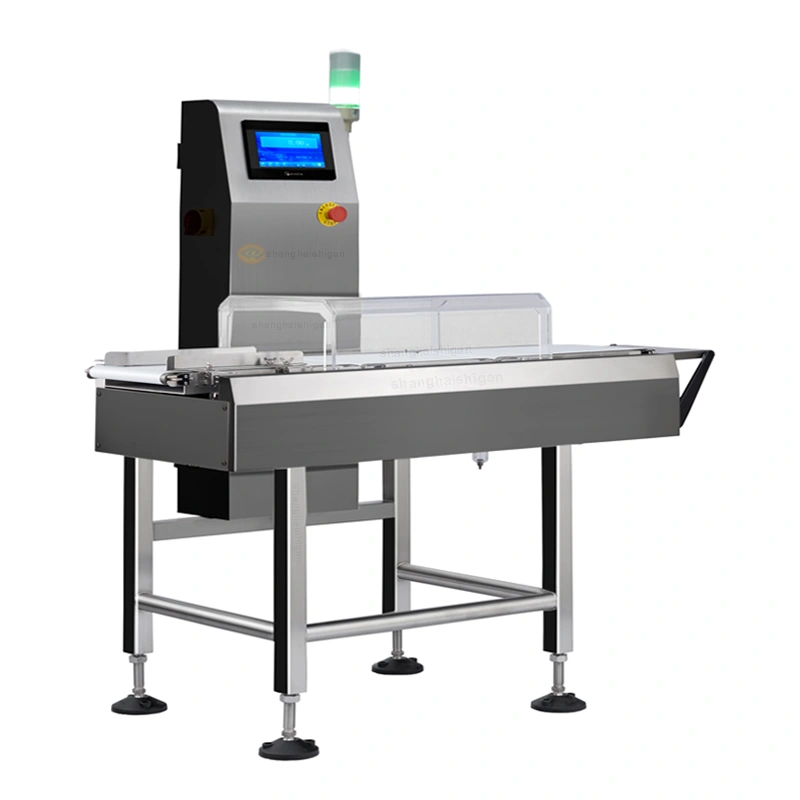

Automatic Checkweigher For Underweight Overweight Check Weigher Machine For Pharmaceutical Factory
Product Information
The automatic checkweigher machine detects the weight of products on the production line with high-speed dynamic weight reading, which can accurately detect products with unqualified weight in the continuous production line, and abnormal deviations in the weight of a single piece, and automatically reject overweight and underweight products. The checkweigher for pharmaceutical is especially suitable for the inspection of missing parts in packaged products.You are welcome to contact us at any time for further information.
Specification Parameter
TypeSG-220
Weighing Range5-1500g
Limited of productL: 300 W:220 H: 3-200mm
Accuracy±0.2g Depends on product
Division Scale0.1g
Belt Speed0- 60 m/min
Max Speed100 pcs/min
Belt Width220mm
Machine Weight60kg+44kg
Power SupplyAC 110/220V ±10% 50HZ
Power100W
Main MaterialSU304 stainless steel
Main Advantages
1.Multi-language display: 7-inch full Chinese color LCD screen, full guidance operation, intelligent alarm display, multiple languages optional
2. Intelligent and efficient: Chinese touch interface, multi-group formula storage, password authority management, Chinese weighing record, intelligent fault detection, etc.;
3. Convenient operation: touch-sensitive start/stop button
4.Function switching: optional parking checkweighing or continuous weighing, stop alarm or automatic rejection when abnormal;
5. System protection: The system is equipped with zero zone protection, protection for long-term idling and parking;
6. Imported configuration: Japanese Mitsubishi original factory/Taiwan DELTA PLC, Japanese OMRON relay, French Schneider switch, Taiwan Liming geared motor;
7.Control system: PLC control loop, special software for checkweigher
Customized
This configuration can also be customized according to customer requirements.
The customized items are as follows:
1. The countertop is tailor-made.
2. Highly tailored.
3. The material can be customized.
4. The meter and the drum can be connected wirelessly,
5. The meter can have its own USB storage function.
6. The meter can send weight data via Bluetooth.
7. The meter can choose automatic quantitative control output function.
8. External printer function.
9. Built-in upper and lower limit alarm lamp function.
10. External scanner function.
11. A variety of rejection methods are available
12. Other
Application
The automatic checkweigher is a high-speed, precise automatic online weighing equipment, used to check whether the weight of the product on the conveyor belt meets the set target weight, and has a tolerance to automatically reject lighter or overweight products. Assemble line checkweighers are widely used in food, medicine, daily necessities, chemicals, toys, hardware and other industries.
Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
About Us
Shanghai Shigan Industrial Co., Ltd. is a mechanical automation equipment manufacturer integrating R&D, design, production and sales. Located in the developed area of the machinery industry-Shanghai, China, it upholds "Excellent Service, Good Quality". The company has complete equipment and independently produces various mechanical transmissions and hardware accessories. The courage to study innovative technology and continuous improvement has won unanimous praise from the majority of enterprises. Shanghai Shigan has always been committed to the development and manufacture of a series of packaging testing equipment such as digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher, etc., bringing products that balance performance and price To every corner of the world.
After Sale Service
1. Service tenet: fast, decisive, accurate, thoughtful and thorough
2. Service goal: service quality wins customer satisfaction
3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, our company will arrange maintenance personnel to provide maintenance services for customers within 24 hours after receiving the notice.
4. Service principle: The product warranty period is one year. During the warranty period, our company will repair the parts damaged due to quality reasons for free. If the parts are damaged outside the warranty period, only the cost will be charged for the accessories provided. If due to human factors If the equipment is damaged, the parts repaired or provided by our company are calculated at the cost price.
