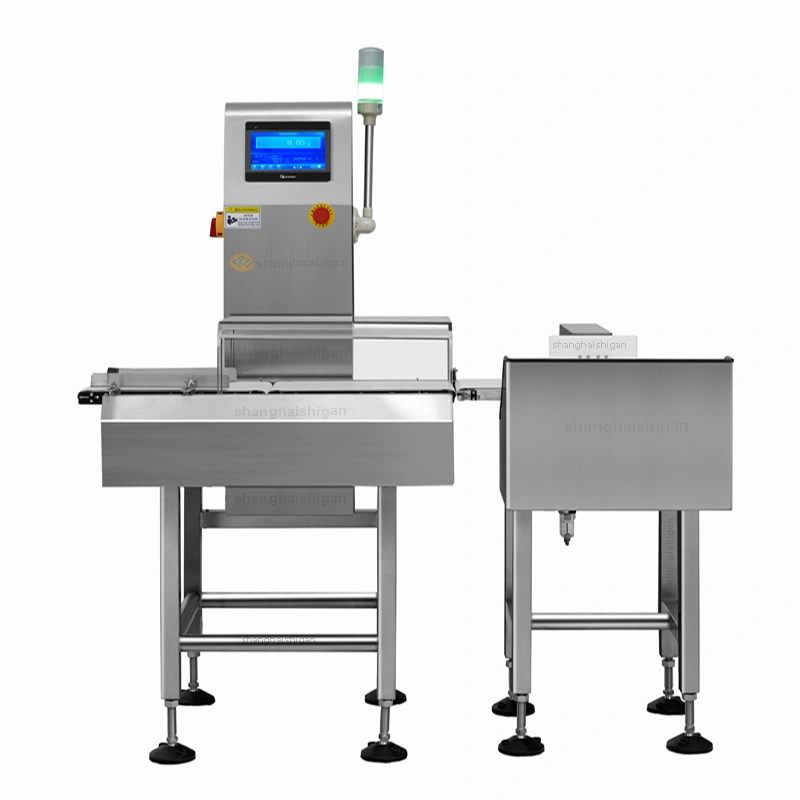

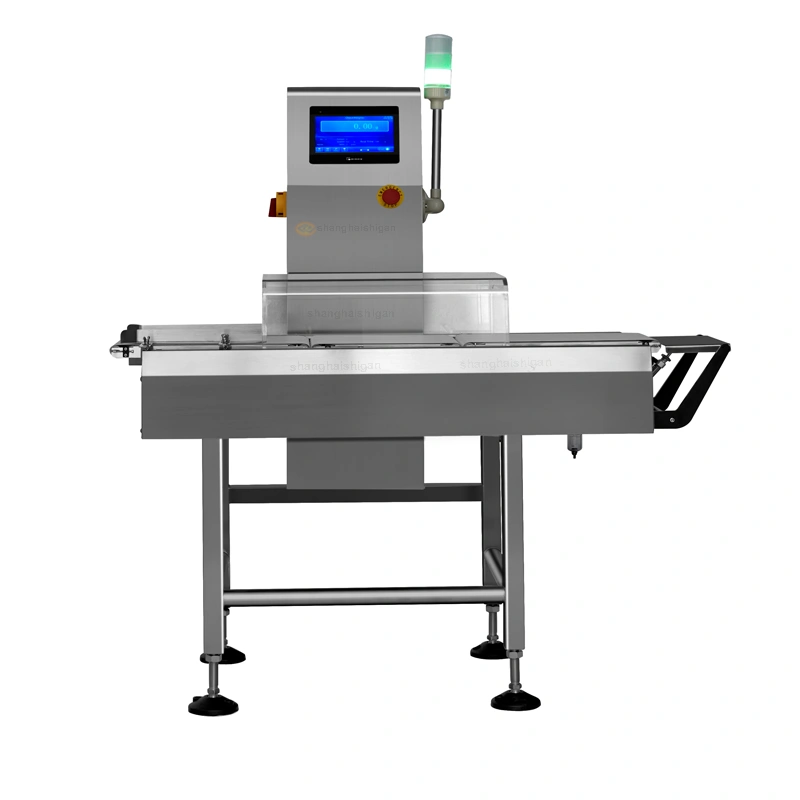

Automatic High Accuracy Belt Conveyor Check Weigher Scale Electronic Aluminum Parts Check Weighing Machine
Product Information
High accuracy check weigher scale is one of the necessary facilities for advanced online dynamic weighing system, with high automatic weighing and automatic sorting efficiency, usually 100-120 goods can be sorted per minute. Process, accurately feed into the electronic check weighing machine, and transport the products to be sorted to the corresponding sorting gate, which is to separate the items from the conveying device and enter the corresponding product sorting box.For further information about our services, or if you would like one of our professionals to contact you, please contact us.
Technical Parameter
Weighing range: 1-300g; 1-600g optional
Display scale: 0.01g
High sorting capacity: 300 pieces/min
High sorting accuracy: plus or minus 0.05g
Rejection method: blowing, swing rod, push rod optional
Representation: 10.1-inch monitor
Operation mode: touch screen
Maximum display value: 310.000g; 610.000g
Size range of the tested product: length 20-200mm; width 20-160mm; height: 1-400mm
Power supply: AC 200-240V plus or minus 15%, single phase, 50hz/60hz
Machine weight: 120kg
Use temperature and humidity range: 0-40 degrees (in order to ensure the selection accuracy, the temperature change should not exceed 5 degrees / hour), the relative humidity is 30-85% without frost;
Protection class: IP30, optional IP65
Shell material: stainless steel and paint optional;
Others: The noise of this machine is lower than 70dB
This configuration can also be customized according to customer requirements.
Customized items are as follows:
1. Tailor-made countertops.
2. Highly customized.
3. The material can be customized.
4. The meter and drum can be connected wirelessly,
5. The instrument can have its own USB storage function.
6. The meter can send weight data via bluetooth.
7. The instrument can choose the automatic quantitative control output function.
8. External printer function.
9. Built-in upper and lower limit alarm light function.
10. External scanner function.
Main Advantages
1. Large-size color LCD touch screen interface, simple operation and intuitive display.
2. Support multiple languages: Chinese, English, Spanish, Italian, Japanese, Korean, etc. (customers can choose), the default is Chinese and English.
3. It can store 200 kinds of product testing data, which is convenient for users to call.
4. USB data storage interface, which can transfer report data to PC for analysis and printing.
5. The parameter setting is password protected, only the management personnel operate.
6. Automatic zero-point clearing system to ensure reliable detection data.
7. Built-in temperature and noise compensation system to ensure system stability. Online printing function (customized to be customized).
8. The mechanical structure is simple, which is convenient for disassembly, cleaning and maintenance.
High Accuracy Checkweigher Solutions-Customer Case
Packing & Shipping
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
About Our Company
Customer satisfaction is our pursuit! The normal warranty for all our products is 12 months. We provide necessary video guidance and feedback for daily problems, and our technology and engineers support overseas services. The main products of our company: digital metal detector,conveyor belt metal detector,automatic checkweigher metal detector, checkweigher, high-speed and high-precision checkweigher., We are doing every effort to provide the best service and best products to our customers. We promise that once our service starts, we will always be responsible.
After Sale Service
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
Engineers availbale to provide after-sales service overseas in order to help customers solve technical problems.
