Baby Care Conveyor Belt Check Weigher And Metal Detector High-precision Weighing Metal Detector Factory Cheap
Conveyor belt check weigher and metal detector is a combination of metal detector and automatic sorting scale, which is the best solution for metal foreign matter detection and online weight detection. The metal detection and weight detection parameters are configured in the same product parameterization and operated in the same interface to reduce the error rate of operation; The high-precision weighing metal detector has a unified intelligent learning algorithm and parameter setting to realize the real integration of the metal detector and the weight detector. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

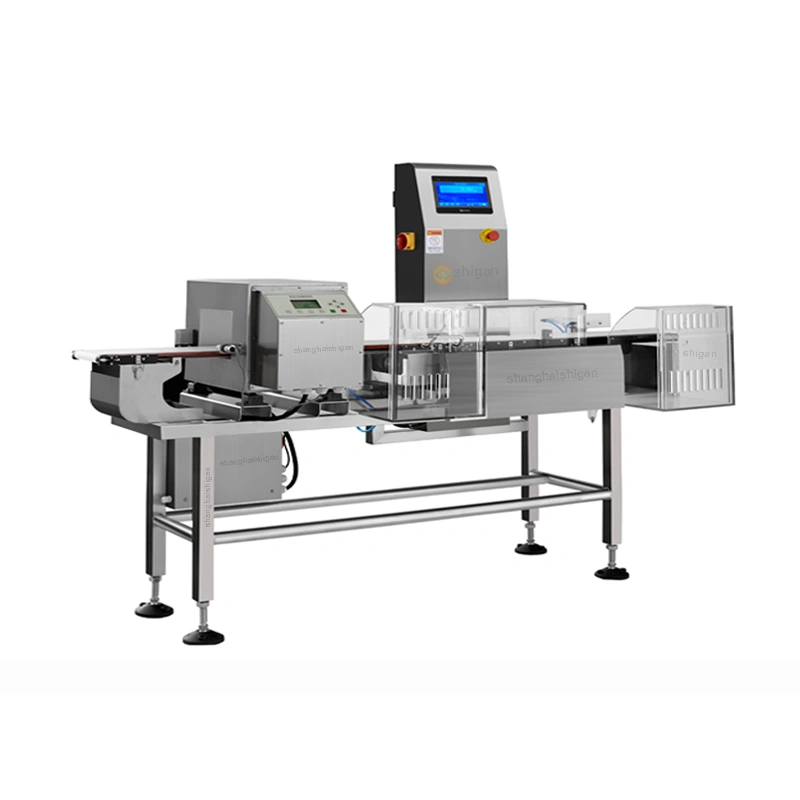

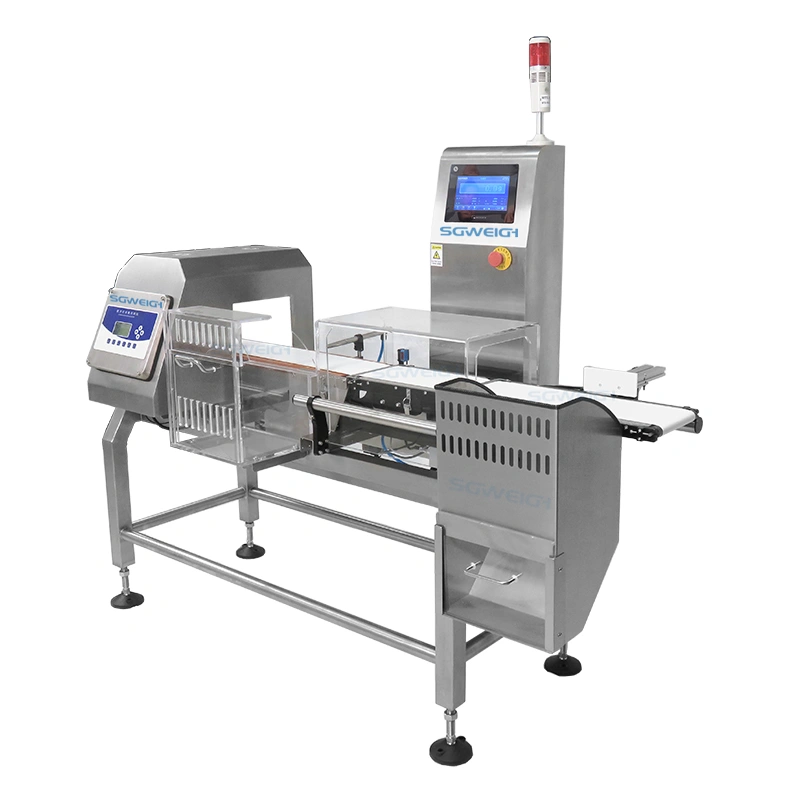

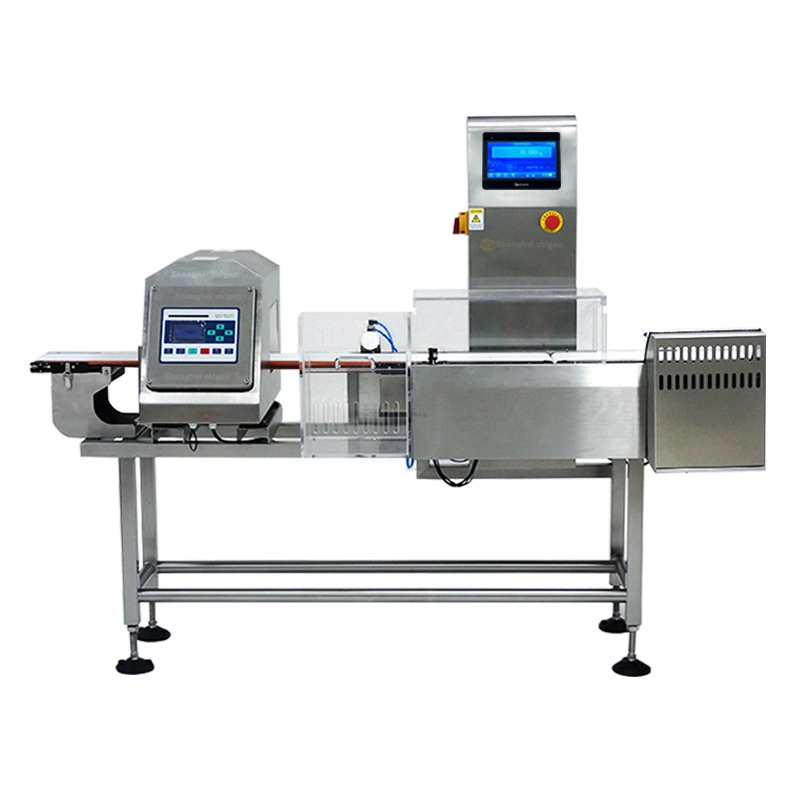

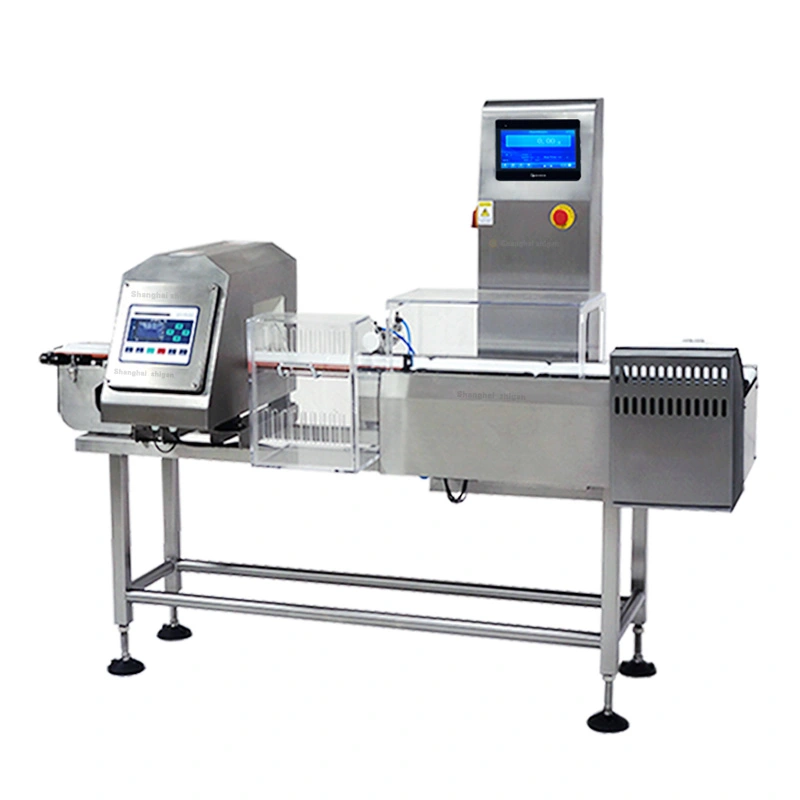

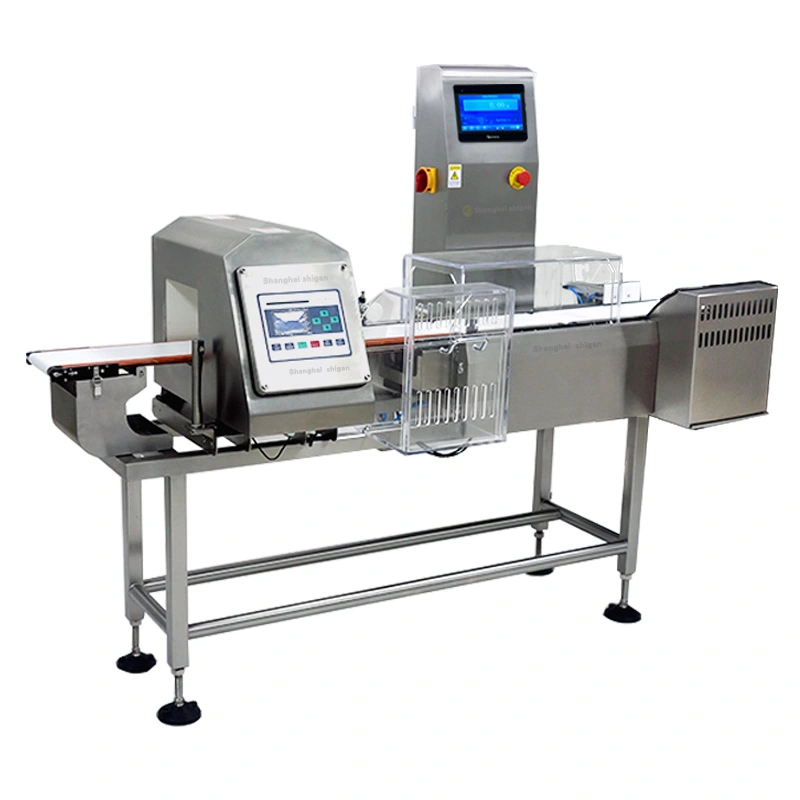

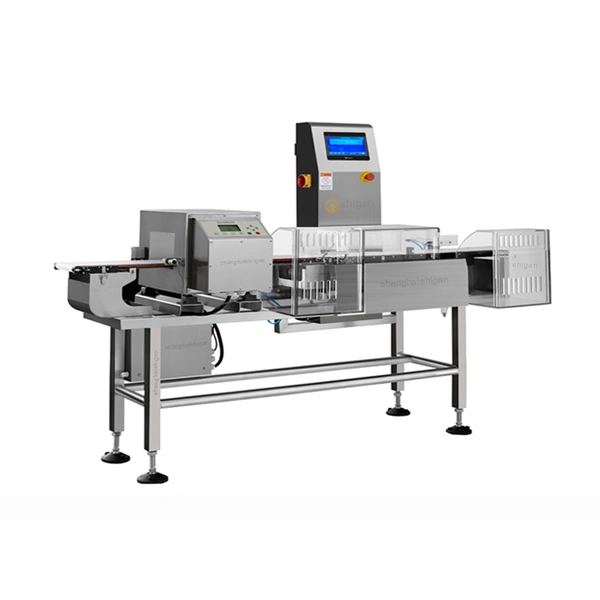

Conveyor belt check weigher and metal detector photos
Type Digital Checkweigher With Metal Detector Combo
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)
Note 1: The above specifications are standard specifications. Other sizes can be customized according to customer needs.
Note 2: The above detection sensitivity is the surface accuracy of the conveyor belt of the empty machine. The actual detection sensitivity is affected by the product to be detected, the use environment, or the location of metal mixing.
1. Conveyor belt check weigher and metal detector can be used to detect iron, copper, aluminum and stainless steel mixed in non-metallic products, and the digital differential display of iron and non-iron signals;
2. With belt deviation correction design, it is not easy to run for a long time.
3. Single and double coil detection can be used separately or jointly. Chinese and English menu.
4. Adopt digital DSP programming design, LCD screen and membrane switch touch control panel
5. Conveyor belt check weigher and metal detector can automatically set and learn to obtain applicable detection performance, and can store and memorize 100 products.
6. With the automatic learning function of product effect, product effect filtering, small pieces of aluminum foil can still detect stainless steel and non-ferrous metal copper test pieces after packaging.
7. The machine frame adopts stainless steel material laser cutting welding and wire drawing process, white PVC or PU belt for food, 304 stainless steel tube or non-metallic roller optional
8. Conveyor belt check weigher and metal detector has anti-seismic capability, and it is not easy to cause false alarm when colliding and knocking the machine.
The conveyor belt check weigher and metal detector can be widely used for the detection of the weight and metal after packaging in food, pharmaceutical, beverage, health care products, daily chemicals, agricultural and sideline products, hardware, toys, electronics, digital, printing and other industries. It is a solution for the end detection and quality control of the production line.
Our manufacturer has ISO9001, CE international certification,
1. More than 11 years of production experience
2. More than 10 years of foreign trade experience
3. More than 10 national technology patents
4. Cumulative overseas sales exceed 1,000 sets
5. Comply with EN60204 international standard
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Based on the spirit of pursuing high-quality products and customer satisfaction, Shanghai Shigan Industrial Co,.Ltd solemnly promises you with the principles of preferential prices, considerate service, and reliable product quality.
1.Product quality commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). For product performance testing, we sincerely invite users to personally check the whole process and performance of the product, and then pack and ship the product after it is confirmed to be qualified.
(3). One year warranty and lifetime maintenance
2. Product price commitment:
(1). Under the same competitive conditions, our company will sincerely provide you with preferential prices on the basis of not reducing product technical performance or changing product components.
3. Delivery time commitment:
(1). Product delivery time: Try to meet user requirements. If there are special requirements, it needs to be completed in advance, and strive to meet user needs.
