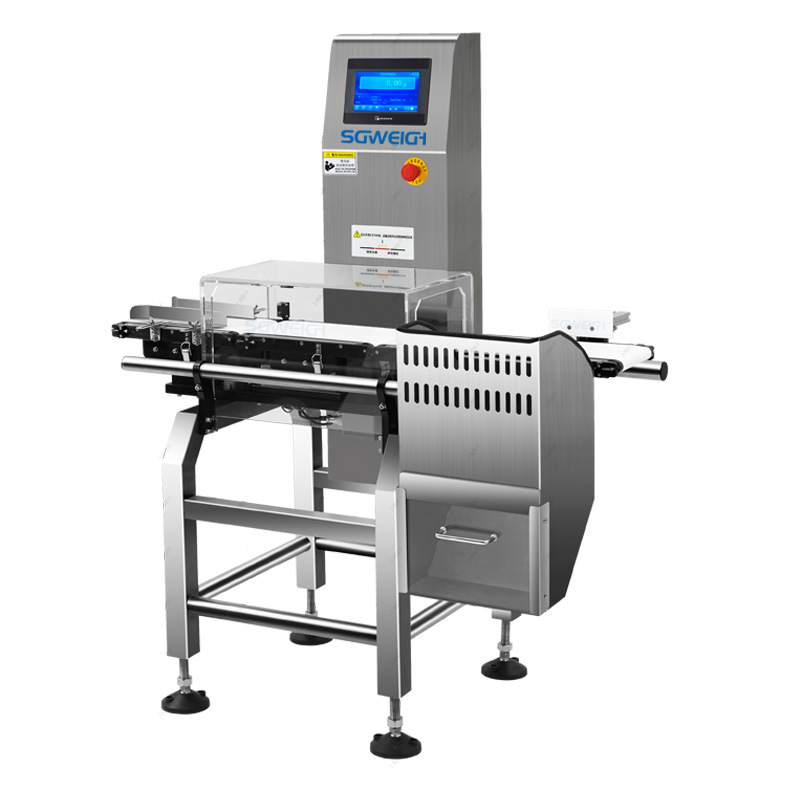

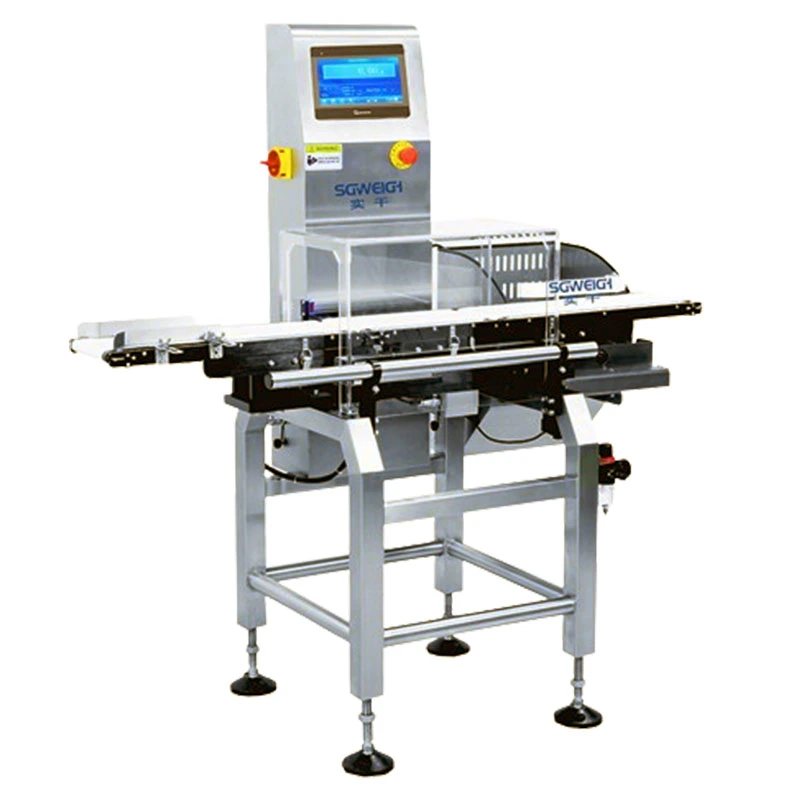

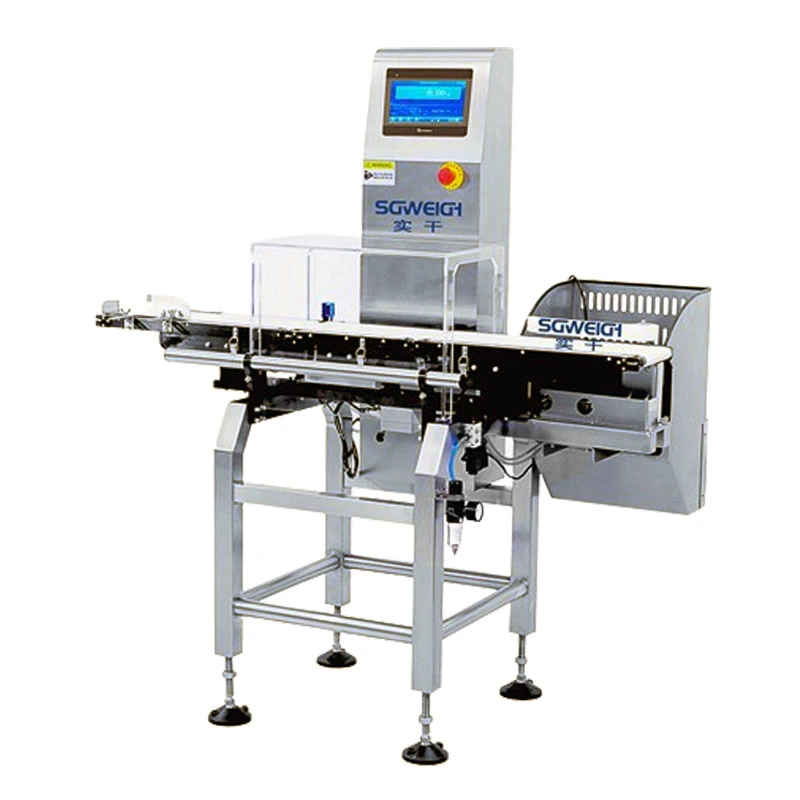

Bottle Line Checkweigher Dynamic Weighing And Rejection Rechecking Checkweigher
Automatic bottle line checkweighers can be embedded in various types of assembly lines without installation or disassembly, and can be directly placed into the assembly line. Dynamic weighing and rejection checkweighers in the food industry detect and identify unqualified products (overweight or underweight) by the weight of the product. Qualified products flow into the next process, and unqualified checkweighers are detected and removed to one side to prevent unqualified products from flowing into the next process, ensuring that the products leaving the factory meet the requirements. You are welcome to contact us at any time for quotation.

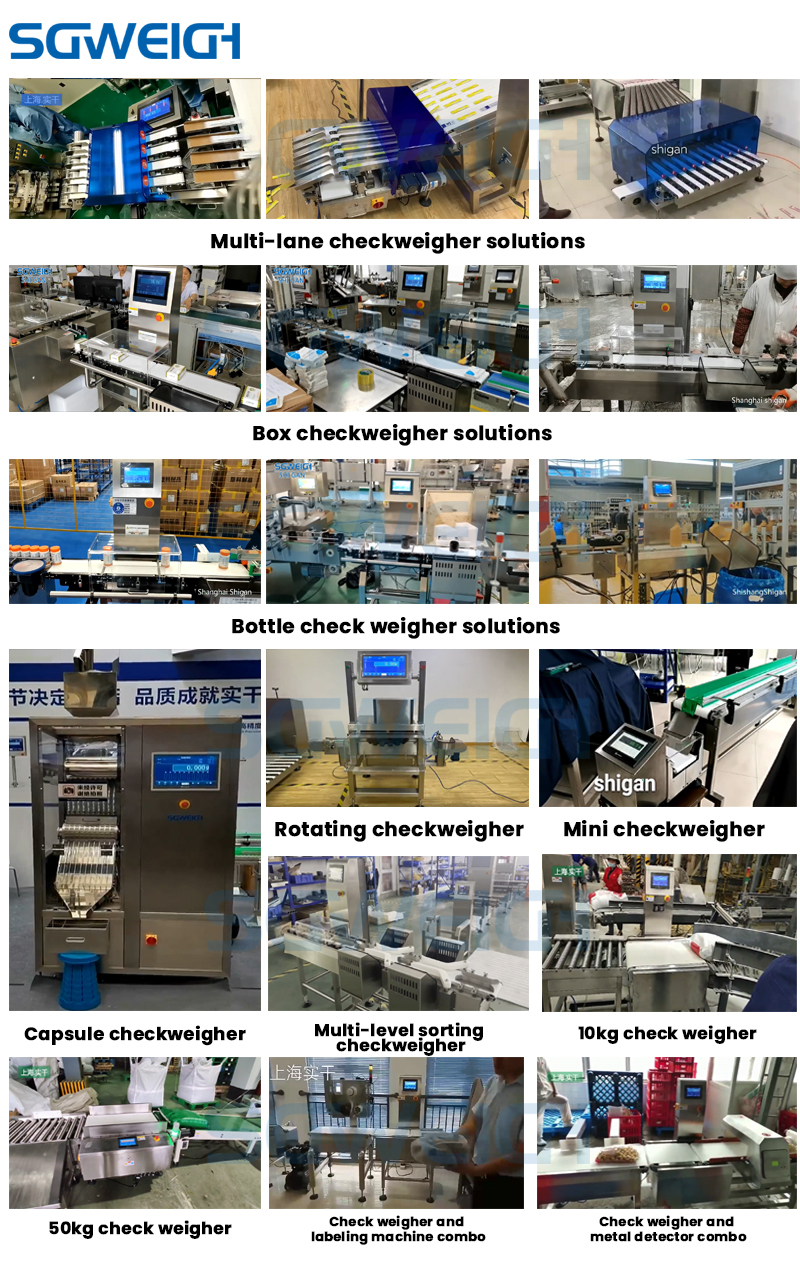

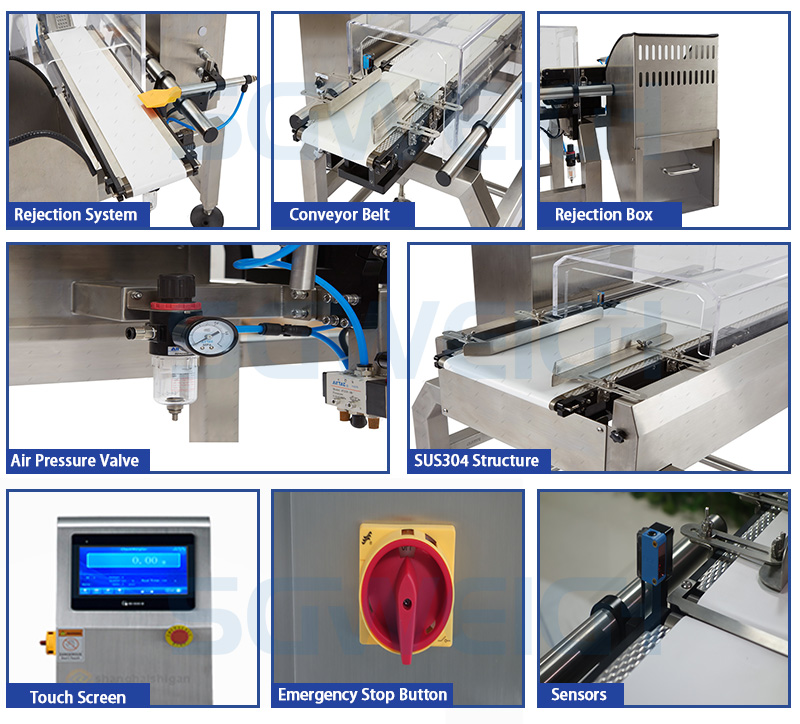

Automatic bottle line checkweigher pictures
1. Strong practicality: 10-inch high-color, high-resolution human-machine interface, easy and friendly operation;
2. High stability: 24-hour high-speed, high-precision operation. Advanced and rigorous design concept greatly reduces mechanical system failures and improves production efficiency;
3. High speed, high precision: Adopts high-speed and high-precision German HBM sensor
4. Material accessories: The entire body structure is made of 304 stainless steel, which is anti-theft, anti-corrosion and has a long service life.
5. Weight inspection data is equipped with a USB interface as standard, and can be exported to EXCEL tables
6. Easy maintenance: Unique conveyor belt structure design, modular design, easy disassembly and cleaning, protection level IP65.
7. Easy docking: Adopts DC brushless motor, which is more stable and has a smaller and more delicate structure. Suitable for greater speed requirements.
8. Easy switching: 99 product formulas can be stored, and product parameters can be changed with one click.
Type SG-150
Weighing Range 3-500g

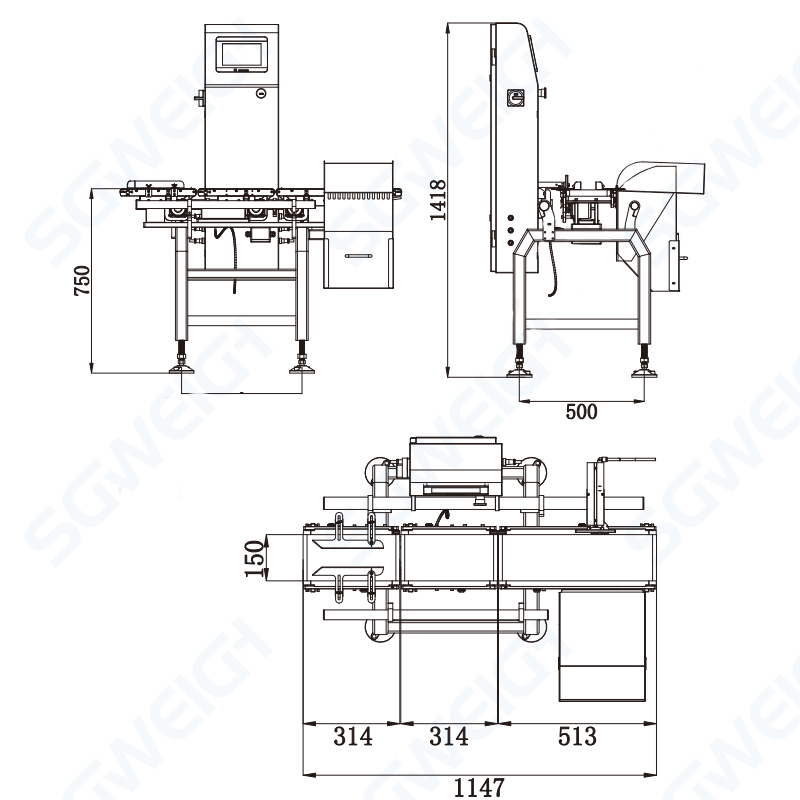

Limited of product L: 200 W:150 H: 3-200mm
Accuracy ±0.1g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 150 pcs/min
Belt Width 150mm
Machine Weight 80kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
Bottle Line Checkweigher Dynamic Weighing And Rejection Rechecking Checkweigher
Shanghai Shigan provides users in various industries with a full range of customized applications for assembly line checkweighers, from selection, solutions, design, front-end and back-end connection auxiliary organizations to training services, aiming to meet users' personalized needs, improve production efficiency and ensure product quality.
A-Food and beverage industry: accurately reject empty, underweight, overweight packages
B-Pharmaceuticals: accurately reject packages without instructions or unqualified weight.
C-Electronics accurately reject the lack of instructions and missing parts packages.
D-Agricultural and sideline products: used to classify the specifications of products such as fruits, vegetables, meat, fish, seafood, etc., and reject unqualified products.
E. Light industry and daily chemicals: reject lost, empty and damaged packages.
F. Logistics and express delivery: sort the packages according to weight and additional requirements, in coordination with data input instruments.
Bottle Line Checkweigher Dynamic Weighing And Rejection Rechecking Checkweigher
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
