Carton Gift Box Checkweigher Metal Detector Combo Paper Printing Intelligent Combined Metal Detector Checkweigher
The box checkweigher metal detector combo system is a combination of metal detection head and checkweigher in one frame, which is effective and space-saving for the purpose of providing excellent and reliable product inspection in a compact design. With a single centralized control panel, checkweighing and metal detection technologies are fully integrated into a single solution, this automatic combined metal detection and checkweigher solution is available in a wide range of configurations to suit every space requirement. The integrated combined system is designed to provide metal detection and dynamic checkweighers.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

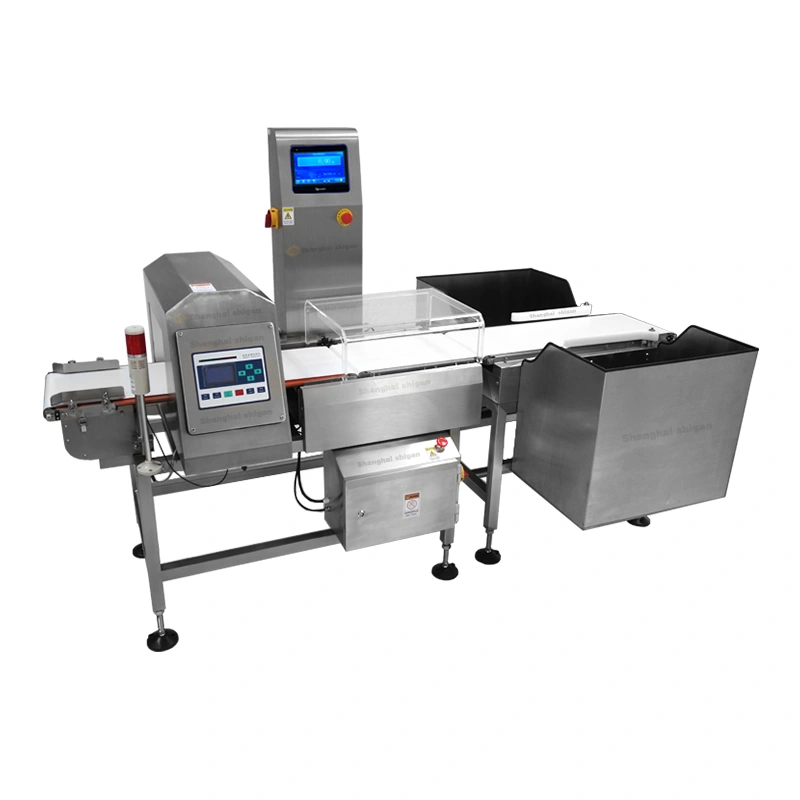

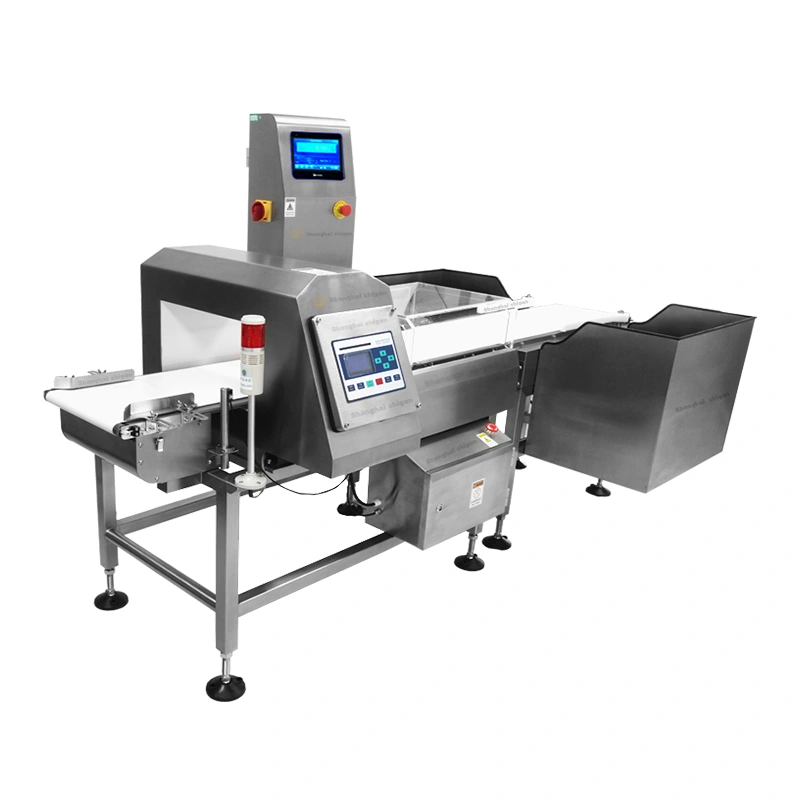

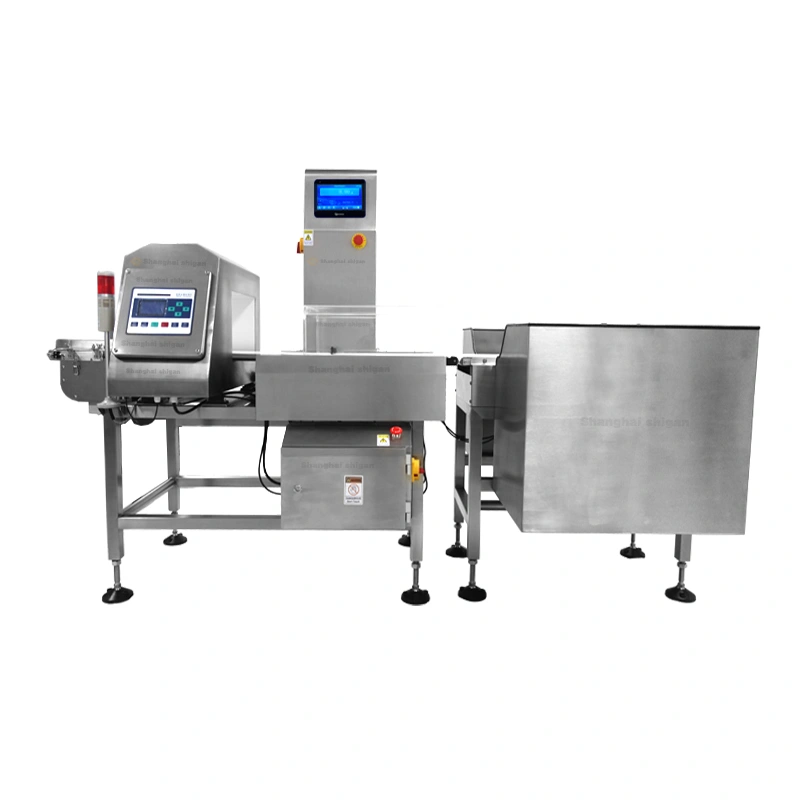

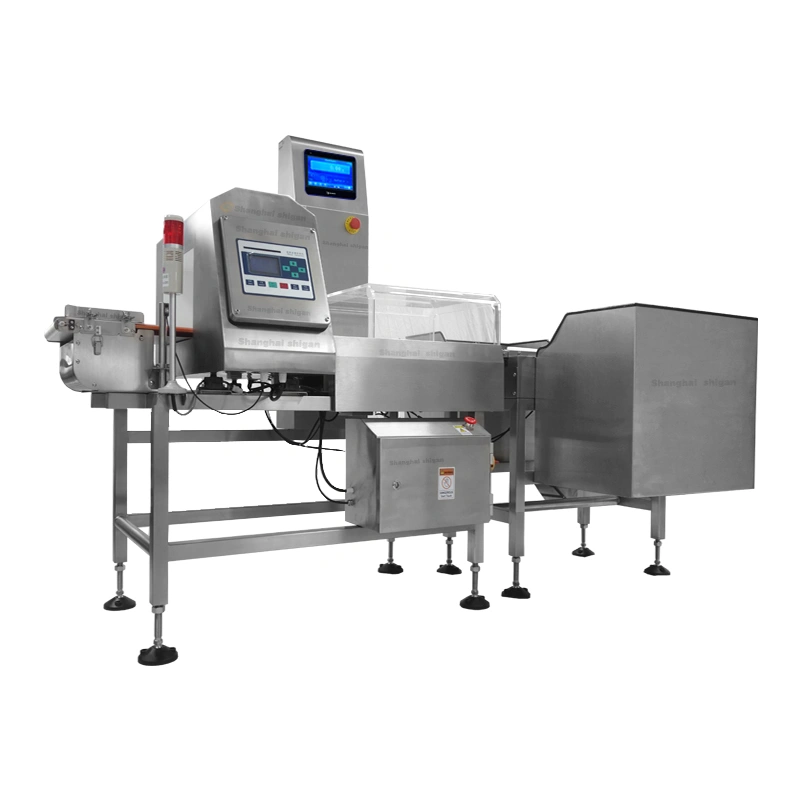

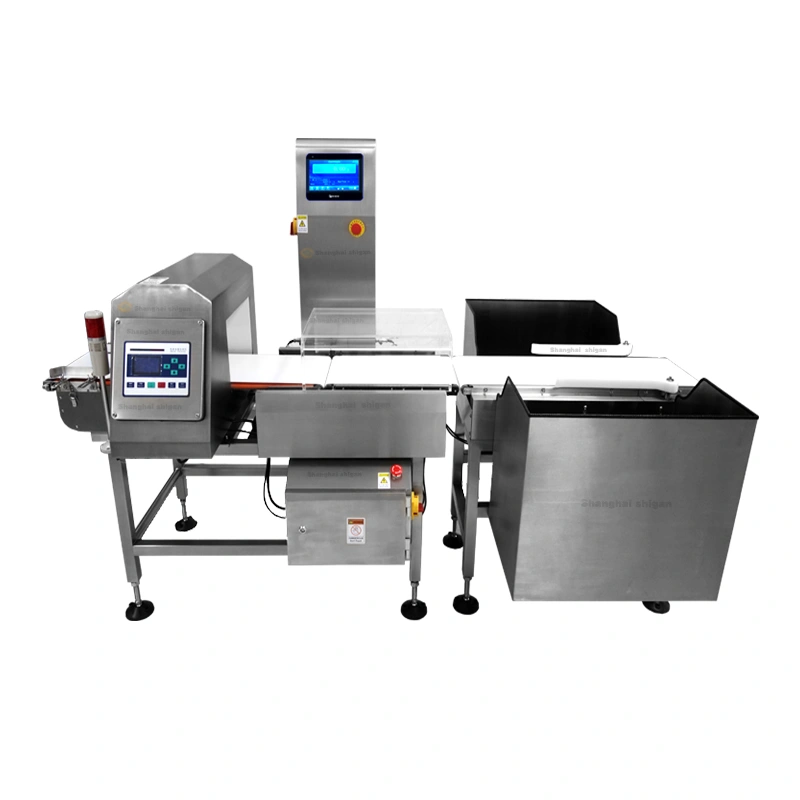

Box checkweigher metal detector combo system pictures
Detection method: electromagnetic induction / digital load cell
Size: 330×150mm
Accuracy: FE0.8mm SUS2.0mm
Selection accuracy: ±0.5g
Weighing range: 5 grams - 900 grams
Passing height: 110mm
Pass width: 280mm
Packaging length: ≤300mm
Display graduation value: 0.1g 0.2g 0.5g 1g
Number of sorting segments: 3 segments
Sorting ability: 60 times/min
Conveyor belt speed: 10-45 m/min
Ground height: 735mm—800mm
Working temperature: 0-40℃
Weight: about 160kg
Dimensions: 1900mm×700mm×1120mm (L×W×H)
1. Reverse detection: The use of high-precision imported through-fire switches, combined with curve fitting algorithms, can accurately complete reverse detection
2. Customization ability: can be equipped with a scanning gun to meet various special requirements for deep customization and function development
3. Simple and intelligent operation: using a wide LCD and a wizard-style interface, users can easily set and operate
4. Reliable data: FRAM storage technology is used to ensure system parameters and data
5. Advanced manufacturing technology: The metal detector adopts all stainless steel probes and racks, and a variety of protection levels are available for customers to choose from, adapting to various production environments
6. Anti-deviation design of conveyor belt: The metal detector adopts a special anti-deviation design scheme of conveyor belt, which can effectively avoid the deviation of conveyor belt
7. Abundant peripheral interfaces: RS-485 data communication, PLC programming node, and printer output can be configured, which can provide real-time data for the production management system for remote control, analysis and monitoring, and provide valuable traceability information
8. Rejection device: equipped with blocking arm type, blowing type, flap type, push rod type and other rejection devices
Automatic combined metal detector checkweigher are widely used in the production and packaging processes of food and beverage, pharmaceuticals, daily chemicals, warehousing and logistics, electronic light industry, packaging and printing, auto parts hardware, plastic toys, chemicals, agricultural and sideline products and other industries.
Customer satisfaction is our pursuit! The normal warranty for all our products is 12 months. We provide necessary video guidance and feedback for daily problems, and our technology and engineers support overseas services. The main products of our company: digital metal detector,conveyor belt metal detector,automatic checkweigher metal detector, checkweigher, high-speed and high-precision checkweigher, and etc,. we are doing every effort to provide the best service and best products to our customers. We promise that once our service starts, we will always be responsible.
A. Pre-sale:
1. Provide real quotations for customers according to customer requirements, and record feedback in a timely manner if customers have special requirements;
2. Sign a standardized product order contract to clarify responsibilities and other related matters;
3. Provide one-year free warranty, life-long maintenance service, and be responsible for debugging the product before delivery;
B. After sales:
1. If the customer's product fails, we will provide you with a solution as soon as possible;
2. During the warranty period, product maintenance is free. After the warranty period, maintenance can also be provided. If the accessories are replaced, the product accessories will be provided at the cost price.
