Combined Metal Detector and Checkweigher for Food Production Safety
Checkweigher and metal detector combo as known as weighing metal detection machine, check weigher with metal detection machine, weight checker metal detector, and etc,.
This combined metal detector and checkweigher for food can simultaneously perform highly sensitive metal detection and precise dynamic weighing, ensuring that every food item on the production line is contaminated and weighs accurately. This powerful metal detector and checkweigher solution provides stable detection performance, helping food manufacturers achieve excellent safety standards while maintaining maximum production efficiency. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us for a quote.

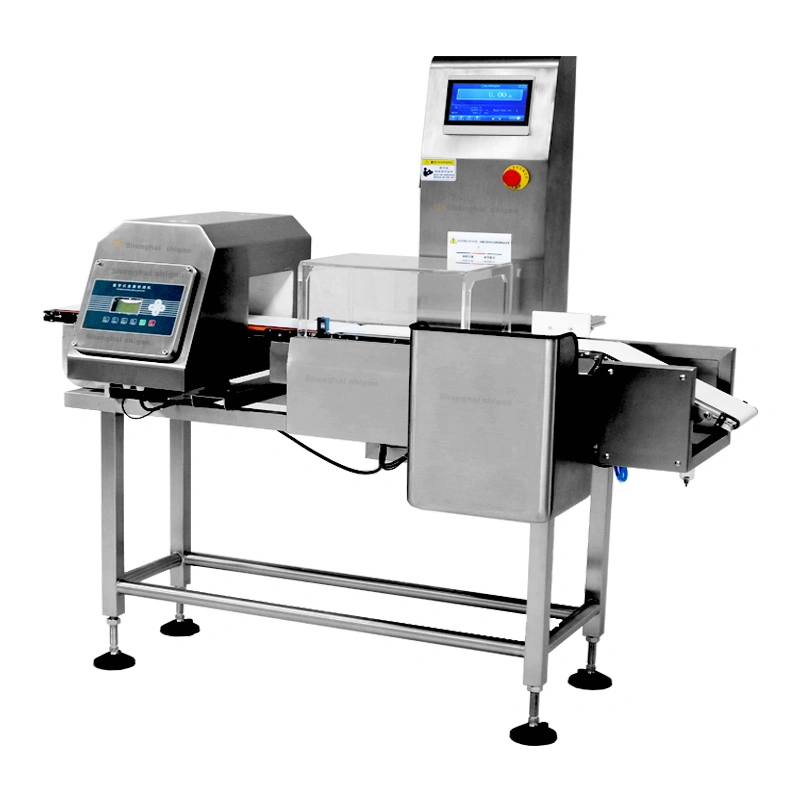

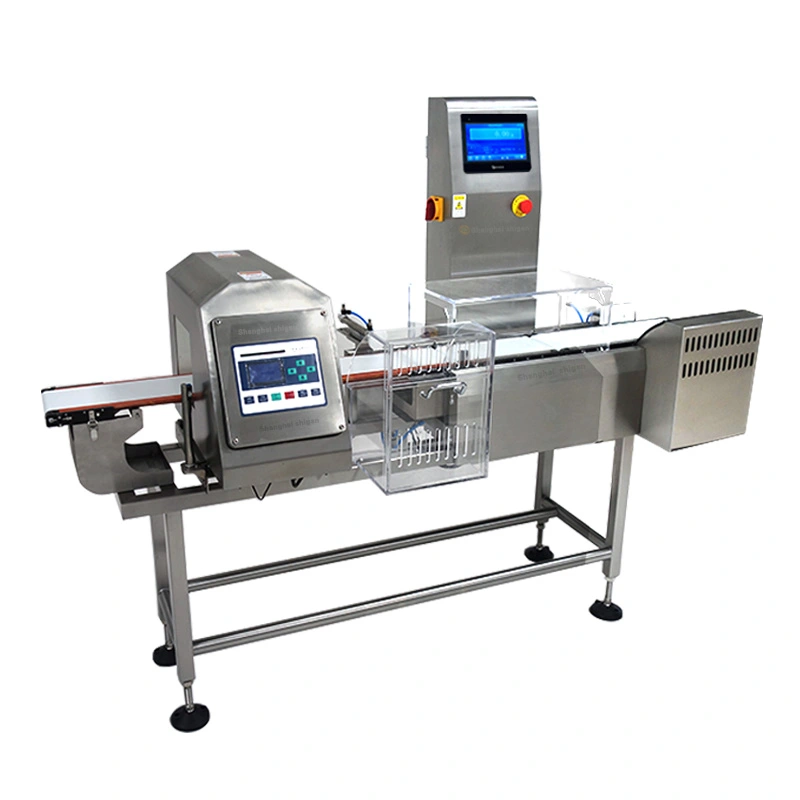

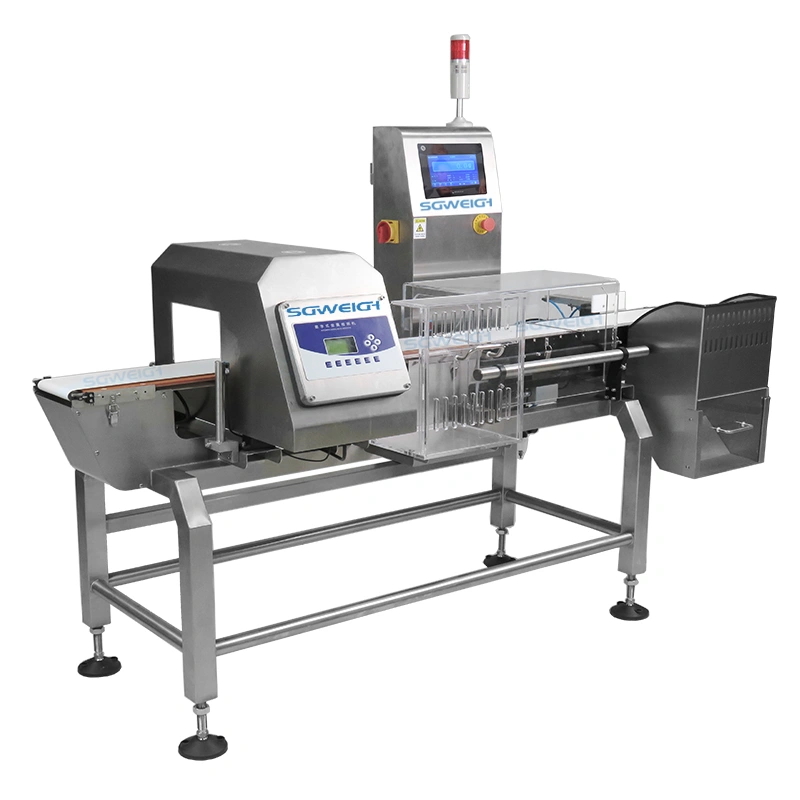

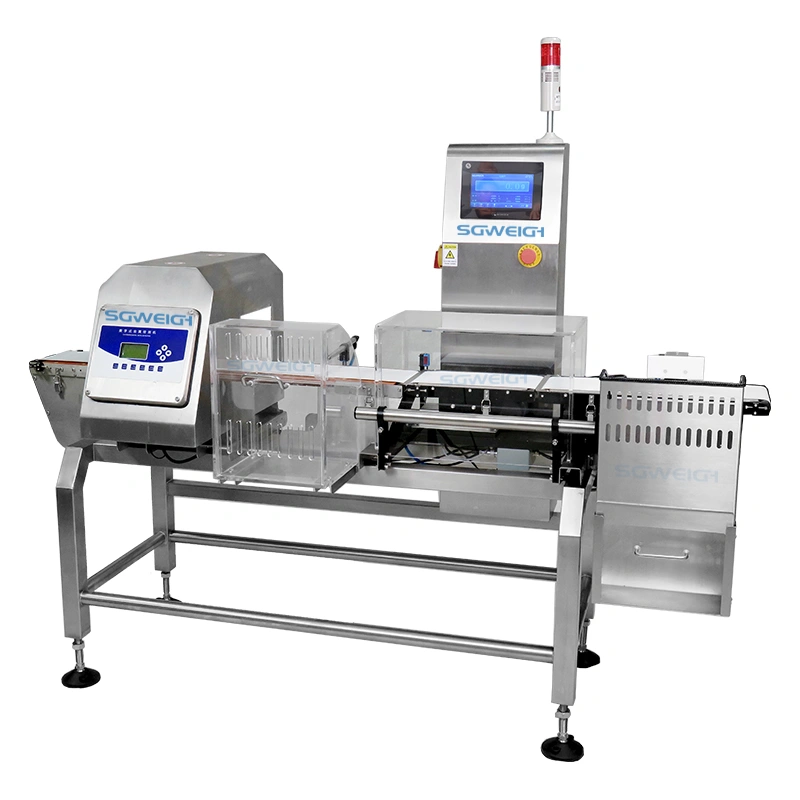

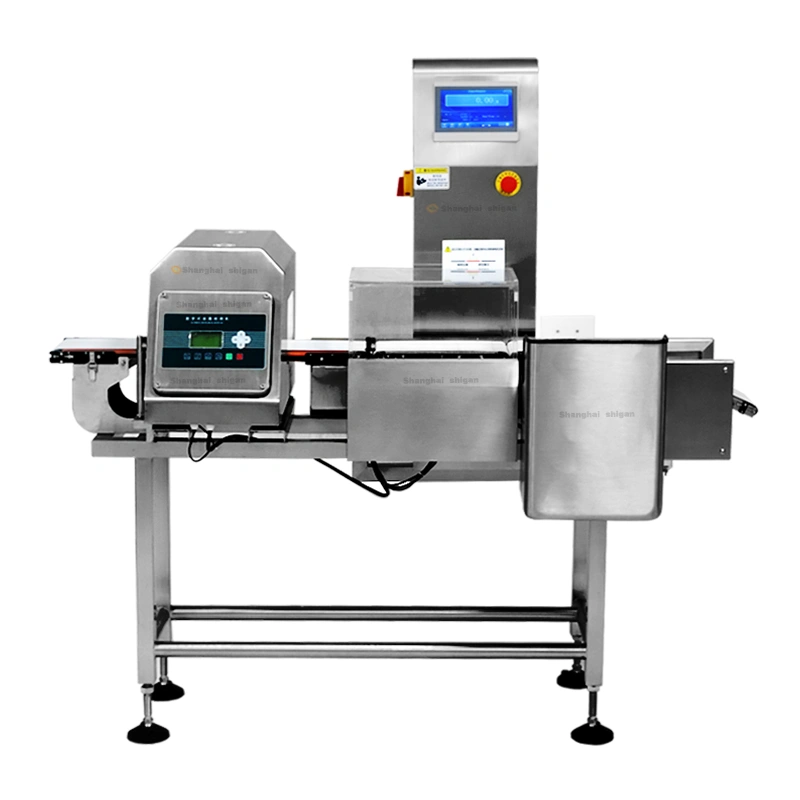

Combined metal detector and checkweigher for food photos
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)
Combined Metal Detector and Checkweigher for Food Production Safety
Customizable Solutions – We understand that every production line is unique. Therefore, our combined metal detector and checkweigher for food can be fully customized to meet your specific needs, from size and shape to detection sensitivity.
1. High-Precision Weighing: Advanced weighing sensor technology ensures consistent weighing accuracy even at high speeds.
2. Superior Metal Detection: Identifies ferrous, non-ferrous metals, and stainless steel contaminants with exceptional sensitivity.
3. Compact Integrated Design: Integrates two quality assurance systems into one, optimizing factory space and workflows.
4. User-Friendly Interface: Easy-to-navigate touchscreen with multilingual support for seamless operation.
5. Automated Rejection System: Instantly rejects defective or contaminated products, avoiding costly rework or recalls.
6. Multi-Product Calibration: Quickly adapts to various product sizes, weights, and packaging types.
7. High-Speed Processing Capacity: Processes hundreds of units per minute without compromising detection accuracy.
8. Real-Time Monitoring: PLC-based control system tracks data for production analysis and reporting.
9. Durable Construction: Constructed from food-grade stainless steel, offering excellent hygiene and corrosion resistance.
10. Easy Integration: Compatible with existing conveyor systems and automated packaging lines.
Combined metal detector and checkweigher for food is mainly applicable to the detection of stainless steel, copper, aluminum, iron and other metallic foreign objects and online weight detection in industries such as food, pharmaceuticals, electronics, chemicals, rubber and plastics, toys, and wool textiles.
Combined Metal Detector and Checkweigher for Food Production Safety
The entire machine is double-layered.
Pre-packaging uses plastic bags for transporting the entire machine, with key components protected by foam plastic.
Engineering packaging uses sturdy polyethylene wooden crates that meet the import standards of various countries.
Over the years, Shanghai Shigan Industrial Co., Ltd. has been serving customers in the melt industry, after research, exploration, summed up a complete set of product and service support system to provide users with high quality and timely pre-sale, sale, after-sales service:
First, quality assurance
My business department to ensure that the equipment provided to customers is the original production, and factory information accessories complete. In order to maintain the normal operation and maintenance of the contracted equipment, the technical products provided by our department are complete, clear and correct.
Second, quality assurance measures
Warranty period: one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replaced free of charge; outside the warranty period, accessories will be provided at cost price.
