Digital Inclined Conveyor Metal Detector Industrial Metal Detection Machine
The industrial metal detection machine adopts a variety of the latest technologies in the industry, and is equipped with a hardware solution that combines high-speed DSP, high-performance FPGA and 32-bit microcontroller, making the performance of the whole machine even better. The digital inclined conveyor metal detector has multiple detection algorithms running simultaneously, with high detection accuracy, good reliability and strong anti-interference ability; the whole machine is made of stainless steel (SUS304), which is thick, has a solid structure, is rust-proof, corrosion-resistant and easy to clean. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

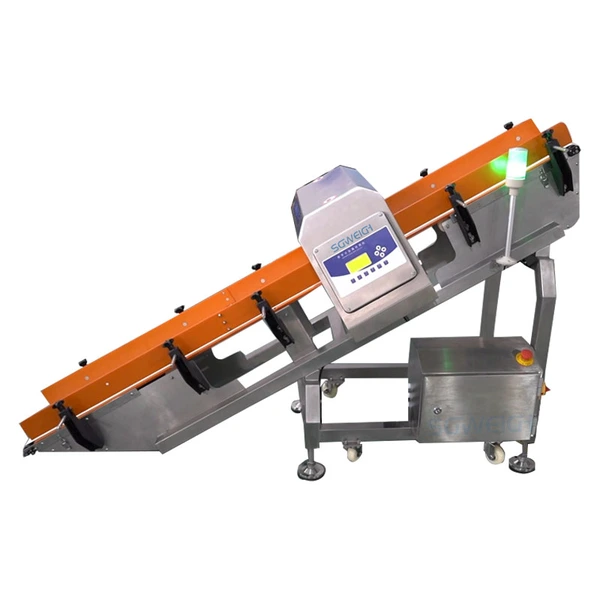

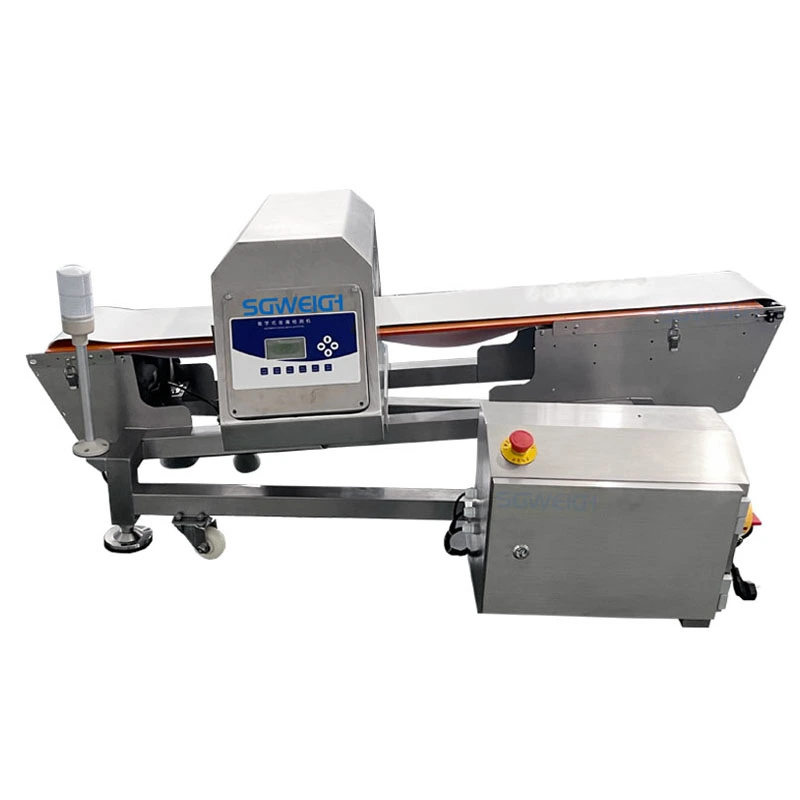

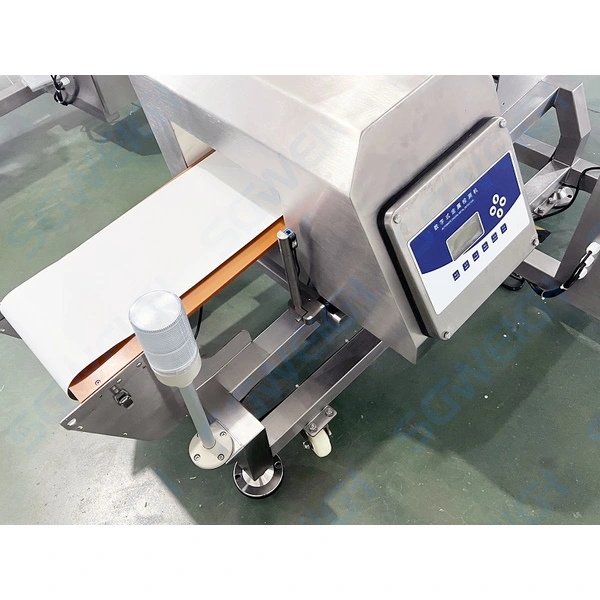

Industrial metal detection machine pictures
Machine Grade:Food Grade
Detecting width:400, 500 mm (can be customized)
Detecting height:80, 100, 120, 150, 200, 250, 300, 350 mm (can be customized)
Detecting sensitivity:Fe 0.8mm-3.0mm, Non-Fe 1.2mm- 4.0mm;Stainless Steel 1.5mm- 5.0mm
Display Screen: 7inch (optional)
Sensitivity adjustment:100 level adjustment
Detecting adjustment: Intelligent adjustable
Belt Speed:20m /min (or specified)
Alarm mode:The buzzer alarm, the motor automatically stop
Power:AC22V,50Hz (Or Customized)
1. Stable high detection accuracy, mature digital phase modulation technology, effectively suppress product effects, so that the system has stable high detection accuracy;
2. Automatic setting function, parameter setting is simple and fast, the system can automatically analyze product characteristics and calculate appropriate detection parameters;
3. User level management function, set passwords suitable for different user levels for different positions, clarify permissions and responsibilities, and facilitate management;
4. Database function, product database, automatic counting library, detection information record library, can quickly realize product switching and historical data review;
5. Humanized design, equipped with intelligent operating system, 7-inch LCD color touch screen, simple screen, simple and intuitive operation, can easily realize human-computer dialogue;
6. Printer interface, the system has a printer interface, which can print detection information in real time through the printer, and the data viewing is intuitive and clear;
7. Support built-in large-capacity SD card to save more data (including detection record data, product configuration data, etc.) to meet large data volume requirements (optional);
8. Support data export function through USB flash drive.
Digital Inclined Conveyor Metal Detector Industrial Metal Detection Machine
Digital inclined conveyor metal detector is suitable for detecting mixed metal impurities in the production process of raw materials in industries such as food, pharmaceuticals, toys, clothing, shoes, chemicals, leather, fabrics, and paper products. For example, iron and non-ferrous magnetic metal products (iron, copper, aluminum, stainless steel, etc. can all be detected).
The models on display are customized models and may not meet your requirements. The above parameters are for reference only. Shanghai Shigan has more than 15 years of experience in digital metal detector machine manufacturing and can provide multiple sets of digital metal detector solutions free of charge according to your actual needs!
Digital Inclined Conveyor Metal Detector Industrial Metal Detection Machine
1> Attach safety labels, tighten screws, clean, lubricate, and prevent rust;
2> Disassemble into packages;
3> Wrap tightly with plastic film;
4> Secure in plywood box
5> Forklift into container
Suitable for long-distance land and sea transportation. In order to safely load and unload at the destination, we recommend that you choose full container transportation.
1. Pre-sales consultation
We will help you customize the appropriate digital metal detection machine solutions according to your requirements and specific circumstances.
2. Installation service
We will dispatch professional technicians to carry out on-site installation and commissioning as needed.
3. Maintenance service
Shigan provides long-term maintenance services, providing any repair parts free of charge during the warranty period, and only charges after the warranty period expires.
4. Staff training
Shigan provides free technical training for our customers to fully master the correct product maintenance technology.
5. Customer service
Shigan designs customized production lines for customers based on specific digital metal detection machine factors such as product output, packaging method and factory area.
