Lowest Price Dynamic Inline Metal Detector With Printing Belt Metal Detection Machine
Product Information
The digital metal detector adopts advanced processing technology and standardized inspection process, with high product detection sensitivity and stable performance. The structure design of the conveyor belt metal detector is simple, firm and stable. Dynamic inline metal detection machine adopts an all-stainless steel frame, which has strong anti-vibration and anti-interference ability. The electric control part has a good protection effect, reaching the protection level of IP66.Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

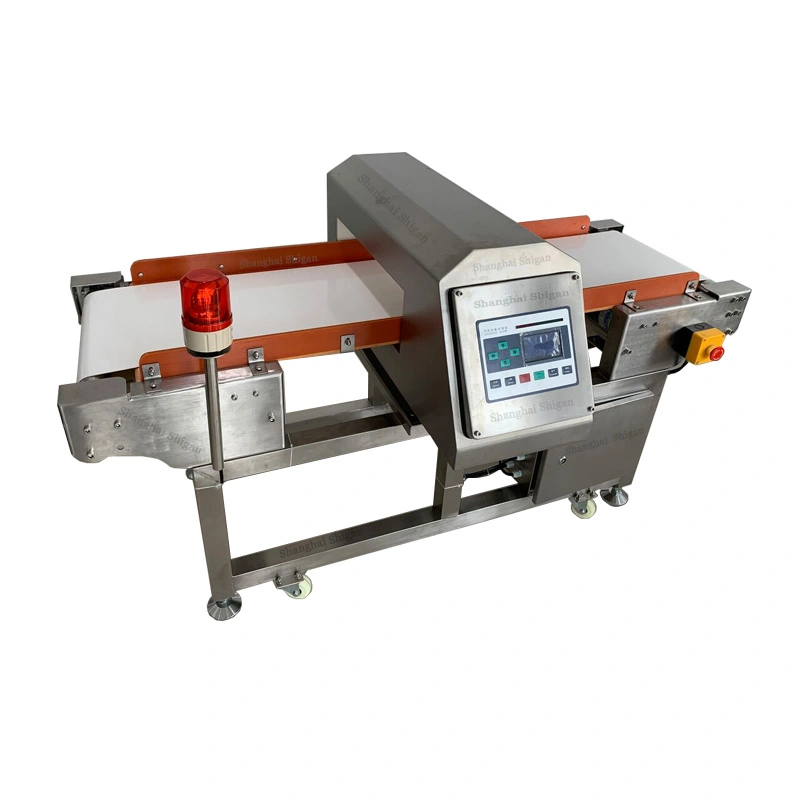

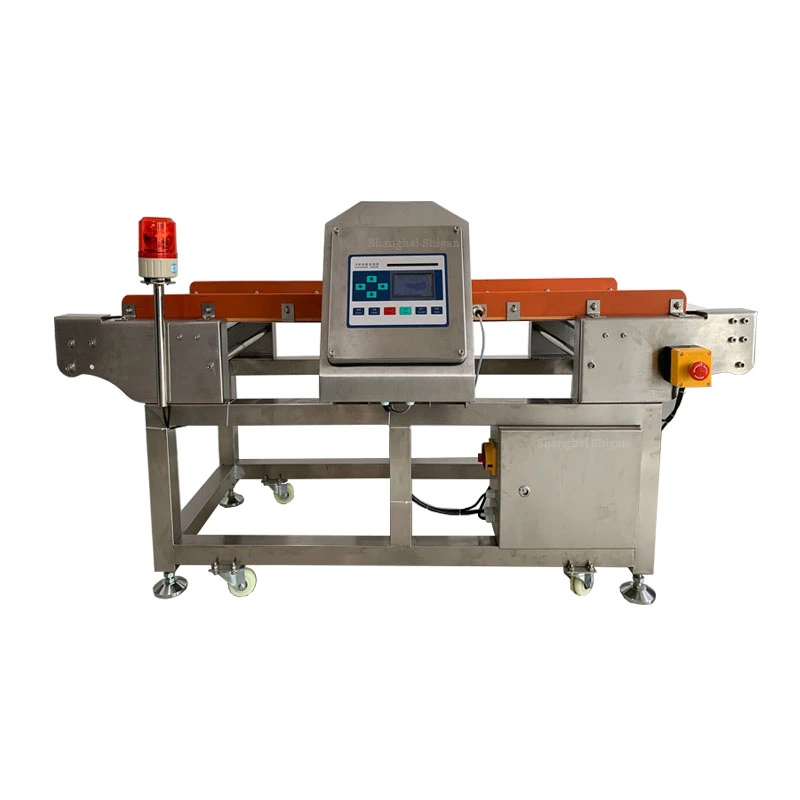

Dynamic inline metal detection machine pictures
Specification Parameter
Detection method: electromagnetic wave detection, new analog circuit and digital circuit combination
Display: 7/10 inch color touch screen
Effective detection width: 40cm (can be customized according to customer requirements)
Effective detection height: 10-20cm (can be customized according to customer needs)
Sensitivity adjustment: 100 levels
Detection sensitivity: 0.8-3.0mm iron ball, 1.5-5.0mm stainless steel
Alarm mode: buzzer alarm, motor stops automatically
Conveyor belt speed: 20m/min (can be customized according to customer requirements)
Power supply: 100-265VAC 50-60Hz
Appearance size: 135cm(L)*80cm(W)*100cm(H) (can be customized according to customer requirements)
Main Advantages
1. The body is made of all stainless steel 304 wire drawing, and the conveyor belt is a white non-toxic food-grade PU special conveyor belt that meets the US FDA standard.
2. LCD display, Chinese and English menu-style pictures, easy to realize man-machine dialogue operation.
3. It has a memory function. Through the fast self-learning function, it can be used once automatically set and has a memory function. It can store more than 100 product detection parameters, which can be adapted to more product groups.
4. Good waterproof performance, suitable for damp, cold storage and other environments.
5. It can pass water-containing, salt-containing and oil-containing products.
6. The probe is a digital all-metal probe, filled with epoxy resin to ensure the stability and service life of the equipment
7. The motor speed is 26-35 meters per minute (speed-regulating motor is optional), and supports 24 hours of uninterrupted work.
8. Conveying direction: facing the operation panel from left to right, the height of the conveyor from the ground, 700mm
9. Motor power: 120w; power supply, AC220V±10%, 50-60Hz.
Application
Inline Metal Detector With Printing is suitable for food, medicine, chemical, textile, toy and other industries and other industries that require high detection sensitivity, anti-interference ability and waterproof requirements. It can be used to detect iron, lead, copper, Various metals such as aluminum, tin and stainless steel.
Our Company
Shanghai Shigan Industrial Co., Ltd. was founded in 2010 and is located in Shanghai. Shanghai Shiqian has an independent large-scale R&D institution, a complete manufacturing system and a huge marketing service network. It is an international assembly line packaging and testing equipment manufacturer integrating R&D, manufacturing, marketing and service. At present, our products have passed the CE EU certification and exported to Europe, the United States, Singapore, Thailand and other countries and regions. The products are widely used in food, medicine, daily chemical, chemical, agricultural and veterinary medicine industries. Over the years, the company has continued to carry out technological transformations, and the product quality has been significantly improved, which has been highly recognized by customers at home and abroad. The main products are: adigital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher, etc.
After Sale Service
A. Pre-sale:
1. Provide real quotations for customers according to customer requirements, and timely record feedback when customers have special requirements;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide one-year free warranty, lifetime maintenance service, and be responsible for debugging the product before shipment;
B. After sale:
1. If the customer's product fails, we will provide you with a solution as soon as possible;
2. During the warranty period, the product is repaired free of charge. If the warranty period is exceeded, repairs can also be provided. If the parts are replaced, the product parts will be provided at the cost price.
