Double Bottle Rotary Weighing Checkweigher System Intelligent Sorting
Product Introduction
The bottle rotary weighing checkweigher can detect online whether there are overweight/underweight weight deviation anomalies in packaged products, and can feed back information to filling or packaging equipment; At the same time, the bottle checkweigher system can detect packages such as bags, bags, boxes, cans, bottles, and boxes. The intelligent checkweigher is a highly flexible and reliable weighing system solution that can be customized according to actual requirements. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

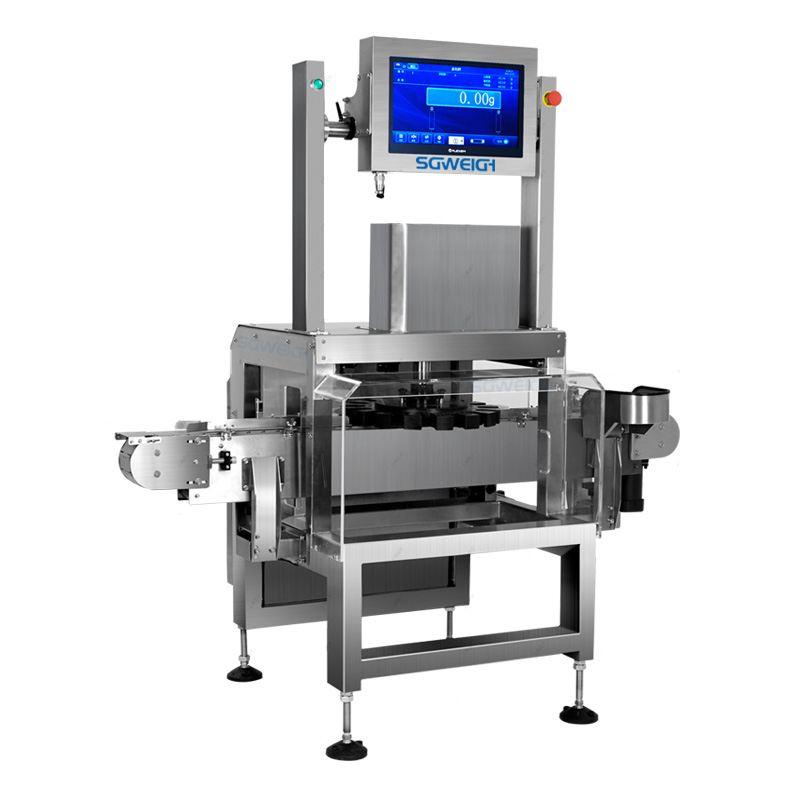

Bottle rotary weighing checkweigher pictures
Product Details
Technical Parameter
Model SG-Z1
Weighing range 5-300g
Minimum scale 0.01g
Maximum sorting speed 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode Touch type operation
Conveying direction facing the touch screen from left to right
Removal method: air blowing removal/push plate removal
Belt height from the ground 750 ± 50mm (customizable according to customer requirements)
Machine structure stainless steel (SUS304)
Power supply 220V 50-60HZ
Power: about 300W
Windshield thick acrylic (to avoid airflow interference)
Working environment temperature: 0 ℃~40 ℃, humidity: 30%~95%
Note: Due to the different properties and usage environments of the tested product, the detection speed and accuracy are also different, and the actual test is taken as the standard.
Customized Process
Thank you for your attention to our bottle high accuracy automatic weighing scales. Please feel free to leave information about your specific requirements, and we will customize the machine for you.
Main Features
1. Large size color LCD touch screen interface, simple operation and intuitive display.
2. Support customization of multiple languages, with Chinese and English as the default.
3.With photoelectric automatic detection of empty bags, the conveyor belt speed is adjustable.
4.Parameter settings are protected by three-level passwords, which are only operated by management personnel.".
5. Product weighing data can be exported via USB.
6. Power off protection function, and accidental power off parameters remain unchanged.
The parameters of different products can be set to store 100 types of detection data, facilitating user switching and calling.
8. Data statistics function. The total number of products passed in a period of time/the total number of products that are too light/the total number of overweight products.
9. The mechanical structure is simple, and the buckle type conveyor belt is convenient for disassembly, cleaning, and maintenance. Comply with GMP and HACCP specifications.
10. Automatic dynamic compensation value and dynamic zero point tracking, including zero point tracking during continuous operation of the equipment, to ensure reliable detection data.
11. The graph/histogram displays the statistical distribution of sorting (re inspection) results, and the window displays the value of the last 10 re inspection results.
12. Adopting patented technology, the single-chip microcomputer system is independently developed, and its unique filtering algorithm has ultra-high accuracy and reliability. Ensure system stability.
Application Scope
The bottle rotary weighing checkweigher is used to detect the missing quantity of single items in bags, bags, boxes, bottles, cans, boxes, and other products. It is widely used in many industries and fields such as food, chemical industry, logistics, aviation, medicine, papermaking, building materials, batteries, and so on.
Company Profile
Shanghai Shigan Industrial Co., Ltd. is a manufacturer specializing in checkweigher, metal detector machinery. Products are widely used in food, medicine, daily necessities, chemicals, toys, hardware and other industries. The checkweighers, digital metal detectors produced by our company are well sold in dozens of countries and regions around the world, such as Europe, Asia, Africa, South America, and the Middle East, and have received strong support from customers everywhere. We have experienced technical personnel, high-quality work teams, and timely provide customers with perfect after-sales service. Innovative, pragmatic, efficient, and responsible to win trust! Shanghai Shigan provides complete one-stop service for more corporate customers around the world!
Our main products
Metal Detector for Pharmaceutical
Metal Detector for Daily Necessities
Metal Detector for Other Industries
Checkweigher and Metal Detector Combo
Multi-stage Sorting Checkweigher
Our Customers
Our Exhibition
Packing & Shipping
Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
After-sale Service
1) Warranty period: 1 year. During this period, if there is any non human damage to them, we will provide spare parts for replacement free of charge.
2) Quality: Product quality will be strictly checked, and each machine will be tested before packaging to ensure that it can work properly.
3) Technical service: After the machine is sold out, we will always keep in touch with the customer. If you need any assistance on the machine, please do not hesitate to contact us.
4) Document Service: We provide instructions and videos to teach you how to use and test the machine.
5) Accessories: We provide spare parts at competitive prices after the warranty period.
