Efficient Checkweigher and Metal Detector for Chemical Industry 100g Plastic Particles Weighing Metal Detection Machine
Checkweigher and metal detector combo as known as weighing metal detection machine, check weigher with metal detection machine, weight checker metal detector, and etc,.
The checkweigher and metal detector combo for chemical is a device that integrates automatic weight detection scales and metal detection machines, aiming to save space, improve efficiency, and ensure the accuracy of product detection. The plastic particles weighing metal detector can not only improve production efficiency, but also ensure product quality and safety. It can be flexibly customized and provides a variety of specifications and styles for customers to choose from, welcome to contact us!

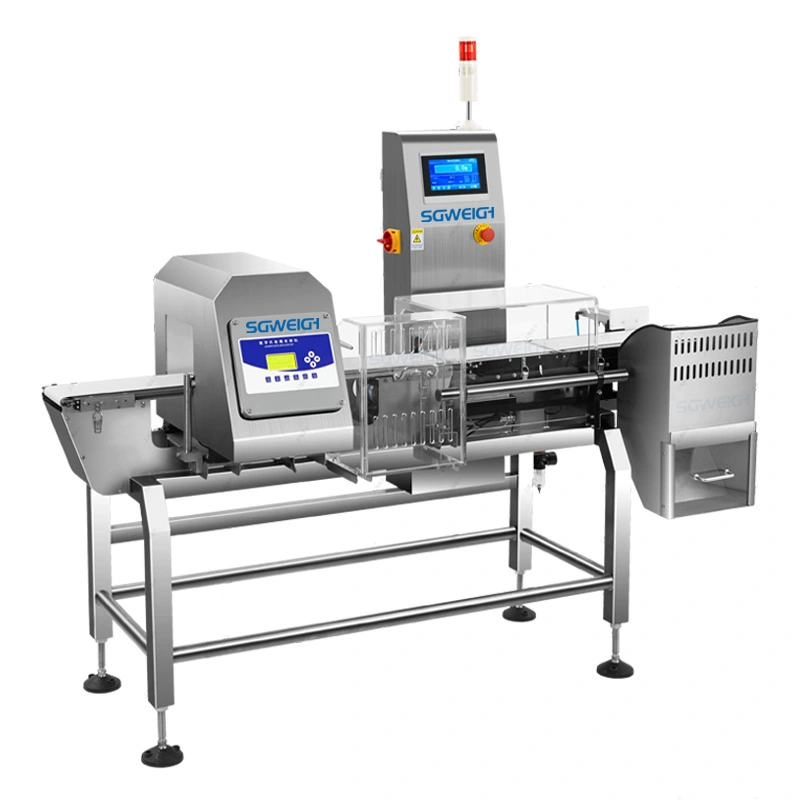

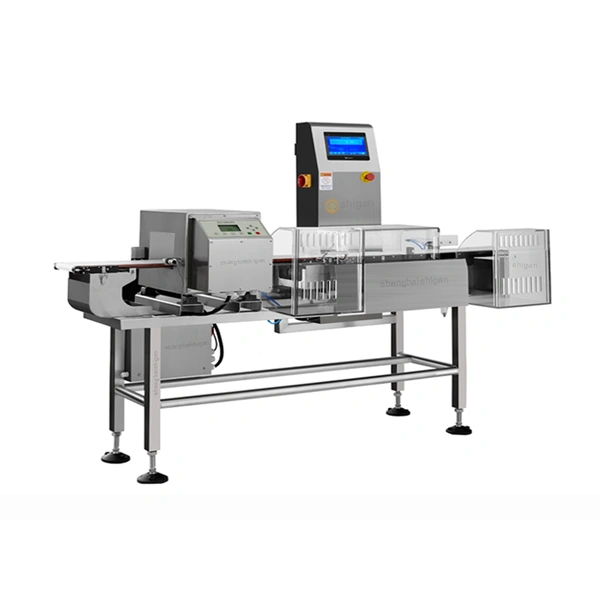

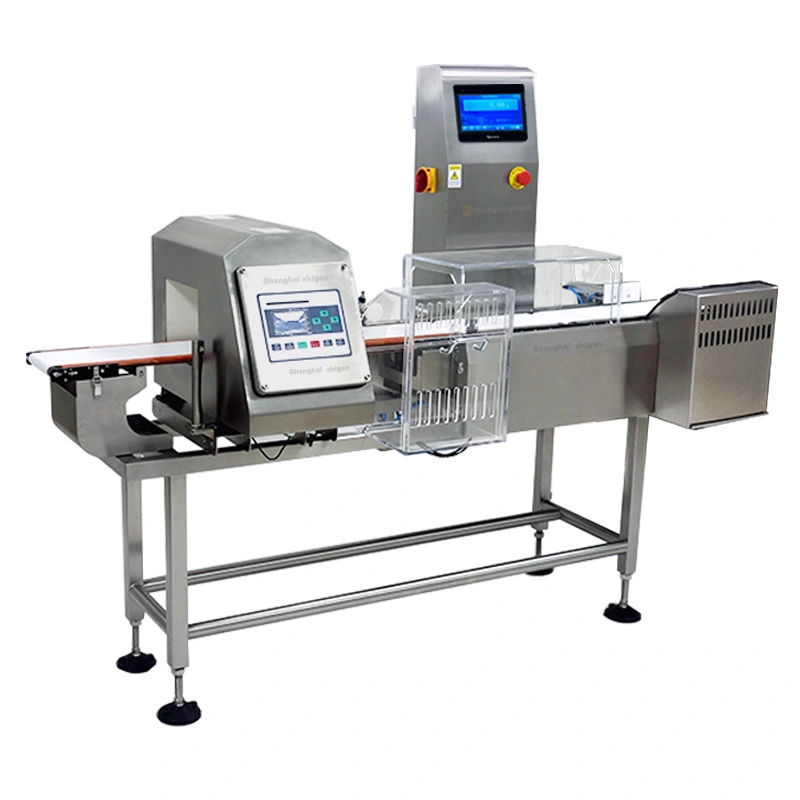

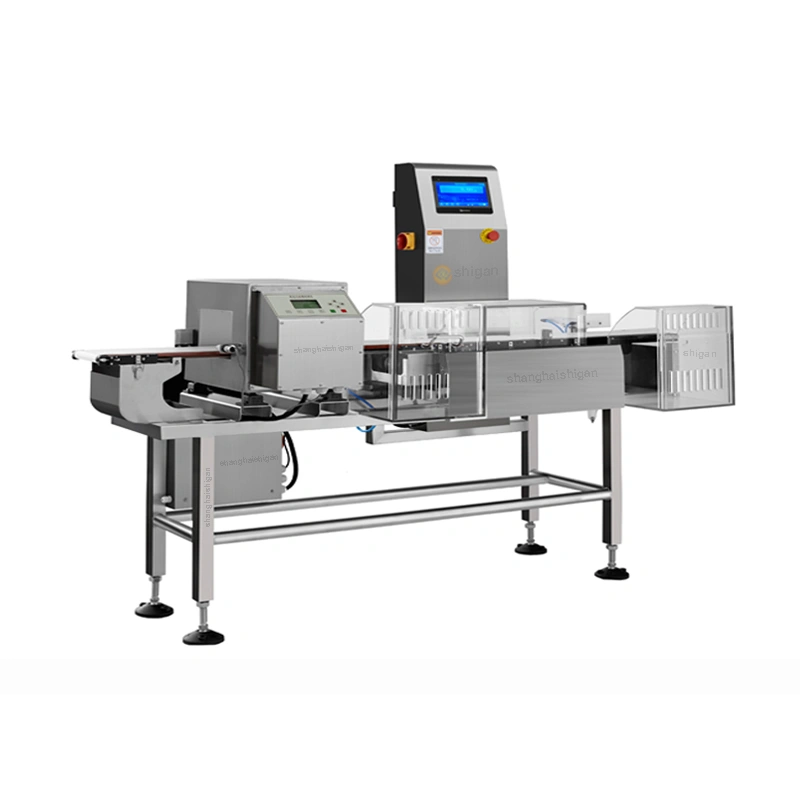

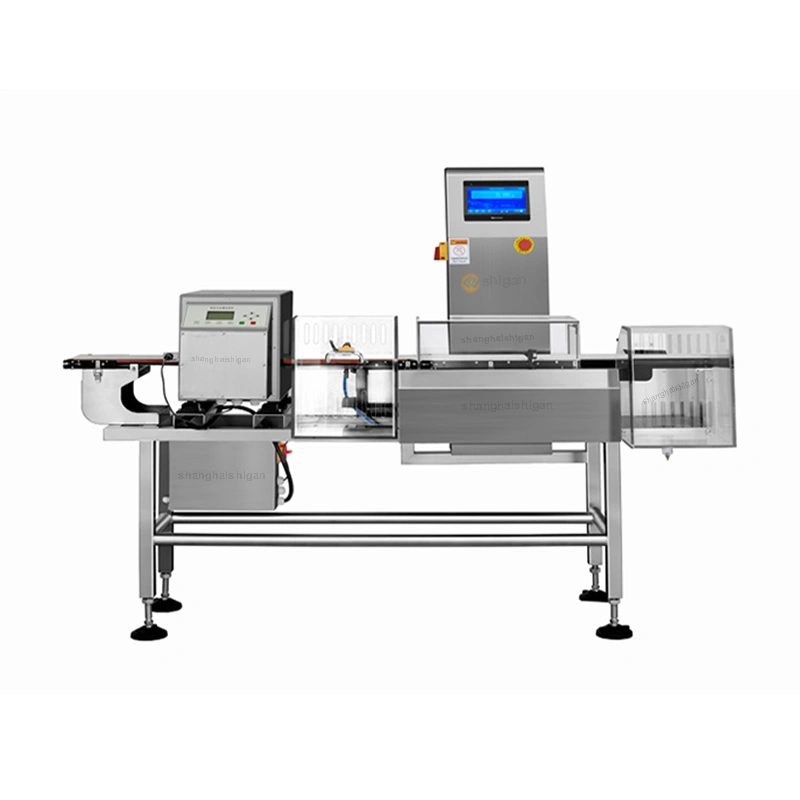

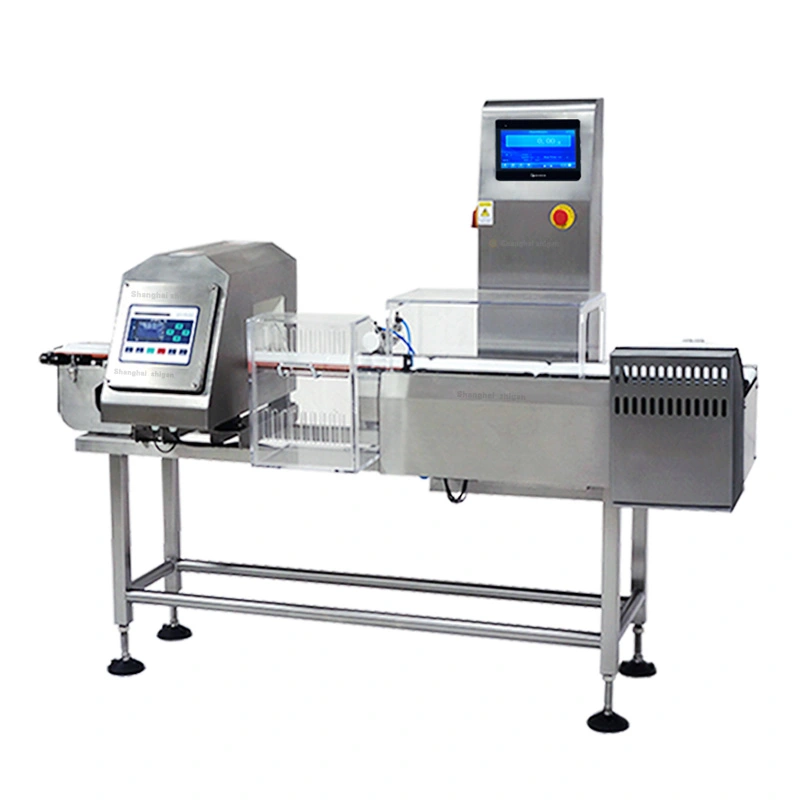

Checkweigher and metal detector combo for chemical pictures
1. Compact design: The metal detection head and weighing scale are combined in one frame, with a small footprint and easy installation and operation.
2. Integrated Control Panel: A single control panel that centrally controls automatic weight and metal detection technology, making it easy to operate and manage.
3. Highly flexible: The system has a wide range of configurations and can be adjusted according to different locations and needs to adapt to various spatial needs.
4. Efficient and stable: Integrating automatic weight detection and metal detection, saving a lot of operation time, stable performance, and high weighing accuracy.
5. Customized service: Provide customized metal detection and weighing scale combination systems based on the specific needs of customers.
Applied in various industries: widely used in industries such as food, medicine, chemical, textile, electronics, etc., to conduct safety testing and quality control of products.
Type Digital Checkweigher With Metal Detector Combo
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)
There is no identical production line, and there is no checkweigher and metal detector combo for chemical scheme applicable to all production lines. In order to meet the needs of different production lines, our professional engineers will rigorously evaluate the characteristics, specifications, and environmental factors of the production line, and customize the most suitable checkweigher and metal detector combo for chemical scheme for you.
As a leader in the field of dynamic weighing, Shanghai Shigan Industrial Co., Ltd. has rich experience and technology. It adheres to customer-centric and quality oriented principles, adhering to the concept of "integrity, innovation, cooperation, and win-win", and continuously provides customers with high-quality products and thoughtful services. The company's main products include digital metal detectors, conveyor belt metal detectors, automatic checkweigher metal detectors, checkweighers, high-speed and high-precision checkweighers, and a series of assembly line equipment.
In addition, Shanghai Shigan also provides a series of after-sales services, including product installation, debugging, training, and maintenance, to ensure that customers can receive timely support and solve problems during use.
Equipment packaged in export standard wooden boxes (non fumigation). We can accept FOB, CFR, CIF terms, and our professional logistics team can handle sea, air, and railway transportation.
1. We provide you with detailed manuals and videos for machine installation, adjustment, setup, and maintenance to help you better understand and operate our products. No matter where you are, you can easily learn how to use the machine.
2. If you encounter any problems during use, please feel free to contact us at any time.
3. Our machine has a one-year warranty period. During the warranty period, if any parts are not damaged by humans, we will replace them with new parts for you free of charge. The warranty period is calculated from the date the machine is shipped and the bill of lading is received.
4. Shanghai Shigan has an independent after-sales service team to provide you with comprehensive after-sales support.
5. We are committed to providing you with high-quality products and services, and look forward to establishing a long-term and stable cooperative relationship with you. If you have any questions or need more details, please feel free to contact us at any time.
