Food Metal Detector and Checkweigher Combination System with Rejector
Checkweigher and metal detector combo as known as weighing metal detection machine, check weigher with metal detection machine, weight checker metal detector, and etc,.
The food metal detector and checkweigher combination system is an advanced inspection solution that combines high-sensitivity metal detection and precise checkweighing functions into a compact unit, thereby improving product safety and quality control. This food checkweigher and metal detector combo operates on high-speed conveyor belts, continuously monitoring product integrity. Intelligent software automatically identifies contaminated, underweight, and overweight products, triggering appropriate rejection mechanisms. If you are interested in our products and services, please keep free to contact us for a quote.

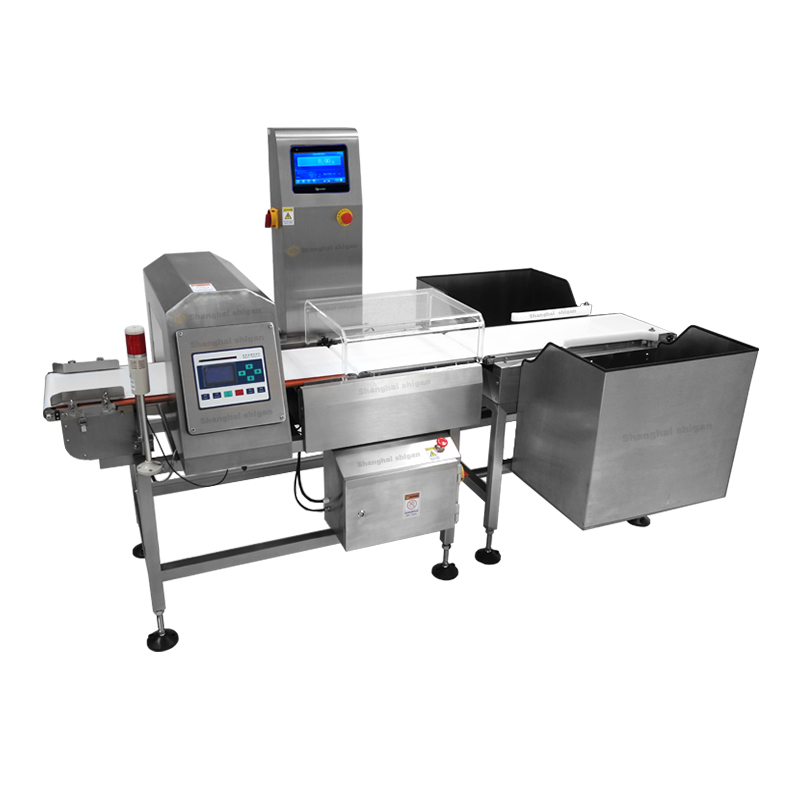

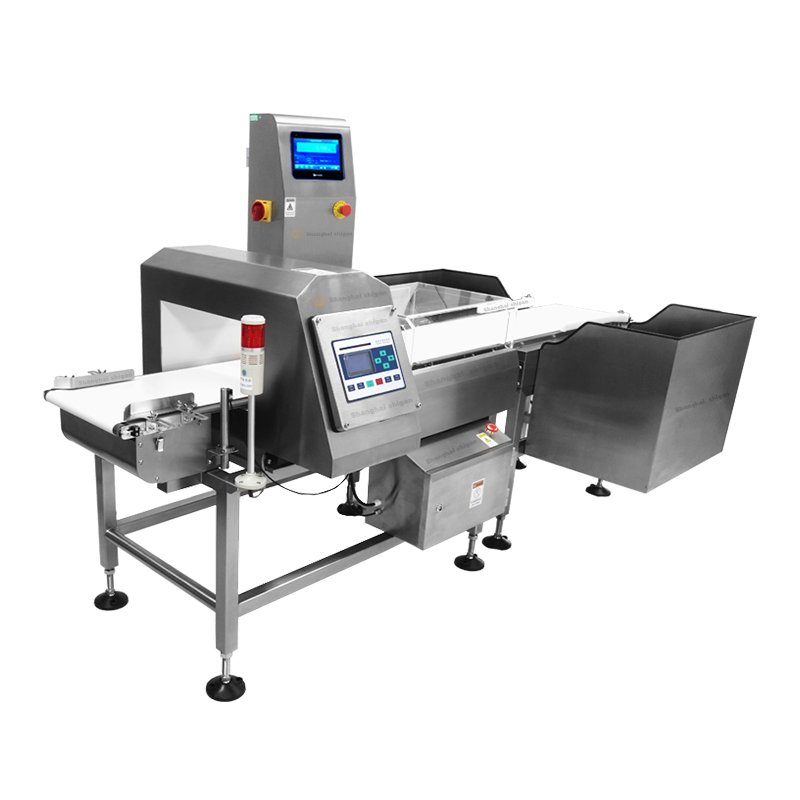

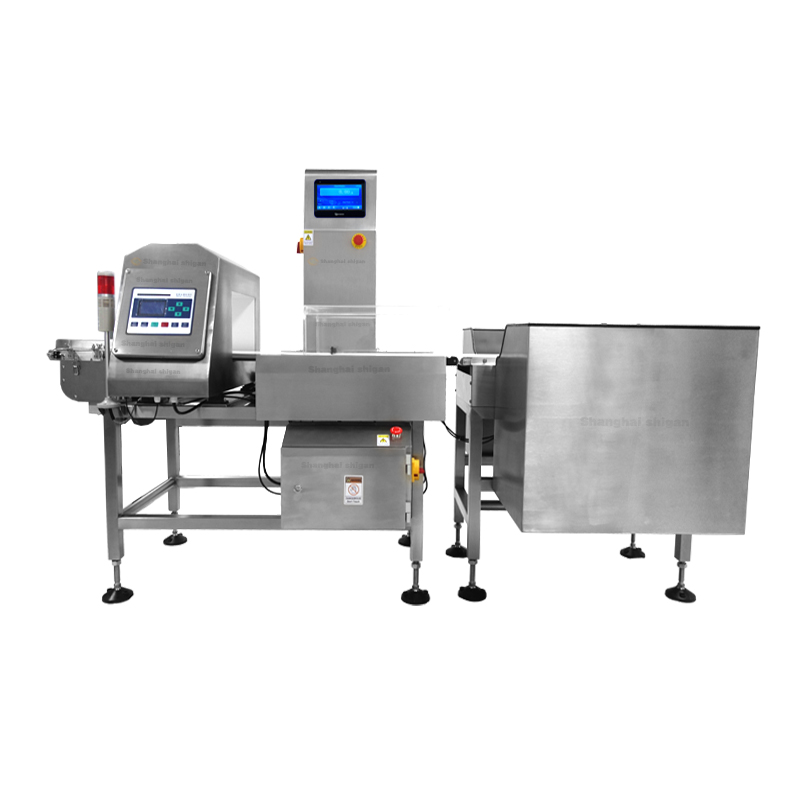

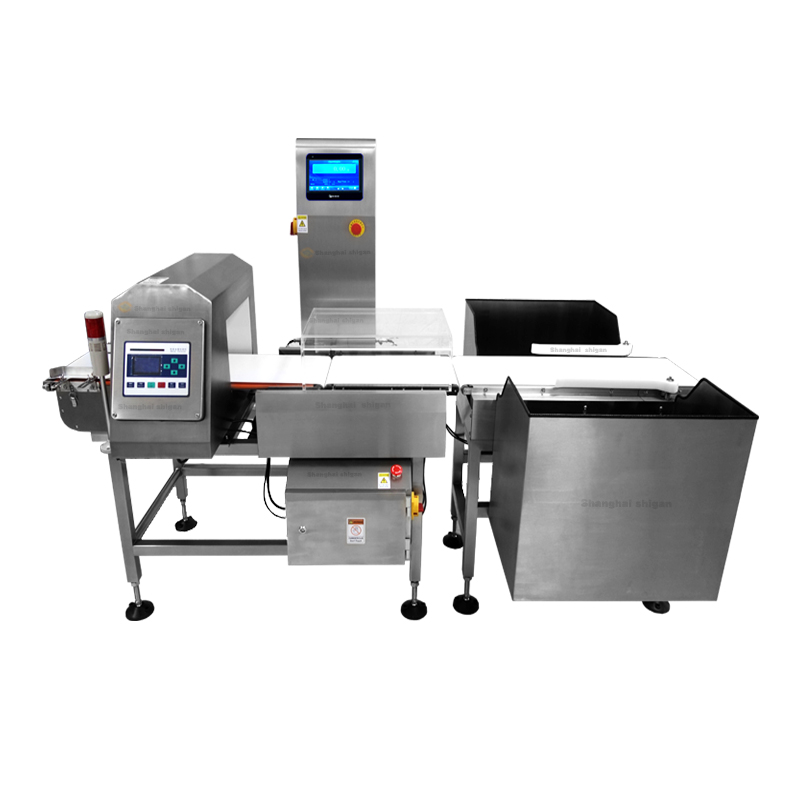

Food checkweigher and metal detector combo pictures

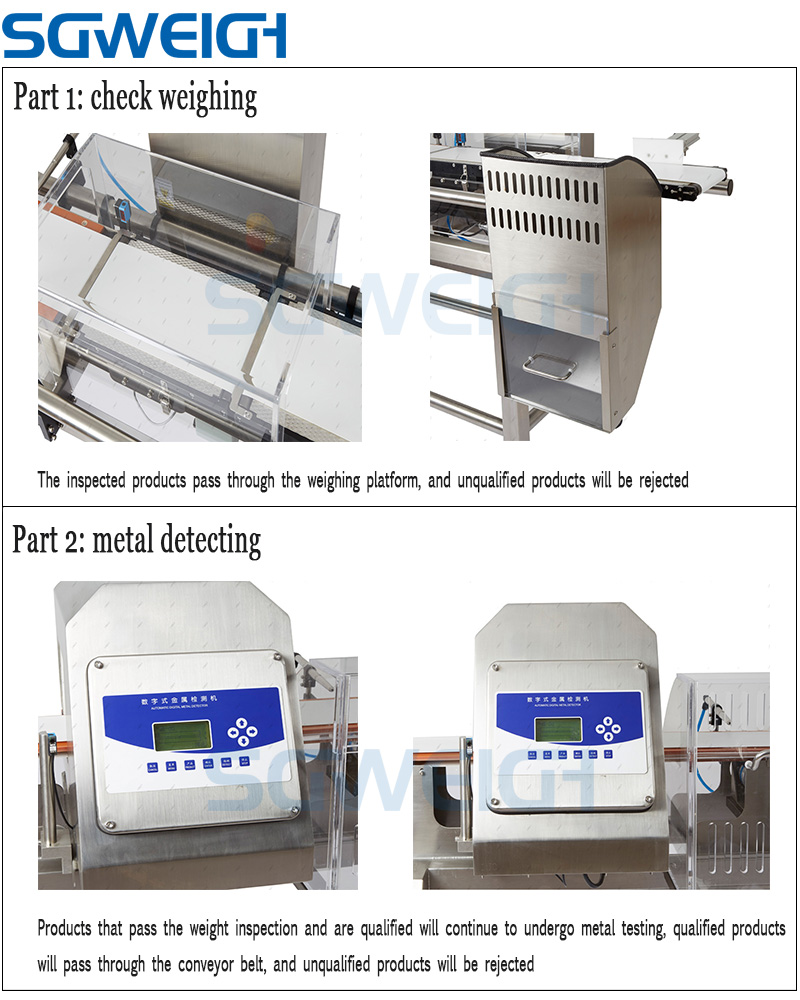

1. Integrated metal detection and checkweighing technology
2. High-sensitivity contaminant detection
3. Accurate dynamic weight verification
4. Automatic rejection of non-conforming products
5. Compact space-saving design
6. Real-time production monitoring and reporting
7. Hygienic stainless-steel construction for food applications
8. Strengthen Food Safety Compliance and Brand Protection
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Our goal is to provide you with the perfect metal detector and checkweigher combination system solution. Customization is supported; please provide us with details of your packaging materials, packaging equipment (bag size, material), and expected production volume so we can offer the most suitable model. We will also do our best to address any other technical requirements.

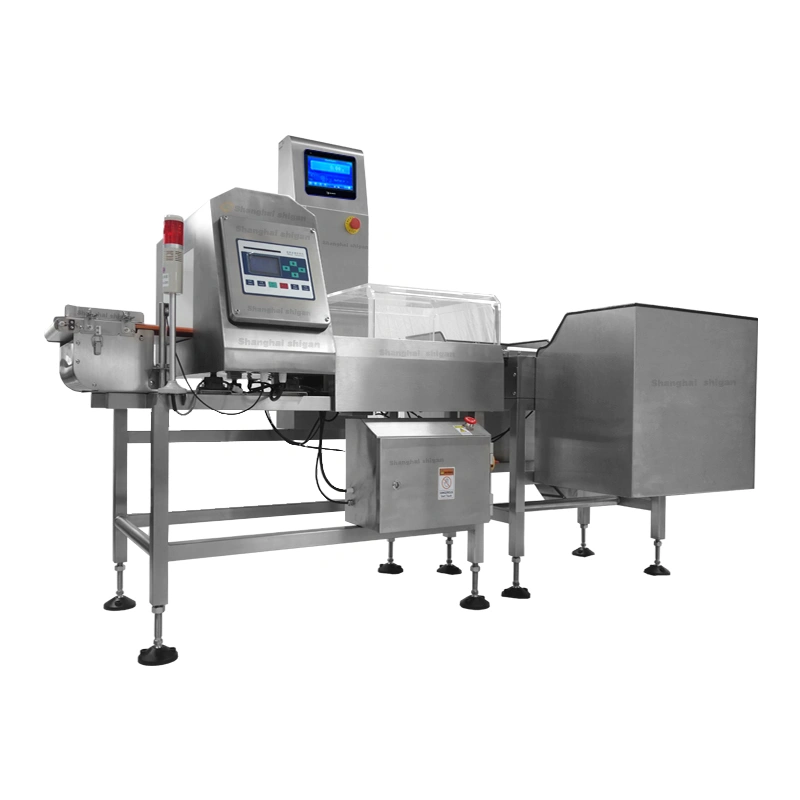

Food Metal Detector and Checkweigher Combination System with Rejector
Food metal detector and checkweigher combination systems are also used in the food, pharmaceutical, confectionery, chocolate, dairy products, beverage, additive, health product, chemical, plastics, wood, and mining industries. They can also be used for the detection of aquatic products, poultry, meat, frozen, and refrigerated foods.

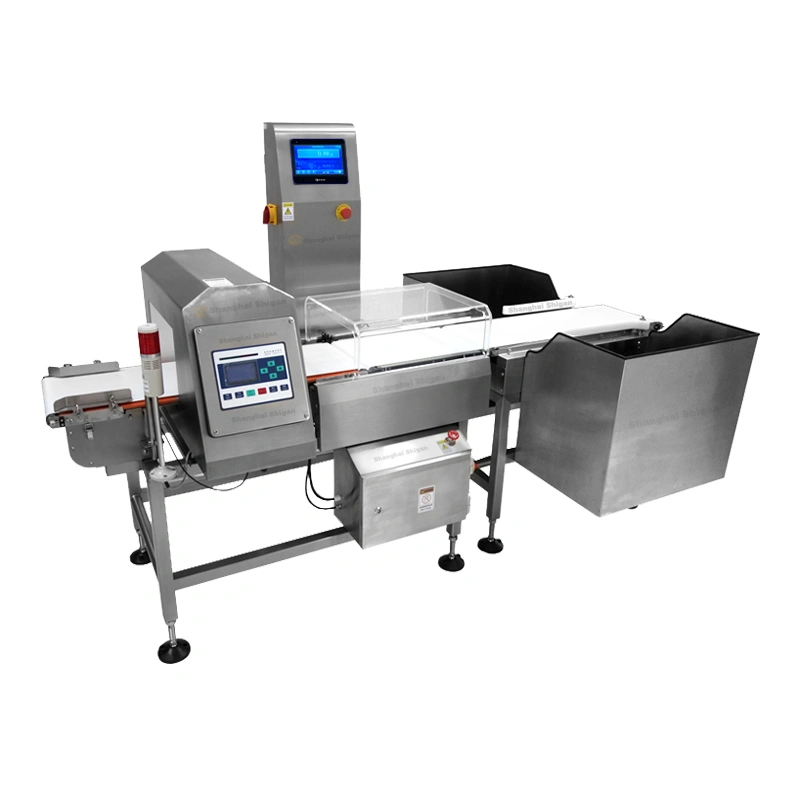

Food Metal Detector and Checkweigher Combination System with Rejector
Machine Packaging:
Export-standard non-fumigated wooden crates, meeting customs clearance requirements
Delivery Time:
10-15 days after payment is received
Pricing Terms:
FOB, CIF/CFR (sea/air), DDU/DDP (sea or air)
Payment Options: T/T, LC, D/P, D/A, etc.
Pre-sales Service
1. Test with customer engineers to learn how to use the machine.
2. Show product samples and our machine.
3. Test machine video will be sent to the customer, after which the balance will be paid to us.
After-sales Service
1. Manual.
2. Adjustment and setup video.
3. Telecommunications. Or face-to-face online communication is possible.
4. This machine has a one-year warranty and lifetime maintenance. 7/24 online technical support.
