High Detection Accuracy Checkweigher Intelligent Check Weigher Machine
Check weigher as know as check weigher system, checkweigher, weight checker, check weighing machine, check weight machine, weight sorting machine, and etc,.
Our high detection accuracy checkweighers combine cutting-edge weighing technology with unmatched weighing accuracy. All of our checkweigher systems are not only quality calibrated, but also designed for a variety of applications. By adding a intelligent digital check weigher machine to the production line, product quality can be improved without reducing efficiency, ensuring that the nominal weight of the packaged items is consistent with the actual weight, and all packaged items in batch production are checked to prevent unqualified products from entering the circulation field. You are welcome to contact us at any time for quotation.

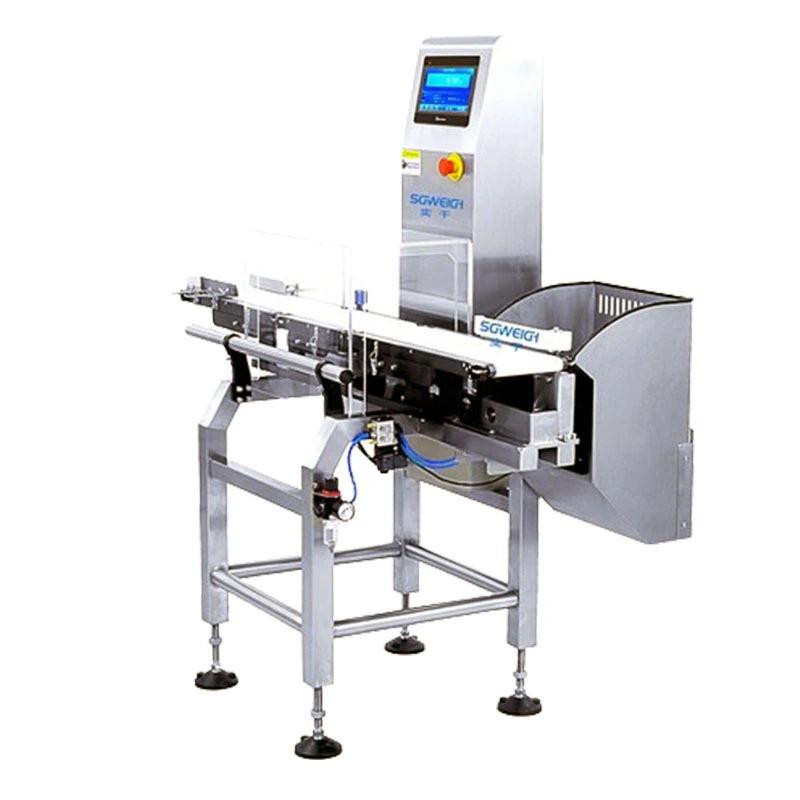

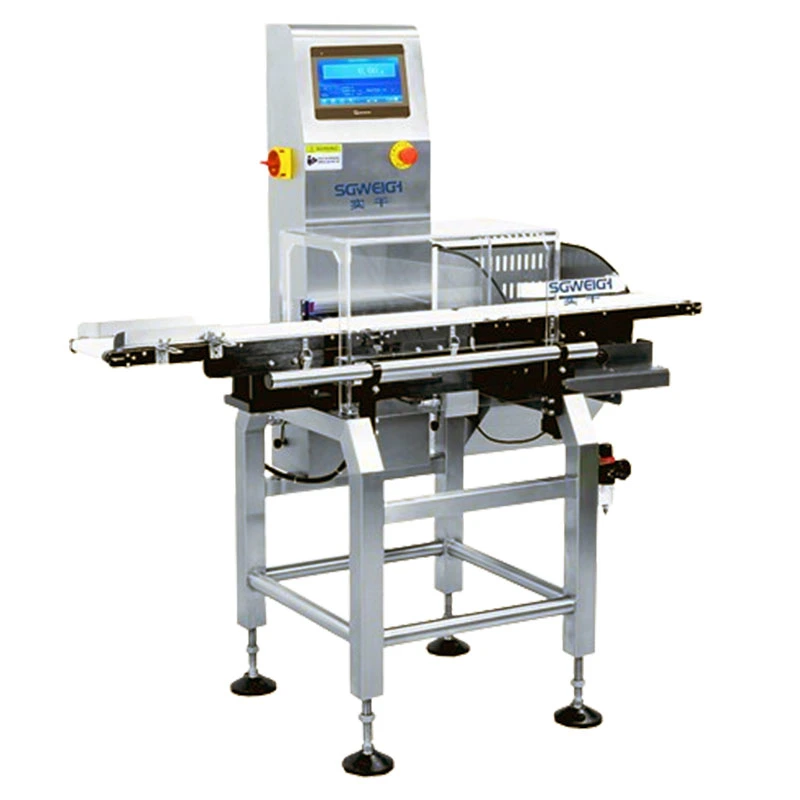

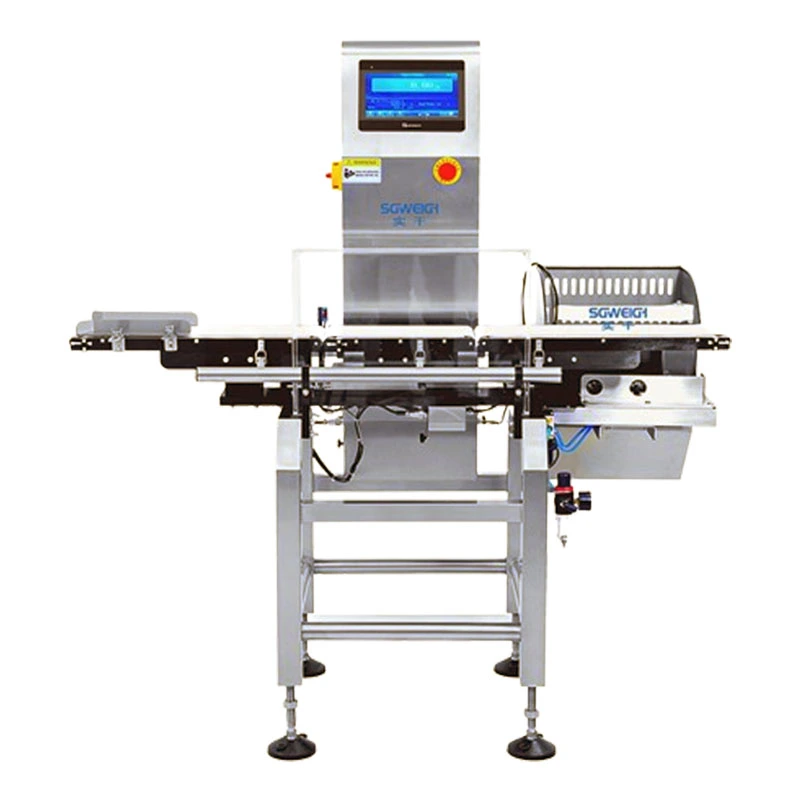

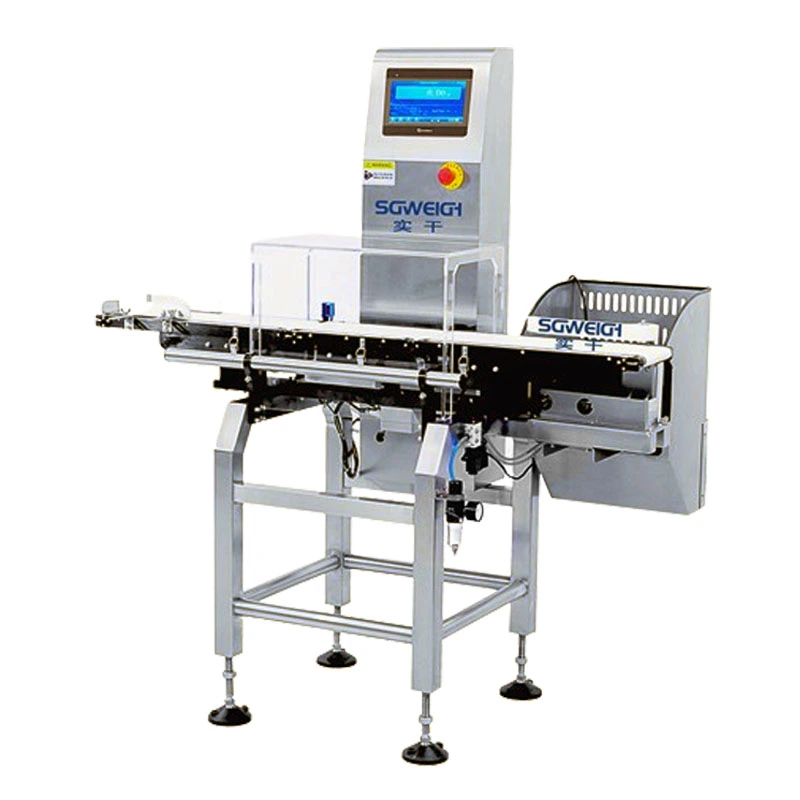

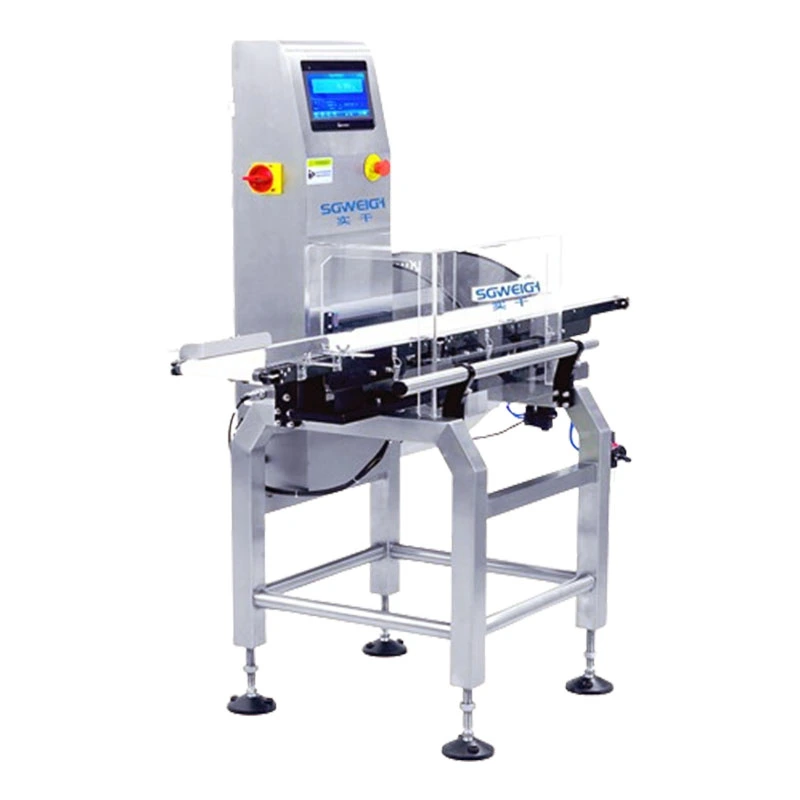

High detection accuracy checkweigher photos
Type SG-150
Weighing Range 3-500g
Limited of product L: 200 W:150 H: 3-200mm
Accuracy ±0.1g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 150 pcs/min
Belt Width 150mm
Machine Weight 80kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
We insist on solving every customer problem, meeting customer needs, improving products and perfecting services. Non-standard products can be customized according to customer needs.
Provide the following information to our sales staff, and our team will support you in choosing the right type of high detection accuracy checkweigher:
*1 Main parameters of the product to be measured, product size range: length, width and height
*2. Accuracy requirements: ±g.
*3. Speed requirements: pcs/min;
*4. Product weight range:; Maximum deviation and minimum deviation of the same product.
High Detection Accuracy Checkweigher Intelligent Check Weigher Machine
1. Simple: large-size LCD touch screen display, Chinese and English interface, language customization.
2. Precision: high-precision sensor, high detection accuracy, fast detection speed.
3. Real-time: The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.
4. Memory: 100 product sorting parameters can be preset, and different products can be quickly switched.
5. Automatic learning: high-speed and high-precision digital filtering algorithm, data filtering parameters, automatic learning.
6. Intelligence: dynamic zero-point tracking, including zero-point tracking when the equipment is running continuously, can automatically correct the weight value.
7. Reliability: variable frequency motor drive, effectively improves the stability of equipment operation.
8. Data: preset data transmission interface, product sorting parameters can be set or exported via USB.
9. Precision: photoelectric calibration weighing trigger method is adopted to effectively improve the accuracy of the equipment.
10. Removal: a variety of removal methods are optional, which can remove overweight or underweight products.
High detection accuracy checkweigher is widely used in dynamic weighing, missing parts, multiple parts detection, and multi-level sorting in food, medicine, packaging, printing, logistics equipment, IT digital, home appliances, stationery and toys, precision manufacturing, agricultural product processing and other industries.
High Detection Accuracy Checkweigher Intelligent Check Weigher Machine
Packaging
Film pack inside, Wooden case outside
Shipping
1. Upon receipt of payment, delivery date will be in 20-30 working days
2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
