High-Speed Checkweigher Metal Detector Combination System With Rejector
Checkweigher and metal detector combo as known as weighing metal detection machine, check weigher with metal detection machine, weight checker metal detector, and etc,.
This innovative checkweigher metal detector combination system combines accurate weight verification and an advanced metal detector in one compact unit, saving valuable floor space and operating costs, while optimizing production processes with real-time feedback and automatic reject capabilities. An integrated metal detection and checkweighing system provides the best of both worlds: ensuring product weight accuracy and detecting hidden contaminants without slowing down production. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

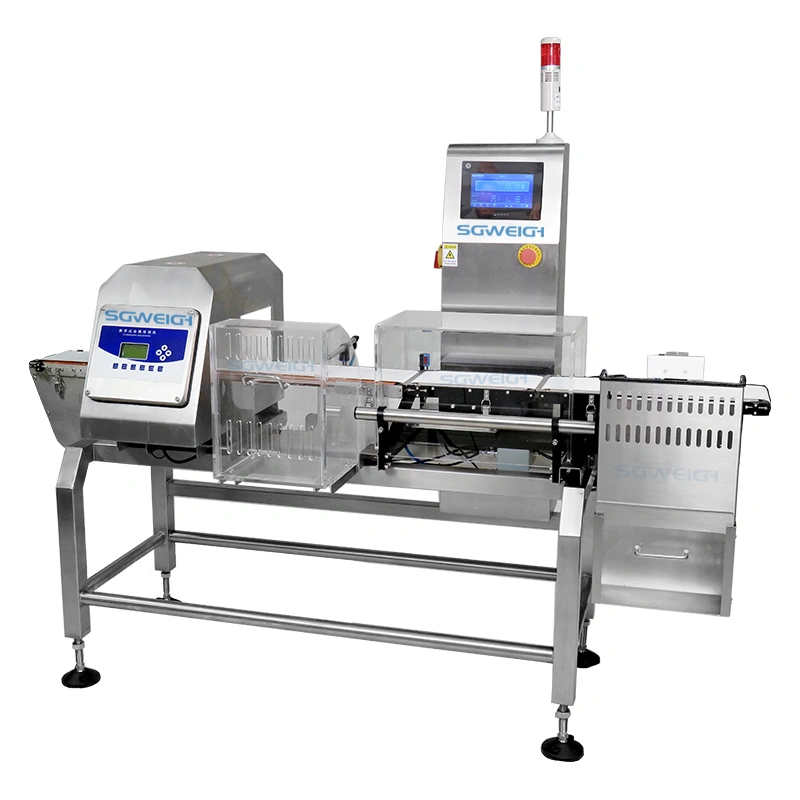

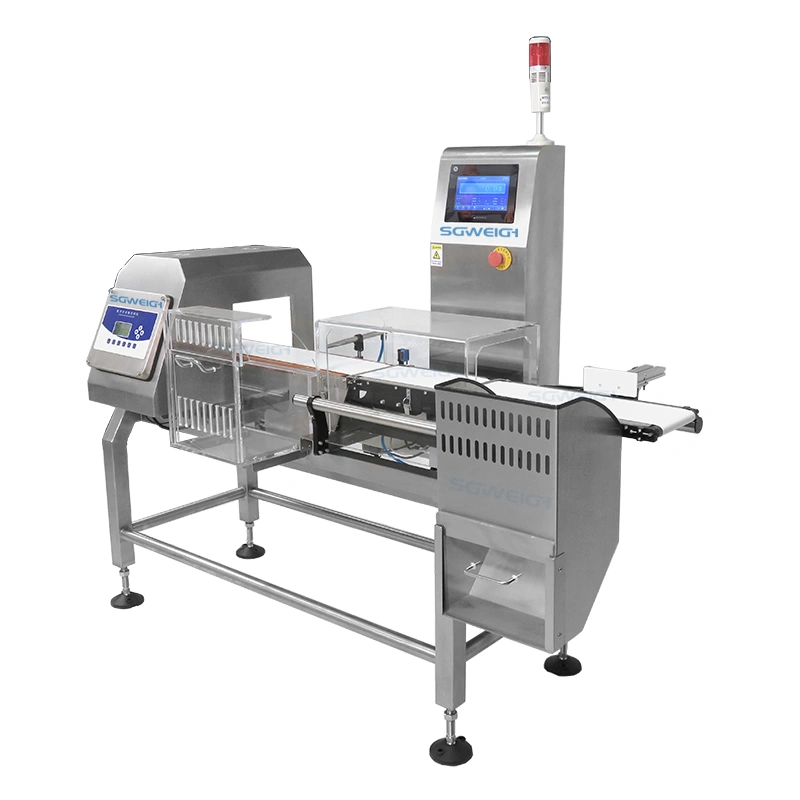

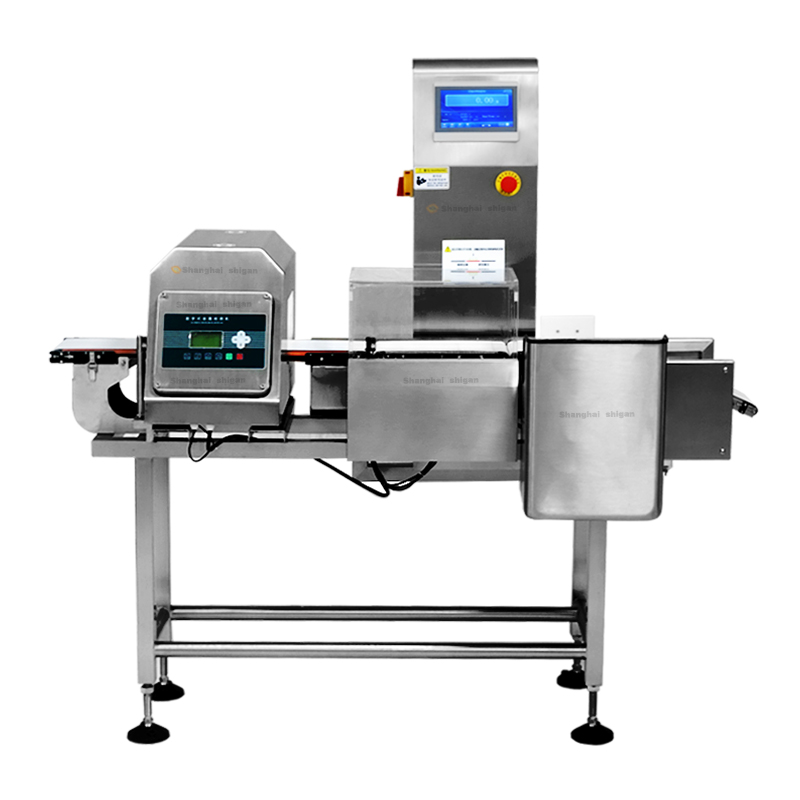

Checkweigher metal detector combination system pictures
High-Speed Checkweigher Metal Detector Combination System With Rejector
Detection method: electromagnetic induction / digital weighing sensor
Size: 330×150mm
Maximum accuracy: FE0.8mm SUS2.0mm
Sorting accuracy: ±0.5g
Weighing range: 5g-900g
Passing height: 110mm
Passing width: 280mm
Packaging length: ≤300mm
Display division value: 0.1g 0.2g 0.5g 1g
Number of sorting sections: 3 sections
Sorting capacity: 60 times/minute
Conveyor belt speed: 10-45m/minute
Ground height: 735mm-800mm
Working temperature: 0-40℃
Weight: about 160kg
Dimensions: 1900mm×700mm×1120mm (L×W×H)

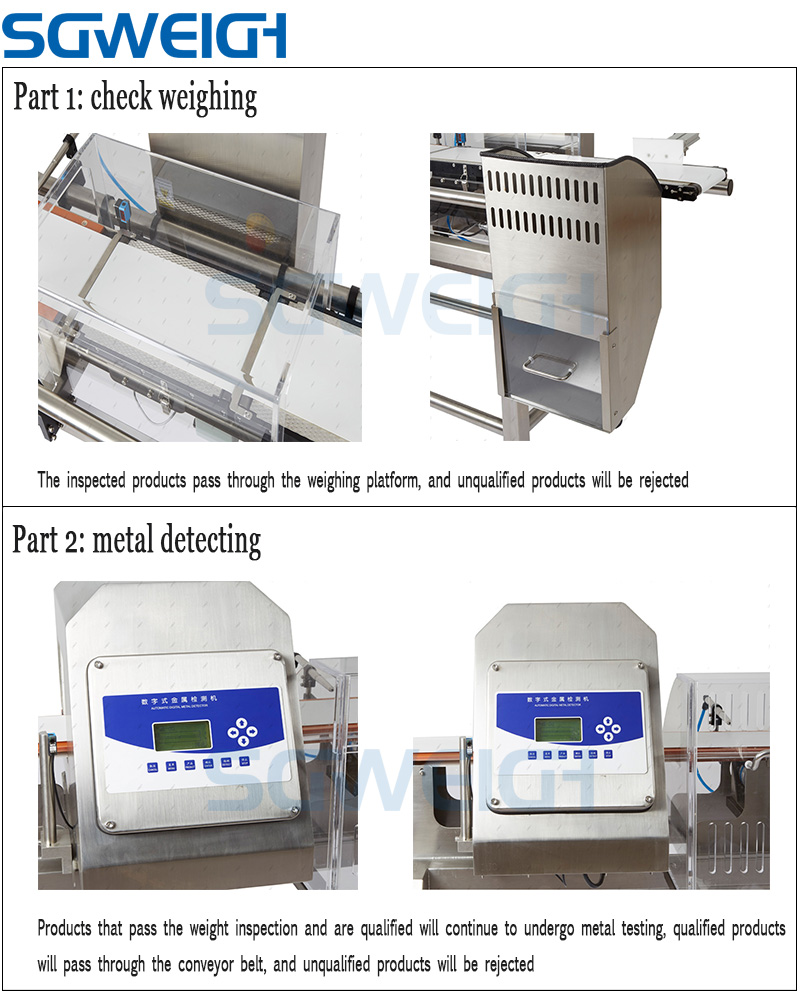

1. Simultaneous detection of weight and metal contaminants, high sensitivity detection of ferrous metals, non-ferrous metals and stainless steel
2. Compact design, seamless integration, designed for high-speed continuous production environment
3. User-friendly touch screen interface, simple operation

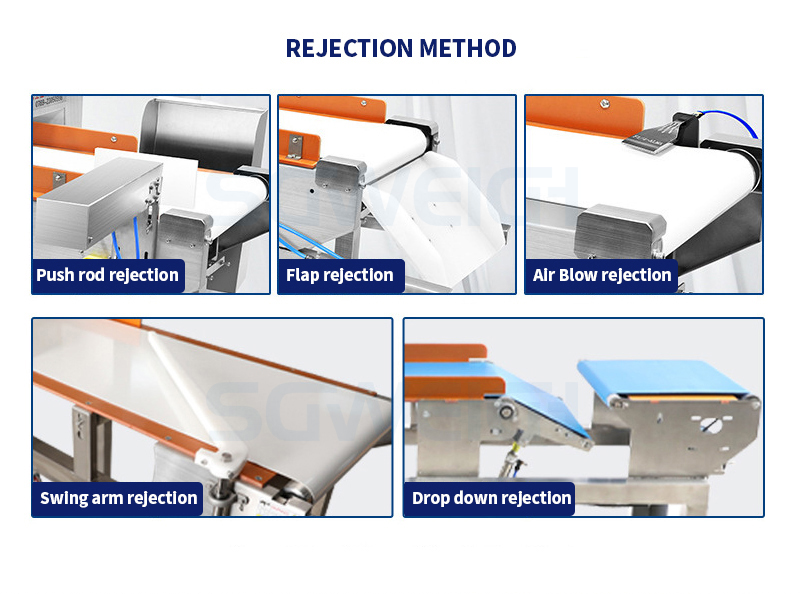

4. Automatic rejection of unqualified or contaminated products
5. High-speed operation without compromising accuracy
6. Stainless steel construction, durable and hygienic, easy-to-clean design, ideal for food-grade environments, fully compliant with international food safety standards
7. Advanced data logging and tracking functions, providing comprehensive audit support
8. Real-time alerts, allowing immediate corrective actions
9. Reduce the risk of fines, recalls and customer dissatisfaction
10. Minimal operator training required
Checkweigher metal detector combination system is suitable for detecting mixed metal impurities and online weight detection in the production process of food, pharmaceuticals, toys, clothing, shoes, chemicals, leather, fabrics, paper products and other industries. For example: iron and non-ferrous magnetic metal products (iron, copper, aluminum, stainless steel and other base metals can be detected).
The checkweigher metal detector combination system displayed may not meet your requirements. We have professional technicians to provide professional customized solutions based on the user's product characteristics and application scenarios.
High-Speed Checkweigher Metal Detector Combination System With Rejector
Plastic packaging is used for the inner part, and stronger wooden boxes will be used for the outer part.
Our standard packaging process:
1) Dust removal and cleaning
2) Lubricate drive parts
3) Divide the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood boxes
6) Mark the shipping mark on the boxes
If there are any special requirements, we will pack as required.
Pre-sale service
1. Test customer engineer, learn how to use the machine.
2. Use product samples and our machine.
3. Test machine video, will send to customer, then, pay the balance to us.
After-sale service
1. Manual.
2. Adjustment, setting video.
3. Telecommunication. Or face-to-face online communication is available.
4. This machine has a one-year warranty. During the warranty period, if there is no man-made damage, we will replace a new one for you. The warranty period will start from the machine shipped out and get the bill of lading.
