High Speed Jar Can Food Checkweigher Efficient Accurate Weighing Check Weigher for Conveyor Line
Checkweigher as known as check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, weighing scale, and etc,.
The jar can high speed checkweigher is mainly used for online detection of product weight and non-conforming weight, and can be integrated with various packaging production lines and conveying systems. The food check weigher for conveyor line is one of the necessary facilities for advanced online dynamic weighing systems, with high efficiency in automatic weighing and sorting, achieving high-speed and stable measurement. You are welcome to contact us at any time for further information.

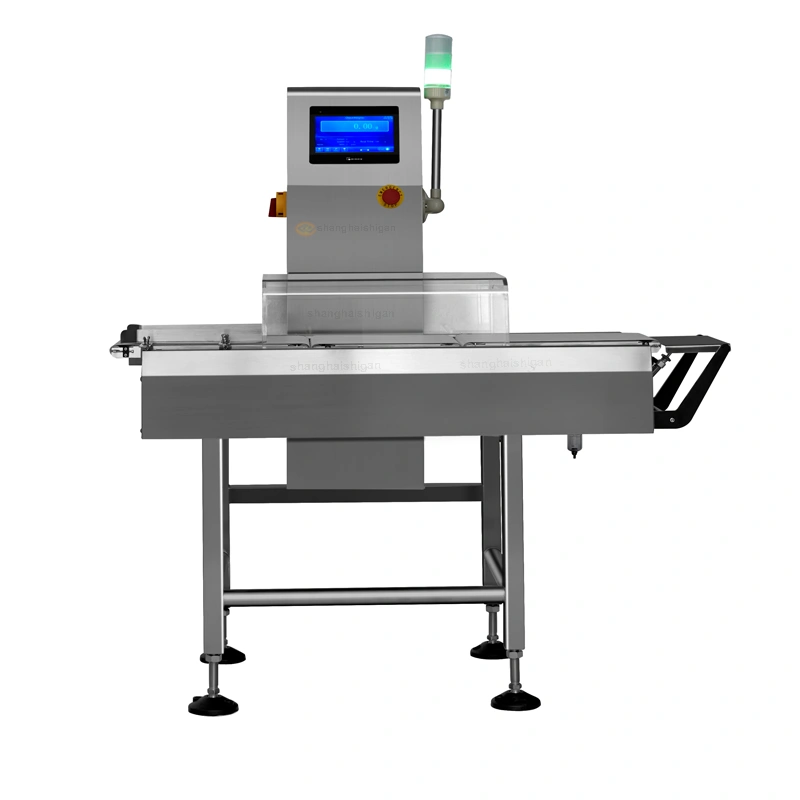

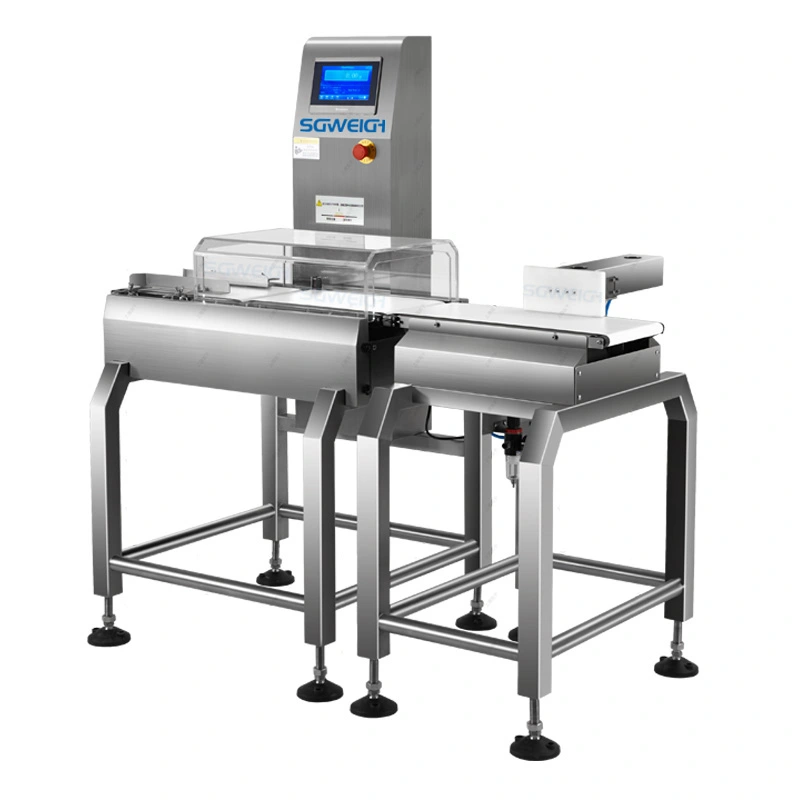

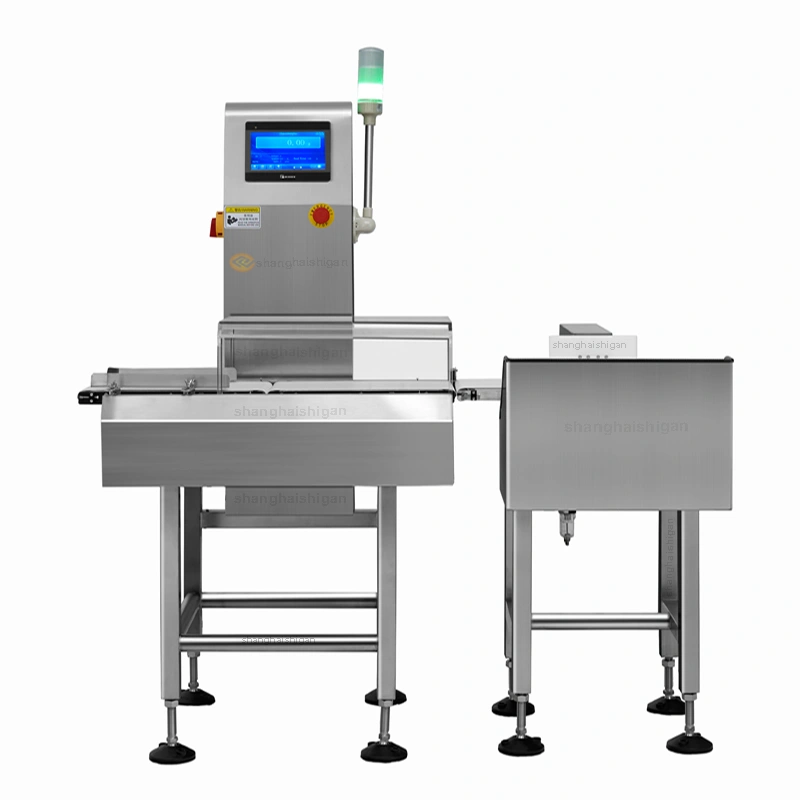

Jar can high speed checkweigher pictures
Type SG-150U
Weighing Range 3-500g
Limited of product L: 100 W:150 H: 3-200mm
Accuracy ±0.1g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 150 pcs/min
Belt Width 150mm
Machine Weight 60kg
Power Supply AC 220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
1. The speed and accuracy of weight inspection vary depending on the actual product being tested.
2. The standard model is only for selection reference, and specific parameter requirements are customized according to the actual needs of users.
3. Selection: Pay attention to the direction of movement of the product on the belt. If the product is transparent or semi transparent, please inform our company.
•Easy Integration: adjustable height, modular design
•Sturdy and robust construction: Stainless Steel 304
•Easy to use: touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy
•Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
•Connectivity: standard ports for data exportation and connect to PC
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
•Different Detection Modes: Default Mode, Static Mode, Power saving mode
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
1. Underweight detection and overweight detection of packaged products; Detection of missing accessories inside the packaging, such as instructions, accessories, gifts, desiccants, and other accessories.
2. Full box inspection: missing parts inspection, missing package inspection, missing box inspection, missing bottle inspection, missing can inspection, missing bag inspection, etc.
3. USB data storage interface, which can transfer report data to a PC for analysis and printing; Password protection for parameter settings, only operated by management personnel.
Shanghai Shigan Industrial Co., Ltd. is located in Shanghai, China and has been specializing in the production of digital metal detectors and automatic checkweighers for over 15 years. We have our own factory, and since its establishment, our company has been committed to the new technology field of digital metal detectors and automatic checkweighers. Now, we have formed a special competitive market based on advanced technology. We have obtained the CE certificate.
Our products not only sell well in the domestic market, but also in international markets such as the United States, Africa, the Middle East, and Europe. Our company has always been waiting for the visit of every friend with good quality and excellent service. We sincerely cooperate with each other and work together to create brilliance.
Machine packing :
Non-fumigation wooden case for export standard and comply with customs clearance requirement
Lead time :
10-15 days after payment received
Price term :
FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)
Negotiable payment term: T/T , LC, D/P ,D/A .,etc
1. Pre sales consultation
We will assist you in customizing suitable weighing and packaging solutions based on your requirements and specific circumstances.
2. Installation Services
We will dispatch professional technical personnel for on-site installation and debugging as required.
3. Maintenance services
Shigan provides long-term repair services, providing any repair parts free of charge during the warranty period, and charging only after the warranty expires.
4. Employee training
Shigan provides free technical training to our customers to fully master the correct product maintenance techniques.
5. Customer service
Shigan designs customized production lines for customers based on specific weighing and packaging factors such as product yield, packaging method, and factory area.
