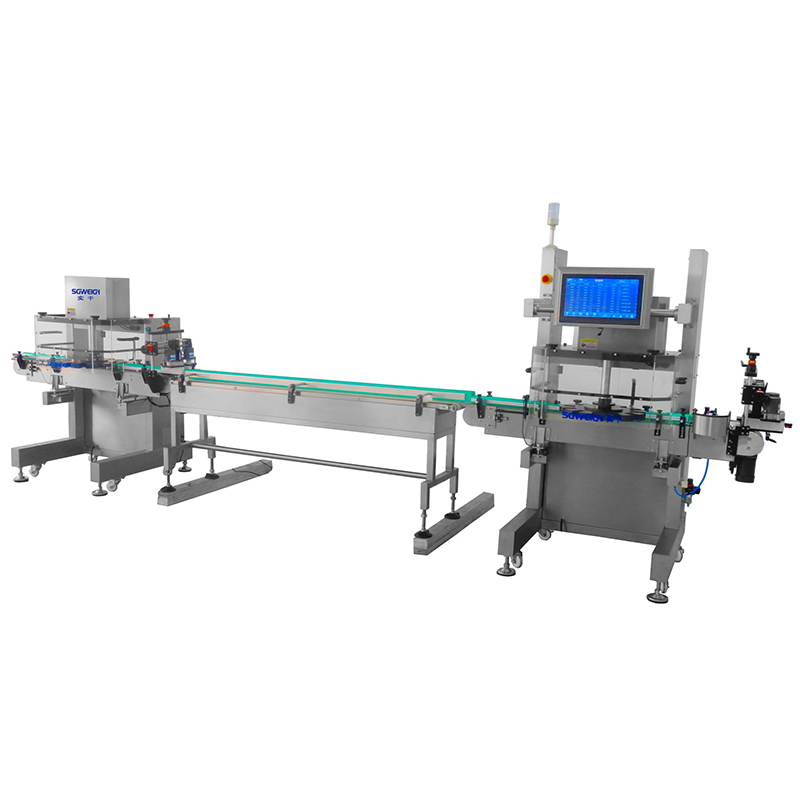

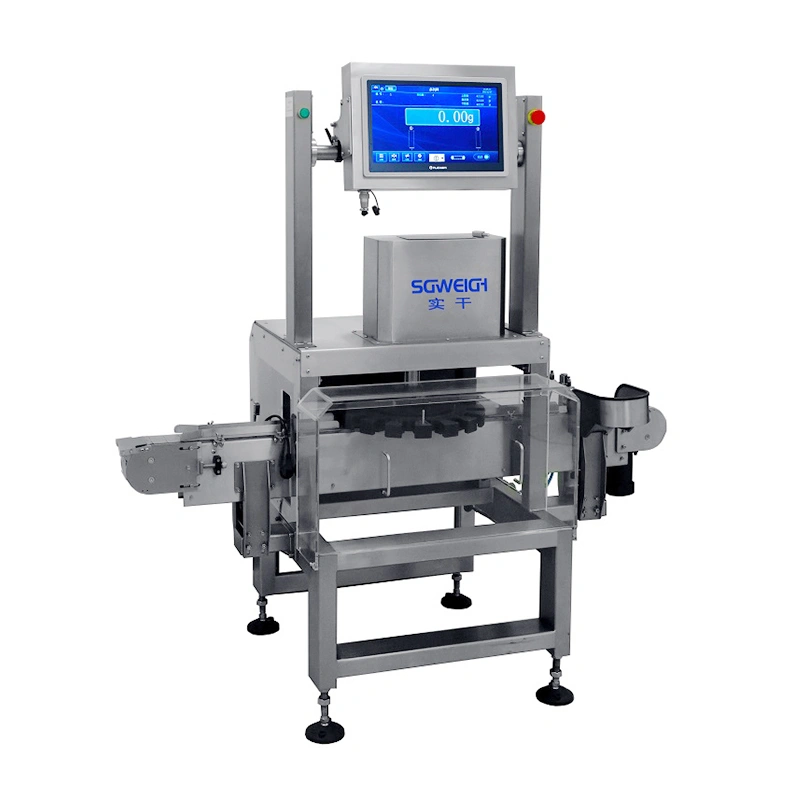

High-Speed Pharmaceutical Bottle Rotary Checkweigher Inline Inspection Machine
This pharmaceutical bottle rotary checkweigher ensures that every bottle meets stringent weight standards. Designed for high-speed pharmaceutical production lines, this intelligent weighing system provides superior accuracy, stable operation, and reliable quality control for bottling applications. Utilizing advanced rotary weighing technology, the inline bottle rotary checkweigher for pharma enables smooth bottle handling and ultra-fast dynamic weighing without interrupting the production process. If you are interested in our products and services, please keep free to contact us for a quote.

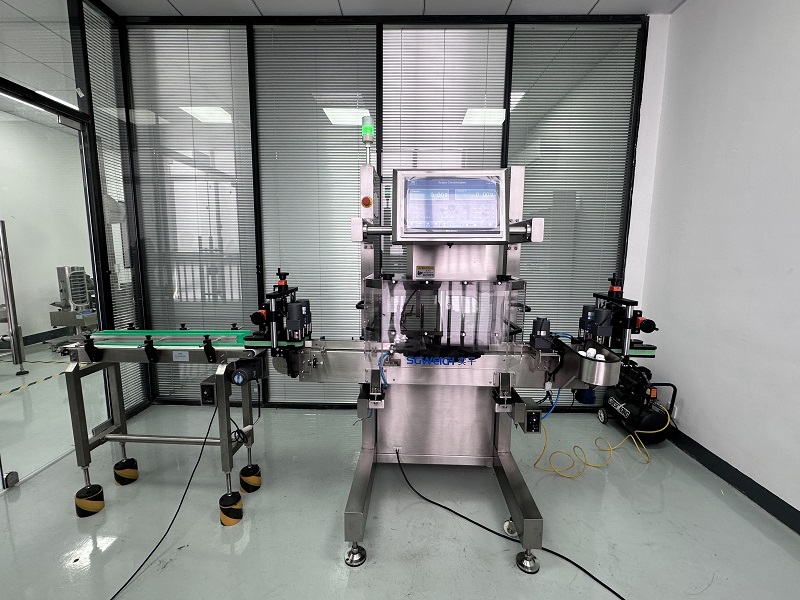

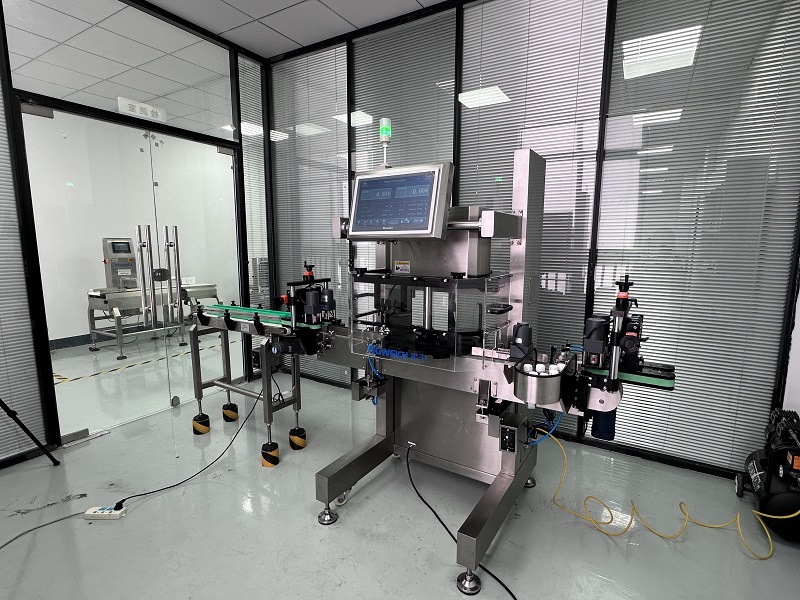

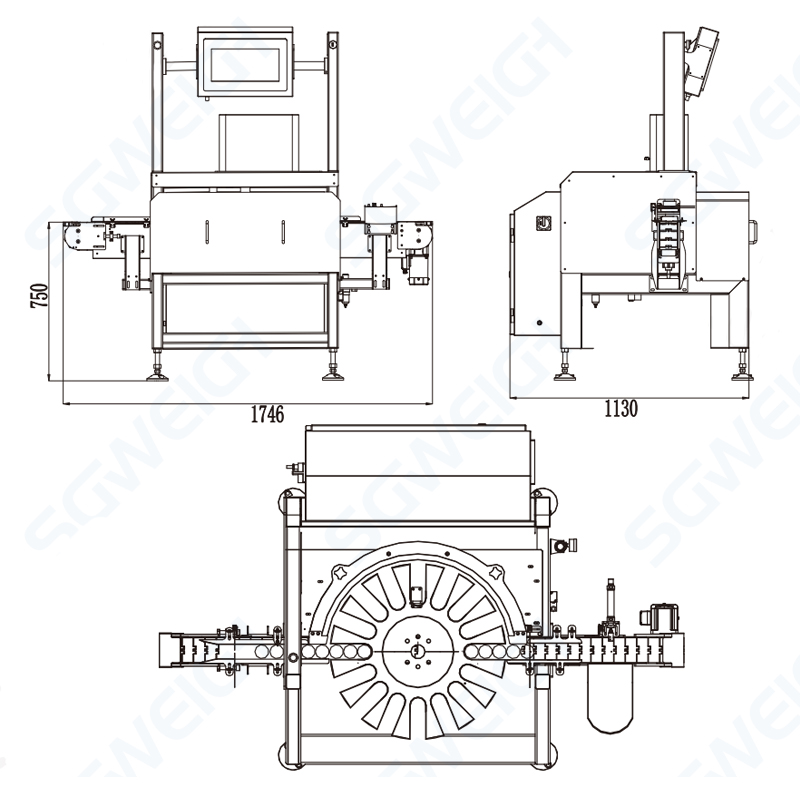

Rotary checkweighing system for bottle packaging pictures
1. High-speed rotary bottle weighing system
2. Dynamic pharmaceutical bottle checkweigher
3. Automatic reject mechanism for defective bottles
4. High-accuracy load cell technology
5. Continuous inline bottle inspection
6. User-friendly touchscreen operation
7. Real-time production data monitoring
Model SG-Z1
Weighing range 5-300g
Minimum scale 0.01g
Maximum sorting speed of 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode: Touch based operation
Transport direction facing the touch screen from left to right
Removal method: air blowing removal/push plate removal
Belt height above ground 750 ± 50mm (customizable according to customer requirements)
Machine structure stainless steel (SUS304)
Power supply 220V 50-60HZ
Power of approximately 300W
Windshield thick acrylic (to avoid airflow interference)
Working environment temperature: 0 ℃~40 ℃, humidity: 30%~95%
The properties and usage environment of the tested product vary, and the detection speed and accuracy also vary. Actual testing is the standard.

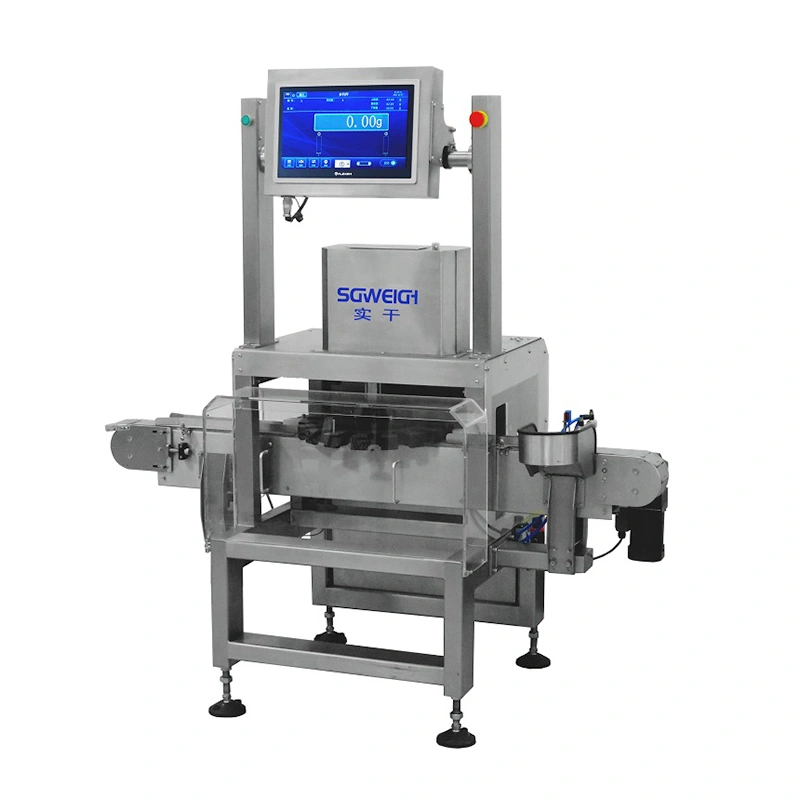

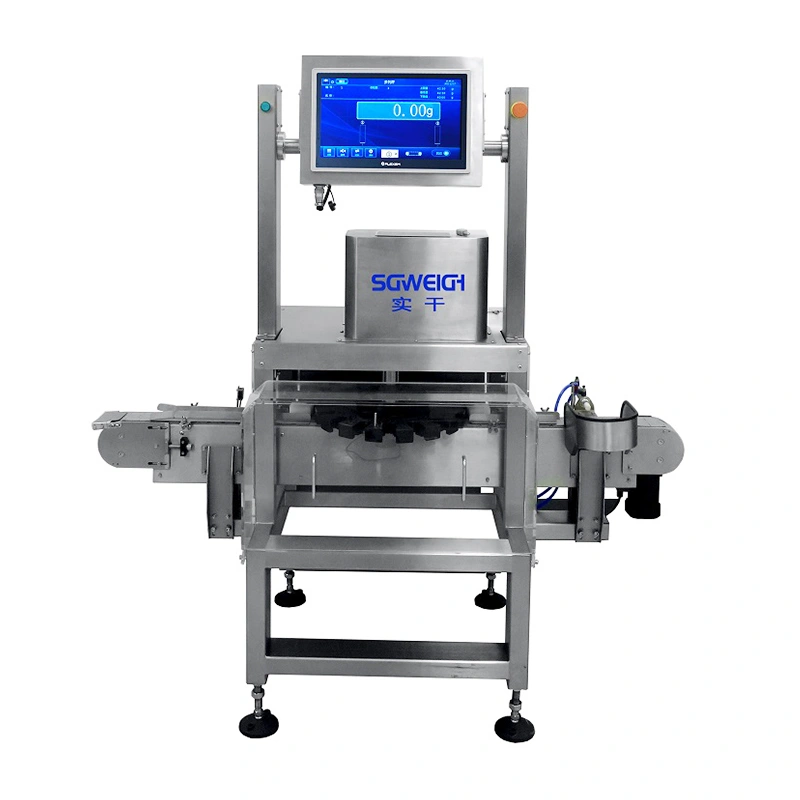

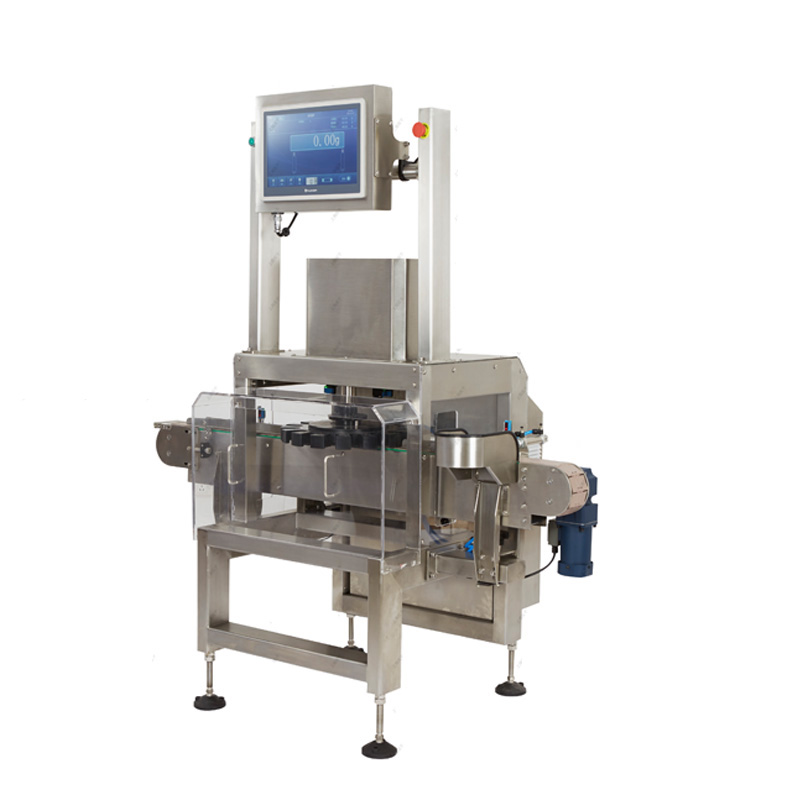

High-Speed Pharmaceutical Bottle Rotary Checkweigher Inline Inspection Machine

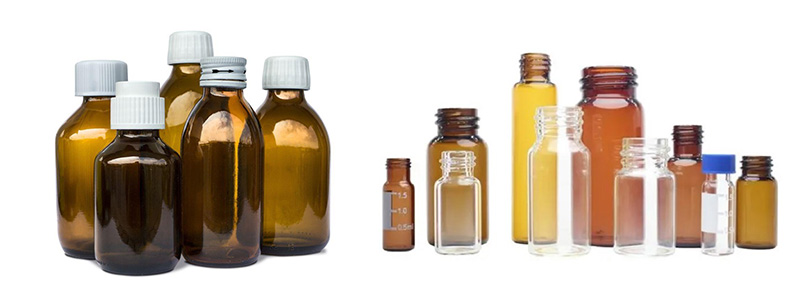

Pharmaceutical bottle rotary checkweigher is suitable for tablets, capsules, powders, liquids, and health supplements packaged in plastic or glass bottles.
The pharmaceutical bottle rotary checkweighers shown may not meet your requirements. SGWEIGH has extensive experience, expertise, resources, and capabilities in rotary checkweigher manufacturing. Based on customer requirements, we can tailor an efficient, economical, and high-quality bottle checkweigher solution to meet their specific needs.

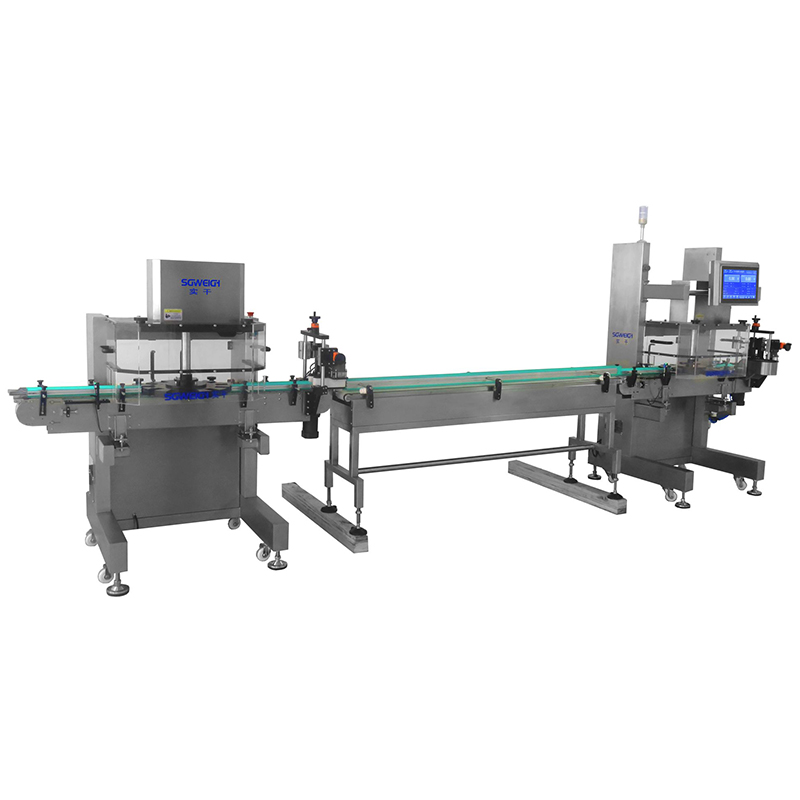

High-Speed Pharmaceutical Bottle Rotary Checkweigher Inline Inspection Machine
Packaging and transportation
The whole machine is packed in two layers
Pre-packaging uses plastic bags to deliver the whole machine, and key components are protected by foam plastic
Engineering packaging uses sturdy polyethylene wooden boxes that meet the import standards of different countries
Installation and use
After unpacking, lift the rubber base and move it to your working position with wheels.
1.Replacement within seven days, warranty within one year, and lifetime maintenance. Before the products are sold, we will go through strict inspection, and the products you sign for have no quality problems;
2.The products provided to customers are all produced by the original factory, and have factory data accessories;
3.During the warranty period, our company will repair the damaged parts due to quality reasons, and the damage of the parts outside the warranty period. The provided accessories only charge the cost. If the equipment is damaged due to human factors, the parts repaired or provided by our company are calculated at the cost.
