High Speed Weight Checker for Small Bottle Dynamic Stable Checkweigher
Checkweigher as known as check weigher, check weight machine, check weighing machine, weight sorting machine, weight checker, and etc,.
High speed weight checker for small bottles confirm the company's rich expertise in weighing technology accumulated over the years and are currently widely used in the pharmaceutical field abroad. By adding high-precision weight detection to the production line, product quality can be improved without reducing efficiency. In order to ensure that the nominal weight of the packaged items is consistent with the actual weight, the dynamic stable bottle checkweigher can check all packaged items in batch production, so that unqualified products cannot enter the circulation field. You are welcome to contact us at any time for quotation.

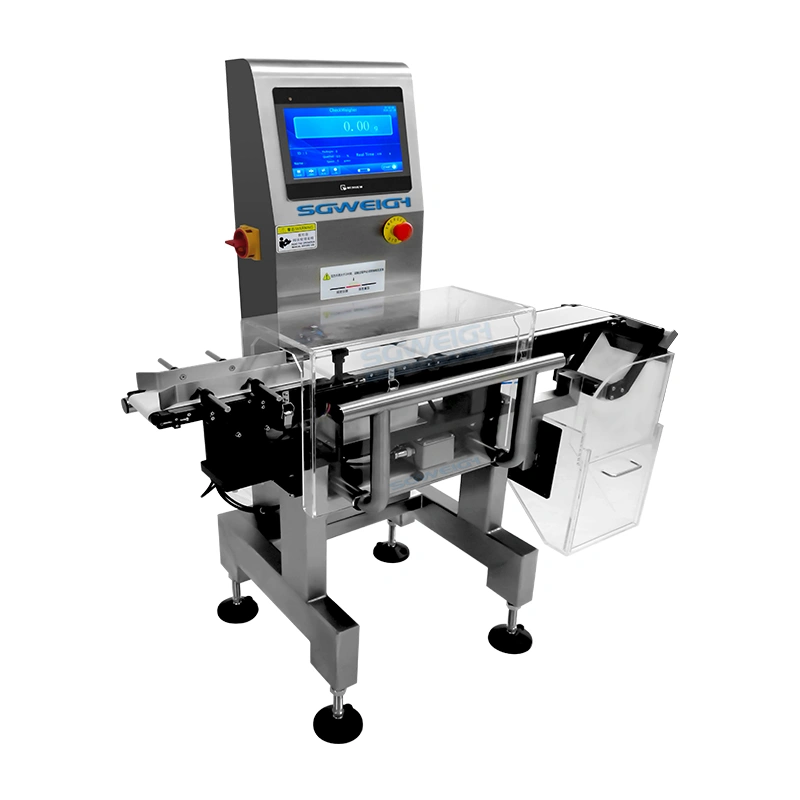

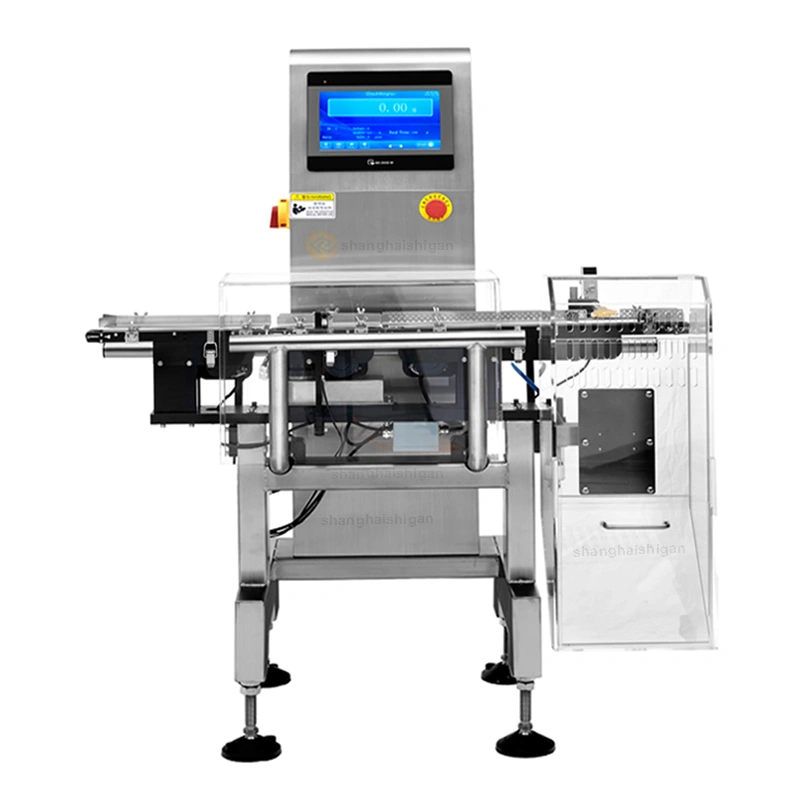

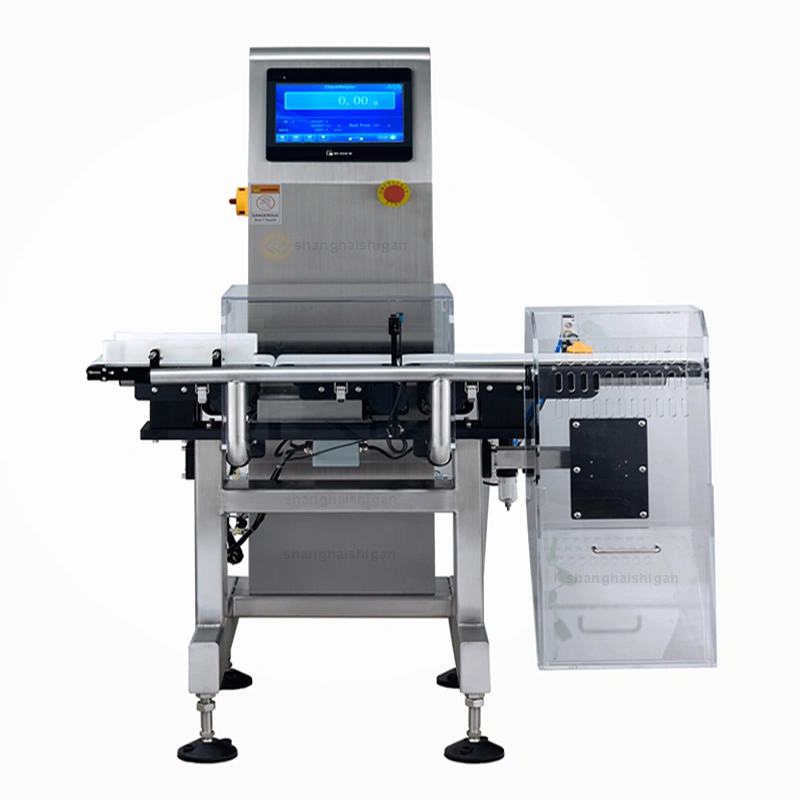

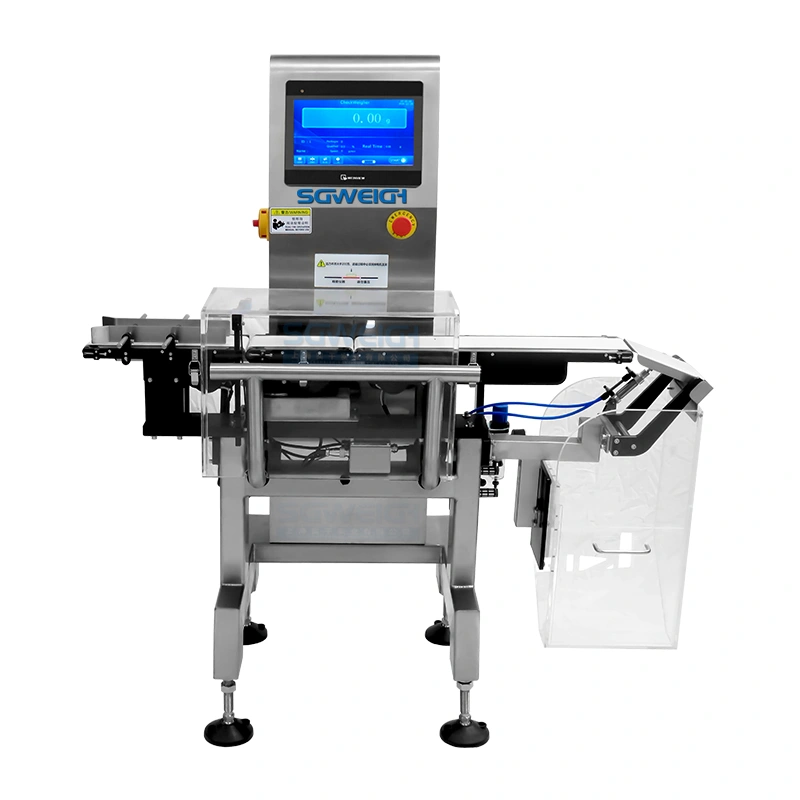

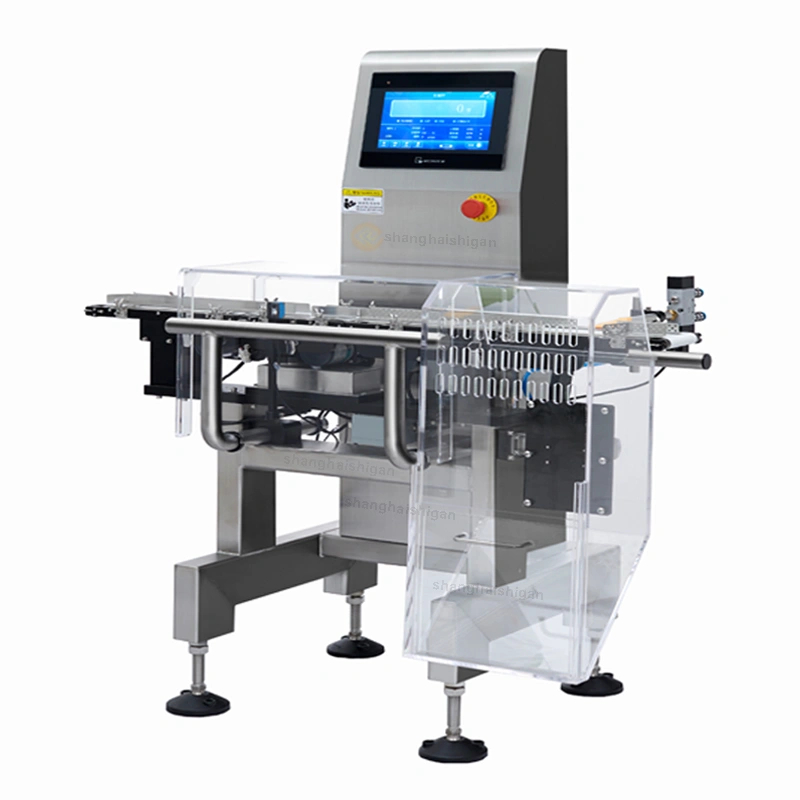

High speed removal checkweigher for bottles pictures
Type SG-100
Weighing Range 2-300g
Limited of product L: 100 W: 100 H: 2-150mm
Accuracy ±0.05g Depends on product
Division Scale 0.01g
Belt Speed 0- 90 m/min
Max Speed 260 pcs/min
Belt Width 100mm
Machine Weight 70kg
Power Supply AC 220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
Shanghai Shigan provides users in various industries with a full range of customized applications for high speed weight checker for small bottles, from selection, solutions, design, front-end and back-end connection auxiliary organizations to training services, aiming to meet users' personalized needs, improve production efficiency and ensure product quality.
1. This high speed weight checker for small bottle uses high-speed, low-noise bass motors and bearings as transmission components to reduce the hazards of noise and interference.
2. To prevent electromagnetic and radiation hazards, this machine uses excellent shielding materials to shield various electromagnetic hazards and interference.
3. Provide a high-definition touch screen as a simple user interface.
4. The conveying system consists of a brushless motor and a conveyor belt. The brushless motor drive module provides the motor with high torque, high precision, and a wide speed range drive, which realizes the uniform movement of the items and enables the weighing unit to detect the weight of the items more accurately.
5. The weighing system consists of a main weighing unit and a vibrating weighing unit. The high-speed checkweigher adds a vibrating weighing unit to prevent external vibration. The weighing vibration unit uses a high-precision, high-speed, and high-sensitivity weighing sensor. The information that the item is forced to rotate is converted into an electrical signal by the weighing module through the sensor, and is displayed on the touch screen after communicating with the microcontroller.
High Speed Weight Checker for Small Bottle Dynamic Stable Checkweigher
High speed weight checker for small bottle is widely used in food, pharmaceuticals, beverages, health products, daily chemicals, agricultural and sideline products, hardware, toys, electronics, digital, printing and other industries.
High Speed Weight Checker for Small Bottle Dynamic Stable Checkweigher
1. Equipment installation and commissioning: The company provides a detailed operation manual and free operation training to ensure that customers can use the equipment proficiently.
2. Technical support: The company provides 24-hour technical support to help customers solve problems encountered during use.
3. Accessories supply: The company provides original accessories to ensure the quality and stability of accessories.
4. Quality assurance: The company is responsible for the products sold and ensures that the quality and performance of the equipment meet industry standards.
5. Warranty policy: One-year warranty and lifetime maintenance to solve worries for customers.
