Long Range Dynamic Industrial Checkweigher Metal Detector Combo Rejector
Checkweigher and metal detector combo as known as weighing metal detection machine, check weigher with metal detection machine, weight checker metal detector, and etc,.
The dynamic checkweigher metal detector combo can greatly save land area and provide excellent and reliable product testing. Our industrial checkweigher metal detector combo quickly measures products in motion on the conveyor line and automatically rejects non-conforming products according to the regulations in the product settings. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

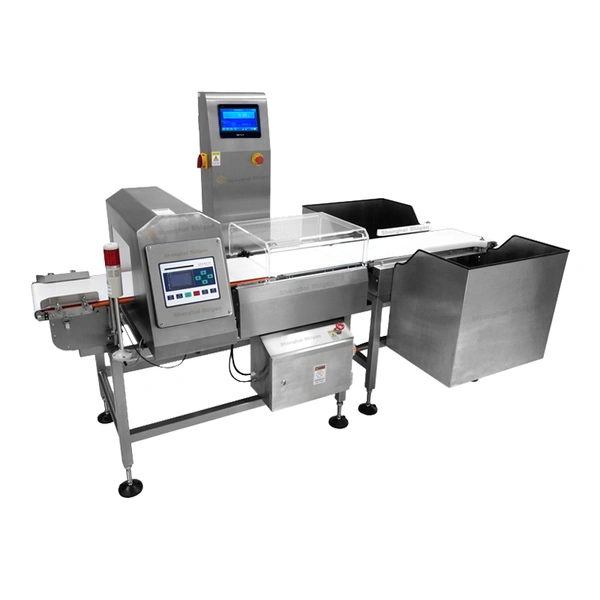

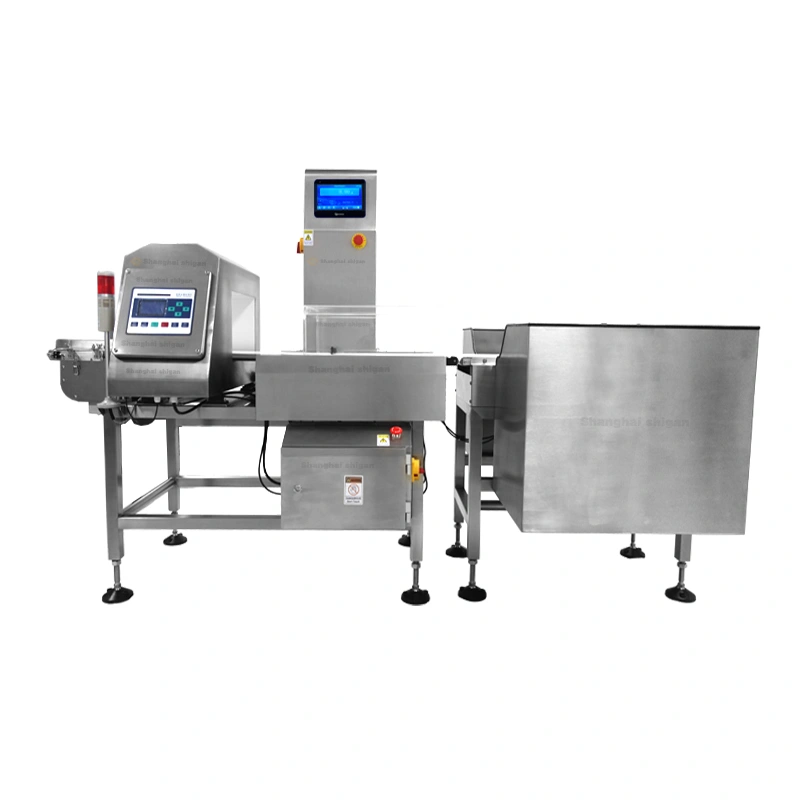

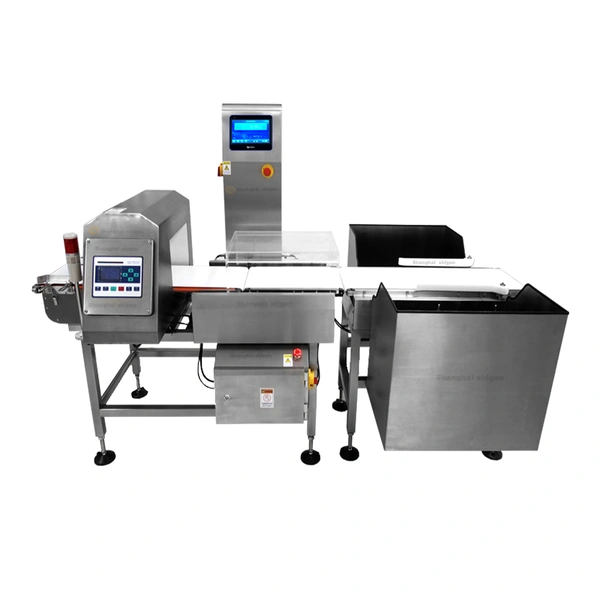

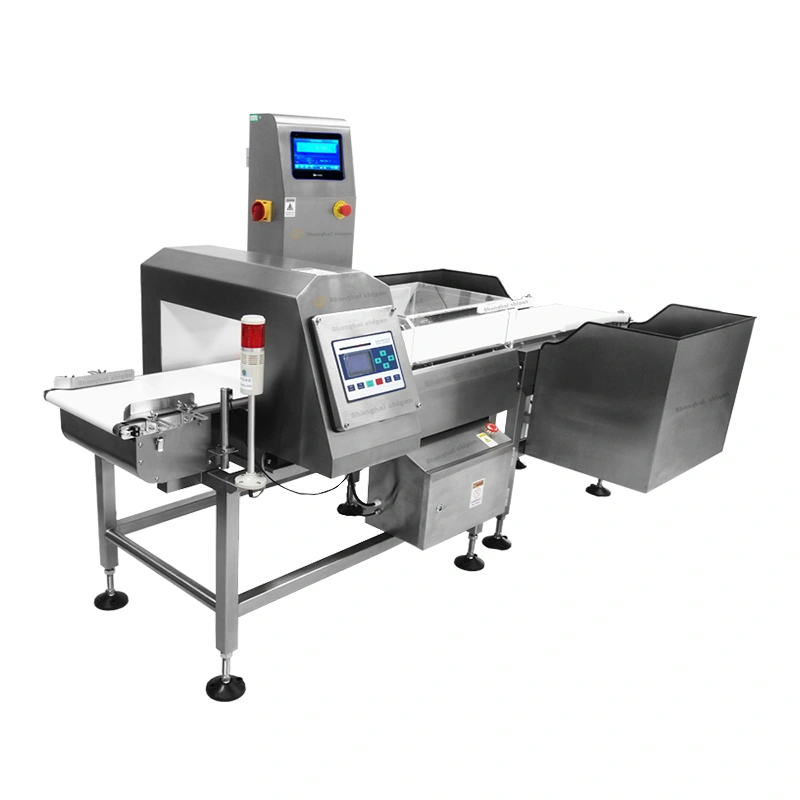

Dynamic checkweigher metal detector combo pictures
Detecting Range: Range 20 - 5000g
Scale Interval: 0.1 - 0.2g
Detecting Speed (Max): Range 140 - 155 pcs/min
Belt Speed: 70m/min Max
Weighed Product Size - Width: Range 220 - 290mm
Weighed Product Size - Length: Range 300 - 400mm
Weighed Product Size - Height: Range 70 - 170mm
Weigher Platform Size - Width: Range 230 - 300mm
Weigher Platform Size - Length: Range 450 - 500mm
Weigher Platform Size - Height: Range 80 - 180mm
Product Storage Quantity: 100
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
1. Industrial checkweigher metal detector combo can be used to detect iron, copper, aluminum, and stainless steel metals mixed in non-metallic products, and the digital differentiation display of iron and non-iron signals;
2. Equipped with belt correction design, it is not easy to deviate during long-term operation.
3. Single and double coil detection can be used alone or in combination, with Chinese and English menus.
4. Adopting digital DSP programming design, LCD display screen with thin film switch touch control panel
5. Can automatically set learning to obtain applicable detection performance, and can store memory for 100 products.
6. Equipped with automatic learning function for product effects, product effect filtering, and the ability to detect stainless steel and non-ferrous metal copper test pieces even after small aluminum foil packaging.
7. The entire machine frame adopts stainless steel material laser cutting welding and wire drawing technology, food white PVC or PU belt, 304 stainless steel pipe or non-metallic drum optional
8. industrial checkweigher metal detector combo has seismic resistance and is less likely to cause false alarms due to collisions and knocking on the machine.
The industrial checkweigher metal detector combo can be widely used for weight and metal detection after packaging in multiple fields such as food, pharmaceuticals, chemicals, textiles, clothing, toys, rubber, etc.
Shanghai Shigan Industrial Co., Ltd. is located in Shanghai, China and has been a professional manufacturer of checkweigher, digital metal detector, for over 14 years. We have our own factory, and since its establishment, our company has been committed to the new technology field of checkweighers, digital metal detectors. Now, we have formed a special competitive market based on advanced technology. We have obtained the CE certificate.
Our products not only sell well in the domestic market, but also have good sealing in international markets such as the United States, Africa, the Middle East, and Europe. Our company has always been waiting for the visit of every friend with good quality and excellent service. We sincerely cooperate with each other and work together to create brilliance.
Main Products
Metal Detector for Pharmaceutical
Metal Detector for Daily Necessities
Metal Detector for Other Industries
Checkweigher and Metal Detector Combo
Multi-stage Sorting Checkweigher
Packaging
Film pack inside, Wooden case outside
Shipping
1. Upon receipt of payment, delivery date will be in 20-30 working days
2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
1. Equipment installation and debugging: The company provides detailed operation manuals and free operation training to ensure that customers can proficiently use the equipment.
2. Technical support: The company provides 24/7 technical support to solve problems encountered by customers during use.
3. Accessories supply: The company provides original accessories to ensure the quality and stability of the accessories.
4. Quality assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. Warranty policy: One year warranty, lifetime repair, to solve customers' worries.
