15g Medicine Water Bottle Pharmaceutical Rotary Checkweigher with Turntable
Checkweigher machine as known as check weigher, check weight machine, weight sorting machine, check weighing machine, weight checker and etc,.
The pharmaceutical rotary checkweigher with turntable series is a high-speed and accurate automatic online weight inspection equipment, suitable for detecting whether the weight of a single small object is qualified, and sorting out unqualified products. The unique low center of gravity design of the high precision bottle checkweigher greatly reduces the impact of vibration, thereby improving detection accuracy. It has a very user-friendly operating interface and is easy to understand. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

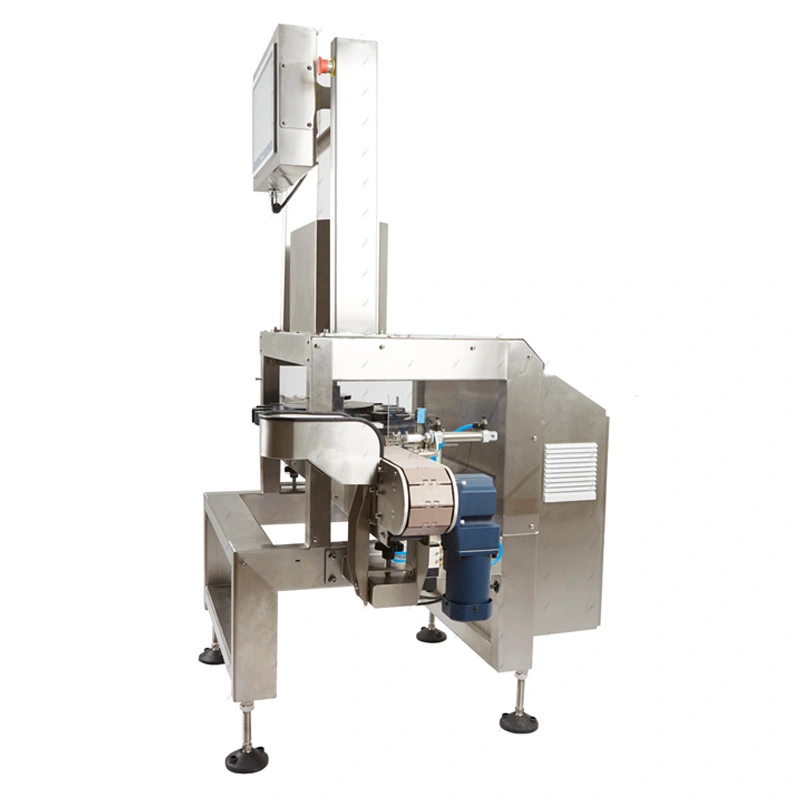

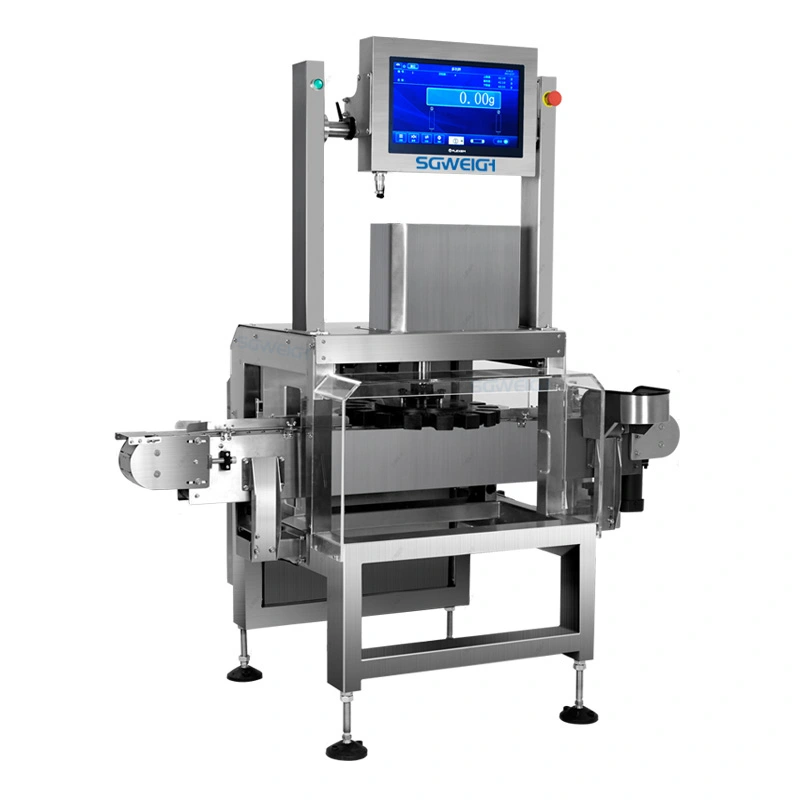

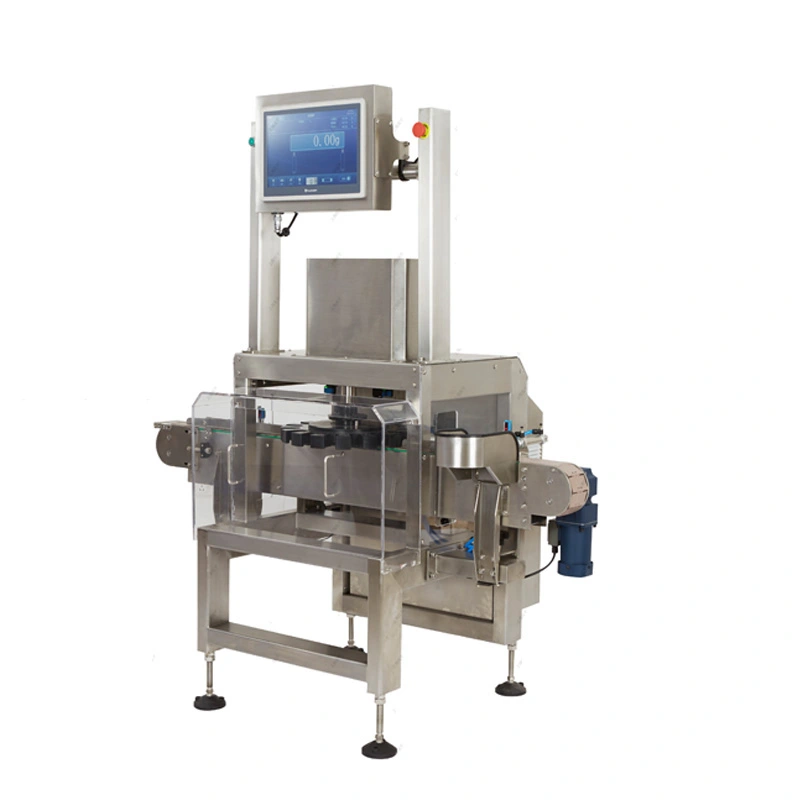

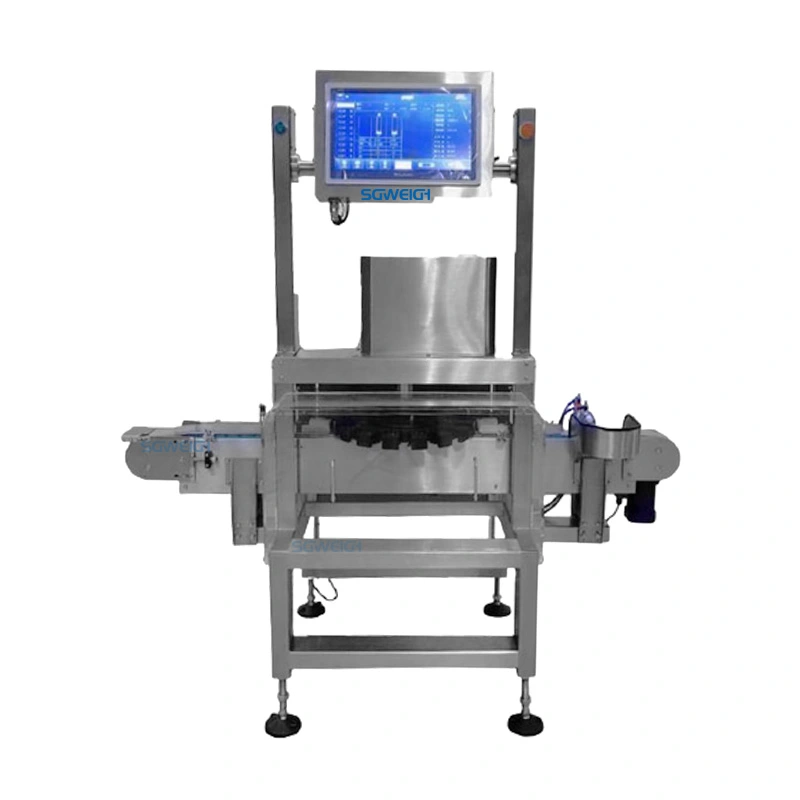

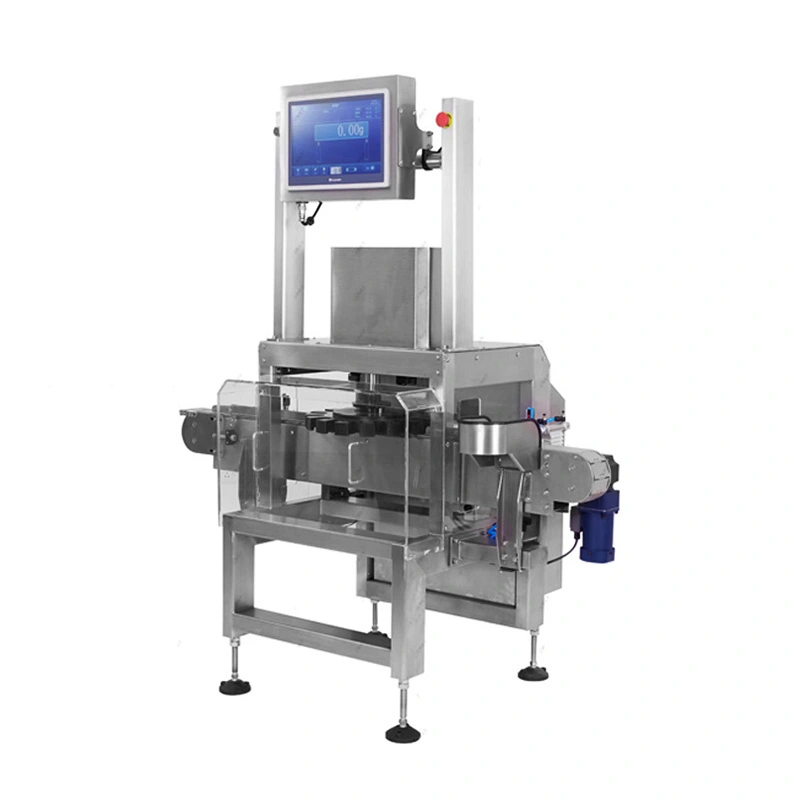

High precision bottle checkweigher pictures
Model SG-Z1
Weighing range 5-300g
Minimum scale 0.01g
Maximum sorting speed of 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode: Touch based operation
Transport direction facing the touch screen from left to right
Removal method: air blowing removal/push plate removal
Belt height above ground 750 ± 50mm (customizable according to customer requirements)
Machine structure stainless steel (SUS304)
Power supply 220V 50-60HZ
Power of approximately 300W
Windshield thick acrylic (to avoid airflow interference)
Working environment temperature: 0 ℃~40 ℃, humidity: 30%~95%
The properties and usage environment of the tested product vary, and the detection speed and accuracy also vary. Actual testing is the standard.
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
1. Large screen display, clear and intuitive, easy to operate
2. Chinese and English interface (customizable in multiple languages)
3. Photoelectric positioning, turntable accurately sends products to the weighing sensor
4. Chain conveyor is sturdy and durable
5. Three-level operation authority management, support self-set password
6. Can store 100 types of data, powerful data statistics function
7. Automatic rejection of unqualified products (push-in type, air blowing type optional)
8. Multi-channel product delivery to improve production efficiency (number of channels can be customized)
It is an automatic weight check equipment for production lines widely used in food and beverage industry, pharmaceutical industry, chemical industry, building materials industry, textile industry, logistics industry, electronics industry, etc. It can detect overweight and underweight unqualified products in the production line in real time and automatically remove unqualified products.
Machine packaging:
Export standard non-fumigation wooden box, in line with customs clearance requirements
Delivery cycle:
10-15 days after receiving payment
Price terms:
FOB terms, CIF/CFR terms (sea/air), DDU/DDP terms (sea or air)
Transferable payment methods: T/T, LC, D/P, D/A. , etc.
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replaced free of charge; outside the warranty period, accessories will be provided at cost price.
