Pet Food Processing Checkweigher with Metal Detector Combo Supplier
Product Introduction
The food checkweigher and metal detector combo has flexible customization capabilities, adopts a compact design, high speed, high precision, stable operation, simple operation, and multiple rejection systems to choose from. The digital checkweigher with metal detector combines two detection technologies with a touch screen user interface, making it the preferred choice for companies with limited production and installation space.

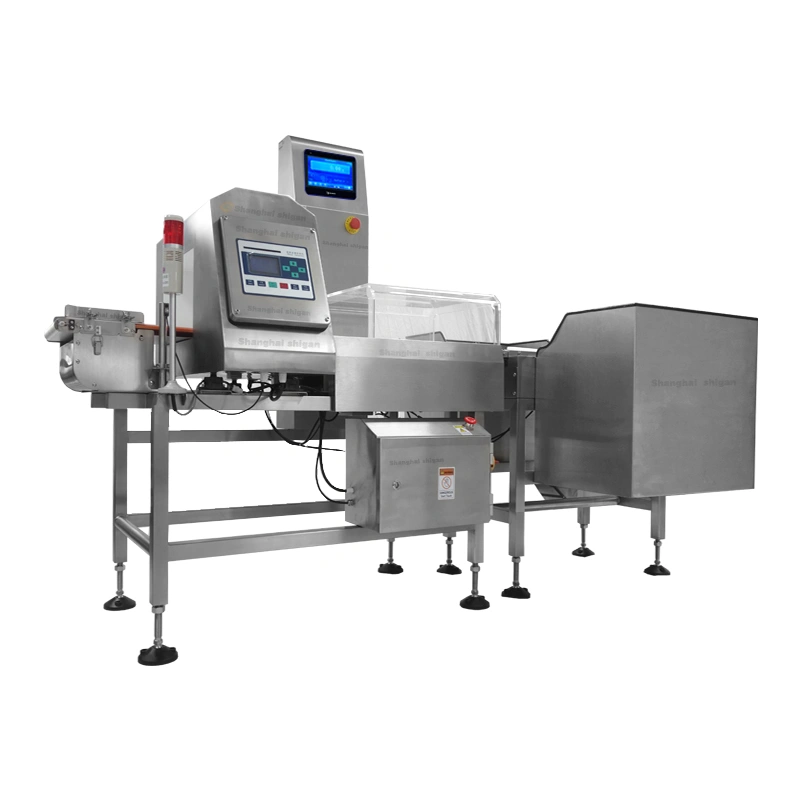

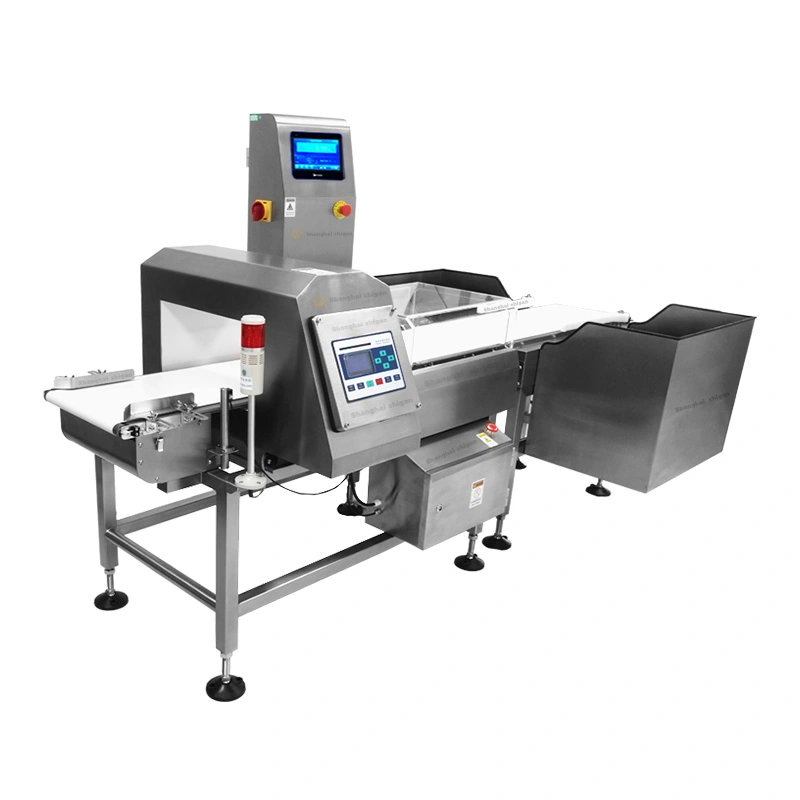

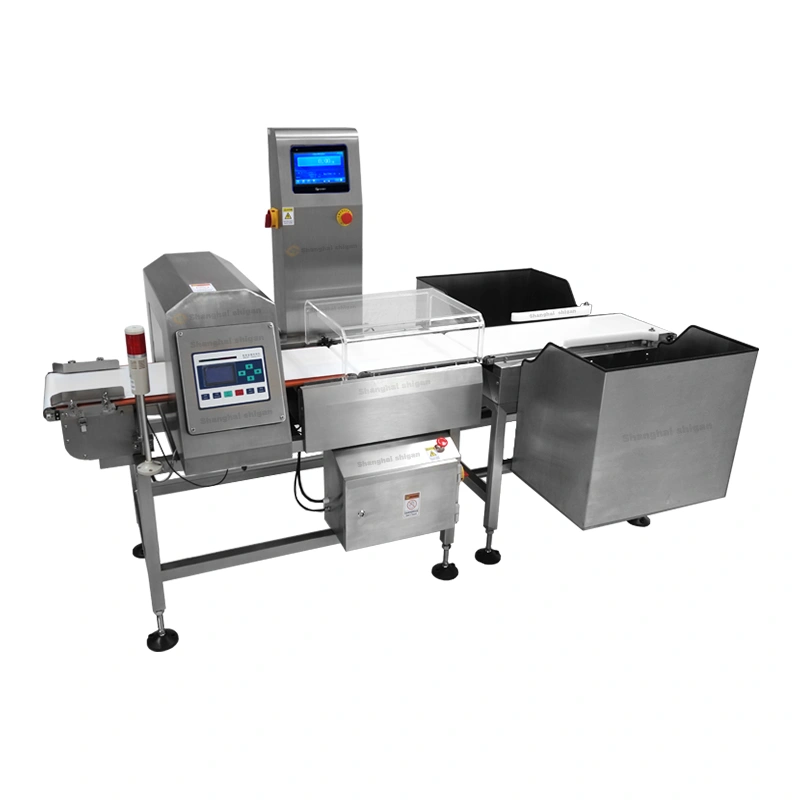

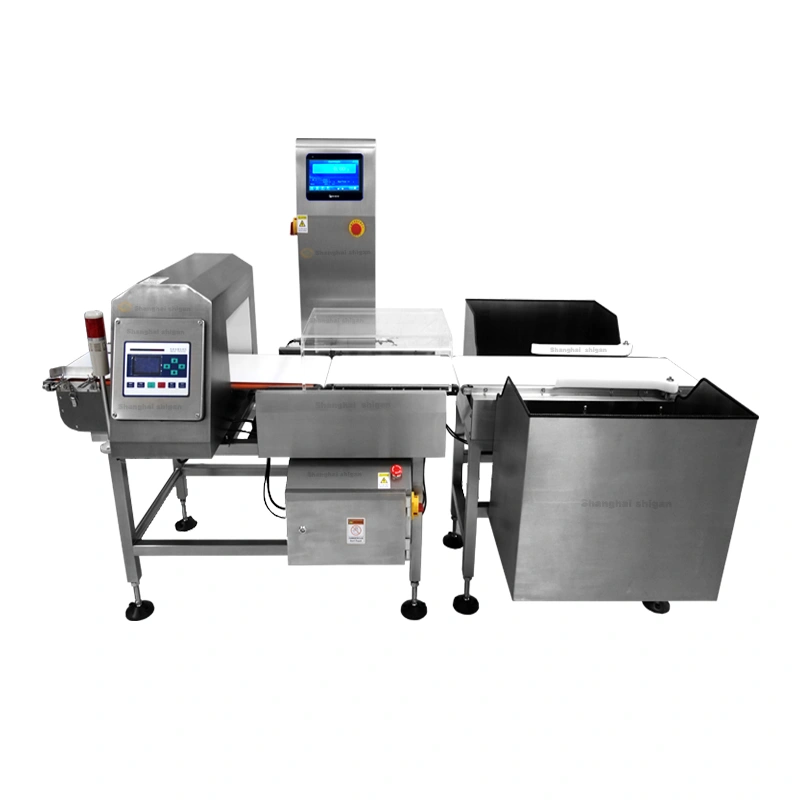

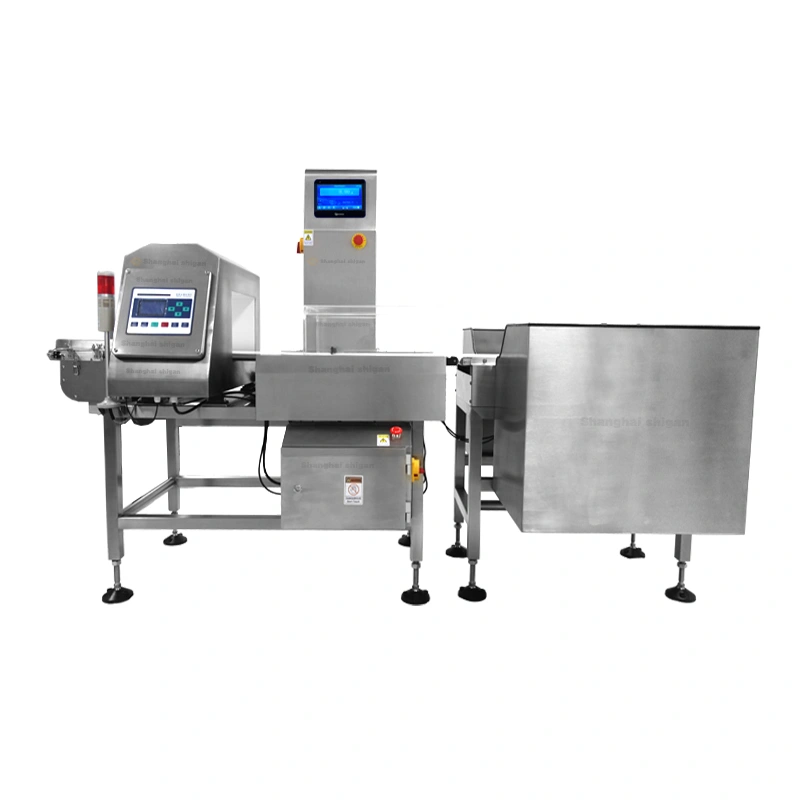

Food checkweigher and metal detector combo pictures
Technical Parameter
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Customized Process
*The above technical indicators are the detection data of the belt surface test block when the machine is empty
*The detection sensitivity may vary slightly depending on the product and usage environment
*If there are special needs, they can be customized according to customer requirements.
Product Details
Main Features
1.2000 logs, easy to find and print.
2. High precision sensors based on advanced and high-speed digital processing technology.
3. Dynamic weight compensation technology, automatic zero point analysis and tracking technology.
4.100 Product preset; Simple product editing and storage.
5. Quickly replace products and automatically adjust product sorting speed. A stainless steel conveyor designed with high waterproof grade.
6. Based on friendly touch screen operation.
7. Based on a 32-bit high-speed CPU.
8. Multifunctional operating system with multiple languages available.
9. The automatic rejection system allows for the selection of different rejection devices.
10. Updated the product learning function.
11. Various peripheral system connections and settings.
12. Alternative multiple defenses.
13. Digital signal processing technology and multiple digital filters.
Application
Digital checkweigher with metal detector is widely used in the production and packaging processes of industries such as food and beverage, pharmaceuticals, daily chemicals, warehousing and logistics, electronic light industry, packaging and printing, automotive hardware, plastic toys, chemicals, and agricultural and sideline products.
Company Profile
Shanghai Shigan Industrial Co., Ltd. is a professional enterprise that produces and sells various types of automatic checkweighers, digital metal detector machines, and other equipment. The company integrates research and development, design, production, and sales business, and its products are best-selling all over the world. The company is located in Shanghai, China and has gained a good reputation through over 14 years of experience in mechanical production. We will continue to focus on production in a rigorous and innovative manner, serving customers around the world.
Main products
Metal Detector for Pharmaceutical
Metal Detector for Daily Necessities
Metal Detector for Other Industries
Checkweigher and Metal Detector Combo
Multi-stage Sorting Checkweigher
Our Customers
Our Exhibition
Packing & Shipping
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
After-sale Service
1. A manual/video for machine installation, adjustment, setup, and maintenance for your use.
If any problems occur and you are unable to find a solution, you can communicate 24 hours a day via telecommunications or online face-to-face communication.
3. The machine is guaranteed for one year, and during the warranty period, there are no parts damaged by human factors. We will replace it with a new one for free. After the machine is shipped and we receive the bill of lading, the warranty will begin.
4. Shanghai Shigan has an independent after-sales service team. Please call the salesperson or our after-sales manager in any emergency situation.
