Pharmaceutical Inclined Conveyor Metal Detector for Small Package Custom
The pharmaceutical metal detector for small package can detect magnetic and non-magnetic metal impurities. The unique detection signal strength display can clearly reflect the signal size of metal foreign matter in the product. The operating system of digital inclined conveyor metal detector adopts a humanized and intelligent design, with a high-definition 7-inch touch screen, which is intuitive and convenient, allowing staff to operate easily and intuitively, and obtain effective information without complicated operations. You are welcome to contact us at any time for quotation.

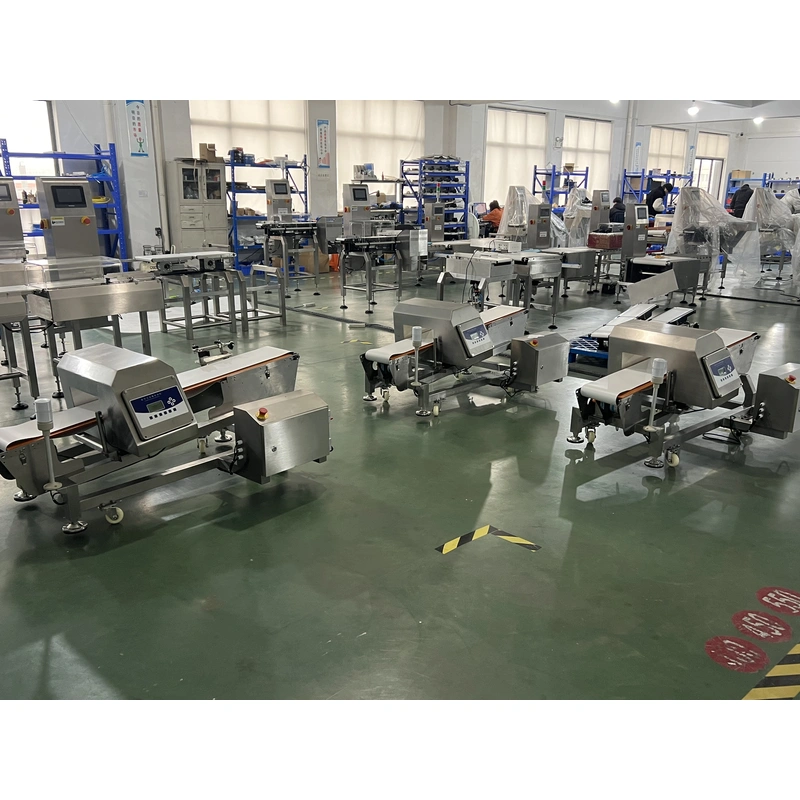

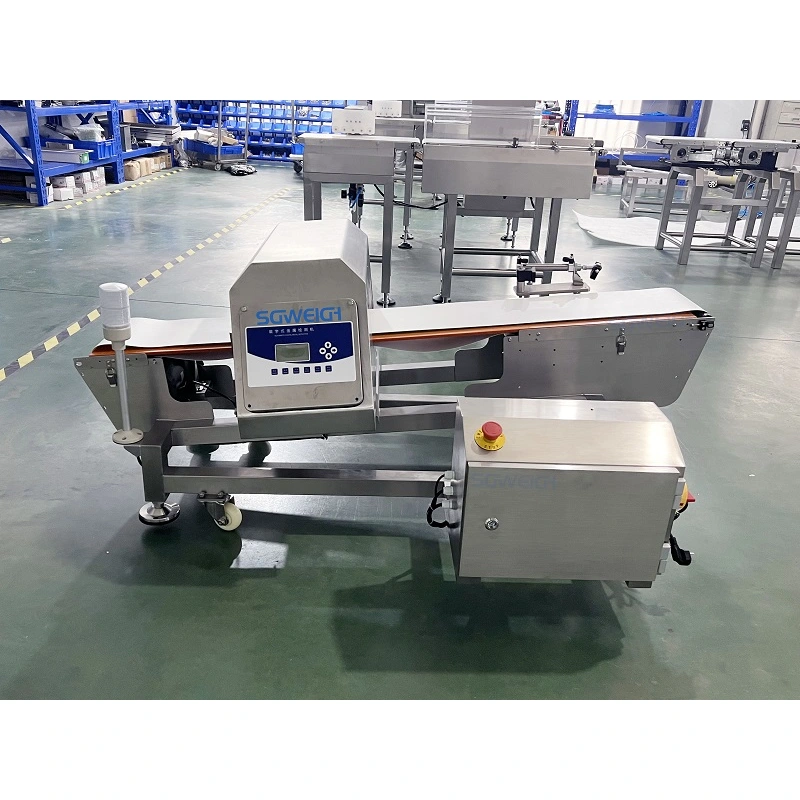

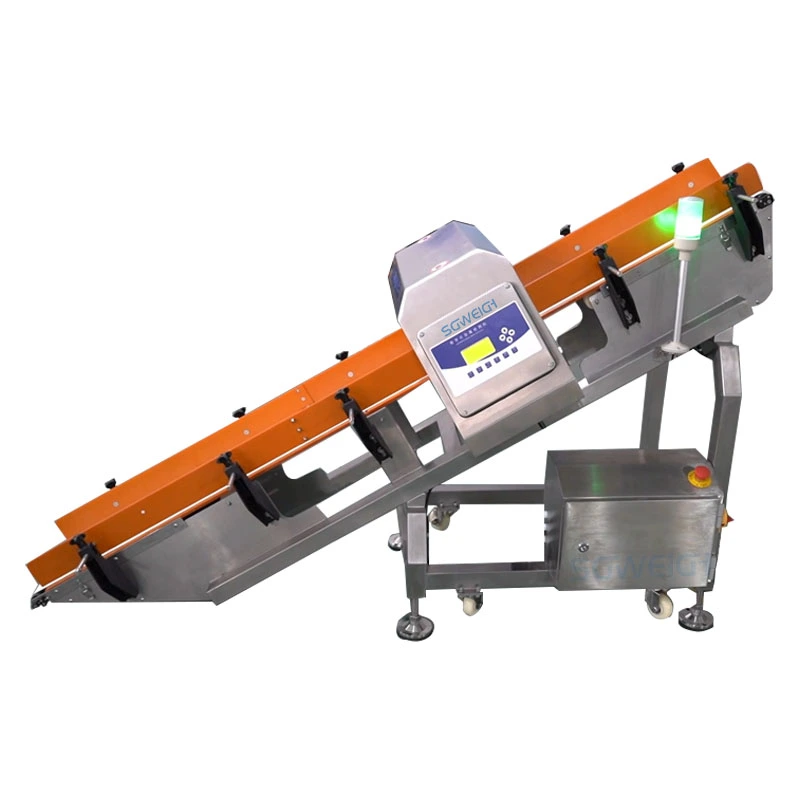

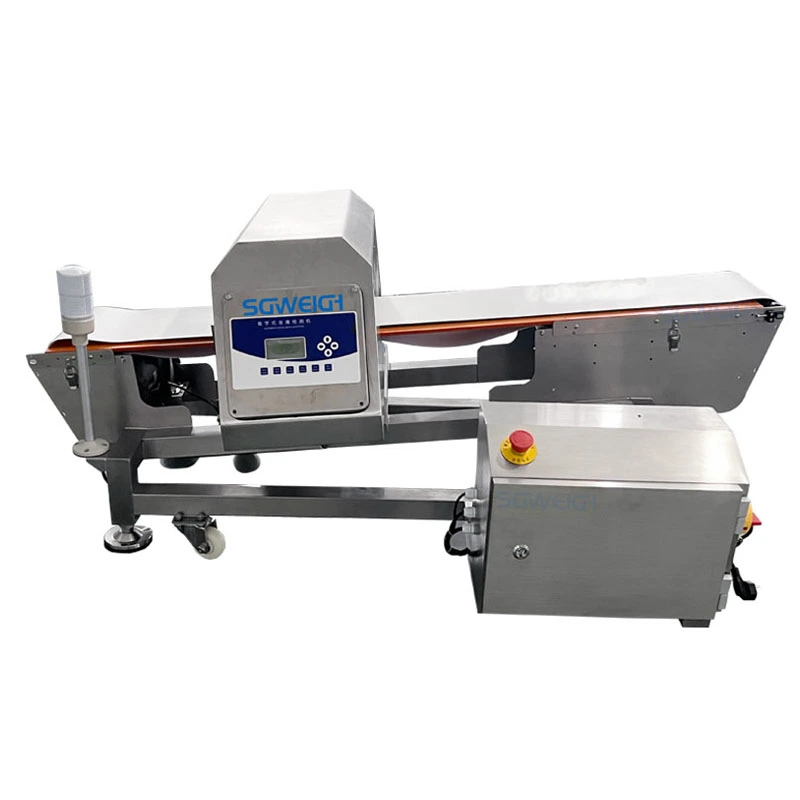

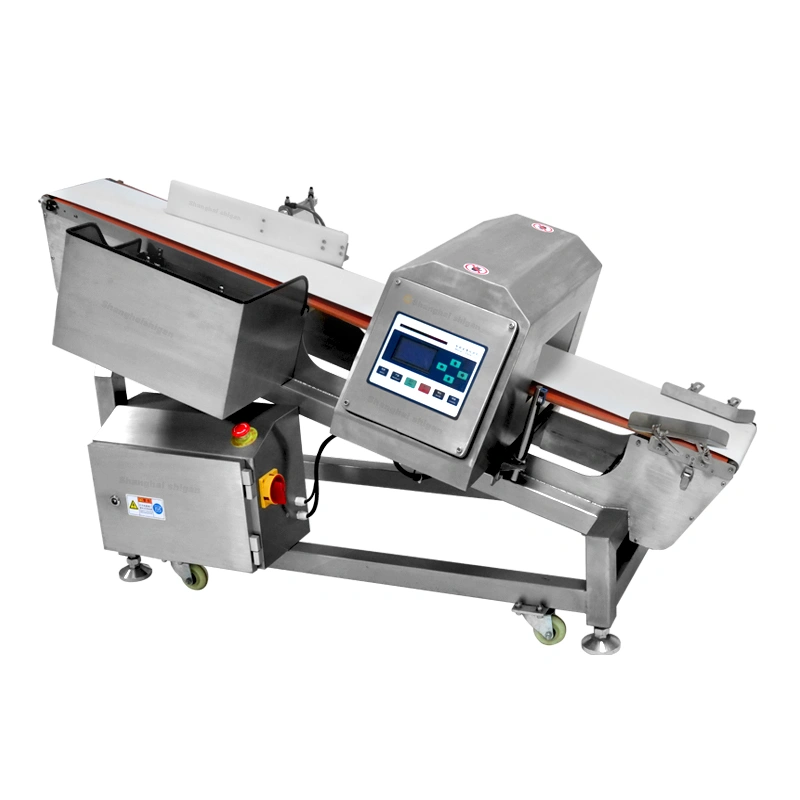

Pharmaceutical metal detector for small package photos
Detection method: electromagnetic wave detection
Human-machine interface/operation method: 7/10-inch touch screen
Language: Chinese and English by default, multiple languages optional
Detection sensitivity: iron ball diameter (φmm) 1-1.2; 304 stainless steel diameter (φmm) 1.5-2.20; copper, aluminum, lead and other non-metallic (φmm) 1.2-1.5
Working frequency: 50Hz-100Hz
Detection speed: 0.5-80m/min
Alarm method: sound and light alarm, shutdown (customizable)
Conveyor belt speed: 15 -30m/min (speed can be customized according to requirements)
Detection channel width/height: 400mm/120mm (size can be customized according to customer requirements)
Conveyor belt height from ground: 700±50mm (height can be customized according to customer requirements)
Input voltage/power: standard single-phase 220VAC or optional 110VAC/200w
Working temperature: -10°-40°
Machine weight: 90kg
Overall dimensions: L1350*W810*H960mm (customizable)
1. Flexible metal detector solutions
Customized according to specific requirements based on production line space, speed, detection accuracy, and impact on materials.
2. Rich peripheral interfaces
Configurable RS-485 data communication, PLC programming nodes, printer output, can provide real-time data for production management system for remote control, analysis and monitoring, and provide valuable traceability information
3. Efficient rejection device
Equipped with rejection devices such as arm-type, air-blowing type, flap type, lifting belt type, etc.
1. High sensitivity: Digital inclined conveyor metal detector can detect very tiny metal impurities and ensure product quality.
2. High stability: Pharmaceutical metal detector for small package can maintain stable detection performance under various working conditions to avoid false alarms and missed alarms.
3. Easy to operate: The equipment has an intuitive operation interface, which is convenient for operators to set parameters and view test results.
4. Strong adaptability: Digital inclined conveyor metal detector can be applied to aluminum foil production lines of different thicknesses and speeds to meet various production needs.
5. Intelligence: It has functions such as automatic calibration and fault self-diagnosis to improve the reliability and maintenance convenience of the equipment.
Pharmaceutical Inclined Conveyor Metal Detector for Small Package Custom
Food, medicine, aquatic products, toys, clothing, shoes, chemicals, leather, knitting, printing and other industries.
0.1 second detection of metal impurities
0.5mm metal foreign body recognition
Memory storage function for 100 products
Pharmaceutical Inclined Conveyor Metal Detector for Small Package Custom
The usual packing is a wooden box (size: length*width*height). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use polyethylene film packing or pack according to customer's special requirements
In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
