SG-450 Wide Range Dynamic Weight Checker Checkweigher with Conveyor Belt For Boxed Cased
Products Information
The wide range checkweigher is specially designed for industrial dynamic weighing, with fast processing speed and a maximum inspection volume of 60 pieces/min. Using patented weighing technology, the detection accuracy is high, and the best check weighing accuracy can reach ±2g. Modular design for easy integration into packaging machines or palletizer systems. The conveyor belt checkweigher supports industrial Internet of Things network.Ethernet TCP/RRS485 and other communication methods to connect with the user system to realize 7X24 real-time monitoring and data management. Support data printing, USB data export.For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

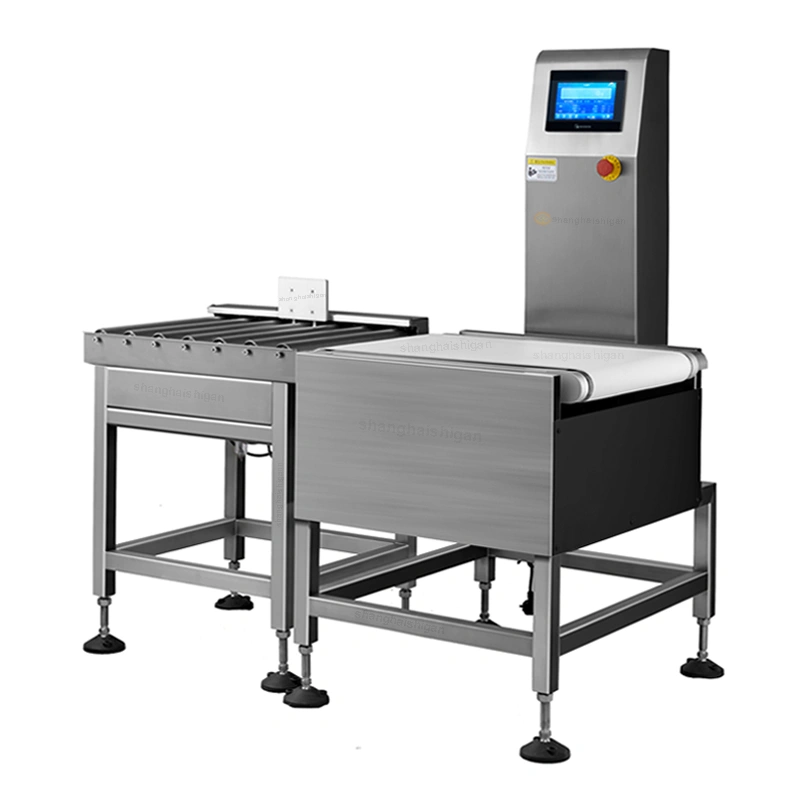

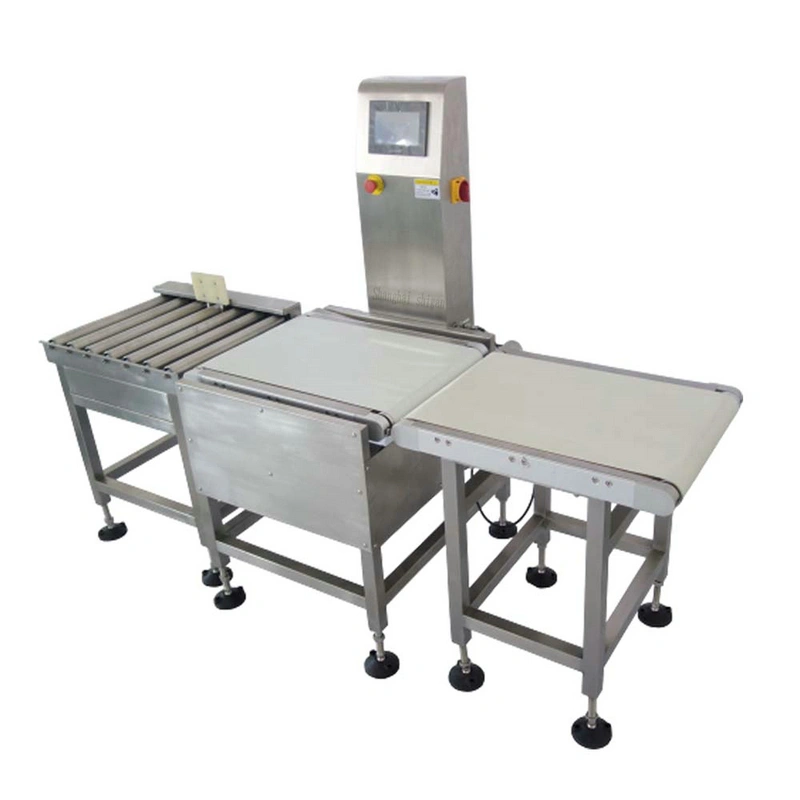

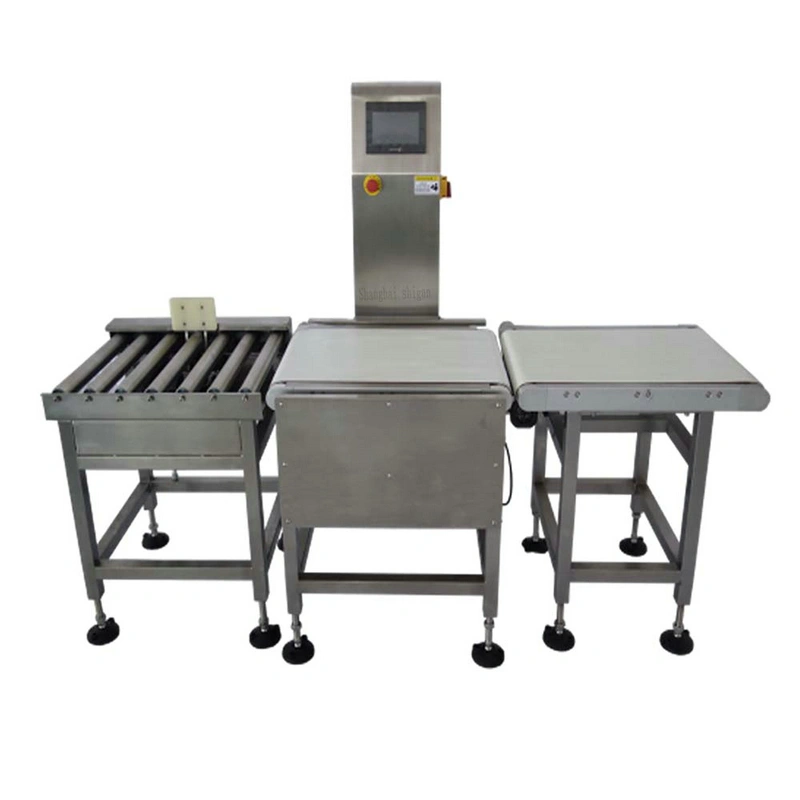

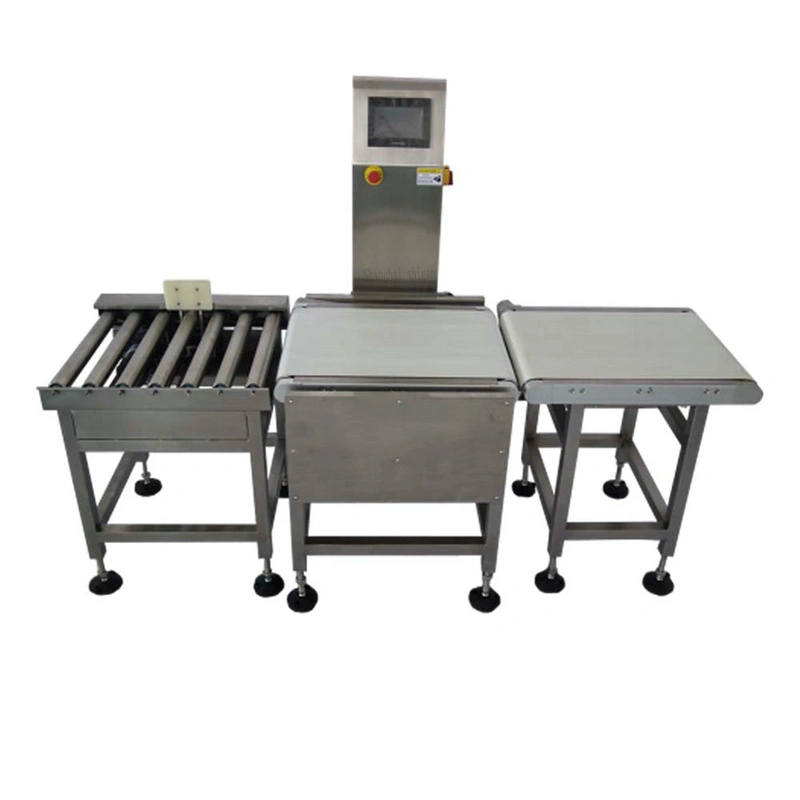

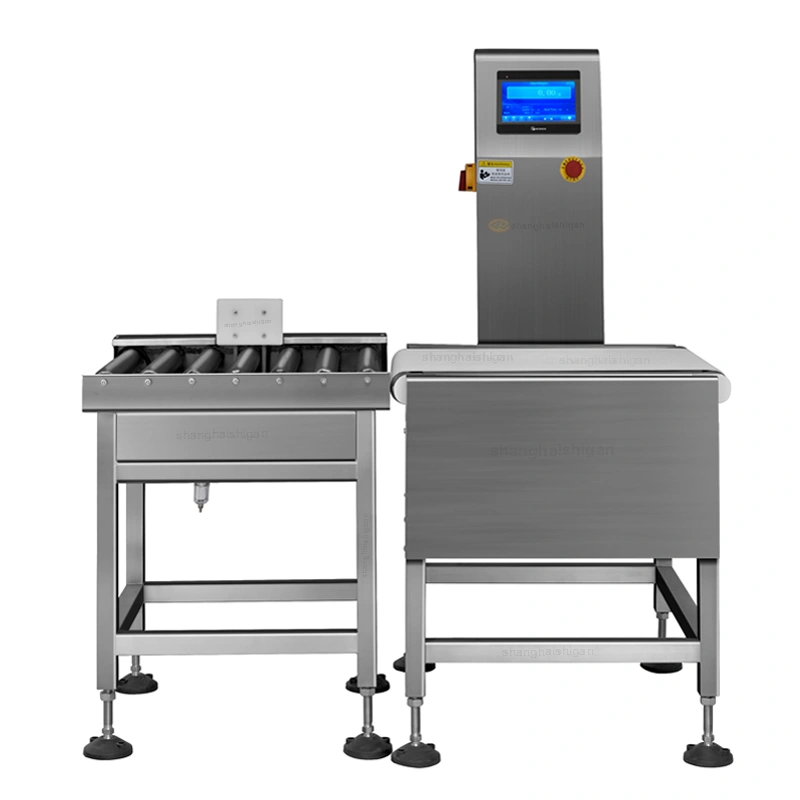

Wide range checkweigher photos
Specification Parameter
Type SG-450
Weighing Range 0.05-20/30kg
Limited of product L: 500 W:450 H: 3-400mm
Accuracy ±1g
Division Scale 0.1g
Belt Speed 0- 40 m/min
Max Speed 40 pcs/min
Belt Width 450mm
Machine Weight 100kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
Main Advantages
1) Efficient and economical: multi-stage sorting and automatic weighing, instead of labor, improve efficiency;
2) Strong versatility: the standardized structure of the whole machine and standardized man-machine interface can complete the weighing of various materials
3) Multi-level expansion: 2-12 levels of sorting can be customized according to customer needs;
4) Clear and sensitive: imported high-definition color touch screen, a variety of voice screens, the information is clear at a glance;
5) Professional and easy to use: professional checkweigher system, rich in functions, easy to operate, and various statistical formats of checkweighing data to meet the needs of various production data;
6) Rich expansion: a variety of sorting methods are available, and various expansion equipment can be installed according to customer needs;
7) Convenient maintenance: fast dismantling structure design, easy to clean and maintain;
8) Beautiful and durable: 304 stainless steel, or high-strength aviation aluminum material body; to ensure the stability of long-term operation.
Customers & Conveyor belt checkweigher solutions
Application
1) The automatic weight detection machine realizes the net weight detection: that is, the qualified and unqualified products are detected according to the preset standard weight range, and the NG products are automatically rejected; such as the net weight of washing products, cosmetics, toilet paper products, disinfection products, etc. detection.
2) The automatic checkweigher realizes the detection of quality anomalies such as the number of missing packages and multiple packages of products such as boxes/bags/boxes/whole packages: such as the lack of package detection for the entire paper towel, the lack of bottles for the whole box of washing products, and the detection of washing powder. FCL weighing inspection such as whole bag missing inspection
3) The automatic checkweigher realizes the missing packing detection of the accessories of the packing list: through the weight deviation, it can identify the missing packing list and the quality abnormality of the missing packin
About Us
Our Exhibition & Package
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days
Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
After Sale Service
1. Service tenet: fast, decisive, accurate, thoughtful and thorough
2. Service goal: service quality to win customer satisfaction
3. Service efficiency: If the equipment fails within the warranty period or outside the warranty period, our company will arrange maintenance personnel to provide maintenance services for customers within 24 hours after receiving the notice.
4. Service principle: The product warranty period is one year. During the warranty period, our company will repair the parts damaged due to quality reasons for free. If the parts are damaged outside the warranty period, only the cost will be charged for the provided accessories. If it is due to human factors The equipment damage caused by our company, the accessories repaired or provided by our company are calculated at the cost price.
