Spray Bottle Rotary Checkweigher High-Speed Dual-Channel Inspection Checkweigher
Engineered for efficiency, this high-speed spray bottle rotary checkweigher combines advanced weighing sensors with a rotary conveyor system, enabling stable and precise measurements even in high-throughput operations. The compact footprint of dual-channel bottle rotary checkweigher integrates effortlessly into existing production lines, making it an ideal choice for manufacturers seeking to boost output while maintaining strict quality assurance. With user-friendly digital controls, real-time monitoring, and reliable rejection mechanisms, it reduces product waste and enhances operational efficiency. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

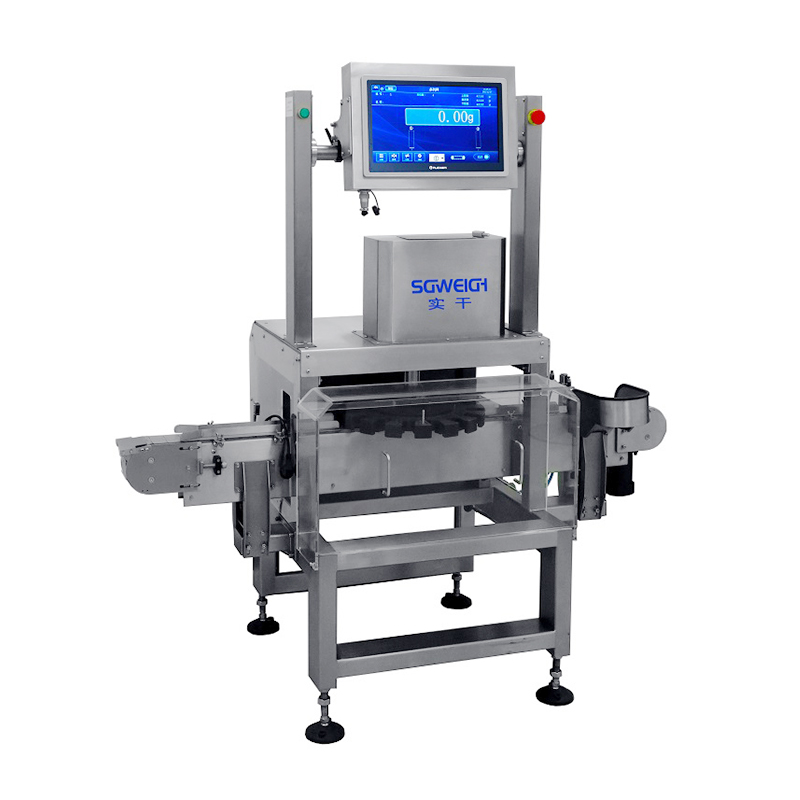

High-speed spray bottle rotary checkweigher pictures
Model SG-Z1
Weighing range 5-300g
Minimum scale 0.01g
Sorting speed Maximum 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode Touch operation
Conveying direction Facing the touch screen from left to right
Rejection method Air blow rejection/push plate rejection
Belt height from ground 750±50mm (can be customized according to customer requirements)
Machine structure Stainless steel (SUS304)
Power supply 220V 50-60HZ
Power About 300W
Windshield Thick acrylic (to avoid airflow interference)
Working environment Temperature: 0℃～40℃, humidity: 30%～95%
Remarks The properties of the tested products and the use environment are different, and the detection speed and accuracy are also different. The actual test is the standard.
1. High Precision: high-speed bottle rotary checkweighers use precise load cells to ensure accuracy and consistency.
2. High Speed: These machines can handle high production speeds, weighing hundreds of bottles per minute.
3. Automatic Rejection: Bottles out of tolerance are automatically rejected from the line, minimizing manual intervention.
4. Data Collection: Many dual-channel bottle rotary checkweighers collect data on weight trends, which can be used to optimize the filling process and reduce product waste.
5. Versatility: Bottle rotary checkweighers can handle a wide range of bottle sizes, shapes, and materials.
6. Compliance: Bottle rotary checkweighers help manufacturers comply with industry regulations and legal metrology requirements.

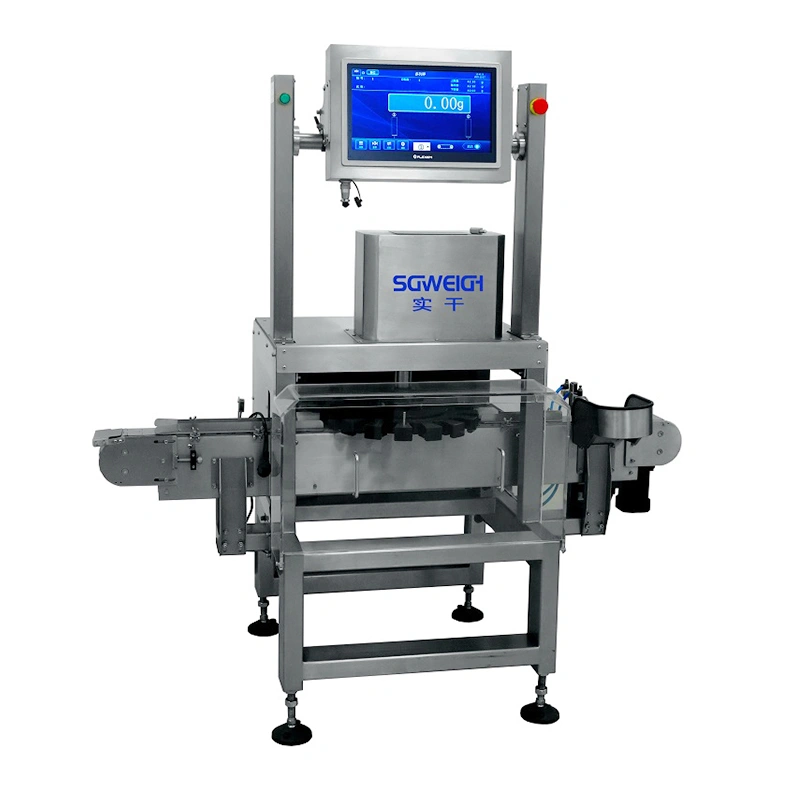

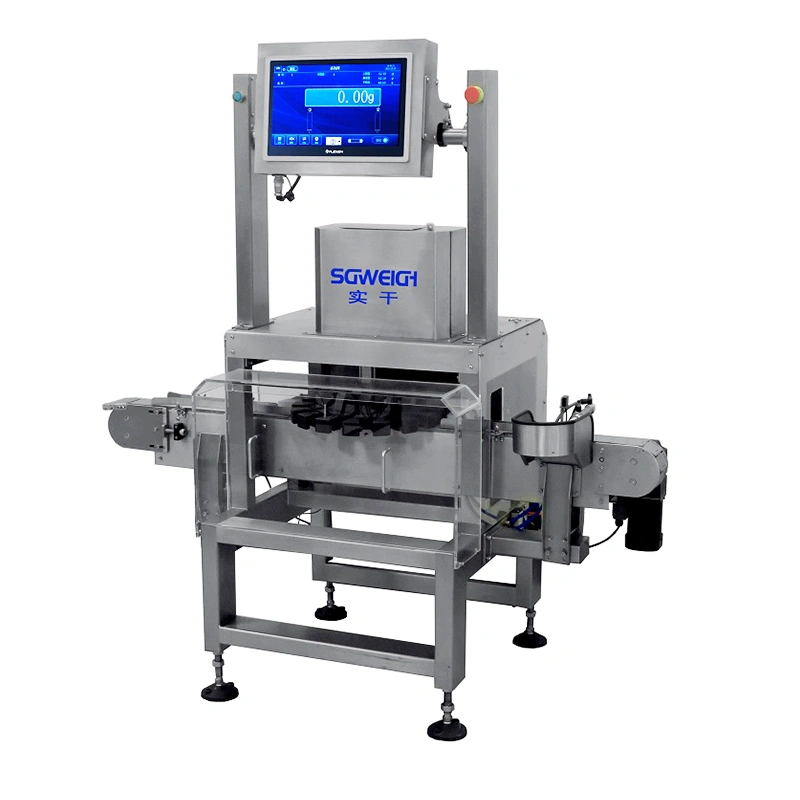

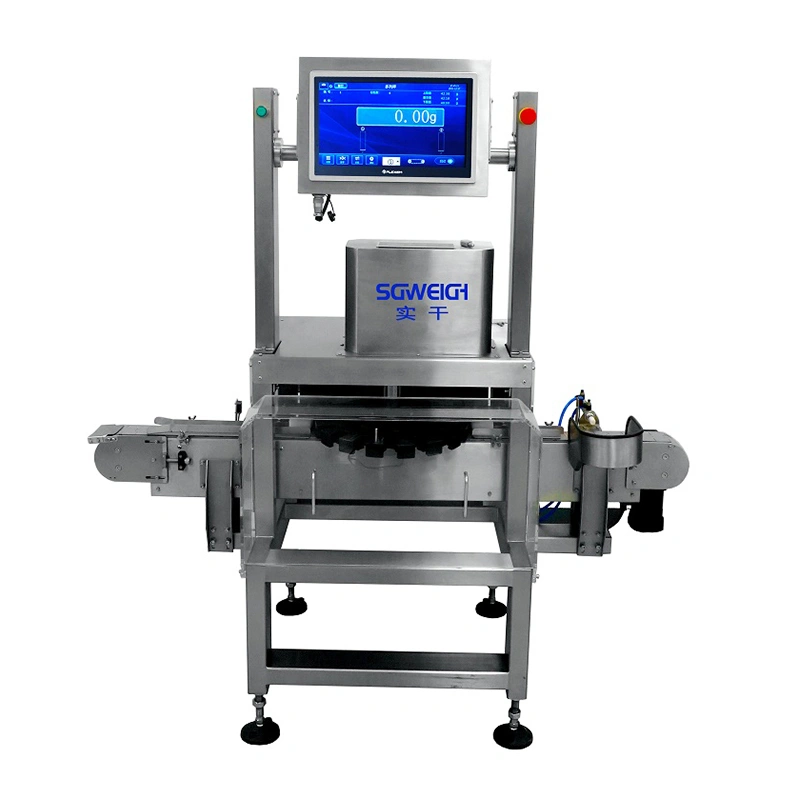

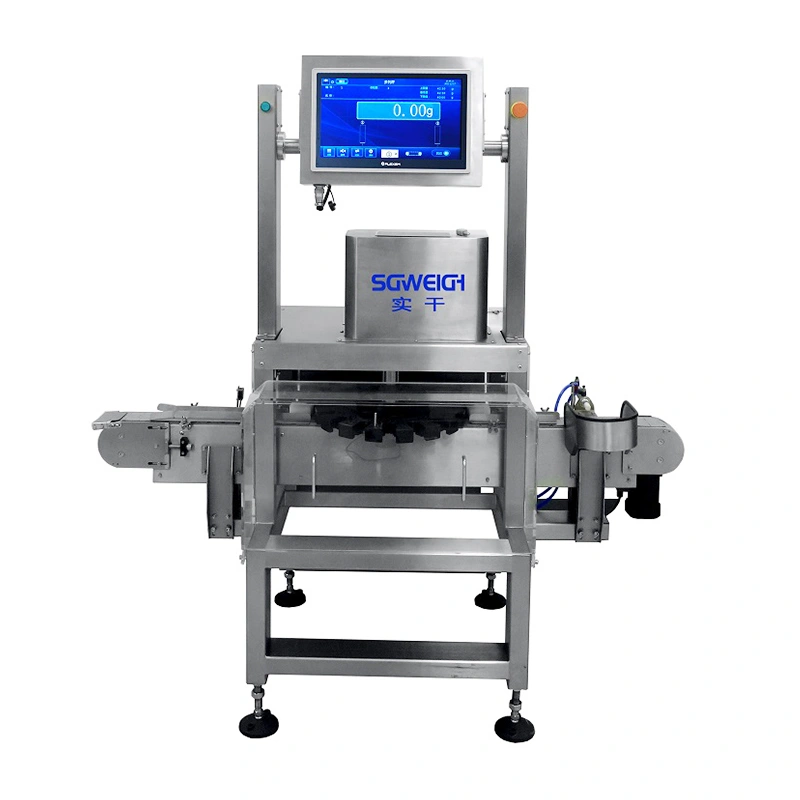

Spray Bottle Rotary Checkweigher High-Speed Dual-Channel Inspection Checkweigher
High-speed spray bottle rotary checkweigher supports bottles of various shapes and materials, including PET, glass, and aluminum
The high-speed spray bottle rotary checkweigher shown here may not meet your requirements. Our professional technicians can provide customized solutions based on your product characteristics and application scenarios.
1> Attach safety labels, tighten screws, clean, lubricate, and rust-proof.
2> Unpack into packaging.
3> Wrap tightly with plastic film.
4> Secure in plywood crates.
5> Load container by forklift.
Suitable for long-distance land and sea transport. For safe loading and unloading at the destination, we recommend FCL shipping.
Spray Bottle Rotary Checkweigher High-Speed Dual-Channel Inspection Checkweigher
Pre-Sales Service
1. Test drive with our customer engineer to learn how to use the machine.
2. Use product samples with our machine.
3. Test drive video, which will be sent to the customer. The customer then pays the balance.
After-Sales Service
1. Manual.
2. Adjustment and setup videos.
3. Telephone or online communication.
4. This machine comes with a one-year warranty and lifetime maintenance. 24/7 online technical support.
