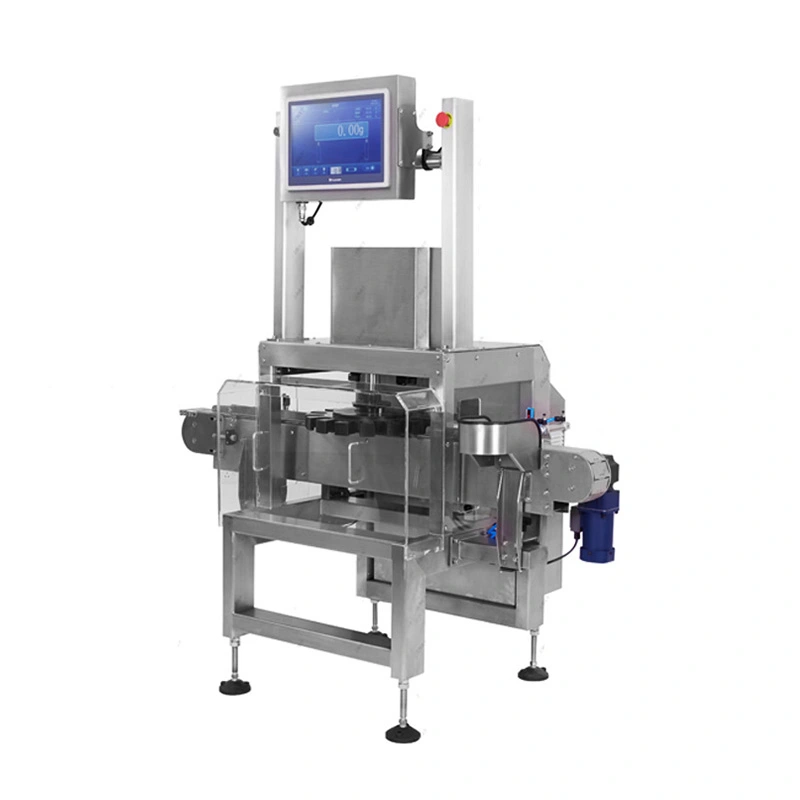

Touch Screen Rotary Checkweigher For Small Bottle Online Checkweighing

Touch Screen Rotary Checkweigher For Small Bottle Online Checkweighing

The automatic rotary checkweigher for small bottle adopts a turntable structure design, which can pick up products directly from the conveyor belt and use an alternating feed rotation system to position and stabilize the products on the static weighing plate, providing the best accuracy and repeatability at high production speeds. The online bottle rotary checkweighing machine has a special structure and working principle, so that the product will not fall under extremely high operating conditions, especially suitable for round or square bottles with small diameter and height greater than the diameter of the bottle body.

tag:

Description

Touch Screen Rotary Checkweigher For Small Bottle Online Checkweighing

The automatic rotary checkweigher for small bottle adopts a turntable structure design, which can pick up products directly from the conveyor belt and use an alternating feed rotation system to position and stabilize the products on the static weighing plate, providing the best accuracy and repeatability at high production speeds. The online bottle rotary checkweighing machine has a special structure and working principle, so that the product will not fall under extremely high operating conditions, especially suitable for round or square bottles with small diameter and height greater than the diameter of the bottle body. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

Automtic bottle rotary conveying checkweigher pictures

Rotary Checkweigher For Small Bottle

Turntable Checkweigher For Small Bottle

Touch Screen Rotary Checkweigher For Bottle

1. Large-size color LCD touch screen interface, simple operation and intuitive display.

2. Supports customized multi-language, default is Chinese and English.

3. With photoelectric automatic detection of empty packages, the conveyor belt speed is adjustable.

4. Parameter setting three-level password protection, only management personnel can operate.

5. Product weighing data can be exported via USB.

6. Power-off protection function, the parameters remain unchanged in case of accidental power off.

7. The parameters of different products can be set to store 100 types of test data, which is convenient for users to switch and call.

8. Data statistics function. The total number of products passing/total number of underweight products/total number of overweight products in a period of time.

9. Simple mechanical structure, buckle conveyor belt, easy to disassemble, clean and maintain. Comply with GMP and HACCP specifications.

10. Automatic dynamic compensation value, dynamic zero point tracking, including zero point tracking when the equipment is running continuously, to ensure reliable test data.

11. The curve graph/bar graph shows the statistical distribution of the sorting (re-testing) results, and the window shows the values of the last 10 re-testing results.

12. The patented technology, the single-chip system independently developed, and the unique filtering algorithm have ultra-high accuracy and reliability. Ensure system stability.

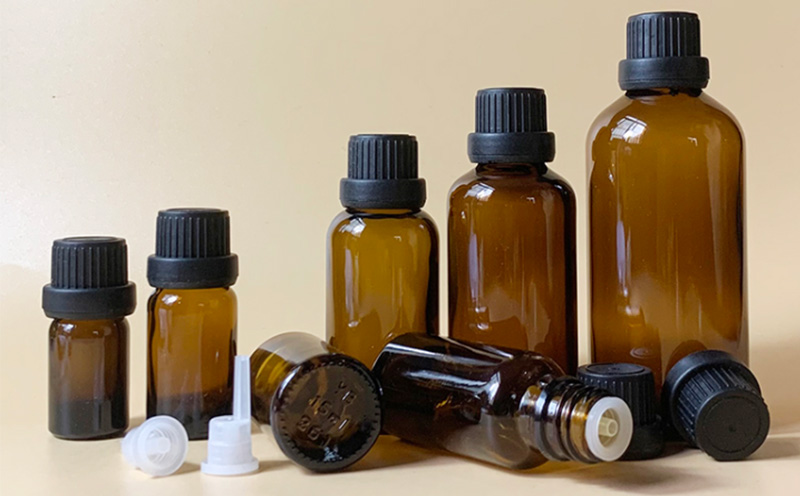

Automatic rotary checkweigher for small bottle is suitable for bottled products in many industries such as medicine, food, beverage, daily chemical, etc.

bottles (2).jpg

Type SG-Z

Weighing Range 2-300

Restrictions of Products:φ10-100 H:20-200mm

Limited of product L: 180 W: 40 H: 2-20mm

Accuracy ±0.01g Depends on product

Division Scale 0.01g

Belt Speed 0- 50 m/min

Max Speed 60 pcs/min,120 pcs/min,180 pcs/min(optinal)

Belt Width 100mm

Machine Weight 260kg

Power Supply AC 110/220V ±10% 50HZ

Power 400W

Main Material SU304 stainless steel


Touch Screen Rotary Checkweigher For Small Bottle Online Checkweighing

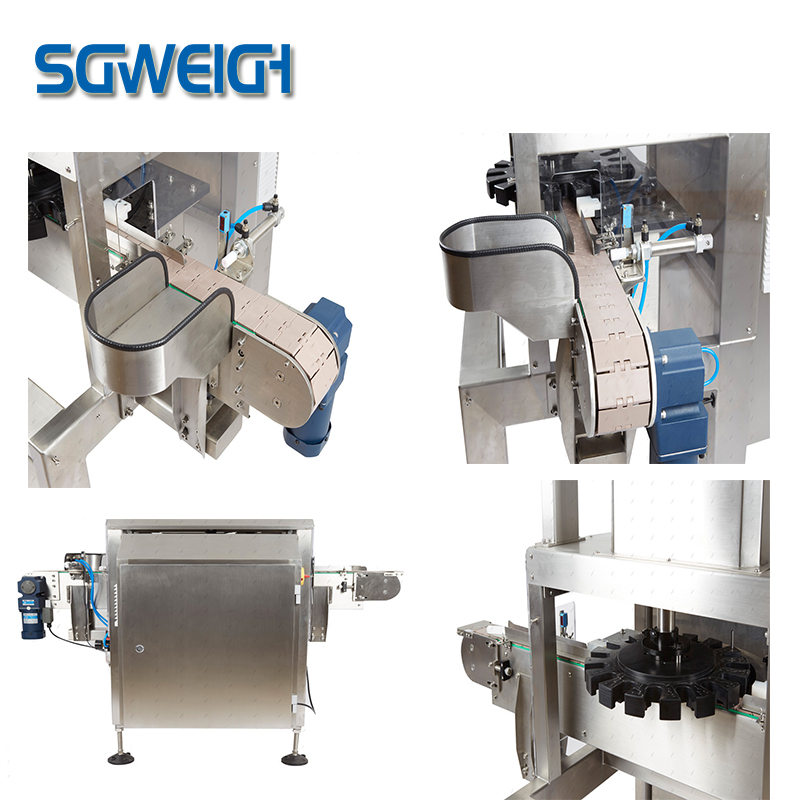

旋转检重秤细节 (2).jpg

How to select automatic rotary checkweigher for small bottle?

1. Determine the series according to the size, weight range and purpose of the product you need to weigh.

2. Determine the appropriate rejection system according to your product

3. Determine the height and width (if any) of your existing assembly line and the space required by our company.

4. Determine the optional functions you need; such as USB storage data, real-time transmission of weight data, alarm, etc.

In order to provide more accurate parameters, solutions and quotations, it is recommended that you contact the person in charge of our company to help you complete the selection.

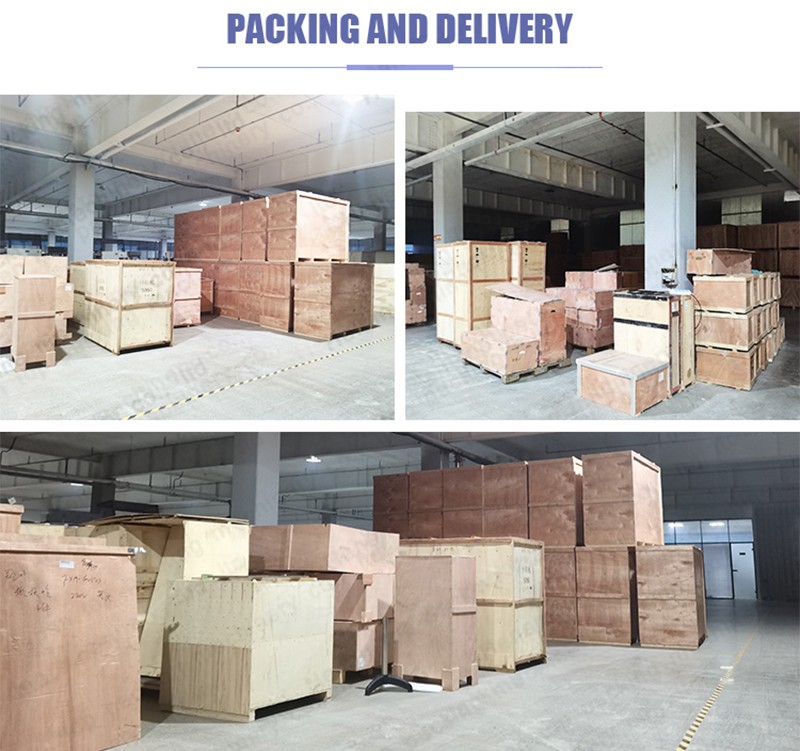

Equipment packed in export standard wooden boxes (fumigation-free) meets international transportation requirements and ensures the safety and reliability of the equipment during transportation.

Our professional logistics team has extensive experience and can handle sea, air and rail transportation for you. No matter which transportation method you choose, we will ensure that the goods are delivered to the destination safely and on time.

Touch Screen Rotary Checkweigher For Small Bottle Online Checkweighing

Shanghai Shigan Industrial Co., Ltd., in the spirit of pursuing high-quality products and user satisfaction, solemnly promises you the principles of preferential prices, thoughtful services and reliable product quality.

1. Product quality commitment:

(1). The manufacturing and testing of products have quality records and testing materials.

(2). For the inspection of product performance, we sincerely invite users to personally visit the entire product process and performance inspection. Only after confirming that the product is qualified can it be packaged and shipped.

2. Product price commitment:

(1). Under the same competitive conditions, our company sincerely provides you with preferential prices without reducing the technical performance of the product or changing the product components.

3. Delivery time commitment:

(1). Product delivery time: as much as possible according to user requirements. If there are special requirements, it must be completed in advance to strive to meet user needs.
