Turntable Checkweigher for Bottle Medicine High Speed Conveyor Check Weigher

Turntable Checkweigher for Bottle Medicine High Speed Conveyor Check Weigher

The unique low center of gravity design of the high speed turntable checkweigher for bottle greatly reduces the impact of vibration, thereby improving the detection accuracy. The extremely user-friendly operation interface is convenient and easy to understand. The medicine high speed conveyor check weigher is used to detect whether the weight of a single (or a box) product is consistent with the set target, and the sorting device automatically removes substandard products.

tag:

Description

Turntable Checkweigher for Bottle Medicine High Speed Conveyor Check Weigher

The unique low center of gravity design of the high speed turntable checkweigher for bottle greatly reduces the impact of vibration, thereby improving the detection accuracy. The extremely user-friendly operation interface is convenient and easy to understand. The medicine high speed conveyor check weigher is used to detect whether the weight of a single (or a box) product is consistent with the set target, and the sorting device automatically removes substandard products.

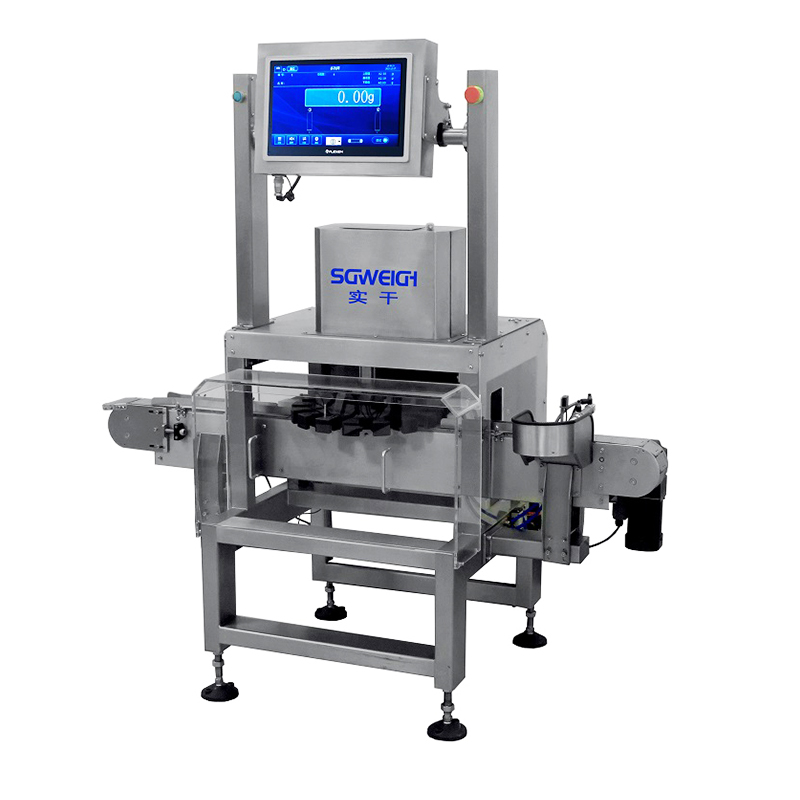

High speed turntable checkweigher for bottle pictures

Turntable Checkweigher for Bottle

High Speed Conveyor Turntable Check Weigher

Turntable Bottle Conveyor Check Weigher

Model SG-Z1

Weighing range 5-300g

Minimum scale 0.01g

Sorting speed Maximum 50 pieces/minute (one channel)

Conveying speed 20-100m/min

Operation mode Touch operation

Conveying direction Facing the touch screen from left to right

Rejection method Air blow rejection/push plate rejection

Belt height from ground 750±50mm (can be customized according to customer requirements)

Machine structure Stainless steel (SUS304)

Power supply 220V 50-60HZ

Power About 300W

Windshield Thick acrylic (to avoid airflow interference)

Working environment Temperature: 0℃～40℃, humidity: 30%～95%

Remarks The properties of the tested products and the use environment are different, and the detection speed and accuracy are also different. The actual test is the standard.


High speed turntable checkweigher for bottle as the key detection equipment on the production line, involves different fields. If the product specifications do not meet the requirements, please contact us by inquiry or chat with me to meet the customized needs, we can also introduce the factory and machines to you in the form of live broadcast. Our team will tailor it for you.


1. Automatic sorting - automatic sorting method, convenient and fast;

2. Adjustable speed - high-precision detection, adjustable conveying speed;

3. Parameter setting - upper and lower weight limit parameters can be set arbitrarily;

4. Variable frequency speed regulation - the conveying system adopts variable frequency speed regulation mode, which is convenient for speed regulation;

5. Data storage - powerful data statistics function, recording daily detection data;

6. Data call - with set data group memory, call function, easy operation;

7. Data recording - OK number, underweight number, overweight number are accumulated separately;

8. Fault diagnosis - self-fault diagnosis and prompt function, convenient maintenance;

9. Multi-group storage - can store 100 groups of set parameters for storage;

10. Processing method - unqualified product alarm/shutdown, rejection is optional;

11. Data viewing - historical record query function, can be exported to USB flash drive, and can be viewed directly with office PC.

Turntable Checkweigher for Bottle Medicine High Speed Conveyor Check Weigher


High speed turntable checkweigher for bottle is widely used in the production and packaging processes of food and beverage, pharmaceuticals, daily chemicals, warehousing and logistics, electronic light industry, packaging and printing, auto parts and hardware, plastic toys, chemicals, agricultural and sideline products and other industries.
