Automatic Pouch Multi-level Weight Sorting Checkweigher for Food Pharmacy
Multi-level weight sorting machine as known as multi-level checkweigher, weight grading machine, multi-stage checkweigher, check weigher, weight sorter, weight checker, and etc,.
The automation equipment of the multi-level weight sorting checkweigher for food pharmacy detects products with different weights in continuous operation and automatically classifies and collects them according to the set weight level. The automatic pouch multi-level sorting checkweigher adopts an imported specialized dynamic weighing device to achieve high-speed and stable measurement; Automatic sorting eliminates human errors. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

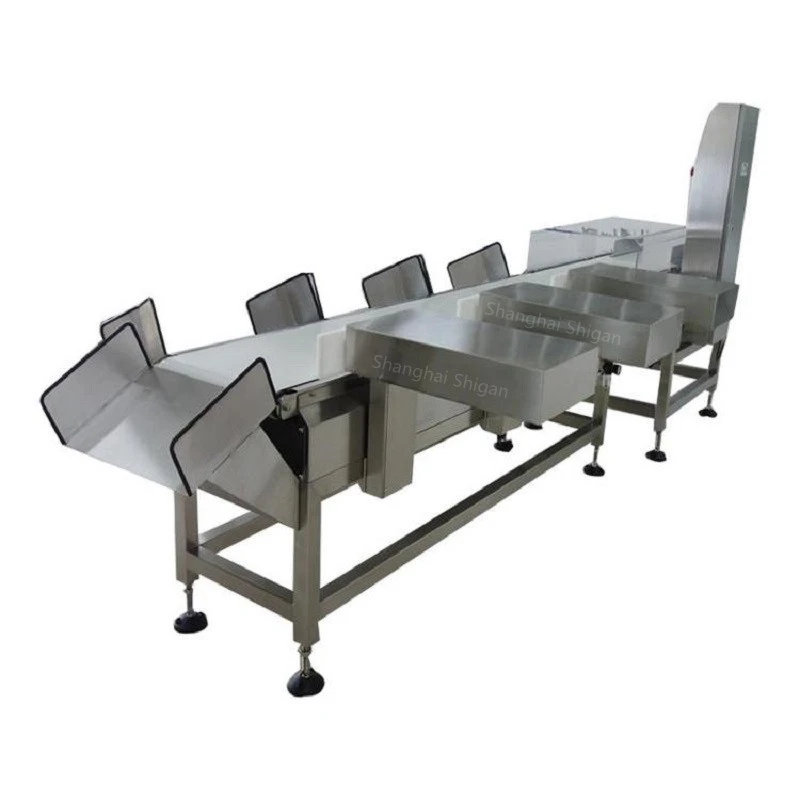

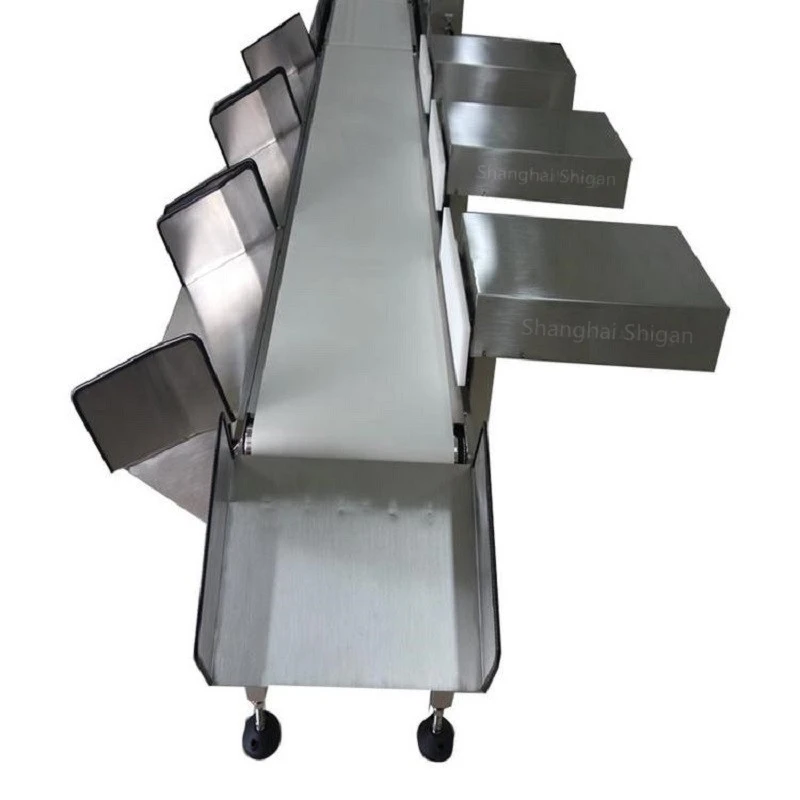

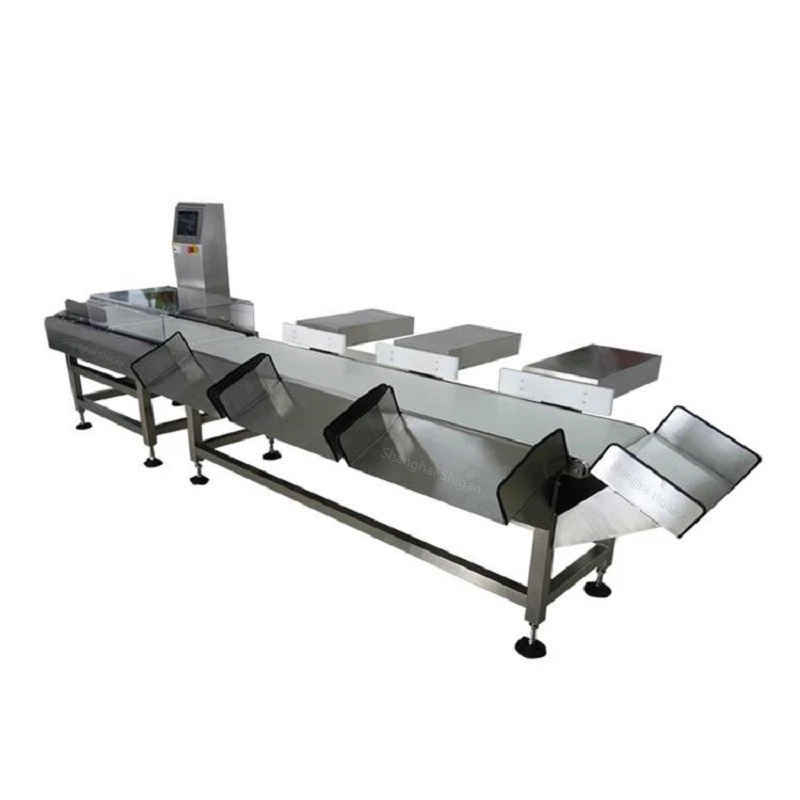

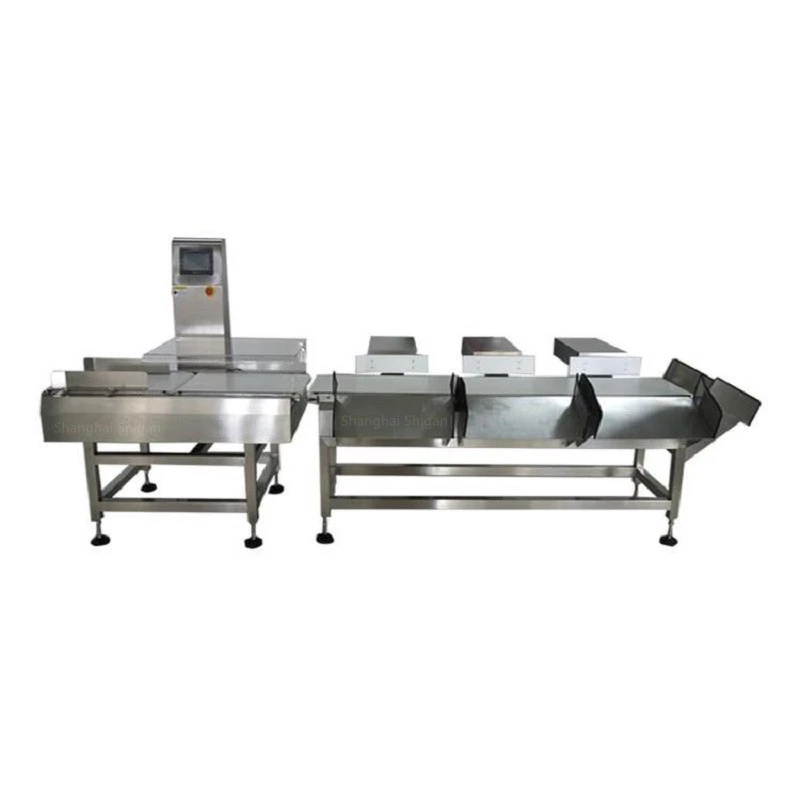

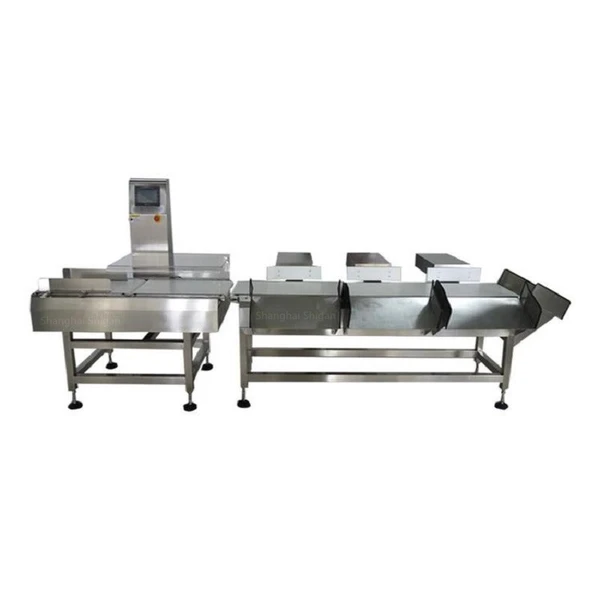

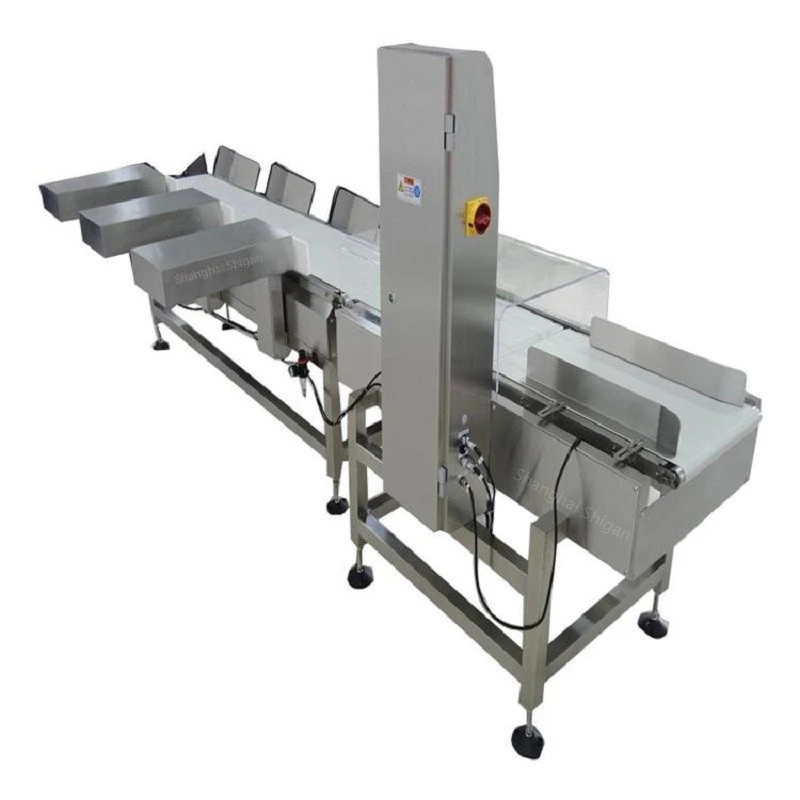

Multi-level weight sorting checkweigher for food pharmacy pictures
Type SG-D300
Weighing Range 5-3000g
Limited of product L: 350 W:300 H: 3-200mm
Accuracy ±0.3g-0.5g Depends on product
Division Scale 0.1g
Belt Speed 0- 50 m/min
Max Speed 60 pcs/min
Belt Width 300mm
Machine Weight 60kg+150kg
Power Supply AC 220V 50HZ
Power 1000W
Main Material SU304 stainless steel
1. The weighing processor of the multi-level weight sorting checkweigher for food pharmacy is independently developed by technical personnel, with good performance and strong anti-interference ability
2. Pre set 100 formulas with simple switching methods
3. Data can be automatically stored and reports or curves can be generated
4. Equipped with high-precision and high-speed sensors
5. Sorting speed up to 120 times/minute
6. Weighing processing range: 100-3000g
7. Detection accuracy starting from ± 1.0g
8. Sorting level 2-24 (customizable according to customer needs)
9. Hierarchical user management software that can interface with the MES system
10. Friendly human-machine interface and simple operation
11. The entire machine supports customized waterproofing, explosion-proof, and dust-proof measures
12. Open communication interface RS485/232 RJ45
13. Zero point tracking can be set manually or automatically
14. Connected production upstream and downstream can be equipped with metal detection, automatic labeling, and automatic packaging
15. Easy installation and maintenance, easy disassembly and cleaning of conveyor belts
The application range of automatic multi-level sorting checkweighers:
1. Aquatic products: fish, sea cucumber, abalone, lobster, oyster, crab, shellfish, etc
2. Poultry meat: chicken legs, chicken wings, duck legs, duck wings, white striped duck, various meat products, ham sausages
3. Agricultural and sideline products: fruits and vegetables
4. Medicinal materials: Cordyceps sinensis, Panax notoginseng, and other precious medicinal materials
5. Industrial products, automotive parts, precious metals
If you have any needs in this regard, you can click on online communication or send us an email. Explain to our company the condition of the tested materials (size, material, etc.), expected production, etc., in order to provide you with a suitable model. If there are any other technical requirements, we will do our best to solve them. We sincerely hope to have a pleasant cooperation with your company! Welcome to visit and negotiate with our company! I believe our service will satisfy you.
Shanghai Shigan Industrial Co., Ltd. was established in 2010 and is a high-tech enterprise specializing in the research and development, production, and sales of digital metal detectors, automatic checkweighers, weighing labeling machines, checkweigher with metal detector combo for more than 15 years, and has become a well-known professional equipment manufacturer and service provider in the industry. The company attaches great importance to cultivating independent research and development capabilities and building a technical team. It has formed a technical team with independent research and development capabilities, ensuring that the company can continuously launch new products that meet customer needs.
Main Products
Metal Detector for Pharmaceutical
Metal Detector for Daily Necessities
Metal Detector for Other Industries
Checkweigher and Metal Detector Combo
Multi-stage Sorting Checkweigher
The usual packaging is a wooden box (size: length * width * height). If exported to European countries, wooden boxes will undergo fumigation treatment. If the container is too tight, we will use polyethylene film packaging or packaging according to the customer's special requirements
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* One year warranty, lifetime repair
