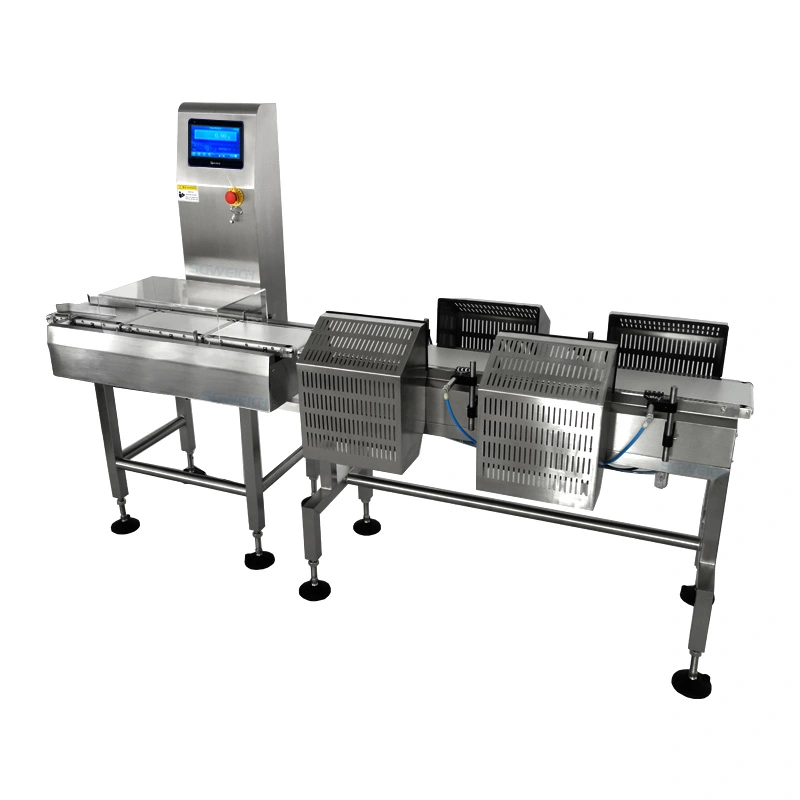

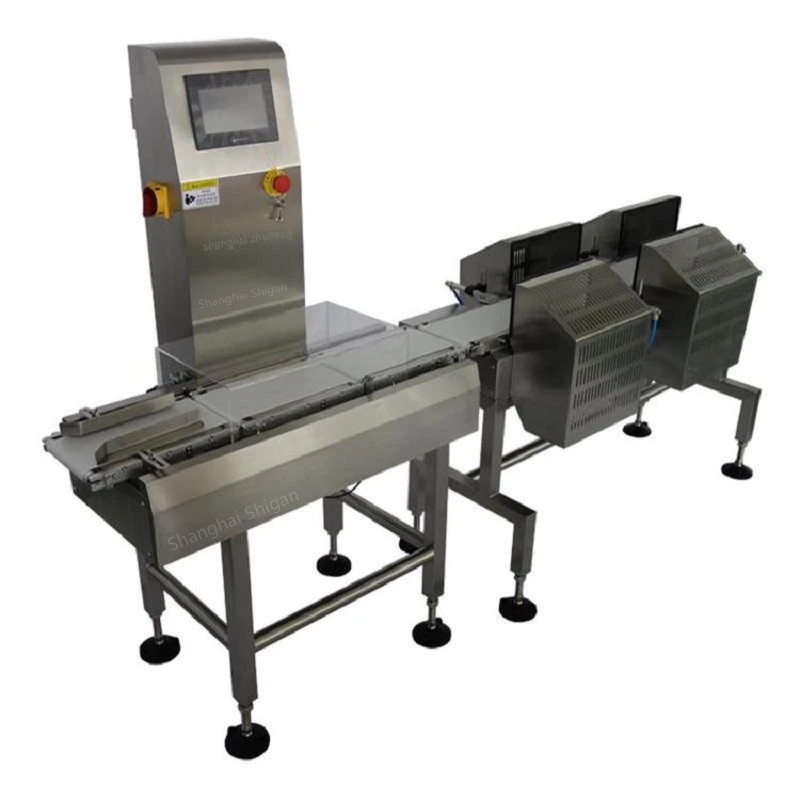

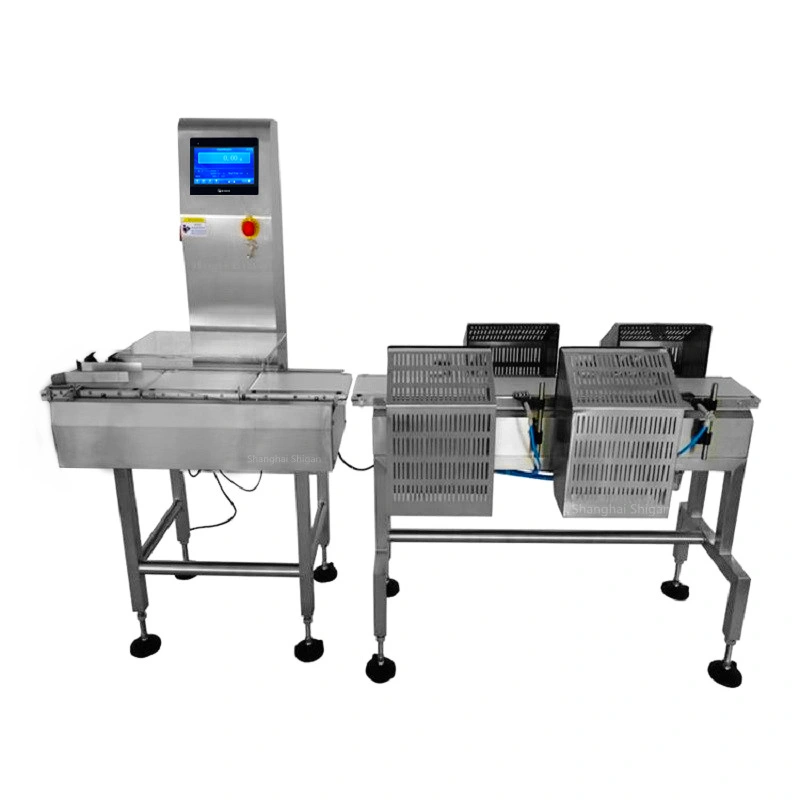

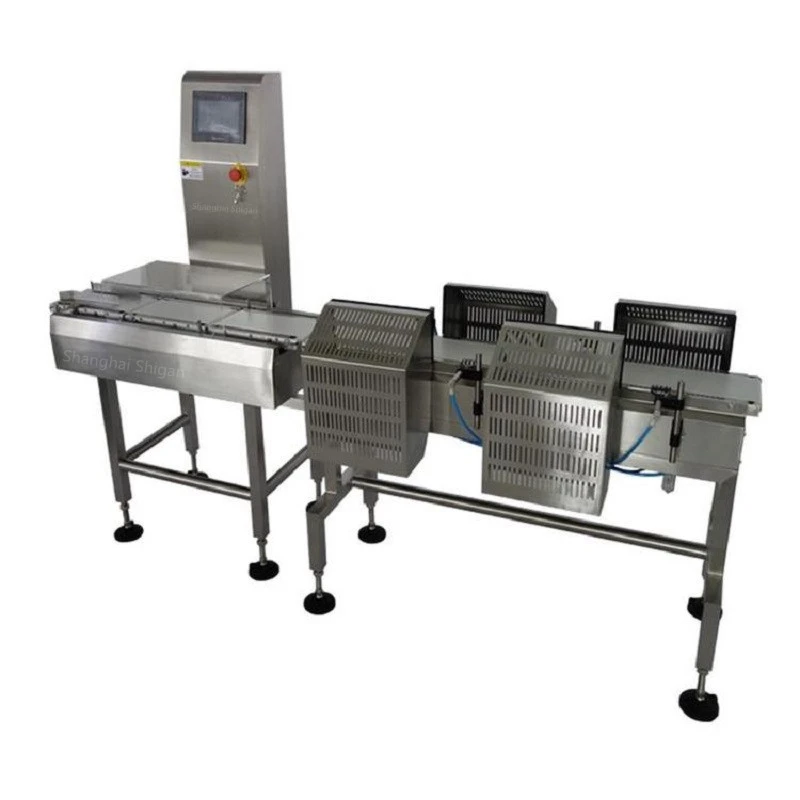

Production Line Weight Classification Multi-level Checkweigher For Medicinal Materials, Inline Checkweigher System
Product Information
This dynamic multi-level checkweigher adopts a digital weighing unit to achieve high-speed and stable measurement. The inline checkweigher system frame structure ensures accuracy and stability during dynamic work. The LCD touch screen operating system, Chinese and English operation interface, easy to learn. Digital checkweigher machines are used in food/pharmaceutical processing, automotive hydraulic accessories classification, daily necessities weight sorting and packing in many fields.For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.
Specification Parameter
TypeSG-D220
Weighing Range10-1200g
Limited of productL: 200 W:150 H: 3-200mm
Accuracy±0.2 Depends on product
Division Scale0.1g
Belt Speed0- 60 m/min
Max Speed100 pcs/min
Belt Width220mm
Machine Weight60kg+44kg
Power SupplyAC 110/220V ±10% 50HZ
Power100W
Main MaterialSU304 stainless steel
Customized
Our professional engineers will rigorously evaluate production line characteristics, specifications and environmental factors, and design the most suitable automatic checkweigher program for the production line to meet the different needs of various complex production lines.
1. The countertop is tailor-made.
2. Highly tailored.
3. The material can be customized.
4. The meter and the drum can be connected wirelessly,
5. The meter can have its own USB storage function.
6. The meter can send weight data via Bluetooth.
7. The meter can choose automatic quantitative control output function.
8. External printer function.
9. Built-in upper and lower limit alarm lamp function.
10. External scanner function.
Main Advantages
a. Standard SUS304 stainless steel body, in line with various safety regulations for food and pharmaceutical production
b. Fast belt replacement system, easy to clean the conveyor belt
c. High-precision imported sensors and motors ensure the high precision and high speed of the automatic checkweigher
d. A variety of commonly used product presets; simple product editing and storage functions.
e. Fast product switching and automatic adjustment of the sorting speed of corresponding products.
f. Color touch screen integrated control, one key switch between Chinese and English, the operation is simple and convenient.
g. The input and output of the external equipment realize the online function, which can carry out various controls
h. Automatic zero tracking technology
i.U disk data storage, production data 2G-4G large-capacity storage, and statistical functions such as histogram, sliding average, standard deviation, convenient for customers to read and make various production adjustments at any time
Application
1. Aquatic product classification: fresh fish, shrimp, abalone and other aquatic products;
2. Poultry product classification: chicken wings, chicken legs, whole chickens, ducks and other poultry products;
3. Fruit and vegetable classification: apples, saws, potatoes and other fruit and vegetable products;
4. Classification of medicinal materials: Chinese medicinal materials, raw materials, etc.
Our Company
Shanghai Shigan Industrial Co., Ltd. is located in the beautiful scenery of Shanghai, China. It has been engaged in the production and development of assembly line packaging weighing equipment since 2010, and has obtained CE certification and a number of professional certificates. The company has always adhered to the "innovative, high-quality, and efficient" business philosophy. Provide you with perfect, high-quality products and services. Now our company's products have been sold all over the world, and have gained the trust and praise of countless customers!
Our main products are: digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher, and a series of assembly line packaging testing equipment
Packing Detail:
Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
Shipped in 20 days after payment
After Sale Service
Based on the spirit of pursuing high-quality products and customer satisfaction, Shanghai Shigan Industrial Co,.Ltd solemnly promises you with the principles of preferential prices, considerate service, and reliable product quality.
1.Product quality commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). For product performance testing, we sincerely invite users to personally check the whole process and performance of the product, and the product will be packaged and shipped after it is confirmed to be qualified.
2. Product price commitment:
(1). Under the same competitive conditions, our company will sincerely provide you with preferential prices on the basis of not reducing product technical performance or changing product components.
3. Delivery time commitment:
(1). Product delivery time: try to meet user requirements, if there are special requirements, need to be completed in advance, and strive to meet user needs.
