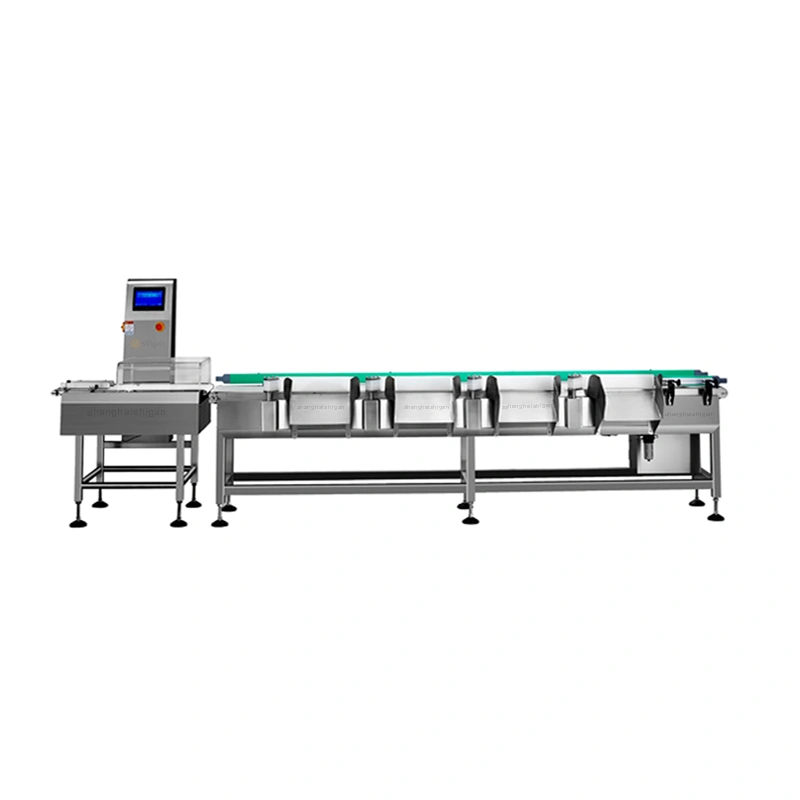

Daily Necessities Multi-stage Sorting Checkweigher Multifunctional Dynamic Check Weigher Machine
Product Description
Automatic checkweigher as known as inline check weigher, dynamic check weight machine, digital weight sorting machine, online weight checker and etc,.
The automatic multi-stage sorting checkweigher machine adopts high-tech and single-chip high-speed control to detect whether the product weight matches the interval set target, and the sorting device automatically selects the products. This dynamic check weigher machine is built-in the world's advanced digital weighing unit, which can realize high-speed, accurate and stable measurement. Multifunctional checkweigher is widely used in the integrated industry of automated production and packaging.You are welcome to contact us at any time for further information.
Main Advantages
1. 10-inch color touch screen; like a smart phone, easy to operate.
2. Quick belt replacement system; with buckle design, it is very easy to clean the belt.
3. As many as 10 shortcut menus, seamlessly docking and changing products, realizing non-stop switching products.
4. Inquiry and print for unqualified products
5. Provide feedback signals of production trends, adjust the packaging accuracy of upstream packaging machines, improve user satisfaction and reduce costs.
6. Imported parts are used for core components to ensure the stability of equipment operation
7. The independent processing plant makes the equipment at the same level, the cost is lower, and the price is the most affordable.
8. The high-quality shunt rejection device prevents the product from falling down and spilling the material during the sorting process, and ensures the integrity of the detected object.
Technical Parameter
Weighing accuracy: ±1g
Display resolution: 0.1g
Sorting speed: 200 bags/minute
The height of the conveyor belt from the ground: 700mm±50mm
Display: 10-inch large touch screen
Control power supply: AC 220 volts (fluctuation +10%, -15%, 50/60 Hz)
Working temperature: from 0°C to 40°C
Humidity: 90% relative humidity (no condensation)
Material and surface treatment: stainless steel 304 polished treatment
Sorting device: push rod, swing arm, air blowing type, split flow type (optional)
Combination machines: printers, inkjet printers, labeling machines, metal detectors, etc.
Conveyor belt: food grade, PU, PVC belts are optional
Other standard equipment: windshield (colorless and transparent), calibration weight
Our goal is to provide you with a perfect checkweigher solution, support customization, and explain to our company the status of the products tested, so as to provide you with suitable models. If there are any other technical requirements, we will try our best to resolve them.

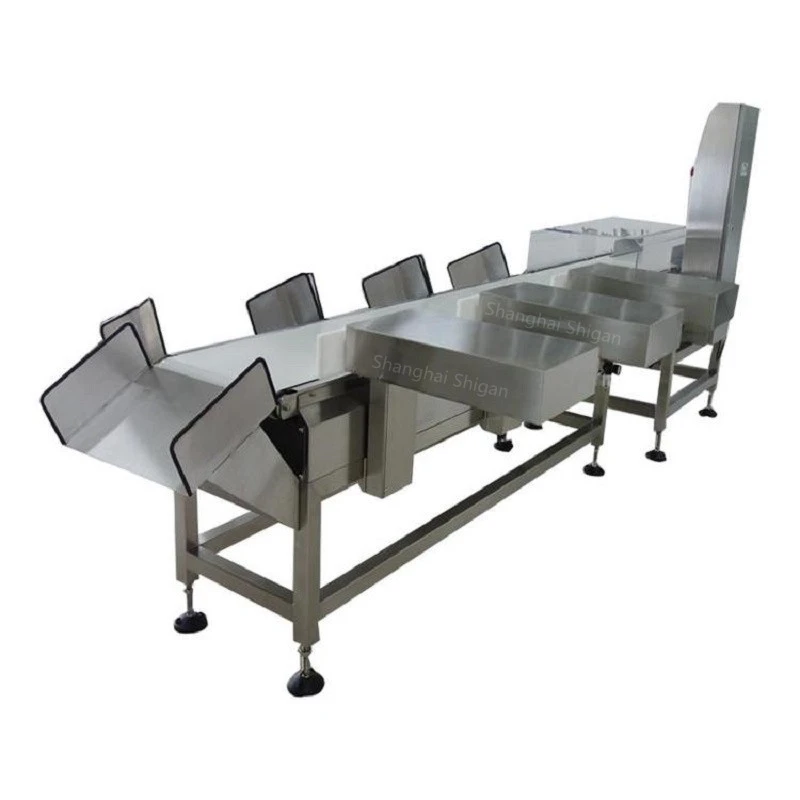

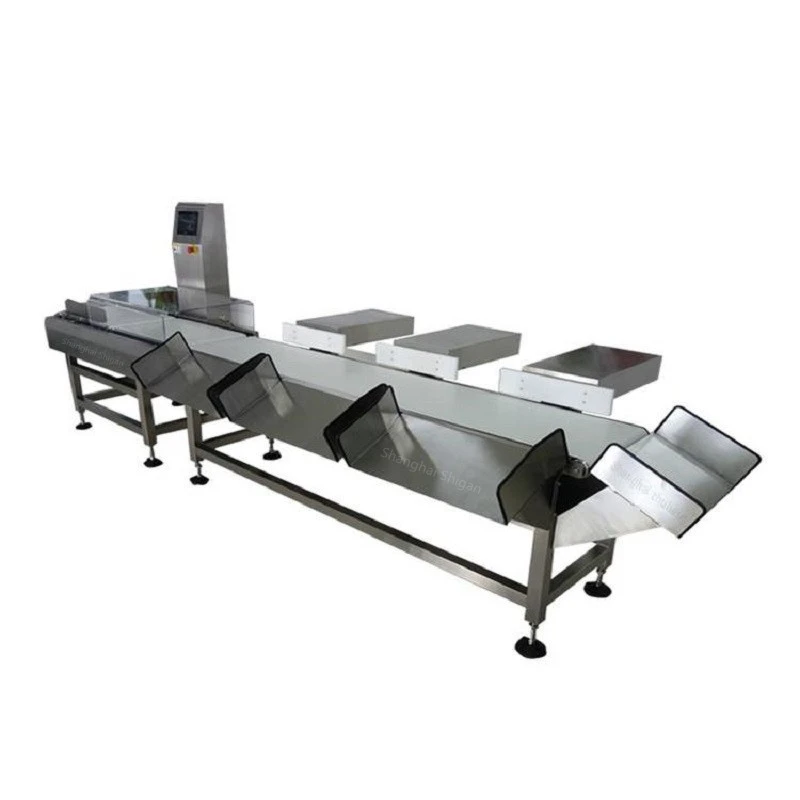

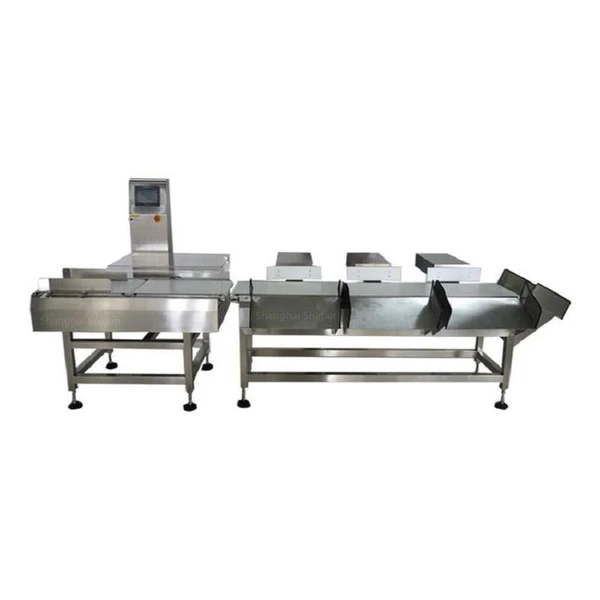

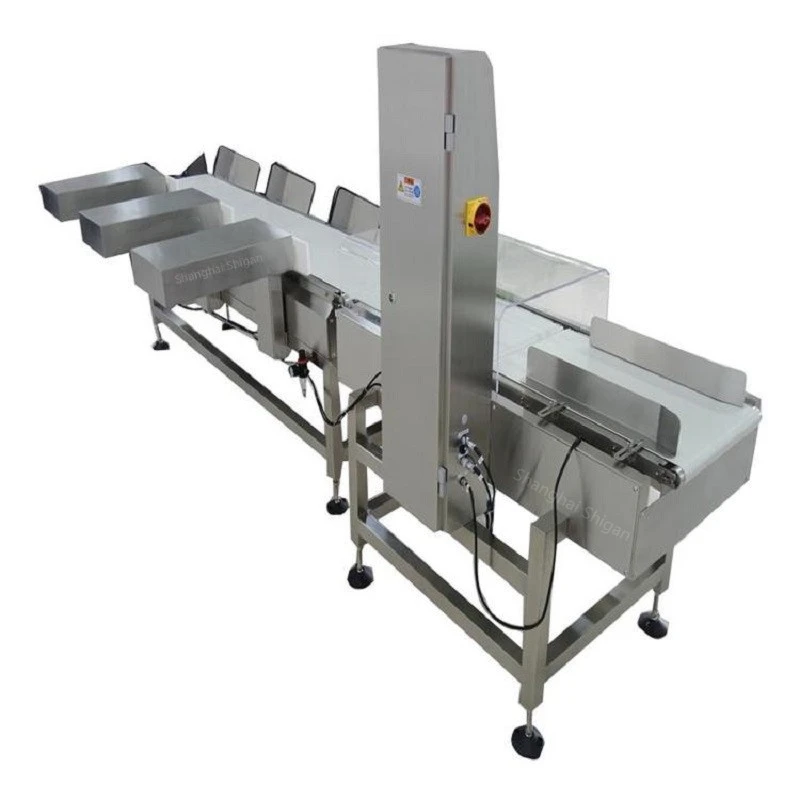

Multi-satage sorting check weigher machine live photos
Application
Multifunctional Checkweigher is mainly used in various automated assembly lines and industries such as aquatic products, food, medicine, hardware, cosmetics, and daily necessities. It is used to sort products into multiple grades by automatically weighing the product weight.
Automatic dynamic checkweigher workflow
The product is transported to the "checkweigher" after the previous stage of the assembly line or manual feeding.
1. The product enters the "acceleration section" of the checkweigher: the distance between the products will be stretched to ensure that it is a single product instead of multiple products when entering the "weighing section". When the products are sorted irregularly, they can also be sorted by "accelerated segment".
2. The product enters the "weighing section" of the checkweigher: the weighing system quickly detects the weight of the product; and immediately determines whether the product weight is within the target weight range. If the product weight is qualified, it will be sent out of the checkweigher without error; if the product weight is unqualified, it will give a rejection delay signal. At the same time, the system will automatically record the number of qualified and unqualified products.
3. The product enters the "reject section" of the checkweigher: when the rejection section detects the rejection delay signal, it will take the rejection action in a timely manner to accurately reject the unqualified products.
Our Company & Customers

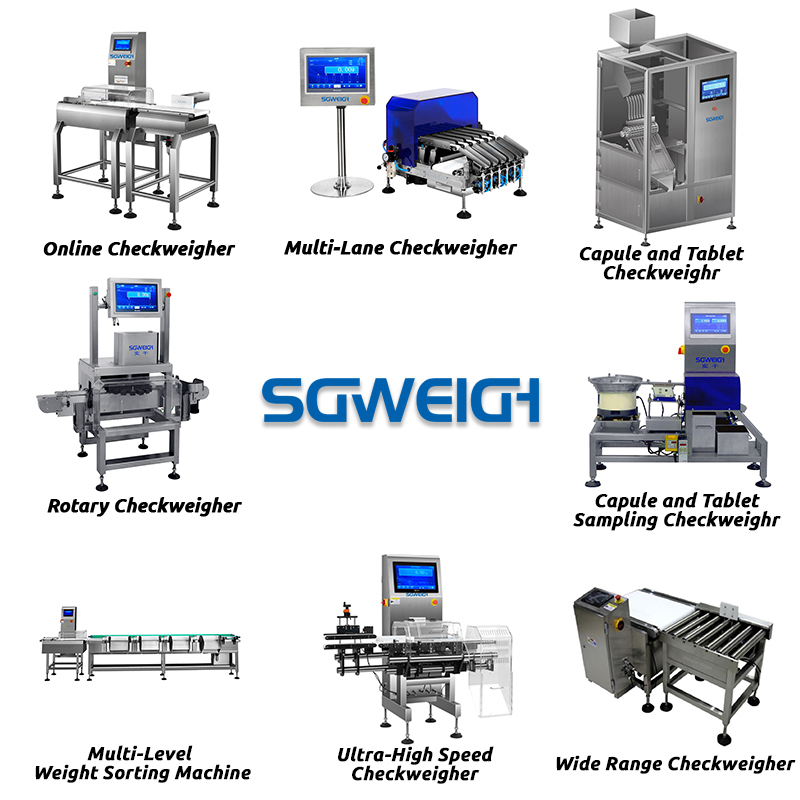

Located in Shanghai, China, Shanghai Shigan Industrial Co,.Ltd has been engaged in the research and development, production, sales and service of automatic weighing technology for more than 11 years. Our main products are automatic checkweighers, weight sorters, metal detectors, etc. Weigh products from 1 gram to 100 kg, with an accuracy of 120 pcs/min up to ±0.05 g. The stable and reliable weighing control system has won customers from Malaysia, Indonesia, the Philippines, Kazakhstan, the United States, Chile, South Africa and many other countries.
The machine will be fixed and then packed in wooden cases.
Fast Delivery! The earliest delivery is 15 days after payment.
A. Pre-sale:
1. Provide real quotations for customers according to customer requirements, and timely record feedback when customers have special requirements;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide one-year free warranty, lifetime maintenance service, and be responsible for debugging the product before shipment;
B. After sale:
1. If the customer's product fails, we will provide you with a solution as soon as possible;
2. During the warranty period, product repairs are free of charge, and repairs can also be provided after the warranty period. If the parts are replaced, the product parts will be provided at the cost price.
