Bottle Rotary Weighing Checkweigher For Pharmaceutical Dynamic Weight Checker

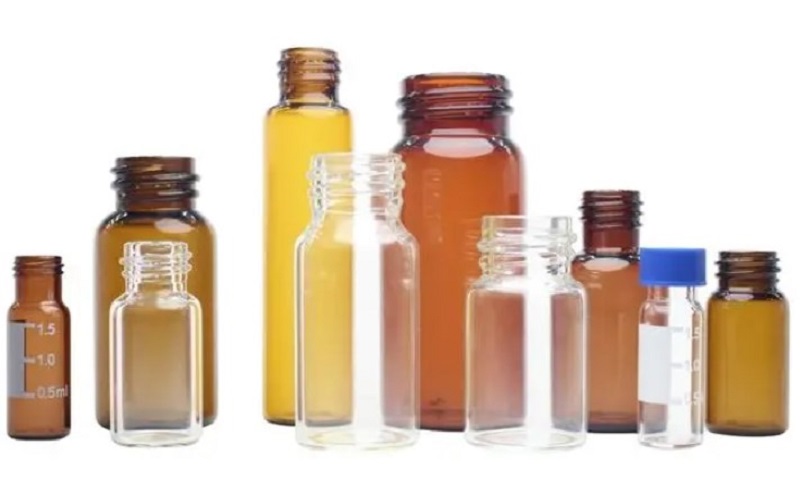

Bottle rotary weighing checkweigher for pharmaceutical is a high-speed, high-precision online checkweigher, mainly used in various automatic assembly lines and logistics conveying systems to detect the weight of online products. The dynamic bottle rotary weight checker can measure cylindrical products such as sprays, glass bottles and plastic bottles at high speed, and can be easily integrated into the production line. Welcome to consult us for quotation information!

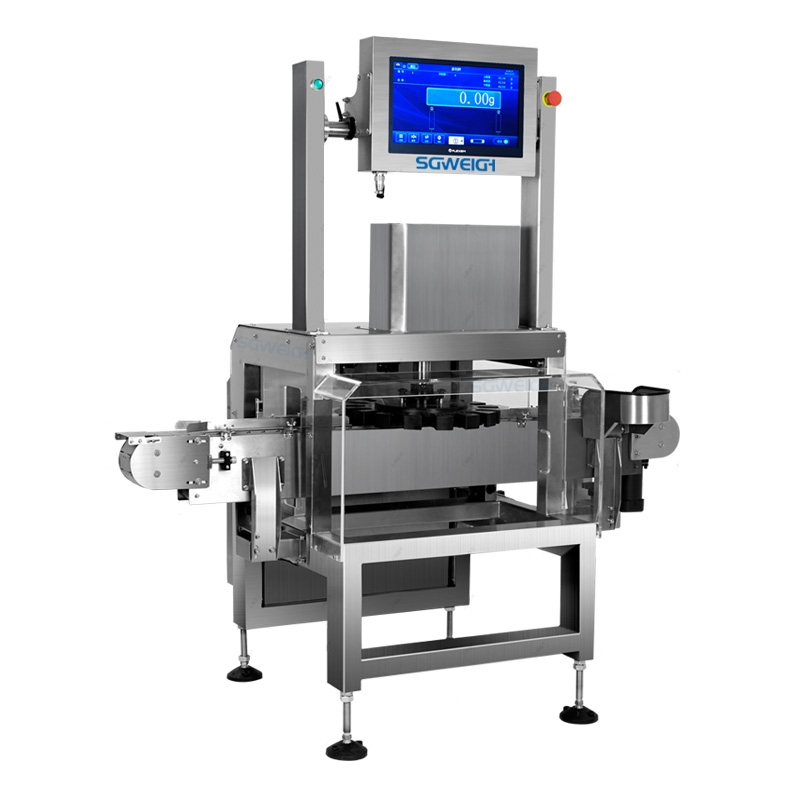

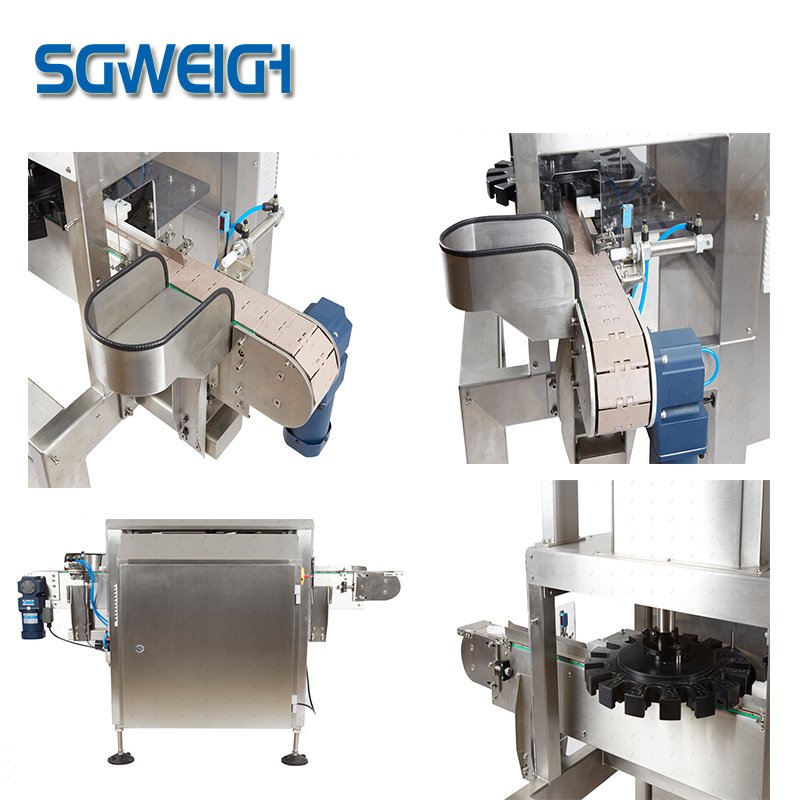

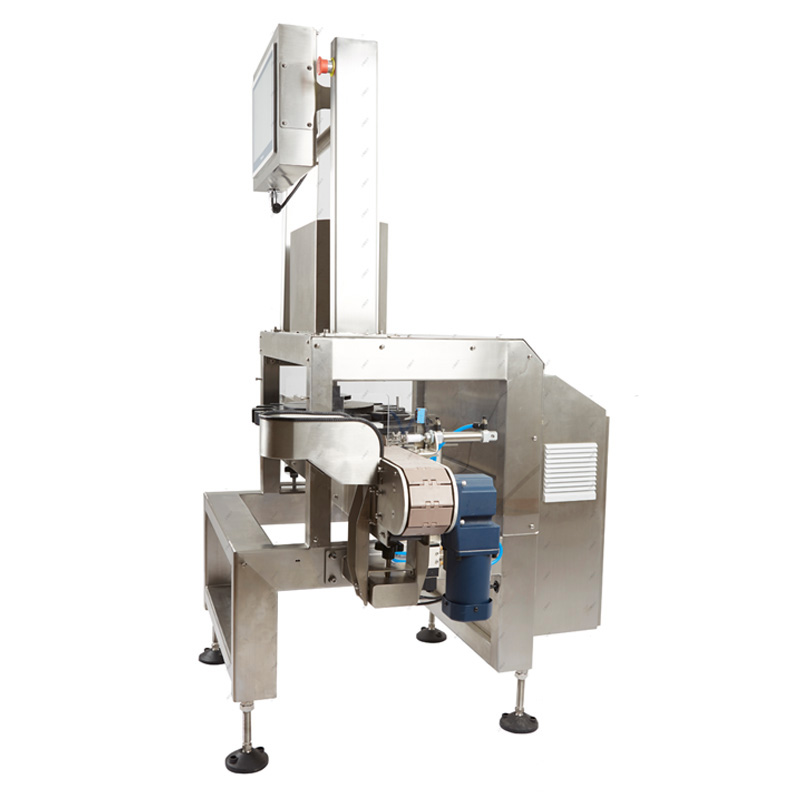

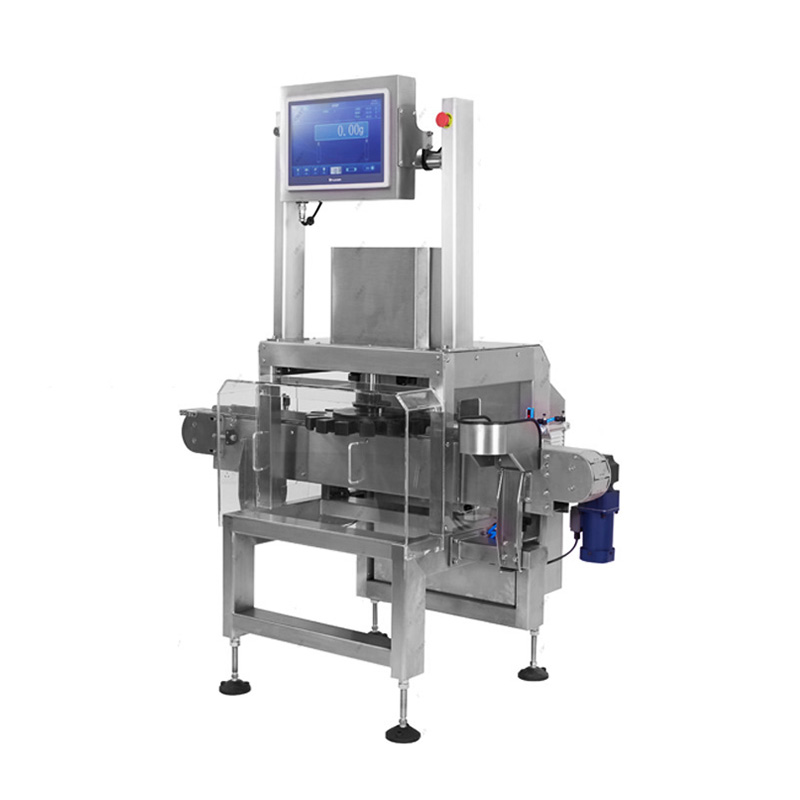

Bottle rotary weighing checkweigher for pharmaceutical pictures
Model SG-Z1
Weighing range 5-300g
Minimum scale 0.01g
Maximum sorting speed of 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode: Touch based operation
Transport direction facing the touch screen from left to right

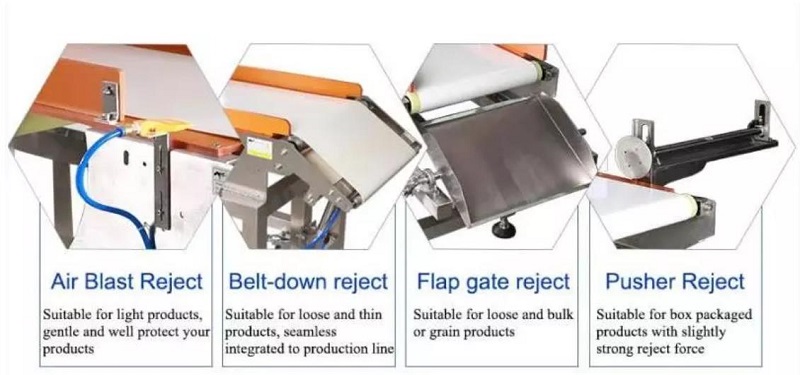

Removal method: air blowing removal/push plate removal
Belt height above ground 750 ± 50mm (customizable according to customer requirements)
Machine structure stainless steel (SUS304)
Power supply 220V 50-60HZ
Power of approximately 300W
Windshield thick acrylic (to avoid airflow interference)
Working environment temperature: 0 ℃~40 ℃, humidity: 30%~95%
The properties and usage environment of the tested product vary, and the detection speed and accuracy also vary. Actual testing is the standard.
Bottle Rotary Weighing Checkweigher For Pharmaceutical Dynamic Weight Checker
Bottle rotary weighing checkweigher for pharmaceutical is an automatic weight check equipment widely used in production lines in the pharmaceutical, food, chemical and other industries. It can detect overweight and underweight unqualified products in the production line in real time and automatically remove unqualified products.
1. Long-term use, guaranteed accuracy, no need for daily calibration
2. Automatic dynamic zero-point tracking technology
3. Built-in hinge design, no safety dead corners, quick installation and removal of belts, easy cleaning and maintenance
4. Professional human-machine interface design
5. Simple user parameter setting, automatic parameter adjustment, just enter product parameters and weighing requirements to complete parameter setting
6. Accurate and efficient rejection mechanism
7. Humanized function, product database can store 1,000 products
8. Password protection function ensures that unauthorized personnel cannot change data
9. With data statistics function, support data export, USB and Ethernet interface
Shanghai Shigan can tailor a bottle rotary weighing checkweigher to meet the customer's usage needs based on the customer's needs and specific scenarios. Meet the customer's personalized needs in terms of function, performance, appearance, etc.
Bottle Rotary Weighing Checkweigher For Pharmaceutical Dynamic Weight Checker
1. Waterproof PO film + wooden box
1) Dust removal and cleaning
2) Lubricate transmission parts
3) Divide the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood boxes
6) Mark the box with shipping marks
2. According to the customer's packaging requirements.
1. Training services:
We will train your engineer to install our weigher.You can send your engineer to our factory or we dispatch our engineer to your company.We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in you contry,we will seed our engineer there if you need us to support.Of course,you need to afford the round trip flight ticket and accommodation fee.
3. Spare parts relpacement:
For spare parts support: For machine in guarantee period,if spare part broken,we will send you the parts free and we will pay the express fee,And please send us the spare part back,when machine is out of guarantee period,we will provide you the spare parts in cost price.
