Checkweigher Metal Detector Combination for Packaged Products Automatic Tunnel Checkweigher and Metal Detector
Products Description
Providing excellent and reliable product inspection equipment in an integrated and space-saving design makes this series of checkweigher metal detector combination the most technically-featured all-in-one machine on the market. The compact and reliable system of digital checkweigher and metal detector saves space on the production line and reduces the independent conveyor belt of the metal detection machine. The automatic checkweigher measures the weight of the product quickly and accurately, and removes the "exceeding" products.Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

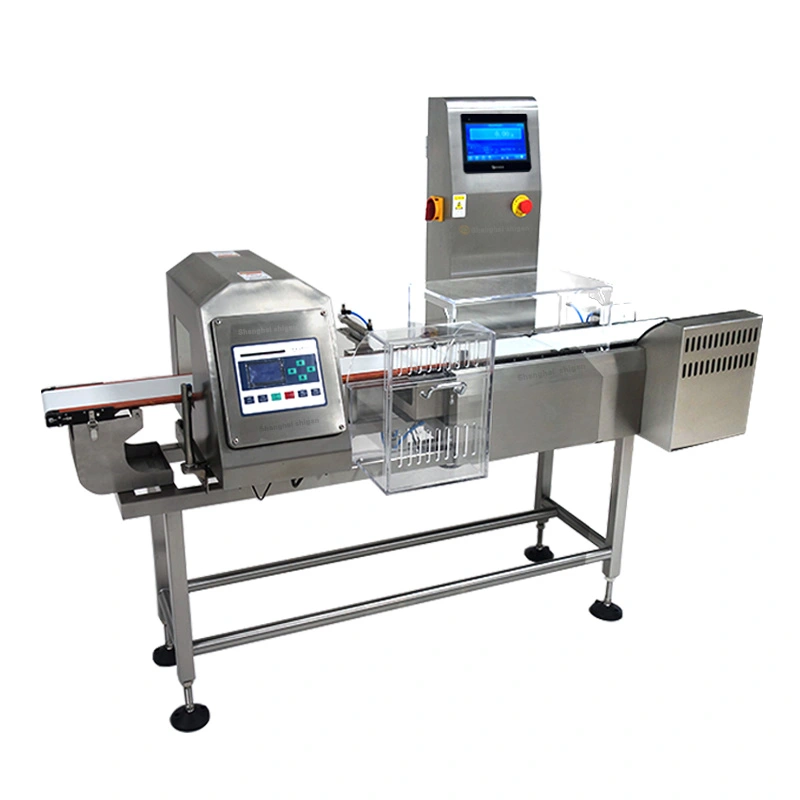

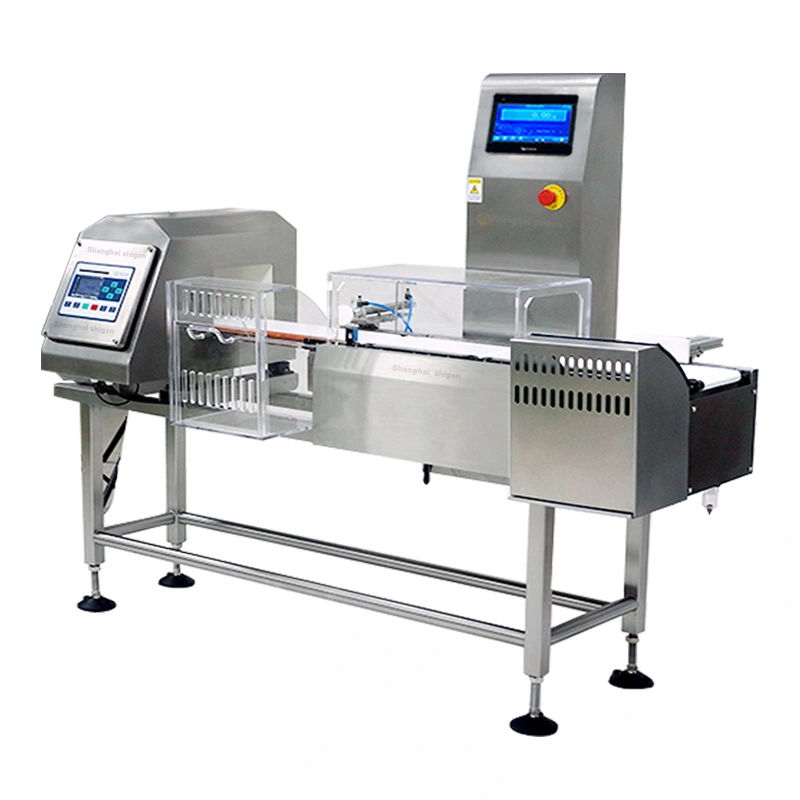

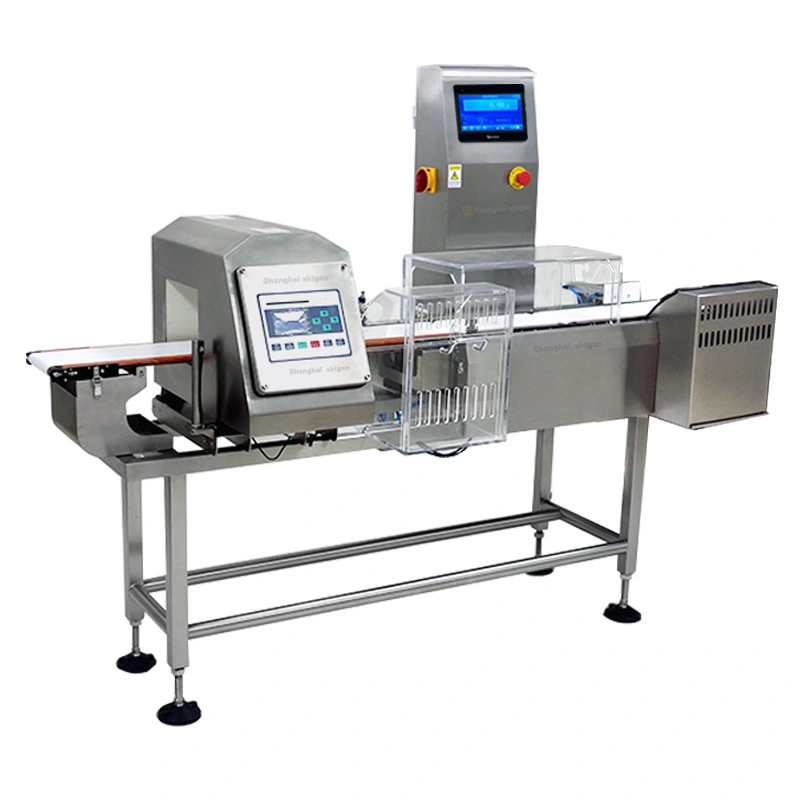

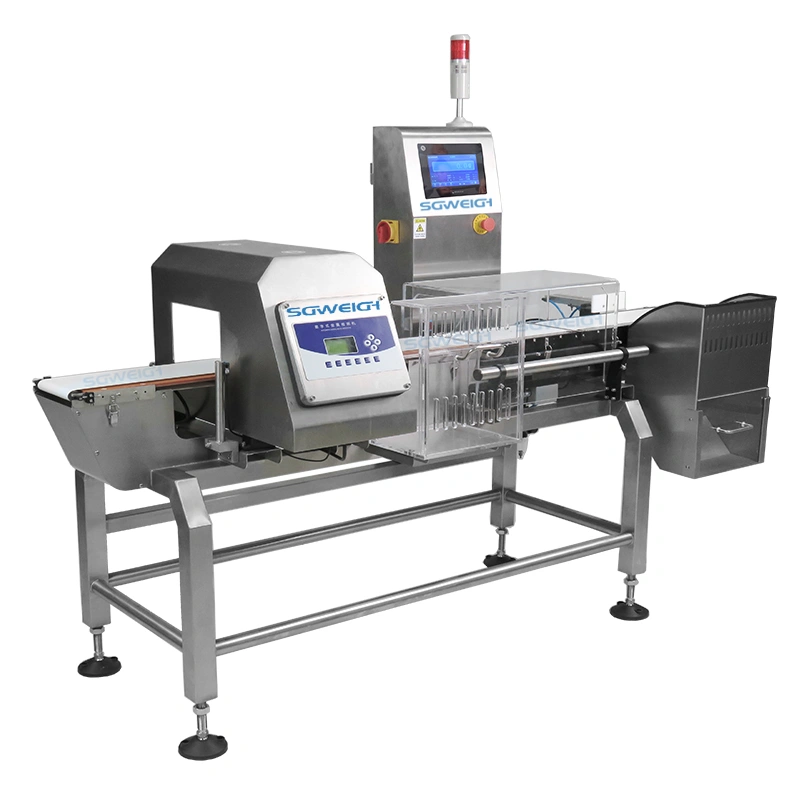

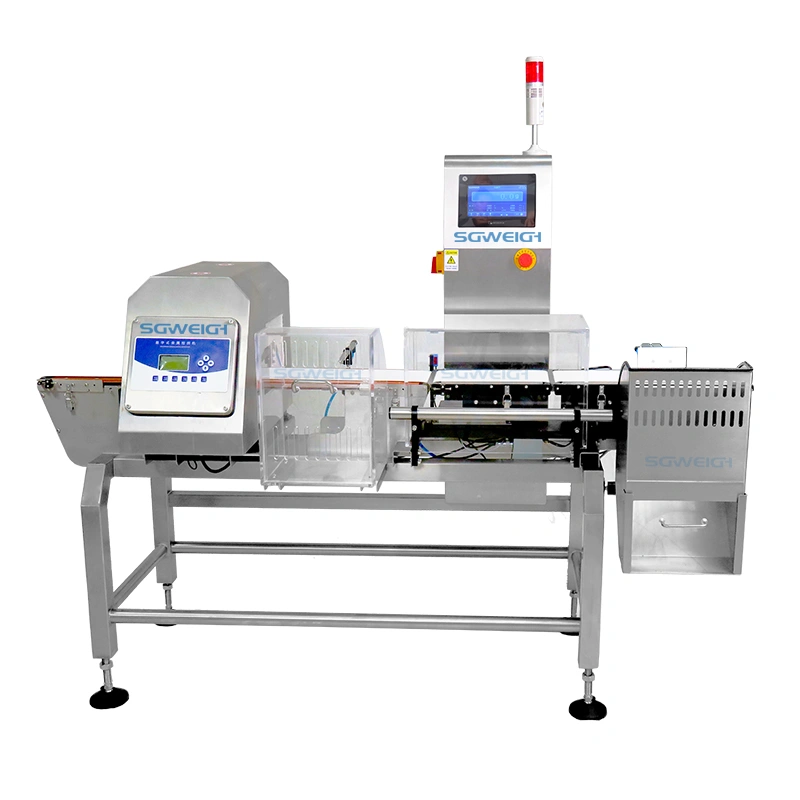

checkweigher metal detector combination photos
Product parameters
Detection method: electromagnetic induction / digital load cell
Size: 330×150mm
Accuracy: FE0.8mm SUS2.0mm
Selection accuracy: ±0.5g
Weighing range: 5 grams - 900 grams
Passing height: 110mm
Pass width: 280mm
Packaging length: ≤300mm
Display graduation value: 0.1g 0.2g 0.5g 1g
Number of sorting segments: 3 segments
Sorting ability: 60 times/min
Conveyor belt speed: 10-45 m/min
Ground height: 735mm—800mm
Working temperature: 0-40℃
Weight: about 160kg
Dimensions: 1900mm×700mm×1120mm (L×W×H)
Products can be customized on request
Main Advantages
1. Two functions in a single device Two functions in a single device
Check Weighing and Metal Detection Systems
Maximum sensitivity and reliable performance
Integrated system saves valuable wiring space
2. Simple and easy to use. Large LCD touch screen display, Chinese and English interface, language customization.
3. Precision. High-precision sensor, high detection accuracy and fast detection speed.
4. Real time. The graph shows the statistical distribution of the ranking results and grasps the ranking dynamics in real time.
5. Memory. 100 product classification parameters can be preset, and different products can be quickly switched.
6. Automatic learning. High-speed and high-precision digital filtering algorithm, data filtering parameters, automatic learning.
7. Smart. Dynamic zero tracking, including zero tracking when the equipment is running continuously, can automatically correct the weight value.
8. Reliability. Driven by variable frequency motor, effectively improve the stability of equipment operation.
9. Data.
The preset data transmission interface can set or export product classification parameters through USB.
10. Accuracy
The photoelectric calibration weighing trigger method is adopted to effectively improve the accuracy of the equipment.
11. Remove.
Multiple removal methods are optional and can remove overweight or underweight product.
Application
The checkweigher and metal detection combined system is a very compact in-line weighing and metal detection integrated device. The combination of two inspection technologies and a touchscreen user interface is the first choice for companies that require both weight inspection and metal inspection of products and companies with limited production and installation space.
Mainly used in food, medicine, electronics, chemical industry, rubber and plastics, toys, wool spinning and other industries to detect stainless steel, copper, aluminum, iron and other metal foreign bodies and online weight detection
Our Company
Founded in 2010, Shanghai Shigan Industrial Co., Ltd. is a high-tech enterprise specializing in R&D, production and sales of testing equipment. The company has been focusing on the development and sales of automatic checkweighers, digital metal detection equipment, and other assembly line equipment for more than ten years. It has become a well-known professional equipment manufacturer and service provider in the industry. The main products are digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher, etc. The company attaches great importance to the cultivation of independent research and development capabilities and the construction of technical teams, and has formed a technical team with independent research and development capabilities to ensure that the company can continuously launch new products that meet customer needs.
Sale Service
1. Service tenet: fast, decisive, accurate, thoughtful and thorough
2. Service goal: service quality to win customer satisfaction
3. Service efficiency: If the equipment fails within the warranty period or outside the warranty period, our company will arrange maintenance personnel to perform maintenance services for customers within 24 hours after receiving the notice.
4. Service principle: The product warranty period is one year. During the warranty period, our company will repair the parts damaged due to quality reasons for free. If the parts are damaged outside the warranty period, only the cost will be charged for the accessories provided. If it is due to human factors The equipment damage caused by our company, the accessories repaired or provided by our company are calculated at the cost price.
