High Speed Check Weigher Conveyor Price Electronic Inspection Checkweigher Systems Manufacturer Supplier
High speed check weigher as know as automatic checkwweigher, check weight machine, inline weight checker, dynamic weight sorting machine and etc,.
The high speed check weigher is one of the necessary facilities for advanced online dynamic weighing system. It has high automatic weighing and automatic sorting efficiency, and the maximum detection speed is 300pcs/min. Through the signal recognition and processing of the inspection checkweigher systems, It is accurately fed into the weight sorter equipment, and the products to be sorted are transported to the corresponding sorting gates. The sorting gates are to separate the items from the conveying device and enter the corresponding product sorting boxes.For further information about our services, or if you would like one of our professionals to contact you, please contact us.

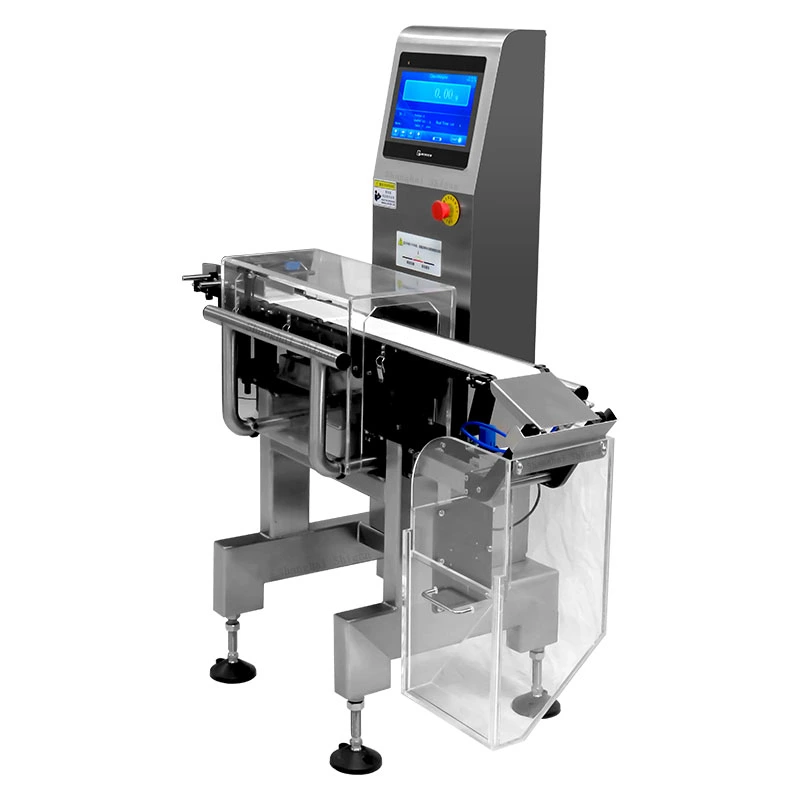

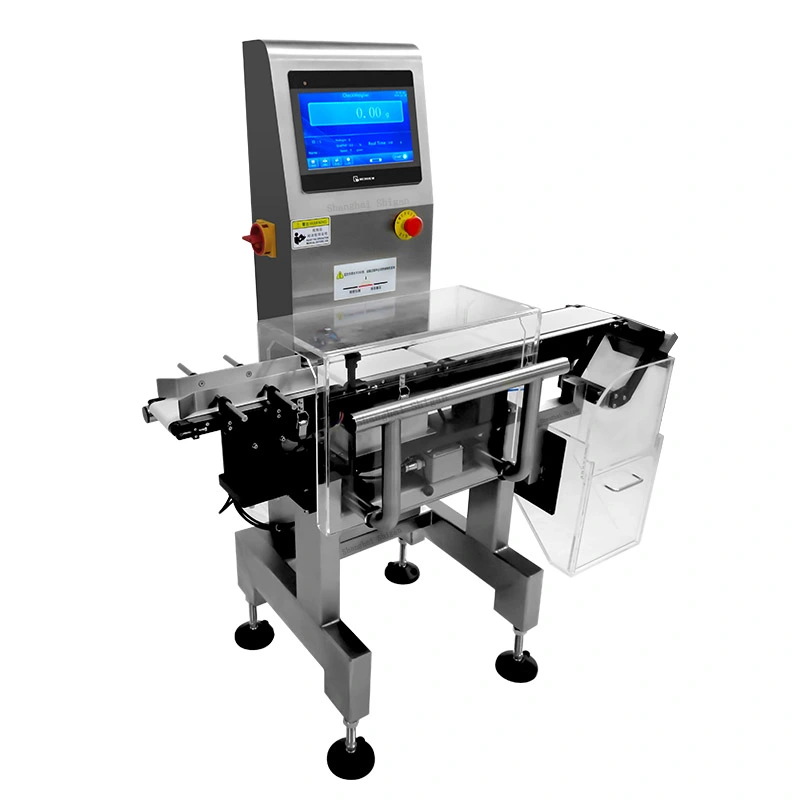

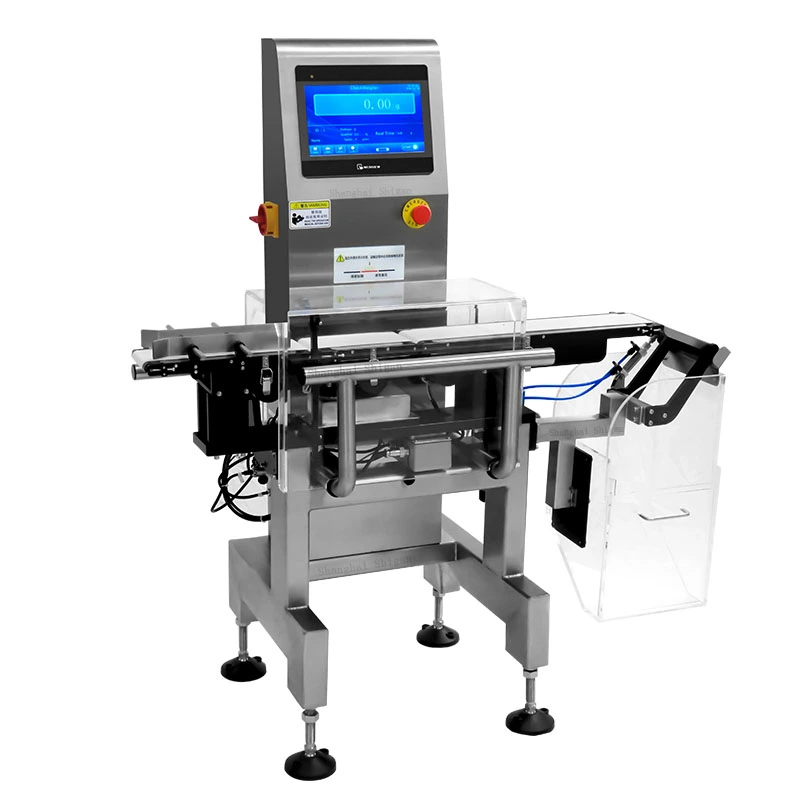

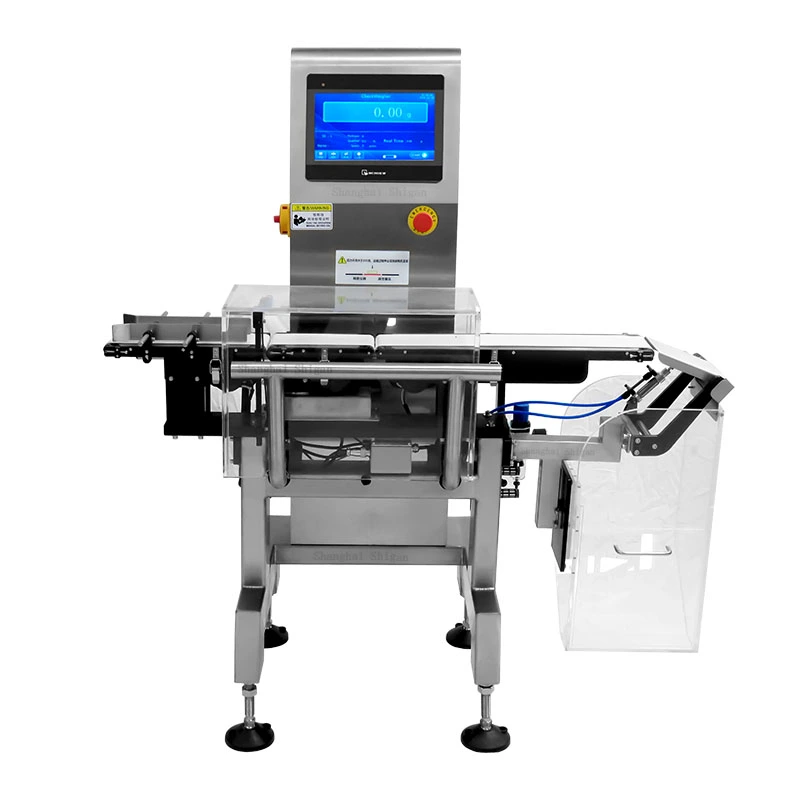

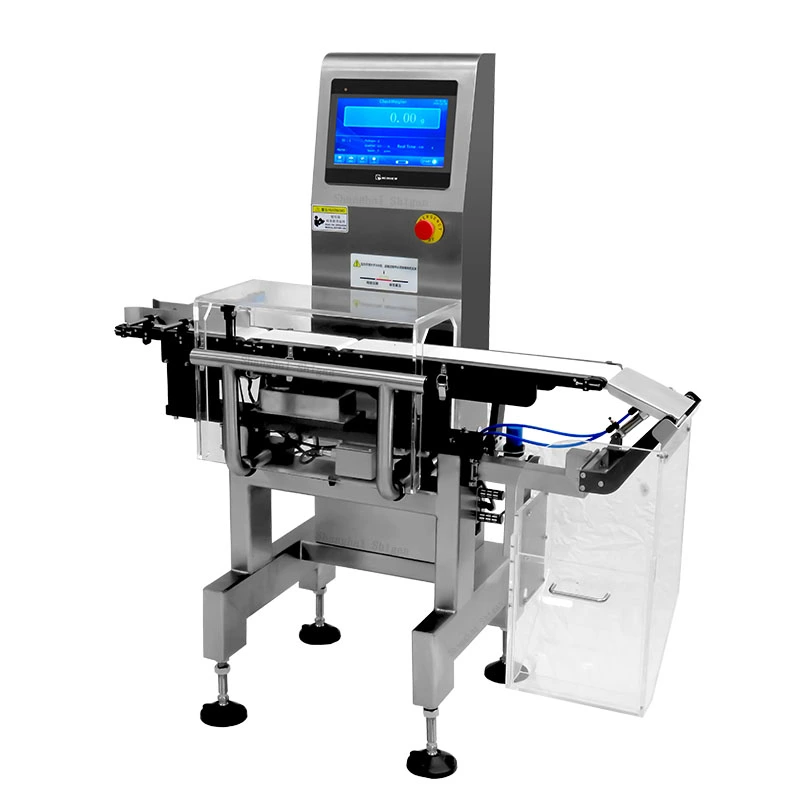

High speed check weigher system pictures
Weighing range: 1-300g; 1-600g optional
Display scale: 0.01g
High sorting capacity: 300 pieces/min
High sorting accuracy: plus or minus 0.05g
Rejection method: blowing, swing rod, push rod optional
Representation: 10.1-inch monitor
Operation mode: touch screen
Maximum display value: 310.000g; 610.000g
Size range of the tested product: length 20-200mm; width 20-160mm; height: 1-400mm
Power supply: AC 200-240V plus or minus 15%, single phase, 50hz/60hz
Machine weight: 120kg
Use temperature and humidity range: 0-40 degrees (in order to ensure the selection accuracy, the temperature change should not exceed 5 degrees / hour), the relative humidity is 30-85% without frost;
Protection class: IP30, optional IP65
Shell material: stainless steel and paint optional;
Others: The noise of this machine is lower than 70dB
This configuration can also be customized according to customer requirements.
Customized items are as follows:
1. Tailor-made countertops.
2. Highly customized.
3. The material can be customized.
4. The meter and drum can be connected wirelessly,
5. The instrument can have its own USB storage function.
6. The meter can send weight data via bluetooth.
7. The instrument can choose the automatic quantitative control output function.
8. External printer function.
9. Built-in upper and lower limit alarm light function.
10. External scanner function.
Automatic selection-automatic selection method, convenient and fast;
Adjustable speed-high-precision detection, adjustable conveying speed;
Parameter setting-arbitrary setting of upper and lower limit weight parameters;
Frequency conversion speed regulation-the conveying system adopts frequency conversion speed regulation mode, which is convenient for speed regulation;
Data storage-powerful data statistics function, record daily test data;
Data call-with set data group memory, call function, easy to operate;
Data record-accumulate OK number, underweight number, and overweight number respectively;
Fault diagnosis-self fault diagnosis and prompt function, convenient for maintenance;
Multi-group storage-100 groups of setting parameters can be stored;
Treatment method-alarm/shutdown for unqualified products, optional removal;
Data viewing-historical record query function, can be exported to U disk, directly view with office PC.
The high speed check weigher is widely used in food, beverage, pharmaceutical, sanitary products, detergent, daily chemical, chemical and other industries. The high speed checkweigher is currently an important intelligent testing equipment for reliable assembly line automatic weighing inspection or quality inspection.
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Founded in 2010, Shanghai Shigan Co., Ltd. is a high-tech enterprise specializing in R&D, production and sales of testing equipment. The company has been focusing on the development and sales of digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher and other assembly line equipment for more than ten years. It has become a well-known professional equipment manufacturer and service provider in the industry. Companies attach great importance to independent research and development ability training and technical team construction, and have formed a technical team with independent research and development capabilities. , To ensure that the company can continue to introduce new products that meet customer needs.
1. Service tenet: fast, decisive, accurate, thoughtful and thorough
2. Service goal: service quality wins customer satisfaction
3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, the solution will be provided as soon as possible
4. Service principle: The product warranty period is one year. During the warranty period, our company will repair the parts damaged due to quality reasons free of charge. If the parts are damaged outside the warranty period, the provided accessories will only charge the cost. If due to human factors If the equipment is damaged, the parts repaired or provided by our company will be calculated at the cost price.
