High-Speed Rotary Weighing Checkweigher for Bottles Accurate Weight Inspection
Ensure every bottle meets strict weight standards with the high-speed rotary checkweigher for bottle, a cutting-edge solution designed for dynamic, high-throughput production lines. This accurate rotary bottle checkweigher system features a multi-head weighing and rotating platform that supports continuous motion detection, and precision sensors instantly detect underweight or overweight bottles and trigger an immediate rejection without stopping the production line. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

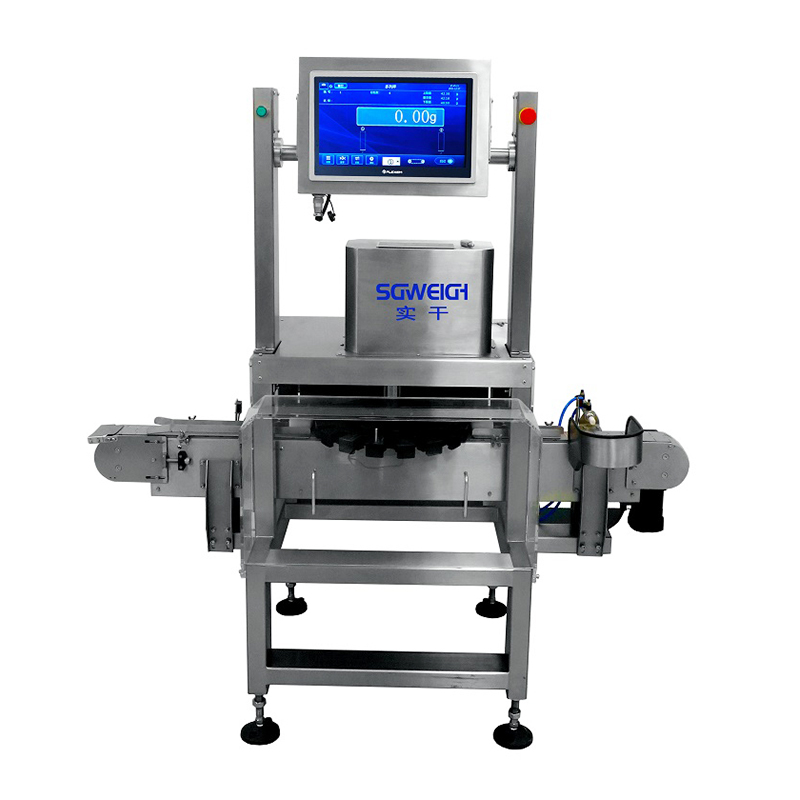

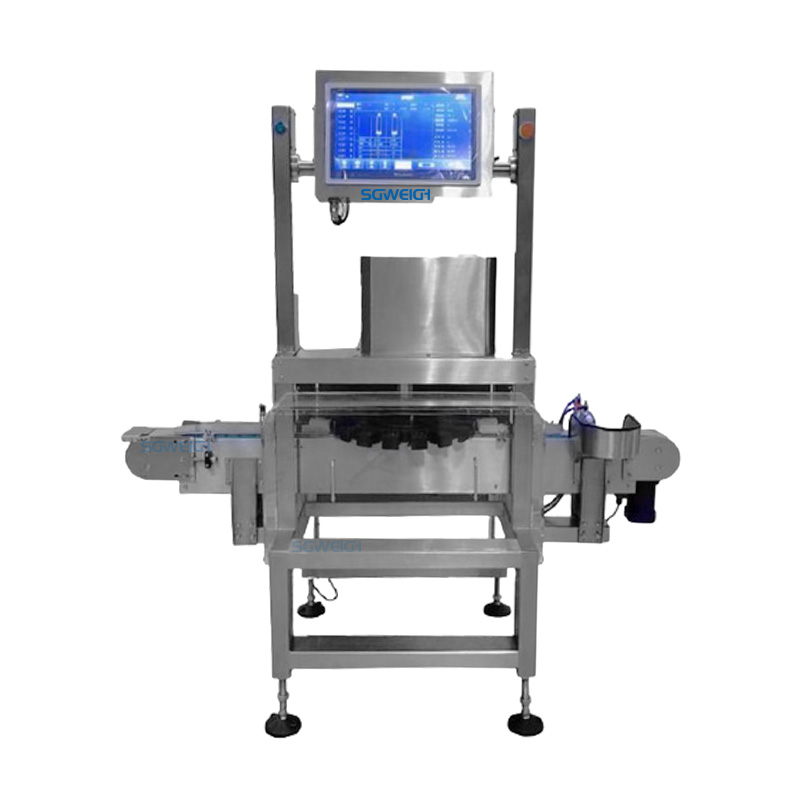

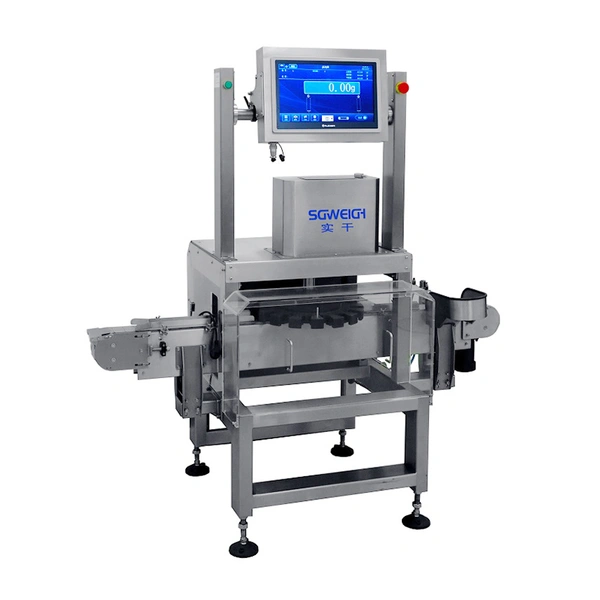

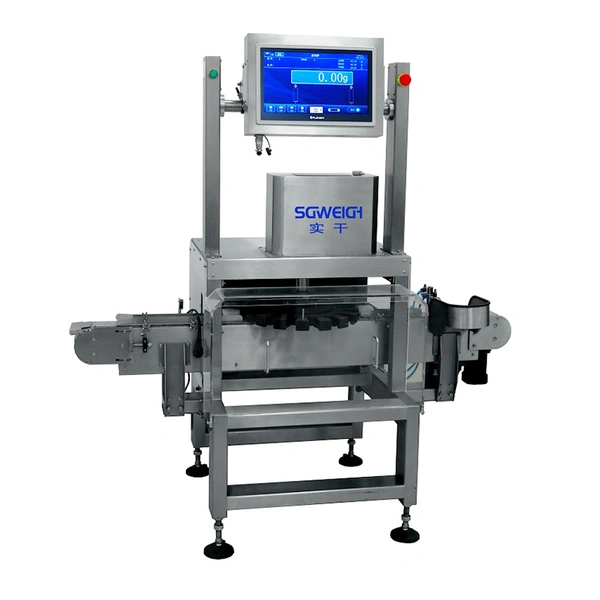

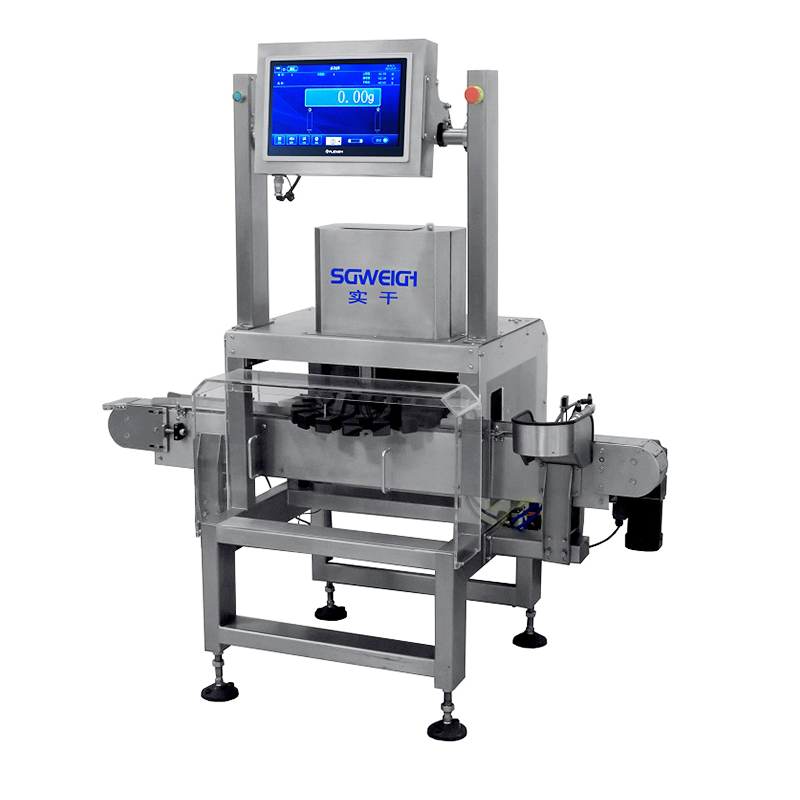

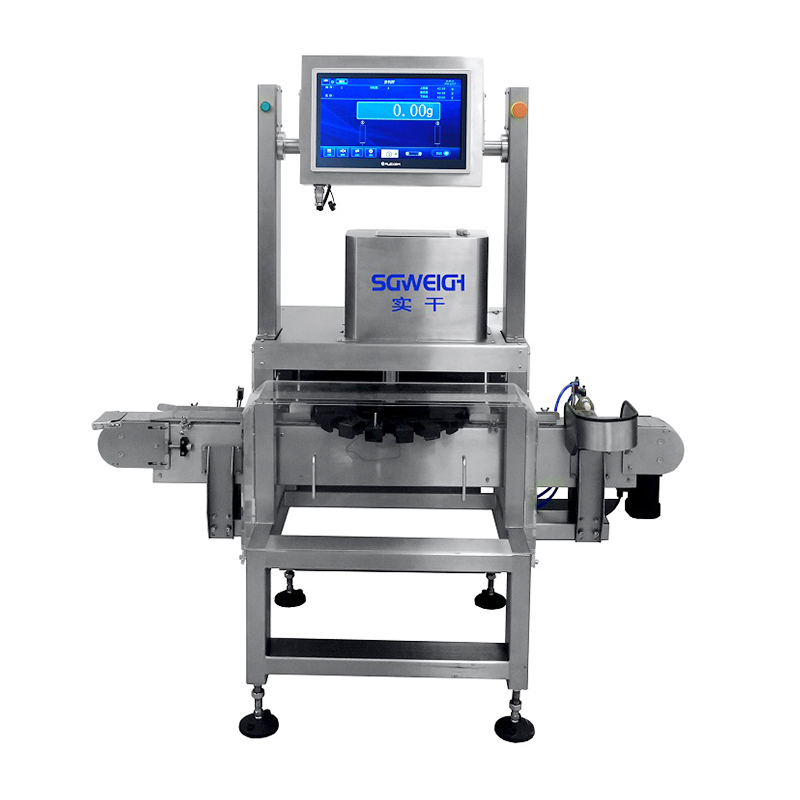

High-speed rotary checkweigher for bottle pictures
Model SG-Z1
Weighing range 5-300g
Minimum scale 0.01g
Sorting speed Maximum 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode Touch operation
Conveying direction Facing the touch screen from left to right
Rejection method Air blow rejection/push plate rejection
Belt height from ground 750±50mm (can be customized according to customer requirements)
Machine structure Stainless steel (SUS304)
Power supply 220V 50-60HZ
Power About 300W
Windshield Thick acrylic (to avoid airflow interference)
Working environment Temperature: 0℃～40℃, humidity: 30%～95%
Remarks The properties of the tested products and the use environment are different, and the detection speed and accuracy are also different. The actual test is the standard.
1. Large-size color LCD touch screen interface, simple operation and intuitive display.
2. Supports customized multi-language, default is Chinese and English.
3. With photoelectric automatic detection of empty packages, the conveyor belt speed is adjustable.
4. Parameter setting three-level password protection, only management personnel can operate.
5. Product weighing data can be exported via USB.
6. Power-off protection function, the parameters remain unchanged in case of accidental power off.
7. The parameters of different products can be set to store 100 types of test data, which is convenient for users to switch and call.
8. Data statistics function. The total number of products passing/total number of underweight products/total number of overweight products in a period of time.
9. Simple mechanical structure, buckle conveyor belt, easy to disassemble, clean and maintain. Comply with GMP and HACCP specifications.
10. Automatic dynamic compensation value, dynamic zero point tracking, including zero point tracking when the equipment is running continuously, to ensure reliable test data.
11. The curve graph/bar graph shows the statistical distribution of the sorting (re-testing) results, and the window shows the values of the last 10 re-testing results.
12. The patented technology, the single-chip system independently developed, and the unique filtering algorithm have ultra-high accuracy and reliability. Ensure system stability.
High-Speed Rotary Weighing Checkweigher for Bottles Accurate Weight Inspection
The high-speed rotary checkweigher for bottle adopts a turntable structure design, which is compact and space-saving. It is suitable for bottled products in many industries such as medicine, food, beverage, daily chemical, etc.
We accept all kinds of customization and logos on all our high-speed rotary checkweighers for bottle for customers.
If you are interested, please contact us
If you want to know more related products, more surprises are waiting for you~
Machine packing :
Non-fumigation wooden case for export standard and comply with customs clearance requirement
Lead time :
10-15 days after payment received
Price term :
FOB term, CIF/CFR term(sea/air), DDU/DDP term( sea/air)
Negotiable payment term: T/T , LC, D/P ,D/A .,etc
High-Speed Rotary Weighing Checkweigher for Bottles Accurate Weight Inspection
1. Seven-day replacement, one-year warranty, lifelong maintenance. Before the product is sold, we will conduct a strict inspection, and the product you sign for has no quality problems.
2. The products provided to customers are all original production and have original data accessories.
3. During the warranty period, our company is responsible for repairing accessories damaged due to quality reasons. If the accessories are damaged outside the warranty period, the accessories provided will only be charged at cost. If the equipment is damaged due to human factors, the accessories repaired or provided by our company will be calculated at cost.
