Inhaler Canister Rotary Check Weigher Small Metal Bottle High Precision Checkweigher Weight Checker Supplier Price
Checkweigher as known as check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, and etc,.
The bottle high precision checkweigher is particularly suitable for round or square bottles with a small diameter and a height greater than the diameter of the bottle body. Compact structure, simple adjustment, good accuracy, etc. The small bottle rotary check weigher can be embedded into the intelligent testing equipment of the assembly line for automatic weighing and detection 24/7, providing strong guarantee for the use of high-speed bottle packaging production lines. Customers can customize according to the characteristics and requirements of their own products. For further information about our services, please contact us.

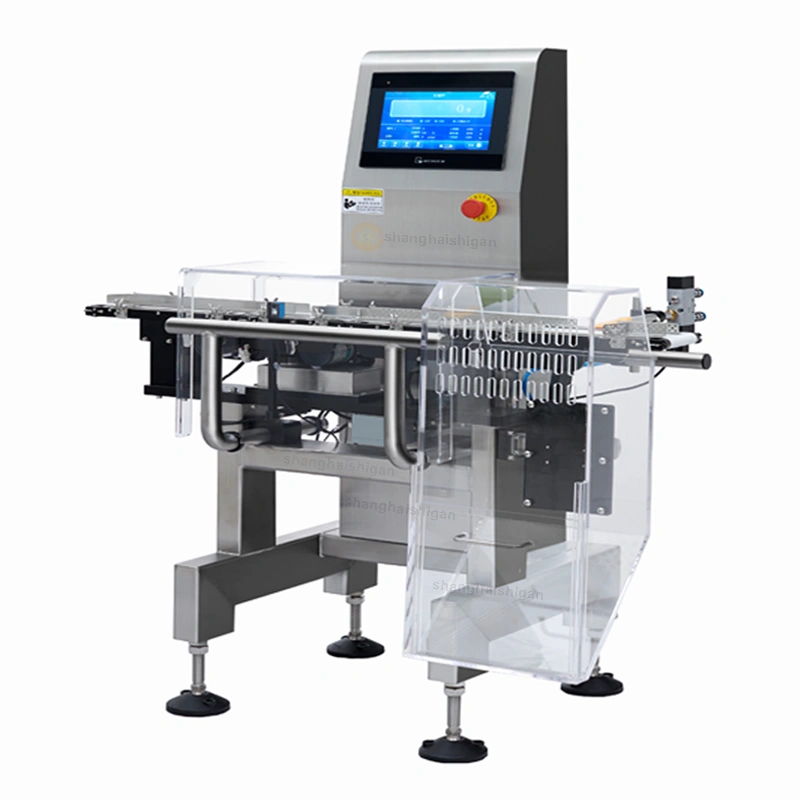

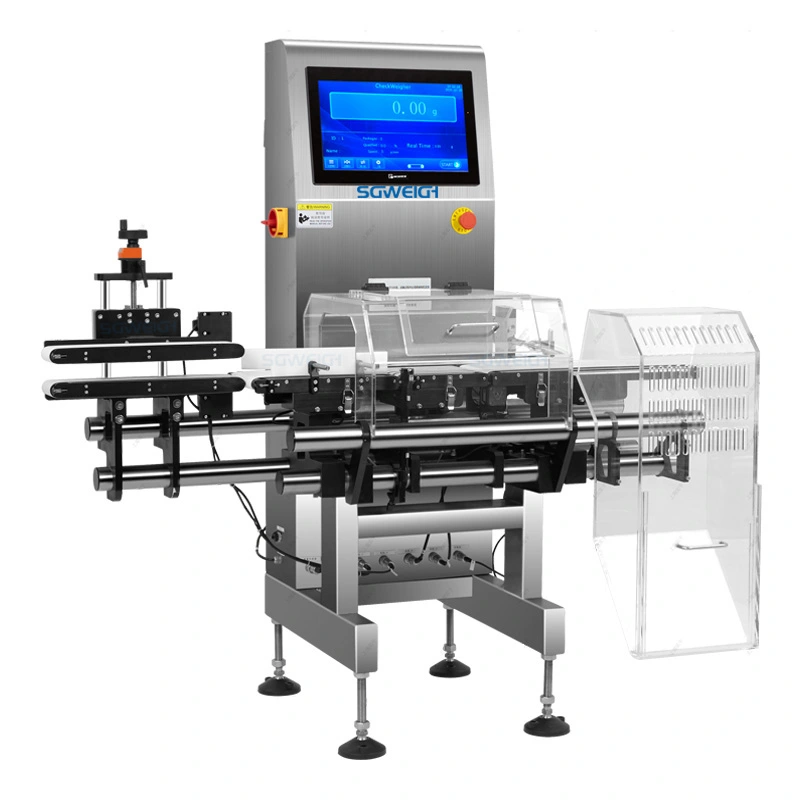

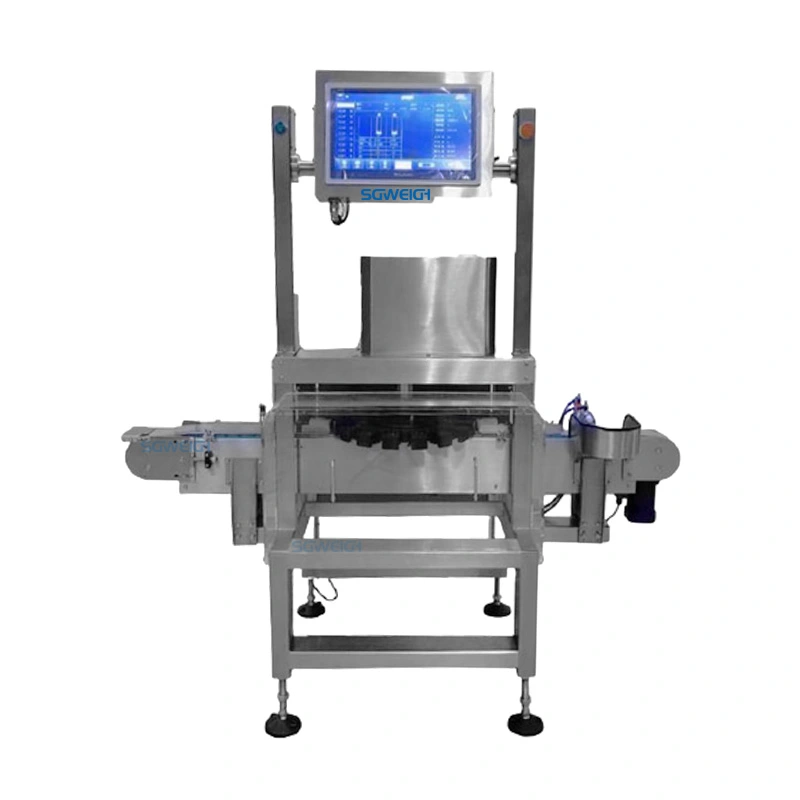

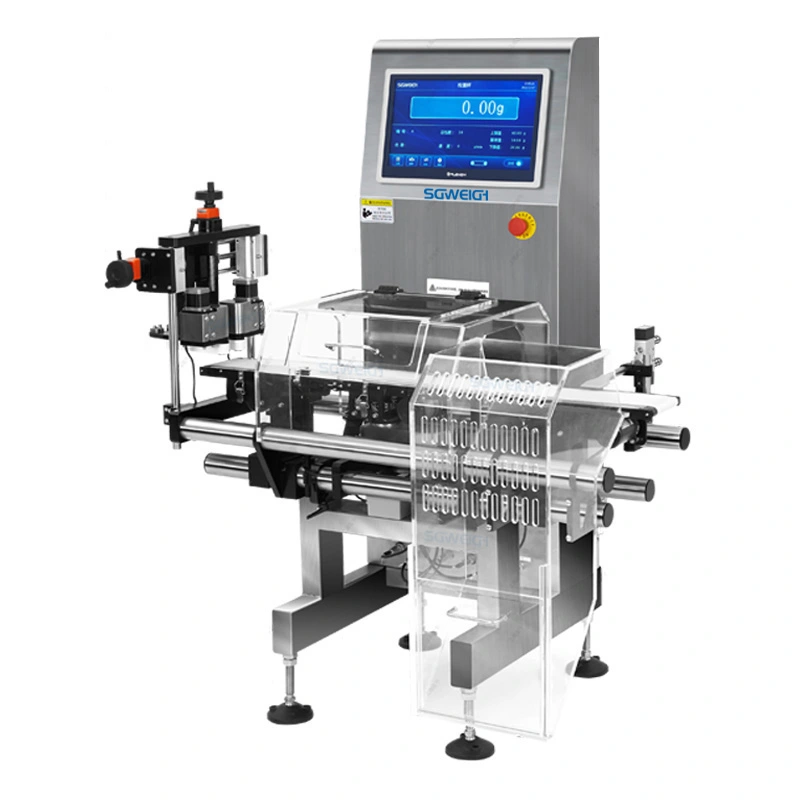

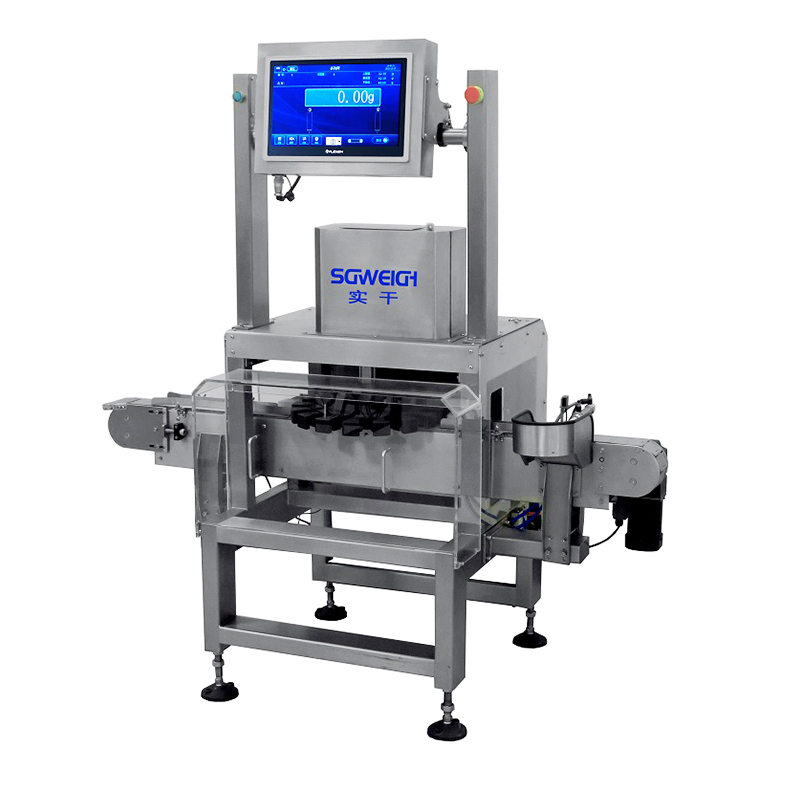

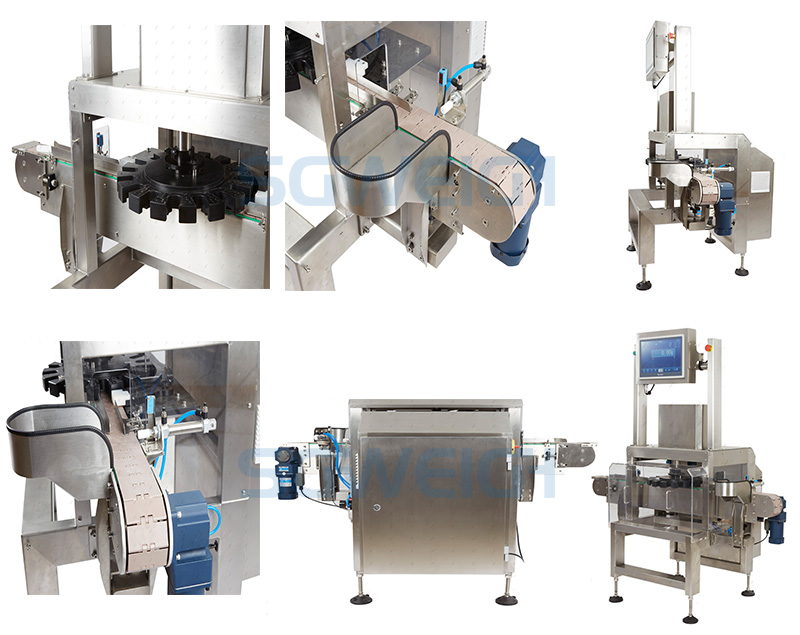

Bottle high precision checkweigherpictures
Type SG-150H
Weighing Range 3-500g
Limited of product L: 100 W:150 H: 3-150mm
Accuracy ±0.1g Depends on product
Division Scale 0.1g
Belt Speed 0- 90 m/min
Max Speed 160 pcs/min
Belt Width 150mm
Machine Weight 60kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
The above parameters are for reference only and can be customized according to requirements
Generally speaking, customers need to provide the following parameters to determine the specifications of bottle high precision checkweighers.
【 Product size range】_______________ Mm
【 Product weight range】_______________ G
【 Detection speed】____________________ P/min
【 Detection accuracy】___________________ G
【 Facing the screen conveying direction 】 Left to right, right to left
【 Belt height from ground】____________________ Mm
【 Usage Environment】_________________________________
The above information can determine the specifications and models of the bottle high precision checkweigher.
1. Strong practicality: 10 inch high color, high-resolution human-machine interface, easy to operate and friendly;
2. High stability: 24-hour high-speed and high-precision operation. Advanced and rigorous design concepts greatly reduce mechanical system failures and improve production efficiency;
3. High speed and precision: using high-speed and high-precision German HBM sensors
4. Material accessories: The entire body structure is made of 304 stainless steel, which is anti-theft, anti-corrosion, and has a long service life.
5. The weight inspection data is equipped with a standard USB interface and can be exported to Excel tables
6. Easy to maintain: Unique conveyor belt structure design, modular design, easy disassembly and cleaning, protection level IP65.
7. Easy to connect: Adopting a DC brushless motor, it is more stable and has a smaller and more refined structure. Suitable for larger speed requirements.
8. Easy to switch: can store 99 product formulas, and change product parameters with just one click.
The application fields of bottle high precision checkweighers are very extensive, such as high-speed online dynamic weight testing in multiple industries such as pharmaceuticals, food, health products, beverages, and chemical engineering.
Shanghai Shigan Industrial Co., Ltd. was established in 2010 and is a high-tech enterprise specializing in the research and development, production, and sales of checkweigher, metal detector. The company has been focusing on the development and sales of assembly line equipment such as automatic checkweighers and digital metal detector for over a decade, and has become a well-known professional equipment manufacturer and service provider in the industry. Its main products include digital metal detector,conveyor belt metal detector,automatic checkweigher metal dtector, checkweigher, high-speed and high-precision checkweigher and a series of assembly line equipment. The company attaches great importance to cultivating independent research and development capabilities and building a technical team, A technical team with independent research and development capabilities has been formed, ensuring that the company can continuously launch new products that meet customer needs.
Bottle high precision checkweigher packaged in export standard wooden boxes (non fumigation). We can accept FOB, CFR, CIF terms, and our professional logistics team can handle sea, air, and railway transportation.
Shanghai Shigan Industrial Co,.Ltd, adhering to the spirit of pursuing high-quality products and customer satisfaction, solemnly promises to you with preferential prices, thoughtful services, and reliable product quality
1. Product Quality Commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). We sincerely invite users to conduct a full process and performance inspection of the product's performance in person. After the product is confirmed to be qualified, it can be packaged and shipped.
2、 Product Price Commitment:
(1). Under the same competitive conditions, our company sincerely offers you a favorable price without compromising product technical performance or changing product components.
3、 Delivery commitment:
(1). Product delivery time: Try to meet user requirements as much as possible. If there are special requirements that require early completion, strive to meet user needs.
